Abstract

The utility model discloses a compressible portable silicone file bag based on pleats, which comprises a bag body (1) with an opening facing upward, the bag body (1) is made of silica gel material; the bag body (1) is made of a bottom surface , the front, rear and side surfaces enclose a document placement cavity in which documents can be placed; the front, rear and side surfaces are provided with concave creases (2) and convex creases (3). The document bag provided by the application is provided with concave-convex creases on the bag body, and the document bag can be compressed and folded through the concave-convex to form a pleated compressible and foldable document bag. The use of silicone material as the bag body realizes the environmental protection and recyclability of the file bag, and uses the tough and foldable characteristics of silicone to fold the file bag, which is not only convenient to use, but also saves space; the material of the file bag is silicone, which has the function of moisture-proof, So that the documents are better preserved.

Description

A pleated-based compressible portable silicone document bag

technical field

The utility model belongs to the field of office supplies, in particular to a compressible portable silicone file bag based on pleats.

Background technique

File bags are indispensable office supplies for professionals in daily life. The file bags on the market are mainly made of paper and plastic materials, and they are not foldable. Plastic document bags are used to store various documents generated in the work, and have waterproof effect. However, after the plastic document bag is scrapped, it is not easy to decompose, which will cause certain harm to the environment. There are also environmentally friendly paper file bags, such as common file bags, which are made of kraft paper. Although they can be stored for a long time, they are broken when exposed to water and are not easy to carry. Another disadvantage is that it is just a bag for holding documents, and it cannot change the size of the document loan, nor can it classify and file documents by color, which is not convenient for storage and carrying.

Utility model content

The purpose of the present utility model here is to provide a pleated compressible and foldable portable silicone file bag based on pleats that is convenient for storage and carrying.

In order to achieve the purpose of the present invention, the pleated-based compressible portable silicone file bag provided here includes a bag body with an opening facing upward, and the bag body is made of silicone material; A document placement cavity for placing documents is enclosed; concave creases and convex creases are arranged on the front, rear and side surfaces.

Further, the document bag provided by the present invention further comprises a cover, and the cover is arranged at the mouth of the bag body.

Further, the bag body is colored.

The beneficial effects of the present utility model include:

1) The document bag provided by the present application is provided with concave-convex creases on the bag body, and the document bag can be compressed and folded through the concave-convex to form a pleated compressible and foldable document bag. The use of silicone material as the bag body realizes the environmental protection and recyclability of the document bag, and uses the tough and foldable characteristics of silicone to fold the document bag, which is not only convenient to use, but also saves space.

2) The material of the document bag is silica gel, which has the function of moisture-proof, so that the documents can be better preserved.

3) The use of the design cover can prevent the documents placed in the document storage cavity from falling.

4) The use of colored bags is not only conducive to classifying documents, but also conforms to the aesthetics of young people.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the invention and together with the description serve to explain the principles of the invention. Obviously, the drawings in the following description are only some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort. In the attached image:

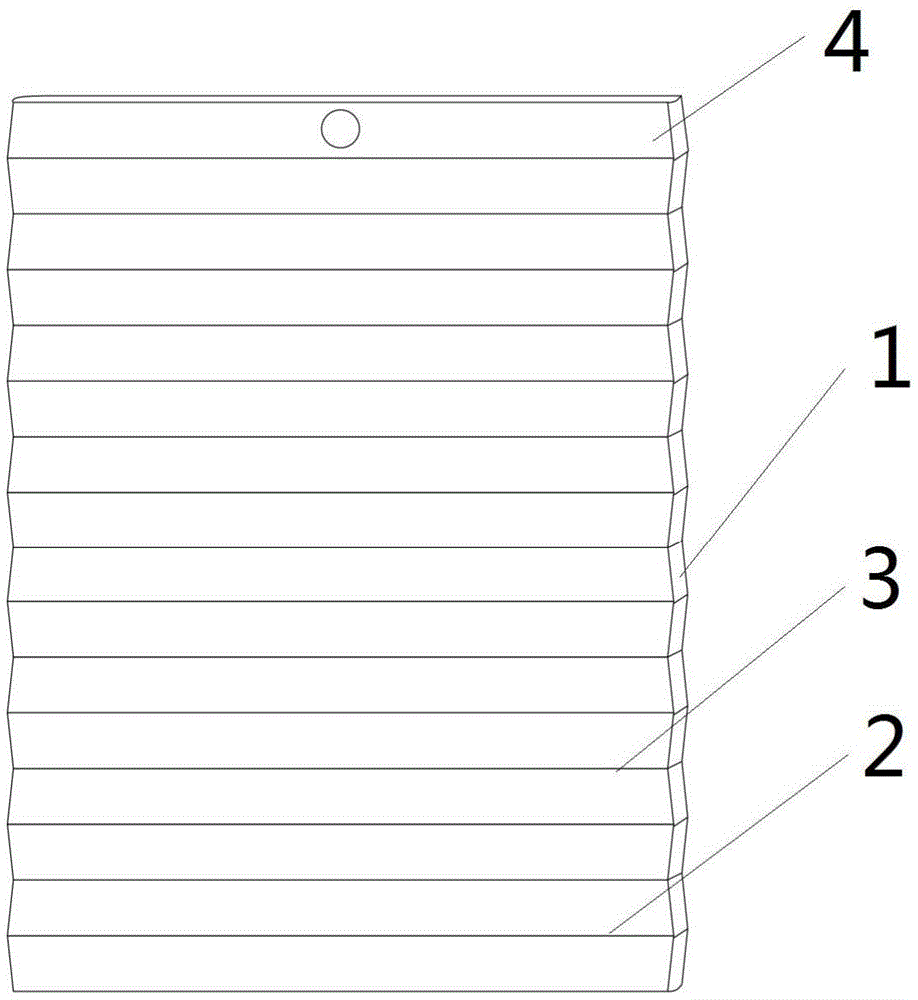

1 is a schematic diagram of the compression state of the compressible portable silicone file bag based on pleats provided by the utility model;

Fig. 2 is one of the schematic diagrams of the stretched state of the compressible portable silicone file bag based on the wrinkle provided by the utility model;

Fig. 3 is the third schematic diagram of the stretched state of the compressible portable silicone file bag based on pleats provided by the utility model;

Fig. 4 is the drawing process diagram of the folding-based compressible portable silicone file bag provided by the utility model;

5 is a top view of a pleated-based compressible portable silicone file bag provided by the present invention;

Fig. 6 is the bottom view of the compressible portable silicone file bag based on pleats provided by the utility model;

In the attached drawings: 1-bag body, 2-concave crease, 3-convex crease, 4-cover.

Detailed ways

Example embodiments will now be described more fully with reference to the accompanying drawings. Example embodiments, however, can be embodied in various forms and should not be construed as limited to the examples set forth herein; rather, these embodiments are provided so that this disclosure will be thorough and complete, and will fully convey the concept of example embodiments conveyed to those skilled in the art.

Furthermore, the described features, structures, or characteristics may be combined in any suitable manner in one or more embodiments. In the following description, numerous specific details are provided in order to give a thorough understanding of the embodiments of the present invention. However, those skilled in the art will appreciate that the technical solutions of the present invention may be practiced without one or more of the specific details, or other methods, components, devices, steps, etc. may be employed. In other instances, well-known methods, devices, implementations, or operations have not been shown or described in detail to avoid obscuring aspects of the present invention.

Referring to Figures 1-6, the present invention provides a pleated-based compressible portable silicone file bag, the file bag includes the structures in the following examples.

Example 1

The pleated-based compressible portable silicone document bag provided in this example includes a bag body 1 with an upward opening, and the bag body 1 is made of a silicone material; the bag body 1 is surrounded by a bottom surface, front, rear and side surfaces to form a document storage cavity that can place documents ; There are concave crease 2 and convex crease 3 on the front and back and the side.

Example 2

The pleat-based compressible portable silicone file bag provided in this example includes all the technical features in Example 1, and further includes a cover 4 , which is provided at the mouth of the bag body 1 . As shown in Figure 5, using the softness and elasticity of silicone, heat and press the top edge (the part with the bold line in the figure), and the force of the automatic rebound will make the cover 4 closed and the document will not fall out.

The front, back and sides described in Example 1 and Example 2 are surrounded by a piece of silicone material. The left and right sides of the bottom surface are semi-circular arc shapes, as shown in Figure 6. The left and right sides of the bottom surface are designed in a semi-circular arc shape, which makes it more convenient for the file bag to be flattened, and the angular structure is not convenient for stacking.

In this article, the bag body 1 has a colorful bag body, such as various bright candy colors; using a variety of bright candy color bag bodies makes it easier to classify documents.

Other embodiments of the present invention will readily occur to those skilled in the art upon consideration of the specification and practice of the technical content disclosed herein. This application is intended to cover any modifications, uses or adaptations of the present invention that follow the general principles of the present invention and include common knowledge or common knowledge in the technical field not disclosed by the present invention. conventional technical means. The specification and examples are to be regarded as exemplary only, with the true scope and spirit of the invention being indicated by the following claims.

Claims (5)

1. The utility model provides a compressible portable silica gel file pocket based on fold which characterized in that: comprises a bag body (1) with an upward opening, wherein the bag body (1) is made of a silica gel material; the bag body (1) is enclosed by a bottom surface, a front surface, a back surface and side surfaces to form a file placing cavity for placing files; the front and back faces and the side faces are provided with concave creases (2) and convex creases (3).

2. A collapsible portable silicone based file pouch according to claim 1, wherein: the bag is characterized by further comprising a cover (4), wherein the cover (4) is arranged at the bag opening of the bag body (1).

3. A collapsible portable silicone file pouch according to claim 1 or 2, wherein: the front and back surfaces and the side surfaces are surrounded by a block of silica gel material.

4. A collapsible portable silicone file pouch according to claim 1 or 2, wherein: the left side and the right side of the bottom surface are in a semi-circular arc shape.

5. A collapsible portable silicone file pouch according to claim 1 or 2, wherein: the bag body (1) is a colorful bag body.
