Abstract
The utility model discloses a field operations environment vein puncture is with multi-functional integrated form ring, including the ring shell, the ring lid that ring shell top is connected is equipped with the battery rack in the ring shell, installs button cell in the battery rack, battery rack connection control panel, be equipped with the switch on the control panel, the hole exposure that the switch passes through on the ring shell is in the ring shell outside, it is equipped with the lamp mounting panel to control the board top, is equipped with combination lamp and far infrared vein development lamp on the lamp mounting panel, combination lamp and far infrared vein development lamp shine through two holes that the ring covered setting, the combination lamp has LED cold light lamp and ultraviolet ray disinfection lamp combination to form. This ring adopts the illumination of can hiding of LED cold light lamp, and the field operations environment is difficult for exposing the target, and far infrared vein develops the lamp and makes medical personnel's finding vein blood vessel quick accurate more, disinfects through the ultraviolet ray disinfection lamp, has practiced thrift the time, can effectively promote venipuncture speed, improves rescue efficiency.
Description
Technical Field
The patent of the utility model relates to an auxiliary medical supplies especially relates to a field operations environment venipuncture is with multi-functional integrated form ring.
Background
When salvaging the sick and wounded under the field operations environment, need carry out rapid timely venous transfusion, field operations environment light condition is relatively weak, and especially night time visibility is lower, and the blood vessel filling degree that causes such as blood loss is poor in addition, and medical personnel hardly accomplish venipuncture fast, often need relapse just can successfully puncture the blood vessel, cause unnecessary misery to the sick and wounded, endanger life even.
The venipuncture auxiliary assembly that has been applicable to in the field operations environment can only provide the illumination effect, and under the field operations environment, because the condition such as personnel's wound is bled and the temperature is lower can cause the flat of blood vessel to sink, only provides the illumination and supports still difficult the finding blood vessel. In the field operation environment, medical personnel carry disinfecting articles such as iodohydrin and the like which are used for disinfection, so that the field operation environment is special, the field operation environment is inconvenient and inconvenient to use, and the speed of the medical personnel for venipuncture is restricted.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a field operations environment venipuncture is with multi-functional integrated form ring can provide the cold light illumination, adopts the ultraviolet ray to carry out the skin of venipuncture closely miniaturation, uses the far infrared to carry out the vein and develops, makes things convenient for medical personnel to promote the speed of venipuncture under the field operations environment, the life of rescue wounded.
In order to achieve the above purpose, the utility model discloses a technical scheme is: a multifunctional integrated ring for venipuncture in field operations environment comprises a ring shell, a ring cover connected with the top of the ring shell, a battery holder arranged in the ring shell, a button battery arranged in the battery holder, a control panel connected with the battery holder, and a switch arranged on the control panel and exposed outside the ring shell through a hole on the ring shell, a lamp mounting plate arranged above the control panel and provided with a combination lamp and a far infrared vein developing lamp, wherein the combination lamp comprises an LED cold light lamp and an ultraviolet ray disinfection lamp, the LED cold light lamp, the ultraviolet ray disinfection lamp and the far infrared vein developing lamp are all connected on the control panel through wires, one end of the LED cold light lamp is connected on the control panel, the other end of the LED cold light lamp is connected with one end of the far infrared vein developing lamp, the other end of the far infrared ray vein developing lamp is connected on the control panel, and one end of the ultraviolet ray, the other end of the ultraviolet disinfection lamp is connected with the other end of the LED cold light lamp and is connected with the LED cold light lamp in parallel, and the combination lamp and the far infrared vein developing lamp irradiate through two holes arranged on the ring cover.
Further, the combination lamp is formed by combining an LED cold light lamp and an ultraviolet disinfection lamp, the far infrared vein developing lamp is firstly used for developing vein blood vessels, then the ultraviolet disinfection lamp is used for disinfecting skin at a specified position, the LED lamp is switched after disinfection, and vein puncture is completed under the assistance of development of the far infrared vein developing lamp.
Further, the lamp mounting plate can be detached, so that the lamp and the battery can be replaced conveniently.
Furthermore, the combined lamp is controlled by a switch, one side of the combined lamp rotating to the switch is used for lighting the LED cold light lamp, and the other side of the combined lamp rotating to the switch is used for lighting the ultraviolet disinfection lamp.
Further, far infrared ray that far infrared ray vein development lamp adopted develops vein blood vessel, and supplementary medical personnel carry out the venipuncture.
Compared with the prior art, the utility model discloses a beneficial effect as follows:
the utility model discloses a through adopting the LED cold light lamp to throw light on, be favorable to hiding, be difficult for exposing the target, utilize ultraviolet disinfection lamp to carry out closely the disinfection of miniscope, convenient and fast has practiced thrift the time of venipuncture, uses far infrared vein development lamp to make medical personnel can be more quick accurate find the vein, has improved the speed of venipuncture, simultaneously the utility model discloses a wear the operation habit when using method to accord with medical personnel to carry out venipuncture more, only need single operation can accomplish the venipuncture, can effectively promote the efficiency of rescuing, have good application effect under the field operations environment.
Drawings

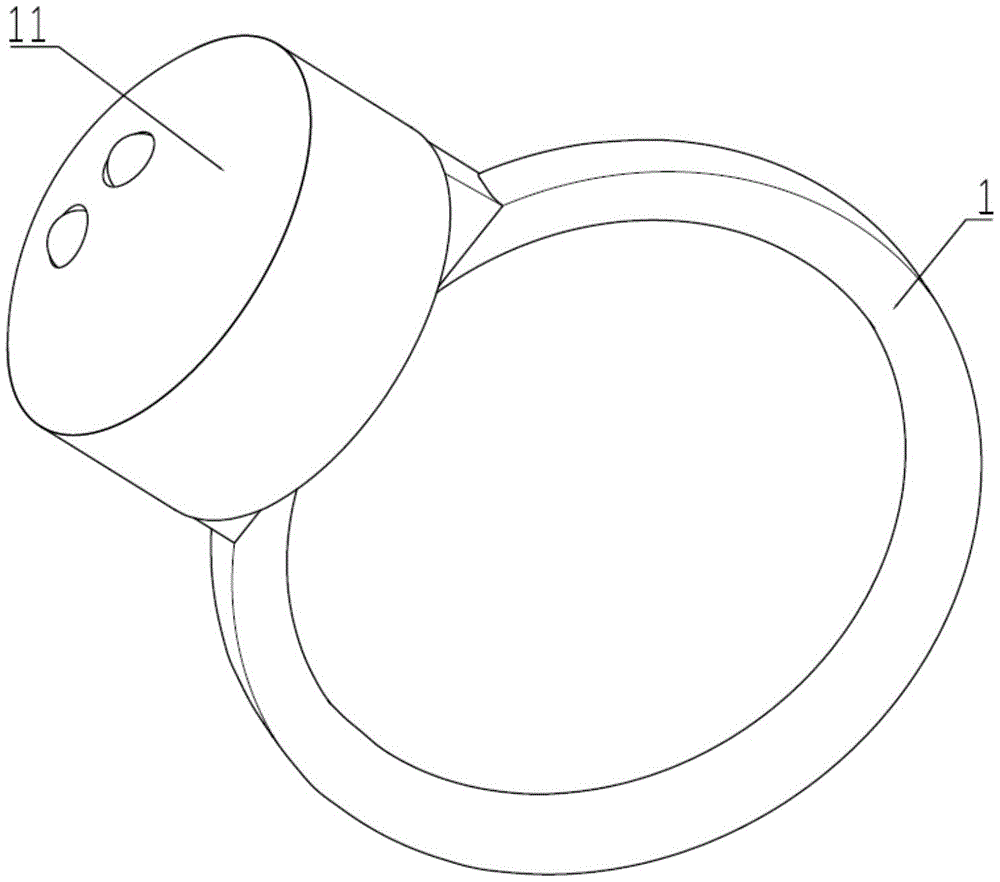

FIG. 1 is a perspective view of the present invention;
fig. 2 is a main sectional view of the present invention;
fig. 3 is a schematic diagram of the circuit connection of the present invention.
In the figure: 1. a ring housing; 11. a finger ring cover; 2. a battery holder; 21. a button cell; 3. a control panel; 31. A switch; 4. a lamp mounting plate; 41. a combination lamp; 411. an LED cold light lamp; 412. an ultraviolet disinfection lamp; 42. Far infrared vein development lamp.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments, not all embodiments, of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention.
As shown in figures 1 and 2, a multifunctional integrated finger ring for venipuncture in field operations environment comprises a finger ring casing 1, a finger ring cover 11 is connected on the finger ring casing 1, a battery holder 2 is arranged in the finger ring casing 1, a button battery 21 is arranged on the battery holder 2, the battery holder 2 is connected with a control panel 3, a switch 31 is arranged on the control panel 3, the switch 31 extends out through a hole on the finger ring casing 1 for facilitating the control of the finger ring, a lamp mounting plate 4 is connected on the control panel 3, a combination lamp 41 and a far infrared vein developing lamp 42 are arranged at the center of the lamp mounting plate 4, the combination lamp 41 and the far infrared vein developing lamp 42 irradiate through a hole arranged on the finger ring cover 11, the combination lamp comprises an LED cold light lamp 411, an ultraviolet disinfection lamp 412 and an LED cold light lamp 411, the ultraviolet disinfection lamp 412 and the far infrared ray vein developing lamp 42 are connected to the control panel 3 through wires.
As shown in fig. 3, one end of the LED cold light 411 is connected to the control board 3, the other end of the LED cold light 411 is connected to one end of the far infrared vein developing lamp 42, the other end of the far infrared vein developing lamp 42 is connected to the control board 3, one end of the ultraviolet disinfection lamp 412 is connected to the control board 3, the other end of the ultraviolet disinfection lamp 412 is connected to the other end of the LED cold light 411, the LED cold light 411 and the ultraviolet disinfection lamp 412 are connected in parallel, the LED cold light 411 and the ultraviolet disinfection lamp 412 do not work simultaneously, during work, the LED cold light 411 is used for illumination after the ultraviolet disinfection lamp 412 is disinfected, meanwhile, the far infrared vein developing lamp 42 is used for vein developing, and the work.
In this embodiment, the button cell 21 is adopted to effectively reduce the volume of the ring, and the combination lamp 41 is formed by combining the ultraviolet disinfection lamp 412 and the LED cold light lamp 411 and irradiates through one irradiation hole.
The working process is as follows: the utility model discloses a when using, at first wear the ring on the forefinger or the middle finger of left hand, one side of ring lid 11 is in palm center one side, rotate one side with switch 31 before carrying out the vein puncture, LED cold light 411 and far infrared vein development lamp 42 carry out work, carry out vein's video picture earlier, then use ultraviolet ray disinfection lamp 412 to disinfect, then rotate switch 31 to the opposite side, LED cold light 411 switches over to ultraviolet ray disinfection lamp 412 and disinfects, the time of shining should be controlled within 100 seconds, then, switch back LED cold light 411 and far infrared vein development lamp 42 and shine, carry out vein puncture by medical personnel.
In summary, the following steps: this ring is through adopting LED cold light lamp 411 to throw light on, is favorable to hiding, is difficult for exposing the target, utilizes ultraviolet disinfection lamp 412 to carry out closely the disinfection of miniscope, and convenient and fast practices thrift puncture operating time, uses far infrared vein development lamp 42 to make medical personnel can be quicker accurate find vein, promotes venipuncture speed, simultaneously the utility model discloses a wear the operation habit when using method to accord with medical personnel to carry out venipuncture more, only need one-man operation can accomplish venipuncture, promoted the efficiency of rescuing, have good application effect under the field operations environment.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a field operations environment venipuncture is with multi-functional integrated form ring, includes ring shell (1), ring lid (11) that ring shell (1) top is connected are equipped with battery rack (2) in ring shell (1), install button cell (21) in battery rack (2), battery rack (2) connection control panel (3), its characterized in that: the control panel (3) is connected with a switch (31), the switch (31) is exposed outside the ring shell (1) through a hole on the ring shell (1), a lamp mounting plate (4) is arranged above the control panel (3), a combination lamp (41) and a far infrared vein developing lamp (42) are arranged on the lamp mounting plate (4), the combination lamp (41) comprises an LED cold light lamp (411) and an ultraviolet disinfection lamp (412), the LED cold light lamp (411), the ultraviolet disinfection lamp (412) and the far infrared vein developing lamp (42) are connected on the control panel (3) through wires, wherein one end of the LED cold light lamp (411) is connected on the control panel (3), the other end of the LED cold light lamp (411) is connected with one end of the far infrared vein developing lamp (42), the other end of the far infrared vein developing lamp (42) is connected on the control panel (3), one end of the ultraviolet disinfection lamp (412) is connected on the control panel (3), the other end of the ultraviolet disinfection lamp (412) is connected with the other end of the LED cold light lamp (411) and is connected with the LED cold light lamp (411) in parallel, and the combination lamp (41) and the far infrared vein developing lamp (42) irradiate through two holes arranged on the finger ring cover (11).
2. The multifunctional integrated finger ring for venipuncture in field operations environment according to claim 1, wherein: LED cold light lamp (411) and ultraviolet ray disinfection lamp (412) do not carry out work simultaneously, use far infrared vein to develop lamp (42) earlier and carry out the vein development after, use ultraviolet ray disinfection lamp (412) to disinfect and switch over LED cold light lamp (411) illumination, under the development of far infrared vein development lamp (42) is supplementary, accomplish the venipuncture.
3. The multifunctional integrated finger ring for venipuncture in field operations environment according to claim 1, wherein: the lamp mounting plate (4) can be detached, so that the lamp and the battery can be replaced conveniently.
4. The multifunctional integrated finger ring for venipuncture in field operations environment according to claim 1, wherein: the combined lamp (41) is controlled by the switch (31), the LED cold light lamp (411) is turned on when the combined lamp rotates to one side of the switch (31), and the ultraviolet disinfection lamp (412) is turned on when the combined lamp rotates to the other side of the switch (31).
5. The multifunctional integrated finger ring for venipuncture in field operations environment according to claim 1, wherein: the far infrared vein developing lamp (42) is used for developing vein blood vessels by adopting far infrared light and assisting medical care personnel in venipuncture.
