Multifunctional table

Technical Field

The utility model belongs to the technical field of the technique of furniture and specifically relates to a multifunctional table.

Background

The table is one of common furniture at present, and the table is generally fixed and supported by smooth planes and supporting legs, can be used for placing other articles or doing things, and generally comprises an office table, a dining table, a tea table, a leisure table, a folding table on a bed and the like. Along with the progress of society and science and technology, the desk has various styles, materials and personalized designs, and is deeply loved and sought after by people.

Existing tables generally include: the support chassis is fixedly connected with the object placing plate to stably support the object placing plate, and the surface of the object placing plate is smooth and flat to place various articles for daily use; this drawer can be through pulling and pushing away in order to realize opening the drawer or closed, convenient and fast, and this drawer can be used for neatly accomodating some widgets or some important article for article are put neatly, are difficult to lose, so this desk is the furniture that people often used such as desk, study table and dining table usually.

The above prior art solutions have the following drawbacks: the height of the existing desk is generally fixed, and the heights of most users are different, so that the problem that most users feel uncomfortable when using the desk for working is easily caused, and the requirements of most users cannot be met.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, one of the purposes of the utility model is to provide a multifunctional table, which has the effect of effectively adjusting the height of the table, thereby meeting the requirements of users with different heights; meanwhile, the drawer of the desk can be automatically closed conveniently, and the desk can be moved conveniently, so that the functional diversity and practicability of the desk can be improved.

The above utility model discloses an above-mentioned utility model purpose can realize through following technical scheme:

a multi-function table, comprising: the chassis, sliding connection has the support frame on the chassis, the desktop mounting panel is installed at the top of support frame, install the polylith on the side of support frame, with the curb plate that the desktop mounting panel matches, sliding connection has the drawer on the curb plate, the drawer with be provided with between the curb plate and be used for right the drawer is pulled out or closed sliding assembly, the chassis with still be provided with between the support frame and be used for right the support frame carries out lift adjustment's adjusting part.

By adopting the technical scheme, the sliding assembly is arranged, so that the drawer can be conveniently opened, and the automatic closing effect of the drawer can be realized, and the situation that the drawer is opened all the time when the drawer is forgotten to be closed can be avoided; through setting up adjusting part, can have and carry out effectual regulation effect to the height of desk to can satisfy the user's of different heights demand, and then can improve the effect of the functional diversity and the practicality of desk.

The present invention may be further configured in a preferred embodiment as: the adjusting assembly comprises a plurality of supporting sleeve rods which are arranged at the bottom of the supporting frame and matched with the underframe; the supporting blocks are symmetrically arranged on two sides of the bottom of the supporting sleeve rod; the adjusting rod is hinged on the supporting block; the hook is connected to one end, away from the supporting block, of the adjusting rod; a hook hole which penetrates through the side wall of the support loop bar and is matched with the hook; a plurality of hook grooves which are symmetrically arranged on the side surface of the bottom frame and correspond to the hook holes; and the compression spring is connected between the adjusting rod and the outer side wall of the supporting sleeve rod.

Through adopting above-mentioned technical scheme, when the needs highly adjust the desk, earlier the application of force is outside the couple pull-out hook hole on the regulating stem, then remove the chassis to required position, make hook groove on the chassis correspond each other with the hook hole that supports on the loop bar, loosen the regulation pole at last, make the couple under compression spring's the shrink effect that resets, in order to insert hook hole and hook groove simultaneously, thereby can stabilize each other with chassis and bracing piece and support, and then can realize the effect of adjusting the height of desk.

The present invention may be further configured in a preferred embodiment as: the sliding assembly comprises sliding blocks which are symmetrically arranged on two sides of the drawer; a plurality of pulleys hinged on the side of the sliding block away from the drawer; the sliding chute is arranged on the side surface of the side plate and is abutted against the pulley; and a telescopic spring arranged between the drawer and the side plate.

By adopting the technical scheme, the drawer can be conveniently opened and can be automatically closed by arranging the structure that the sliding block, the pulley and the sliding groove are matched with each other; meanwhile, the drawer can be further effectively pulled by arranging the telescopic spring, so that the drawer can be closed automatically and better.

The present invention may be further configured in a preferred embodiment as: rubber strips are arranged between the drawer and the side plates.

Through adopting above-mentioned technical scheme, through setting up the rubber strip, can be convenient for play the effect of buffering to the drawer, in order to avoid the condition of drawer striking on the curb plate.

The present invention may be further configured in a preferred embodiment as: the bottom of chassis still is provided with and is used for to the moving member that the chassis removed, the moving member includes: a plurality of struts mounted to the bottom of the chassis; a swing lever hinged to the strut; the bearing plate is connected to one end, far away from the support rod, of the swinging rod; and the universal wheel is hinged to the bottom of the bearing plate.

By adopting the technical scheme, the table can be conveniently moved to an appointed position through the universal wheel by arranging the structure that the supporting rod, the swinging rod, the bearing plate and the universal wheel are matched with each other, so that the labor intensity of a user for carrying the table is reduced; and can be when need not using the universal wheel, place the universal wheel upswing to can avoid the universal wheel to contact ground, so as to cause the problem that stability reduces.

The present invention may be further configured in a preferred embodiment as: the chassis is also provided with a support bracket, and the support bracket is matched with the body of the swinging rod.

Through adopting above-mentioned technical scheme, support through setting up and hold in the palm, can be convenient for stabilize the effect of supporting to the swinging arms to can realize supporting the effect of holding up the universal wheel.

The present invention may be further configured in a preferred embodiment as: the support frame can also be detachably provided with a containing basket.

Through adopting above-mentioned technical scheme, accomodate the basket through the setting, can be convenient for deposit the article that often use in accomodating the basket to can take convenient and fast more when needs use.

The present invention may be further configured in a preferred embodiment as: the desktop mounting plate is made of transparent glass.

Through adopting above-mentioned technical scheme, be transparent glass through setting up the desktop mounting panel, can be convenient for see the locating place of the article in the drawer to can more efficient take required article when article are taken.

To sum up, the utility model discloses a following at least one useful technological effect:

1. by arranging the sliding assembly, the drawer can be opened conveniently, and the automatic closing effect of the drawer can be realized, so that the situation that the drawer is opened all the time when the drawer is forgotten to be closed can be avoided; by arranging the adjusting component, the height of the table can be effectively adjusted, so that the requirements of users with different heights can be met, and the functional diversity and the practicability of the table can be improved;

2. by arranging the structure that the supporting rod, the swinging rod, the bearing plate and the universal wheels are matched with each other, the table can be conveniently moved to a specified position through the universal wheels, so that the labor intensity of a user for carrying the table is reduced; when the universal wheel is not needed, the universal wheel can be placed in an upward swinging mode, so that the problem that the stability is reduced due to the fact that the universal wheel is in contact with the ground can be solved;

3. through setting up the desktop mounting panel for transparent glass, can be convenient for see the locating position of the article in the drawer to can more efficient take required article when taking article.

Drawings

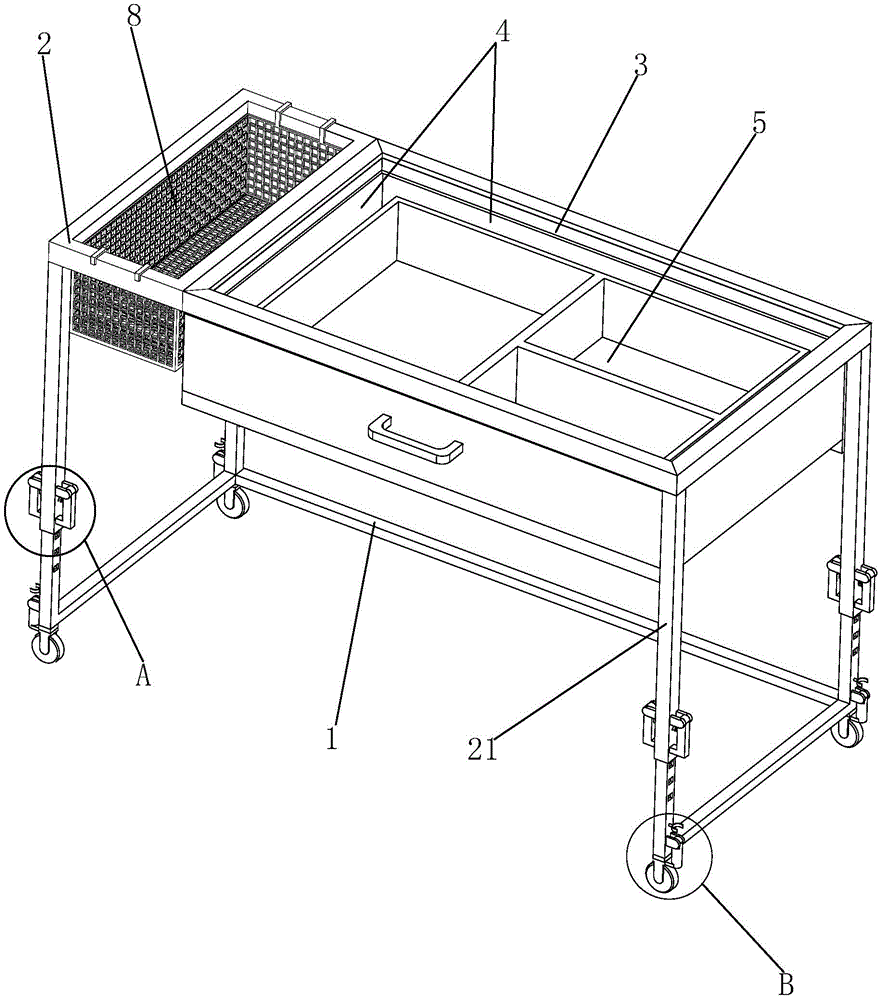

Fig. 1 is a schematic view of the overall structure of the multifunctional table according to the embodiment;

FIG. 2 is an enlarged schematic view of portion A of FIG. 1;

FIG. 3 is a schematic structural view of the sliding assembly of the present embodiment;

fig. 4 is an enlarged schematic view of a portion B in fig. 1.

In the figure, 1, a chassis; 11. a hook groove; 12. a strut; 13. a swing lever; 14. a carrier plate; 15. a universal wheel; 16. a support bracket; 2. a support frame; 21. supporting the loop bar; 211. a support block; 212. adjusting a rod; 213. hooking; 214. a hook hole; 215. a compression spring; 3. a desktop mounting plate; 4. a side plate; 41. a chute; 5. a drawer; 51. a slider; 511. a pulley; 6. a tension spring; 7. a rubber strip; 8. a storage basket.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

As shown in fig. 1, the utility model discloses a multifunctional table, which comprises: the underframe 1 is formed by welding a plurality of stainless steel rods, has the advantages of high hardness and oxidation and corrosion resistance of stainless steel, and can prolong the service life of the underframe 1; the underframe 1 is also connected with a support frame 2 in a sliding way, and the support frame 2 is also made of stainless steel as the material of the underframe 1; and a plurality of side plates 4 are fixedly arranged on the side surfaces of the support frame 2, in the embodiment, the side plates 4 are respectively arranged on two corresponding side surfaces of the support frame 2, the back surface of the support frame 2 and the bottom of the support frame 2; meanwhile, a desktop mounting plate 3 is fixedly mounted at the top of the support frame 2, the desktop mounting plate 3 covers the tops of the four side plates 4 to form a cabinet cylinder, a drawer 5 is connected in the cabinet cylinder in a sliding mode, and the drawer 5 is a box body formed by a plurality of connecting plates in a surrounding mode and used for placing objects.

And separate into a plurality of holding cavitys by the polylith baffle in this drawer 5, these some holding cavitys can be used for placing different types of article to in order to classify to article, thereby can carry out neat effectual putting to article, and then can convenient to use person take fast and place article.

Preferably, in this embodiment, this desktop mounting panel 3 is transparent glass, so can be convenient for see the locating place of the article in the drawer 5 to can more efficient take required article when taking article, and this transparent glass is a toughened glass, so has the good advantage of high strength and thermal stability, is difficult for receiving the destruction, thereby can improve this desktop mounting panel 3's life.

More optimally, in the embodiment, one side of the support frame 2 far away from the drawer 5 is further provided with a storage basket 8, the storage basket 8 is detachably mounted on the support frame 2 through a plurality of hanging rods, and the storage basket 8 can be conveniently stored in the storage basket 8 for articles frequently used through arrangement of the storage basket 8, so that the articles can be taken more conveniently and quickly when the articles are needed to be used.

As shown in fig. 1 and 2, in order to satisfy the requirements of people with different heights, the table can be used by people with different heights, so in the embodiment, an adjusting component is arranged between the underframe 1 and the supporting frame 2, and the adjusting component can have an effective adjusting effect on the height of the table, so that the requirements of users with different heights can be satisfied, and the functional diversity and the practicability of the table can be improved.

Specifically, as shown in fig. 2, in the present embodiment, the adjusting assembly includes: a plurality of support loop bars 21 are fixedly arranged at the bottom of the support frame 2, and the support loop bars 21 are matched with the underframe 1, so that the support loop bars 21 can slide on the underframe 1; two supporting blocks 211 are fixedly arranged on the corresponding side surfaces of the bottom of the supporting loop bar 21, an adjusting bar 212 is hinged on the two supporting blocks 211, a hook 213 is fixedly connected to one end of the adjusting bar 212 far away from the supporting blocks 211, a hook hole 214 is arranged on the supporting loop bar 21 in a penetrating manner, and the hook hole 214 is matched with the hook 213; meanwhile, a plurality of hook grooves 11 are formed in the bottom frame 1, and the hook grooves 11 correspond to the hook holes 214; and a compression spring 215 is connected between the adjusting rod 212 and the outer side wall of the supporting sleeve rod 21, and the compression spring 215 can facilitate the traction of the adjusting rod 212.

When the height of the table needs to be adjusted, a force is applied to pull the hook 213 on the adjusting rod 212 out of the hook hole 214, then the base frame 1 is lifted and moved to a required position, so that the hook groove 11 on the base frame 1 corresponds to the hook hole 214 on the support loop bar 21, finally the adjusting rod 212 is loosened, and the hook 213 on the adjusting rod 212 is inserted into the hook hole 214 and the hook groove 11 simultaneously under the resetting and contracting action of the compression spring 215, so that the base frame 1 and the support loop bar 21 can be stably supported with each other, and the effect of adjusting the height of the table can be realized; meanwhile, the underframe 1 is retracted into the supporting sleeve rod 21, so that the table can be conveniently and effectively transported and stored.

As shown in fig. 1 and 3, in order to facilitate the effective automatic closing effect of the drawer 5, in this embodiment, a sliding assembly is disposed between the drawer 5 and the two corresponding side plates 4 on the supporting frame 2, and the sliding assembly not only can facilitate the opening effect of the drawer 5, but also can achieve the automatic closing effect of the drawer 5, so as to avoid the situation that the drawer 5 is opened all the time when the drawer 5 is forgotten to be closed.

Specifically, as shown in fig. 3, in the present embodiment, the slide assembly includes: two sliding blocks 51 are symmetrically and fixedly installed on two sides of the drawer 5, pulleys 511 are hinged on the side faces of the sliding blocks 51 departing from the drawer 5, an arc-shaped sliding groove 41 is formed in the side face of the side plate 4 facing the pulleys 511, the arc-shaped sliding groove 41 gradually rises along the pulling-out direction of the drawer 5, and the sliding groove 41 and the pulleys 511 are mutually abutted; and an extension spring 6 is connected between the connecting block and the side plate 4, and the extension spring 6 can facilitate the effective traction effect on the drawer 5.

Through the arrangement of the structure that the sliding block 51, the pulley 511 and the sliding groove 41 are matched with each other, not only can the drawer 5 be conveniently opened, but also the sliding groove 41 is in an arc-shaped structure, so that the drawer 5 can reset and slide along the sliding groove, and the automatic closing effect of the drawer 5 can be realized; simultaneously through setting up expanding spring 6, also can further carry out effectual traction effect to drawer 5 to can make the better automatic closed effect of realization of drawer 5.

Preferably, all fixed mounting has rubber strip 7 on the rear surface of this drawer 5 and the side of this curb plate 4, when drawer 5 closed along spout 41 for rubber strip 7 on the rear surface of drawer 5 and the rubber strip 7 on this curb plate 4 butt each other, in order to play the effect of buffering to drawer 5, thereby can avoid the condition of drawer 5 striking on curb plate 4 to take place.

As shown in fig. 4, in order to effectively move the table and reduce the labor intensity of the user when carrying the table, in the present embodiment, a moving member is mounted on the bottom of the base frame 1, and the moving member includes: a plurality of supporting rods 12 are fixedly arranged on the side surface of the bottom of the underframe 1, one end of each supporting rod 12, which is far away from the underframe 1, is hinged with a swinging rod 13, one end of each swinging rod 13, which is far away from the corresponding supporting rod 12, is fixedly connected with a bearing plate 14, and the bearing plate 14 is used for supporting the underframe 1; and universal wheels 15 are hinged to the bottom of the bearing plate 14.

Through the mutual matching structure of the support rod 12, the swinging rod 13, the bearing plate 14 and the universal wheel 15, the table can be conveniently moved to a specified position through the universal wheel 15, so that the labor intensity of a user for carrying the table is reduced; and can be when not needing to use universal wheel 15, place universal wheel 15 upswing to can avoid universal wheel 15 contact ground, so as to cause the problem of stability reduction.

Preferably, as shown in fig. 4, in the present embodiment, a plurality of supporting brackets 16 are further fixedly mounted on the base frame 1, and the supporting brackets 16 respectively cooperate with the swing rod 13 to stably support the swing rod 13, so as to achieve the effect of supporting the supporting brackets 16 by the universal wheels 15, and further to stably place the table on the ground.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. A multi-function table, comprising: chassis (1), its characterized in that, sliding connection has support frame (2) on chassis (1), desktop mounting panel (3) are installed at the top of support frame (2), install the polylith on the side of support frame (2), with curb plate (4) that desktop mounting panel (3) match, sliding connection has drawer (5) on curb plate (4), drawer (5) with be provided with between curb plate (4) and be used for right drawer (5) pull out or closed sliding assembly, chassis (1) with still be provided with between support frame (2) and be used for right support frame (2) carry out lift adjustment's adjusting part.

2. The multi-function table as claimed in claim 1, wherein the adjustment assembly comprises: a plurality of supporting sleeve rods (21) which are arranged at the bottom of the supporting frame (2) and are matched with the underframe (1); the supporting blocks (211) are symmetrically arranged on two sides of the bottom of the supporting sleeve rod (21); an adjusting lever (212) hinged to the supporting block (211); a hook (213) connected to one end of the adjusting rod (212) departing from the supporting block (211); a hook hole (214) which penetrates through the side wall of the support loop bar (21) and is matched with the hook (213); a plurality of hook grooves (11) which are symmetrically arranged on the side surface of the bottom frame (1) and correspond to the hook holes (214); and a compression spring (215) connected between the adjusting lever (212) and the outer side wall of the support bar (21).

3. The multi-function table according to claim 1, wherein the sliding assembly comprises: the sliding blocks (51) are symmetrically arranged on two sides of the drawer (5); a plurality of pulleys (511) hinged to the side of the slider (51) facing away from the drawer (5); a sliding chute (41) which is arranged on the side surface of the side plate (4) and is abutted with the pulley (511); and a telescopic spring (6) arranged between the drawer (5) and the side plate (4).

4. A multi-purpose table according to claim 3, wherein a rubber strip (7) is provided between the drawer (5) and the side plate (4).

5. A multi-purpose table according to claim 1, characterized in that the bottom of said base frame (1) is also provided with moving members for moving said base frame (1), said moving members comprising: a plurality of struts (12) mounted to the bottom of the chassis (1); a swinging rod (13) hinged on the supporting rod (12); a bearing plate (14) connected to one end of the swinging rod (13) far away from the support rod (12); and a universal wheel (15) hinged to the bottom of the bearing plate (14).

6. A multi-purpose table according to claim 5, characterized in that said base frame (1) is further provided with a support bracket (16), said support bracket (16) being adapted to cooperate with said oscillating bar (13).

7. A multi-purpose table according to claim 1, wherein a receiving basket (8) is also removably mounted on the support frame (2).

8. A multi-function table according to claim 1, wherein the table top mounting plate (3) is a transparent glass.
