Abstract

The utility model discloses a portable push-pull tent, the structure thereof includes tent support and tarpaulin, the tent support includes a plurality of stands, each the equal division of stand is two for the left and right sides, and the stand one-to-one setting of two for the left and right sides, the top of each stand of one row all is equipped with a first connecting rod that can stretch out and draw back in multistage, be located and all be equipped with between two adjacent stands of one row and cut fork and first folding rod, be located the corresponding two stand tops of different rows and be equipped with the second folding rod, each the second folding rod is connected with a second connecting rod that can stretch out and draw back in multistage, the upper portion of two corresponding stands that are located different rows still is equipped with the third folding rod, each the third folding rod all is equipped with a flexible bracing piece; the utility model discloses simple structure, convenient operation and portable have reduced the degree of difficulty of transportation, are favorable to people's use.

Description

Portable push-and-pull tent
Technical Field
The utility model relates to a tent technical field especially relates to a push-and-pull tent convenient to carry.
Background
The tent is a shed which is supported on the ground to shield wind and rain and sunlight and is used for temporary living, the multifunctional canvas is made, together with objects for supporting, the multifunctional canvas can be detached and transferred at any time, the tent is carried in a component mode and is assembled after arriving at the site, therefore, various components and tools are needed, the names and the using methods of the components are known, the tent can be quickly and conveniently put up by knowing the structure of the tent, the push-pull tent is one of tents, the push-pull tent is inconvenient to carry, the existing push-pull tent is composed of a plurality of components, and the multifunctional tent is large in size, difficult to carry and disassemble, brings great troubles for transportation, and is not beneficial to use of people.
SUMMERY OF THE UTILITY MODEL
To the above problem, the utility model provides a push-and-pull tent convenient to carry.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is: a portable push-pull tent comprises a tent support and a tent cloth covering the tent support, wherein the tent support comprises a plurality of upright posts, the number of the upright posts is even, each upright post is divided into a left column and a right column, the left column and the right column are arranged in a one-to-one correspondence manner, a first connecting rod capable of stretching in multiple sections is arranged at the top of each upright post in the same column, the top of each upright post is connected with the corresponding first connecting rod, a shear fork and a first folding rod are arranged between every two adjacent upright posts in the same column, two ends of each shear fork are movably connected with the corresponding upright posts respectively, two ends of each first folding rod are movably hinged with the corresponding upright posts respectively, the folding joints of the first folding rods are connected with the corresponding first connecting rods, second folding rods are arranged at the tops of the corresponding two upright posts in different columns, each the both ends of second folding rod respectively with each that corresponds the stand top is articulated, each be connected with a flexible second connecting rod of multistage on the second folding rod, and each the folding joint of second folding rod all is fixed in on the second connecting rod, the upper portion that is located two corresponding stands of different lists still is equipped with third folding rod, and each the both ends of third folding rod respectively with each that corresponds stand swing joint, each all be equipped with a flexible bracing piece on the third folding rod, each the one end and the each that corresponds of flexible bracing piece the folding joint of second folding rod connects, and the other end and each that corresponds the folding joint of third folding rod connects.
Preferably, each telescopic supporting rod is an electric push rod.
Preferably, the number of the stand columns is eight, and the left and right columns are four.
From the above description of the structure of the present invention, compared with the prior art, the present invention has the following advantages:
the utility model provides a pair of portable push-and-pull tent, when the tent props up, through stretching two columns of stands from beginning to end, each scissor and first folding rod expand, and meanwhile first connecting rod and second connecting rod extend, make tent support longitudinal extension, then through controlling each flexible bracing piece extension, each second folding rod and second connecting rod upwards bulge and form the tent top, each third folding rod extension transversely backs up each stand of two columns, realizes the horizontal extension of tent, accomplish the action of propping up of tent through fixing each stand at last; similarly, the tent can be folded quickly by reverse operation, and meanwhile, the tent bracket in the device is provided with a plurality of folding mechanisms, so that the folded tent has small volume and is convenient to pack and carry; the utility model discloses simple structure, convenient operation and portable have reduced the degree of difficulty of transportation, are favorable to people's use.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification. In the drawings:

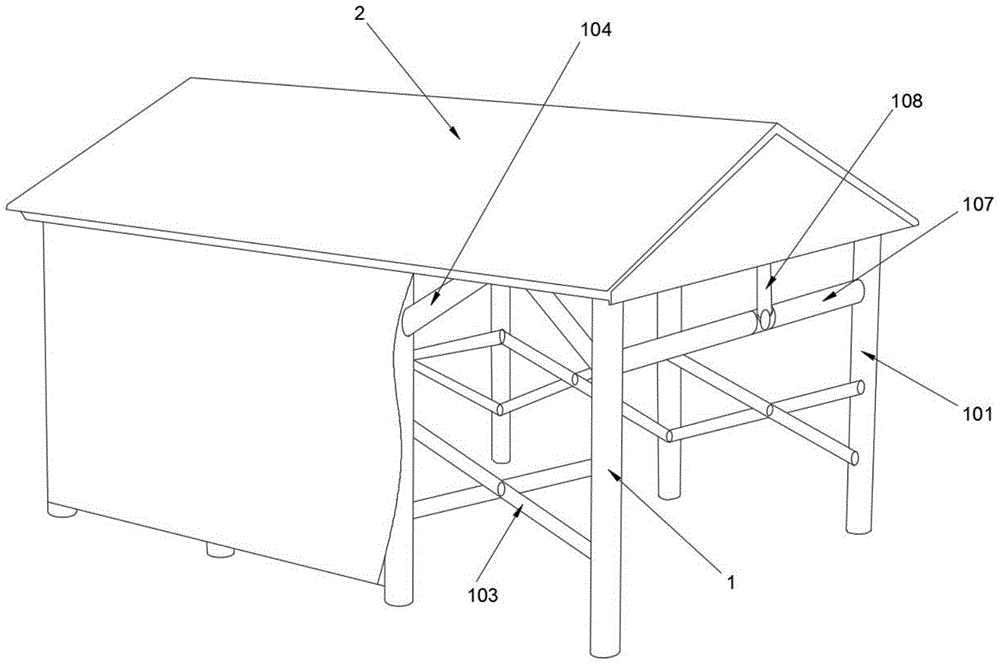

fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the tent support of the present invention;
in the figure: the tent comprises 1 tent bracket, 2 tent cloth, 101 upright posts, 102 first connecting rods, 103 scissor forks, 104 first folding rods, 105 second folding rods, 106 second connecting rods, 107 third folding rods and 108 telescopic supporting rods.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the following drawings and embodiments are connected to further illustrate the present invention in detail. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Examples
Referring to fig. 1-2, the technical solution adopted by the present invention is: a portable push-pull tent comprises a tent support 1 and a tent cloth 2 covering the tent support 1, wherein the tent support 1 comprises eight upright posts 101, the upright posts 101 are divided into a left column and a right column, the upright posts 101 in the left column and the right column are arranged in a one-to-one correspondence manner, a first connecting rod 102 capable of stretching in multiple sections is arranged at the top of each upright post 101 in the same column, the top of each upright post 101 is connected with the corresponding first connecting rod 102, a shear fork 103 and a first folding rod 104 are arranged between two adjacent upright posts 101 in the same column, two ends of each shear fork 103 are movably connected with the corresponding upright posts 101 respectively, two ends of each first folding rod 104 are movably hinged with the corresponding upright posts 101 respectively, the folding joints of the first folding rods 104 are connected with the corresponding first connecting rods 102, and second folding rods 105 are arranged at the tops of the two corresponding upright posts 101 in different columns, each the both ends of second folding rod 105 respectively with each that corresponds stand 101 top is articulated, each be connected with a flexible second connecting rod 106 of multistage on the second folding rod 105, and each the folding joint of second folding rod 105 all is fixed in on the second connecting rod 106, the upper portion that is located two corresponding stands 101 on different rows still is equipped with third folding rod 107, and each the both ends of third folding rod 107 respectively with each that corresponds stand 101 swing joint, each all be equipped with a flexible bracing piece 108 on the third folding rod 107, each the one end and the each that correspond of flexible bracing piece 108 the folding joint of second folding rod 105 is connected, and the other end and each that corresponds the folding joint of third folding rod 107 is connected.
In this embodiment, each of the telescopic support rods 108 is an electric push rod.
When the tent is used, when the tent is supported, the two columns of upright posts 101 are stretched back and forth, the shear forks 103 and the first folding rods 104 are unfolded, meanwhile, the first connecting rods 102 and the second connecting rods 106 are stretched, so that the tent support 1 is longitudinally stretched, then the telescopic supporting rods 108 are controlled to be stretched, the second folding rods 105 and the second connecting rods 106 are protruded upwards to form a tent roof, the third folding rods 107 are stretched to transversely prop open the two columns of upright posts 101, so that the transverse stretching of the tent is realized, and finally, the supporting action of the tent is completed by fixing the upright posts 101; similarly, the tent can be folded quickly by reverse operation, and meanwhile, the tent bracket 1 in the device is provided with a plurality of folding mechanisms, so that the folded tent has small volume and is convenient to pack and carry; the utility model discloses simple structure, convenient operation and portable have reduced the degree of difficulty of transportation, are favorable to people's use.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims (3)

1. The utility model provides a push-and-pull tent convenient to carry, includes that tent support and cover are located the outside tarpaulin of tent support, its characterized in that: the tent support comprises a plurality of stand columns, the number of the stand columns is even, each stand column is divided into a left column and a right column, the left column and the right column are arranged in a one-to-one correspondence manner, the top of each stand column in the same column is provided with a first connecting rod capable of stretching in multiple sections, the top of each stand column is connected with the corresponding first connecting rod, a shear fork and a first folding rod are arranged between two adjacent stand columns in the same column, the two ends of each shear fork are respectively movably connected with the corresponding stand columns, the two ends of each first folding rod are respectively movably hinged with the corresponding stand columns, the folding joints of the first folding rods are respectively connected with the corresponding first connecting rods, the tops of the corresponding two stand columns in different columns are provided with second folding rods, and the two ends of each second folding rod are respectively hinged with the tops of the corresponding stand columns, each but be connected with the flexible second connecting rod of a multistage on the second folding rod, and each the folding joint of second folding rod all is fixed in on the second connecting rod, the upper portion that is located two corresponding stands of different lists still is equipped with third folding rod, and each the both ends of third folding rod respectively with each that corresponds stand swing joint, each all be equipped with a flexible bracing piece on the third folding rod, each describe the one end of flexible bracing piece and each that corresponds the folding joint of second folding rod connects, and the other end and each that corresponds the folding joint of third folding rod connects.
2. A portable push-pull tent as claimed in claim 1, wherein: each telescopic supporting rod is an electric push rod.
3. A portable push-pull tent as claimed in claim 1, wherein: the quantity of stand is eight, and just the left and right sides is two and is four.
