Abstract
The utility model discloses a LED light guide line strip lamp, including the section bar lighting fixture, a circuit board is installed to the inside wall of section bar lighting fixture, install on the circuit board a plurality of to the inboard luminous LED lamp pearl of section bar lighting fixture, the top lid of section bar lighting fixture is equipped with a transparent leaded light strip, end cap inner panel and end cap planking are installed respectively to the both ends of section bar lighting fixture, end cap planking lid is located on the end cap inner panel. The utility model discloses simple structure, waterproof nature are good, the butt joint does not have the dark space, simple to operate, and is luminous even, luminous soft, can effectively prevent the glare.
Description
Technical Field
The utility model relates to an illumination apparatus, concretely relates to LED light guide line lamp.
Background
The LED line lamp is mainly used for architectural decoration and illumination, is also used for outlining large buildings, and is suitable for local or outline illumination of various buildings, indoor and outdoor. However, the existing LED line lamp is uneven in light emission, glare phenomenon exists, the illumination effect of the LED line lamp is seriously affected, and meanwhile, the LED line lamp in the market has the problems of poor waterproofness and inconvenience in installation. Therefore, there is a need for improvements in the prior art to avoid the disadvantages of the prior art.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome the shortcoming and not enough among the prior art, provide a luminous even, anti-dazzle LED light guide line lamp.
The utility model discloses a realize through following technical scheme: the utility model provides a LED light guide line strip lamp, includes the section bar lighting fixture, a circuit board is installed to the inside wall of section bar lighting fixture, install on the circuit board a plurality of to the luminous LED lamp pearl of section bar lighting fixture inboard, the top lid of section bar lighting fixture is equipped with a transparent leaded light strip, end cap inner panel and end cap planking are installed respectively to the both ends of section bar lighting fixture, end cap planking lid is located on the end cap inner panel.
Further, the inside packing of section bar lighting fixture has transparent silica gel, transparent silica gel with be equipped with a cavity between the leaded light strip.
Furthermore, a connecting plate is arranged on the side portion of the inner plug plate, a first screw mounting hole is formed in the connecting plate, a second screw mounting hole corresponding to the first screw mounting hole is formed in the side wall of the section lamp holder, and the outer plug plate is fixedly connected with the inner plug plate through screws.
Further, wire outlet components are installed at two ends of the bottom of the profile lamp holder and are installed at the bottom of the profile lamp holder through screws.
Further, the two ends of the bottom of the section bar lamp holder are respectively provided with a Z-shaped mounting bracket, the mounting brackets are mounted at the bottom of the section bar lamp holder through screws, and the mounting brackets are provided with elongated screw mounting holes.
Further, the both sides of leaded light strip bottom all are equipped with the joint strip, the both sides of section bar lighting fixture be equipped with the joint groove that the joint strip corresponds.
Further, the section bar lamp holder is an aluminum alloy section bar lamp holder.
Further, the light guide strip is a PMMA light guide strip.
Further, the top surface of the light guide strip is a plane.
Further, the top surface of leaded light strip is the cambered surface.
Compared with the prior art, the utility model discloses a circuit board is installed to the inside wall of section bar lighting fixture, install a plurality ofly on the circuit board to the inboard luminous LED lamp pearl of section bar lighting fixture, the top lid of section bar lighting fixture is equipped with a transparent leaded light strip, the light that makes LED lamp pearl send, through multiple reflection in the section bar lighting fixture, leaded light strip refraction from section bar lighting fixture top sends, it is more even to make LED leaded light strip lamp send out the light, softer, prevent the glare, locate on the end cap inner panel through the end cap outer plate lid at section bar lighting fixture both ends, make the waterproof nature of LED leaded light strip lamp better, the butt joint does not have the dark space, it is more convenient to.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

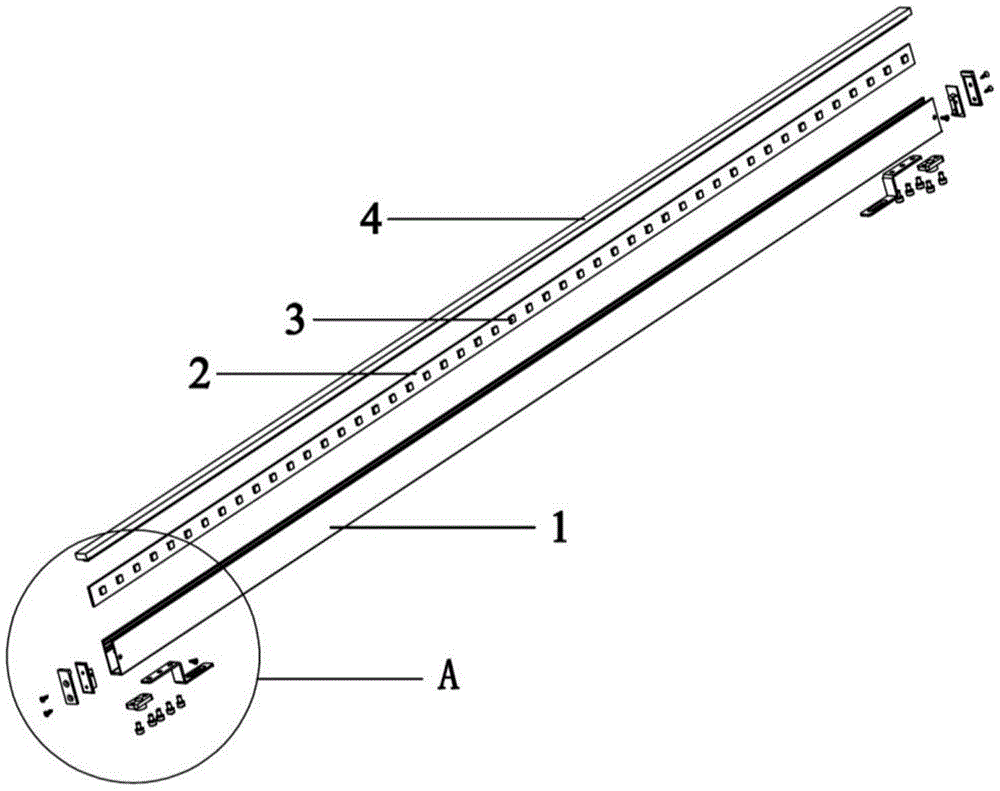

Fig. 1 is an exploded view of the LED light guide strip lamp of the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
fig. 3 is a schematic cross-sectional structure diagram of the LED light guide line lamp of the present invention;
fig. 4 is a light-emitting schematic diagram of the LED light guide line lamp of the present invention.
In the figure: 1-a profile lamp holder; 2-a circuit board; 3-LED lamp beads; 4-a light guide strip; 5-a plug inner plate; 6-plug outer plate; 7-clear silica gel; 8-a cavity; 9-a connecting plate; 10-first screw mounting holes; 11-second screw mounting holes; 12-a line outlet member; 13-mounting a bracket; 14-long screw mounting holes; 15-clamping strips; 16-clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 to 4 the utility model discloses a LED light guide line strip lamp, including section bar lighting fixture 1, a circuit board 2 is installed to section bar lighting fixture 1's inside wall, installs a plurality ofly on the circuit board 2 to the luminous LED lamp pearl of section bar lighting fixture 1 inboard 3, and section bar lighting fixture 1's top lid is equipped with a transparent leaded light strip 4, and end cap inner panel 5 and end cap planking 6 are installed respectively to section bar lighting fixture 1's both ends, and 6 lids of end cap planking are located on end cap inner panel 5. Install a circuit board 2 through the inside wall of section bar lighting fixture 1, install a plurality of luminous LED lamp pearls 3 to section bar lighting fixture 1 inboard on the circuit board 2, the top lid of section bar lighting fixture 1 is equipped with a transparent leaded light strip 4, the light that makes LED lamp pearl 3 send, through multiple reflection in section bar lighting fixture 1, leaded light strip 4 refraction from section bar lighting fixture 1 top is sent, it is more even to make LED leaded light strip lamp send out the light, softer, prevent the glare, 6 lids of end cap planking through section bar lighting fixture 1 both ends are located on end cap inner panel 5, make the waterproof nature of LED leaded light strip lamp better, the butt joint does not have the dark space, it is more convenient to install.
The inside packing of section bar lighting fixture 1 has transparent silica gel 7, is equipped with a cavity 8 between transparent silica gel 7 and the leaded light strip 4, makes the light that LED lamp pearl 3 sent, through transparent silica gel 7 refraction, reflects in cavity 8, sends from the leaded light strip 4 refraction at section bar lighting fixture 1 top, through refraction and reflection many times, the light that sends is more even, softer, more can prevent the glare.
The lateral part of end cap inner panel 5 is equipped with connecting plate 9, and first screw mounting hole 10 has been seted up to connecting plate 9, and second screw mounting hole 11 that corresponds with first screw mounting hole 10 is seted up to the lateral wall of section bar lighting fixture 1, makes things convenient for end cap inner panel 5 to pass through screw fastening with section bar lighting fixture 1 to be connected, and end cap planking 6 passes through screw and 5 fixed connection, simple to operate of end cap inner panel.
The two ends of the bottom of the profile lamp holder 1 are provided with the wire outlet components 12, and the wire outlet components 12 are arranged at the bottom of the profile lamp holder 1 through screws, so that the contact probability of a power line and sunlight and rainwater is reduced.
The two ends of the bottom of the section bar lamp holder 1 are respectively provided with a Z-shaped mounting support 13, the mounting supports 13 are mounted at the bottom of the section bar lamp holder 1 through screws, and the mounting supports 1 are provided with elongated screw mounting holes 14, so that the LED light guide line lamp can be conveniently mounted and adjusted.
The both sides of 4 bottoms of leaded light strips all are equipped with joint strip 15, and the both sides of section bar lighting fixture 1 are equipped with the joint groove 16 that corresponds with joint strip 15, make the equipment between leaded light strip 4 and the section bar lighting fixture 1 more convenient, connect inseparabler, waterproof nature is better.
The section bar lamp holder 1 is an aluminum alloy section bar lamp holder, and is beneficial to heat dissipation of the LED light guide line lamp.
The light guide strip 4 is a PMMA light guide strip which is high in strength, corrosion-resistant, moisture-proof, sun-proof and good in insulating property.
The top surface of the light guide strip 4 is a plane, so that light emitted by the LED light guide strip lamp is emitted in a concentrated manner, and the brightness of the emitted light is high.
The top surface of the light guide strip 4 is an arc surface, so that light emitted by the LED light guide strip lamp is emitted to the periphery, and the light is soft.
The light-emitting principle is as follows: install LED lamp pearl 3 on the circuit board 2 of the inside wall of section bar lighting fixture 1, to the luminous of section bar lighting fixture 1 inboard, the light that sends gets into cavity 8 after the transparent silica gel 7 refraction in section bar lighting fixture 1 and the inner wall reflection of section bar lighting fixture 1, after the reflection of the 8 inner walls of cavity, gets into leaded light strip 4, sends after the refraction of leaded light strip 4.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. The utility model provides a LED light guide line lamp which characterized in that: including the section bar lighting fixture, a circuit board is installed to the inside wall of section bar lighting fixture, install a plurality of on the circuit board to the luminous LED lamp pearl of section bar lighting fixture inboard, the top lid of section bar lighting fixture is equipped with a transparent leaded light strip, end cap inner panel and end cap planking are installed respectively to the both ends of section bar lighting fixture, end cap planking lid is located on the end cap inner panel.
2. The LED light bar lamp of claim 1, wherein: the section bar lighting fixture is internally filled with transparent silica gel, the transparent silica gel and the light guide strip are provided with a cavity therebetween.
3. The LED light bar lamp of claim 1, wherein: the side portion of the plug inner plate is provided with a connecting plate, the connecting plate is provided with a first screw mounting hole, the side wall of the section lamp holder is provided with a second screw mounting hole corresponding to the first screw mounting hole, and the plug outer plate is fixedly connected with the plug inner plate through screws.
4. The LED light bar lamp of claim 1, wherein: and the two ends of the bottom of the profile lamp holder are provided with wire outlet components, and the wire outlet components are arranged at the bottom of the profile lamp holder through screws.
5. The LED light bar lamp of claim 1, wherein: the mounting bracket is mounted at the bottom of the section lamp holder through screws, and long screw mounting holes are formed in the mounting bracket.
6. The LED light bar lamp of claim 1, wherein: the both sides of leaded light strip bottom all are equipped with the joint strip, the both sides of section bar lighting fixture be equipped with the joint groove that the joint strip corresponds.
7. The LED light bar lamp of claim 1, wherein: the section bar lamp holder is an aluminum alloy section bar lamp holder.
8. The LED light bar lamp of claim 1, wherein: the light guide strip is a PMMA light guide strip.
9. The LED light bar lamp of claim 1, wherein: the top surface of the light guide strip is a plane.
10. The LED light bar lamp of claim 1, wherein: the top surface of leaded light strip is the cambered surface.
