CN211440272U - Filament cutter is used in domestic fungus processing - Google Patents
Filament cutter is used in domestic fungus processing Download PDFInfo
- Publication number
- CN211440272U CN211440272U CN201920274859.XU CN201920274859U CN211440272U CN 211440272 U CN211440272 U CN 211440272U CN 201920274859 U CN201920274859 U CN 201920274859U CN 211440272 U CN211440272 U CN 211440272U
- Authority
- CN
- China
- Prior art keywords
- shredding
- workbench
- box
- electric telescopic
- shredding box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a filament cutter for processing edible mushrooms, which comprises a workbench, wherein the bottom of the workbench is provided with supporting legs, the middle part of the upper surface of the workbench is provided with a filament cutting box, the left side and the right side of the filament cutting box are provided with openings, the front side and the rear side of the filament cutting box are provided with cutting grooves corresponding in position, the middle part of the upper surface of the workbench is fixedly provided with a belt conveyor at the right side of the filament cutting box, the upper surface of the workbench is provided with a first fixing plate at the right side of the belt conveyor, the structure is simple, the operation is convenient, the fixing clamps are pushed by an electric telescopic rod II, the blades slice raw materials with the same thickness, the contact area between the blades and the raw materials can be effectively reduced by the T-shaped design of the blades, thereby effectively reducing the damage degree of the surfaces of the slices, the filament cutter is controlled to rapidly and uniformly shred the, the speed of shredding is improved to labour saving and time saving to standardize the thickness of shredding.
Description
Technical Field
The utility model relates to an edible mushroom production technical field specifically is a filament cutter is used in edible mushroom processing.
Background
At present, the pace of life of the society is faster and faster, the demand of people for instant food of edible fungi is larger and larger, when the instant food is used as popular pleurotus eryngii, slicing and shredding are very important links during processing and production of the popular pleurotus eryngii, the common pleurotus eryngii is processed by manual shredding at present, manpower and time are consumed, and the thickness of cut products is not uniform, so that the attractiveness and the eating experience of the products are influenced.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide a filament cutter is used in domestic fungus processing, simple structure, convenient operation, the improvement shredding speed of ability labour saving and time saving to can standardize the thickness of shredding, can effectively solve the problem in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: a filament cutter for processing edible mushrooms comprises a workbench, wherein supporting legs are arranged at the bottom of the workbench, a filament cutting box is arranged in the middle of the upper surface of the workbench, openings are formed in the left side and the right side of the filament cutting box, cutting grooves corresponding to the positions are formed in the front side and the rear side of the filament cutting box, a belt conveyor is fixedly installed in the middle of the upper surface of the workbench on the right side of the filament cutting box, a first fixing plate is arranged on the upper surface of the workbench on the right side of the belt conveyor, one side of the first fixing plate is fixedly connected with one end of a first electric telescopic rod parallel to the cutting grooves, the other end of the first electric telescopic rod is fixedly connected with a push plate, a second fixing plate is arranged on the upper surface of the workbench on the front side of the filament cutting box, one side of the second fixing plate close to the filament cutting box is fixedly connected with one end of, the utility model discloses a novel high-speed wire cutting machine, including workstation, fixed clamp, rotary rod, connecting rod, blade, cylinder, square guide arm, front side fixed mounting of fixed clamp, the opposite side fixed mounting of fixed clamp has the blade, the position that the upper surface of workstation is located shredding case rear side is equipped with the support, the top fixed mounting of support has the motor, the output shaft of motor passes through the bull stick and connects the rotary disk, the front side outer edge of rotary disk is rotated with the one end of connecting rod through the spliced pole and is connected, the other end of connecting rod passes through the cylinder and is connected with the side rotation of slider, the vertical logical groove and the square guide arm sliding connection of slider, the front side fixed mounting of slider has the wire cutter, the wire cutter is located shredding case's left side opening part, the upper surface of workstation is equipped with the.
As a preferred technical scheme of the utility model, the upper surface of workstation is located shreds the left position of case and is equipped with the chopping block, the upper surface of chopping block is seted up flutedly, just the recess corresponds with the position of shredding the sword, the bottom of workstation is equipped with the collecting box with the position that the chopping block corresponds.
As an optimal technical scheme of the utility model, shred the right side of case front surface and be fixed with the baffle, the bottom of baffle is higher than band conveyer's upper surface.
As an optimal technical scheme of the utility model, band conveyer's upper surface is in the coplanar with the bottom inner wall of shredding the case.
As a preferred technical scheme of the utility model, the push pedal is parallel with the right side of shredding the case to the push pedal corresponds with the right side opening of shredding the case.
As a preferred technical scheme of the utility model, the shape of blade is greater than the length of shredding the case for T type and length, five are no less than to the quantity of blade to be no less than five blade equidistance settings, the position and the grooving one-to-one of blade.
Compared with the prior art, the beneficial effects of the utility model are that: the shredding machine for processing the edible mushrooms is simple in structure and convenient to operate, can improve shredding speed, standardizes shredding thickness, supplies raw materials to a shredding box regularly through the transmission of a belt conveyor, limits the positions of the raw materials through a baffle and a push plate, and completely sends the raw materials into the shredding box through the power of an electric telescopic rod I, pushes a fixing clamp through an electric telescopic rod II to enable a blade to rapidly penetrate through a cutting groove and slice the raw materials with the same thickness, can effectively reduce the contact area between the blade and the raw materials through the T-shaped design of the blade, thereby effectively reducing the damage degree of the surface of the slice, drives the rotation of a rotating disc and a connecting rod through the rotation of a motor, further drives the sliding block to vertically and rapidly reciprocate on a square guide rod, drives the upper and lower repeated cutting of a shredding knife through the movement of the sliding block, and clamps the cutting board into a groove every time of the shredding knife, meanwhile, the shredding knife is intermittently pushed by the electric telescopic rod to evenly shred raw material slices, and finally, finished products are shredded by the collecting box to be collected, so that the shredding speed can be improved in a time-saving and labor-saving manner in the whole shredding process, and the shredding thickness is standardized.
Drawings

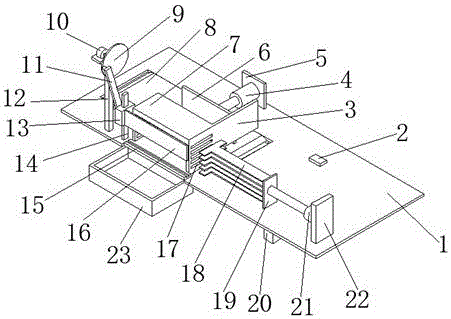

Fig. 1 is a schematic structural diagram of the present invention.
In the figure: the device comprises a workbench 1, a singlechip 2, a baffle 3, an electric telescopic rod 4, a fixing plate 5, a push plate 6, a shredding box 7, a belt conveyor 8, a rotating disk 9, a motor 10, a connecting rod 11, a bracket 12, a sliding block 13, a square guide rod 14, a chopping block 15, a shredding knife 16, a grooving 17, a grooving blade 18, a fixing clamp 19, a supporting leg 20, an electric telescopic rod 21, a fixing plate 22 and a collecting box 23.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, the present invention provides a technical solution: a filament cutter for processing edible mushrooms comprises a workbench 1, wherein supporting legs 20 are arranged at the bottom of the workbench 1, a filament cutting box 7 is arranged in the middle of the upper surface of the workbench 1, openings are formed in the left side and the right side of the filament cutting box 7, cutting grooves 17 corresponding to the positions are formed in the front side and the rear side of the filament cutting box 7, a belt conveyor 8 is fixedly arranged in the middle of the upper surface of the workbench 1 and located on the right side of the filament cutting box 7, the upper surface of the belt conveyor 8 and the inner wall of the bottom of the filament cutting box 7 are located on the same plane and used for conveying raw materials to the filament cutting box 7 in a timed mode through the belt conveyor 8, a baffle 3 is fixed to the right side of the front surface of the filament cutting box 7, the bottom of the baffle 3 is higher than the upper surface of the belt conveyor 8, a fixing plate 5 is arranged on the right side of the belt conveyor 8, one side of the fixing plate 5 is fixedly, the other end of the electric telescopic rod I4 is fixedly connected with a push plate 6, the push plate 6 is parallel to the right side of the shredding box 7, the push plate 6 corresponds to the right side opening of the shredding box 7, raw materials are limited in position through the baffle 3 and the push plate 6, the push plate 6 is pushed to completely feed the raw materials into the shredding box 7 through the power of the electric telescopic rod I4, a fixing plate II 22 is arranged at the position, located on the front side of the shredding box 7, of the upper surface of the workbench 1, one side, close to the shredding box 7, of the fixing plate II 22 is fixedly connected with one end of an electric telescopic rod II 21, the other end of the electric telescopic rod II 21 is fixedly connected with a fixing clamp 19, a blade 18 is fixedly installed on the other side of the fixing clamp 19, the blade 18 is T-shaped and is longer than the shredding box 7, the number of the blades 18 is not less than five, the fixing clamp 19 is pushed through the electric telescopic rod II 21, the blade 18 rapidly penetrates through the cutting groove 17 to slice the raw materials, the contact area between the blade 18 and the raw materials can be effectively reduced through the T-shaped design of the blade 18, the damage degree of the surface of the slice is effectively reduced, a bracket 12 is arranged at the position, located on the rear side of the shredding box 7, of the upper surface of the workbench 1, a motor 10 is fixedly installed at the top of the bracket 12, an output shaft of the motor 10 is connected with a rotating disc 9 through a rotating rod, the outer edge of the front side of the rotating disc 9 is rotatably connected with one end of a connecting rod 11 through a connecting column, the other end of the connecting rod 11 is rotatably connected with the side face of a sliding block 13 through a cylinder, a vertical through groove of the sliding block 13 is slidably connected with a square guide rod 14, a shredding knife 16 is fixedly installed on the front side of the sliding block 13, the shredding knife 16 is located at the opening on, the upper surface of the chopping board 15 is provided with a groove, the groove corresponds to the position of the shredding knife 16, the bottom of the workbench 1 corresponds to the position of the chopping board 15 and is provided with a collecting box 23, the rotating disk 9 and the connecting rod 11 are driven to rotate through the rotation of the motor 10, the sliding block 13 is further driven to vertically and rapidly reciprocate on the square guide rod 14, the upper and lower repeated cutting of the shredding knife 16 is driven through the movement of the sliding block 13, each cutting of the shredding knife 16 is clamped into the groove of the chopping board 15, meanwhile, the uniform shredding of the raw material slices by the shredding knife 16 is completed through the intermittent propulsion of the electric telescopic rod one 4, the upper surface of the workbench 1 is provided with the single chip microcomputer 2, the input end of the single chip microcomputer 2 is electrically connected with the output end of an external power supply, the output end of the single chip microcomputer 10 is respectively electrically connected with the belt conveyor 8, the electric telescopic rod one 4, the electric telescopic rod two 21, the utility model discloses in the operation of band conveyer 8, electric telescopic handle 4, electric telescopic handle two 21 and motor 10 that relate, all adopt singlechip 2's prior art to realize, shred the finished product through collecting box 23 at last and collect, whole shredding process can labour saving and time saving's improvement speed of shredding to the thickness that shreds is standardized.
When in use: switching on a power supply, putting pleurotus eryngii raw materials on a belt conveyor 8, starting the belt conveyor 8, providing raw materials for a shredding box 7 at regular time through the conveying of the belt conveyor 8, limiting the positions of the raw materials through a baffle 3 and a push plate 6 when the raw materials are conveyed to the position of the baffle 3, starting a first electric telescopic rod 4 to push the raw materials, completely conveying the raw materials into the shredding box 7, starting a second electric telescopic rod 21 to push a fixing clamp 22 at the moment, enabling a blade 18 to rapidly penetrate through a cutting groove 17, slicing the raw materials with the same thickness, starting the first electric telescopic rod 4 to intermittently advance again, meanwhile, starting the rotation of a motor 10, enabling a rotating disc 9 and a connecting rod 11 to rotate, driving a sliding block 13 to rapidly reciprocate vertically on a square guide rod 14, driving rapid and repeated cutting of a shredding knife 16 on the sliding block 13, clamping the shredding knife 16 into a groove of a chopping board 15 every time, completing uniform shredding of the raw materials by the shredding knife, finally, the finished product shredding is collected through the collecting box 23, the shredding speed can be improved in a time-saving and labor-saving mode in the whole shredding process, and the shredding thickness is standardized.
The utility model has simple structure, convenient operation, can improve the shredding speed, standardize the shredding thickness, convey through the belt conveyer 8, the baffle 3 and the push pedal 6 position limit the raw materials and the power promotion of the electric telescopic handle 4, regularly provide the raw materials for the shredding box 7, and send the raw materials into the shredding box 7 completely, promote the fixation clamp 19 through the electric telescopic handle two 21, let the blade 18 pass the grooving 17 fast, slice the raw materials with the same thickness, the T-shaped design of the blade 18 can reduce the contact area of the blade 18 and the raw materials effectively, thereby reduce the damage degree on the slice surface effectively, through the rotation of the motor 10 and the electric telescopic handle one 4 intermittence, the control shredding knife 16 carries out fast and even shredding to the raw materials, finally, shred the finished product through the collecting box 23 and collect, the whole shredding process can save time and labor and improve the shredding speed, and standardizes the thickness of the shreds.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a filament cutter is used in domestic fungus processing, includes workstation (1), its characterized in that: the bottom of the workbench (1) is provided with supporting legs (20), the middle part of the upper surface of the workbench (1) is provided with a shredding box (7), the left side and the right side of the shredding box (7) are provided with openings, the front side and the rear side of the shredding box (7) are provided with cutting grooves (17) corresponding in position, the middle part of the upper surface of the workbench (1) is positioned on the right side of the shredding box (7) and is fixedly provided with a belt conveyor (8), the upper surface of the workbench (1) is positioned on the right side of the belt conveyor (8) and is provided with a first fixing plate (5), one side of the first fixing plate (5) is fixedly connected with one end of a first electric telescopic rod (4) parallel to the cutting grooves (17), the other end of the first electric telescopic rod (4) is fixedly connected with a push plate (6), and a second fixing plate (22) is arranged on the upper surface of the workbench (1), one side, close to the shredding box (7), of the second fixing plate (22) is fixedly connected with one end of a second electric telescopic rod (21), the other end of the second electric telescopic rod (21) is fixedly connected with a fixing clamp (19), the other side of the fixing clamp (19) is fixedly provided with a blade (18), a support (12) is arranged at the position, located on the rear side of the shredding box (7), of the upper surface of the workbench (1), a motor (10) is fixedly installed at the top of the support (12), an output shaft of the motor (10) is connected with a rotating disc (9) through a rotating rod, the outer edge of the front side of the rotating disc (9) is rotatably connected with one end of a connecting rod (11) through a connecting column, the other end of the connecting rod (11) is rotatably connected with the side face of a sliding block (13) through a cylinder, the vertical through groove of the sliding block (13) is slidably connected with a square guide rod (14), and a shredding knife, the shredding knife (16) is located at an opening on the left side of the shredding box (7), the single chip microcomputer (2) is arranged on the upper surface of the workbench (1), the input end of the single chip microcomputer (2) is electrically connected with the output end of an external power supply, and the output end of the single chip microcomputer (2) is electrically connected with the input ends of the belt conveyor (8), the electric telescopic rod I (4), the electric telescopic rod II (21) and the motor (10) respectively.
2. A shredder for processing edible fungi according to claim 1, wherein: the chopping board (15) is arranged at the position, on the left side of the shredding box (7), of the upper surface of the workbench (1), a groove is formed in the upper surface of the chopping board (15), the groove corresponds to the position of the shredding knife (16), and a collecting box (23) is arranged at the position, corresponding to the chopping board (15), of the bottom of the workbench (1).
3. A shredder for processing edible fungi according to claim 1, wherein: the right side of the front surface of the shredding box (7) is fixed with a baffle (3), and the bottom of the baffle (3) is higher than the upper surface of the belt conveyor (8).
4. A shredder for processing edible fungi according to claim 1, wherein: the upper surface of the belt conveyor (8) and the inner wall of the bottom of the shredding box (7) are in the same plane.
5. A shredder for processing edible fungi according to claim 1, wherein: the push plate (6) is parallel to the right side of the shredding box (7), and the push plate (6) corresponds to the right opening of the shredding box (7).
6. A shredder for processing edible fungi according to claim 1, wherein: the shape of the blades (18) is T-shaped, the length of the blades (18) is larger than that of the shredding box (7), the number of the blades (18) is not less than five, the not less than five blades (18) are arranged at equal intervals, and the positions of the blades (18) correspond to the cutting grooves (17) one by one.
