The utility model discloses a computer software and hardware protection device, the on-line screen storage device comprises a base, the top fixed mounting of base has the erection column, the top fixed mounting of erection column has the show stand, the upper surface of show stand is provided with the clear glass cover, the bottom both sides fixedly connected with joint plate of clear glass cover, the clear glass cover passes through joint plate and show stand joint, the upper surface center department of show stand has seted up the mounting groove, the inside fixed mounting of mounting groove has the motor, the output shaft fixed mounting of motor has the rotor plate, the last fixed surface of rotor plate installs two show boards. The utility model discloses, make whole computer software and hardware can be in the inside of transparent glass cover to transparent glass cover is not convenient for to be opened by the viewer, has not only effectually reduced the condition that computer software and hardware received artificial damage, also reduces the dust and the adverse effect that moisture of air caused computer software and hardware simultaneously.
Description
Technical Field
The utility model relates to a computer parts protection field especially relates to a computer software and hardware protection device.
Background
The computer is commonly called computer, it is an electronic computer used for high-speed calculation, it can make numerical calculation and logic calculation, and also has the function of storage and memory, and it is a modern intelligent electronic equipment capable of running according to program and automatically processing mass data at high speed, and is formed from hardware system and software system, and the computer without any software is called bare computer, and can be divided into five types of super computer, industrial control computer, network computer, personal computer and embedded computer, and the more advanced computers are biological computer, photon computer and quantum computer.
At present, many merchants are required to sell computer software and hardware for sale, and a display device is required to be used to place the computer software and hardware during general sales exhibition, so that purchasers can watch the computer software and hardware more intuitively.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a computer software and hardware protection device.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a computer software and hardware protection device comprises a base, wherein a mounting column is fixedly mounted at the top of the base, a display stand is fixedly mounted at the top of the mounting column, a transparent glass cover is arranged on the upper surface of the display stand, clamping plates are fixedly connected to two sides of the bottom of the transparent glass cover, the transparent glass cover is clamped with the display stand through the clamping plates, a mounting groove is formed in the center of the upper surface of the display stand, a motor is fixedly mounted in the mounting groove, a rotating plate is fixedly mounted on an output shaft of the motor, two display plates are fixedly mounted on the upper surface of the rotating plate, mounting holes are formed in two sides of the display stand, a threaded rod is arranged in each mounting hole, a fixing ring is fixedly mounted on the outer surface of the threaded rod, a threaded cylinder is in threaded connection with one end of the threaded rod, and a locking head is fixedly connected to the end, the locking head is connected with the clamping plate, and the other end of the threaded rod is fixedly connected with a fixing block.
As a further description of the above technical solution:
two the one end fixed connection of rotor plate upper surface is kept away from to the show board, fixedly connected with a plurality of overlap joint pieces on the lateral wall of show board.
As a further description of the above technical solution:
the locking head is kept away from the one end of a screw thread section of thick bamboo and is the toper setting, the draw-in groove corresponding with the locking head is seted up to the lateral wall of joint board.
As a further description of the above technical solution:
the lateral wall of show stand is provided with the regulating block, the lateral wall fixedly connected with rectangular block of regulating block, the regulating block passes through rectangular block and fixed block joint.
As a further description of the above technical solution:
the mounting hole is characterized in that a limiting groove corresponding to the fixing ring is formed in the inner wall of the mounting hole, the outer surface of the fixing ring is fixedly connected with a mounting block, one side, away from the fixing ring, of the mounting block is movably provided with a ball, and the ball is connected with the inner wall of the limiting groove in a sliding mode.
As a further description of the above technical solution:
the outer fixed surface of a screw thread section of thick bamboo is connected with the stopper, the stopper and the inner wall sliding connection of mounting hole.
As a further description of the above technical solution:
a second reinforcing strip is fixedly mounted between the mounting column and the base, and a first reinforcing strip is fixedly mounted between the mounting column and the display stand.
As a further description of the above technical solution:
the bottom fixed mounting of base has the supporting shoe, the bottom surface movable mounting of supporting shoe has the removal wheel.
As a further description of the above technical solution:
the display board is located inside the transparent glass cover, and the rotating board is located on the upper surface of the display platform.
The utility model discloses following beneficial effect has:
1. compared with the prior art, this computer software and hardware protection device, can take the threaded rod to rotate through rotating the regulating block, because threaded rod and a screw thread section of thick bamboo threaded connection, and the screw thread section of thick bamboo is spacing by the stopper, so the screw thread section of thick bamboo can take the locking head to remove at the horizontal direction, thereby the locking head can get up with the joint integrated circuit board, make whole computer software and hardware can be in the inside of transparent glass cover, and the transparent glass cover is not convenient for to be opened by the viewer, not only the effectual computer software and hardware that has reduced receives the condition of artificial damage, the dust and the adverse effect that the moisture that also reduce the air caused computer software and hardware simultaneously.
2. Compared with the prior art, the computer software and hardware protection device can drive the rotating plate to rotate through the starting motor, so that the display plate can drive the computer software and hardware to rotate, and a viewer can conveniently watch the computer software and hardware from different angles.
Drawings

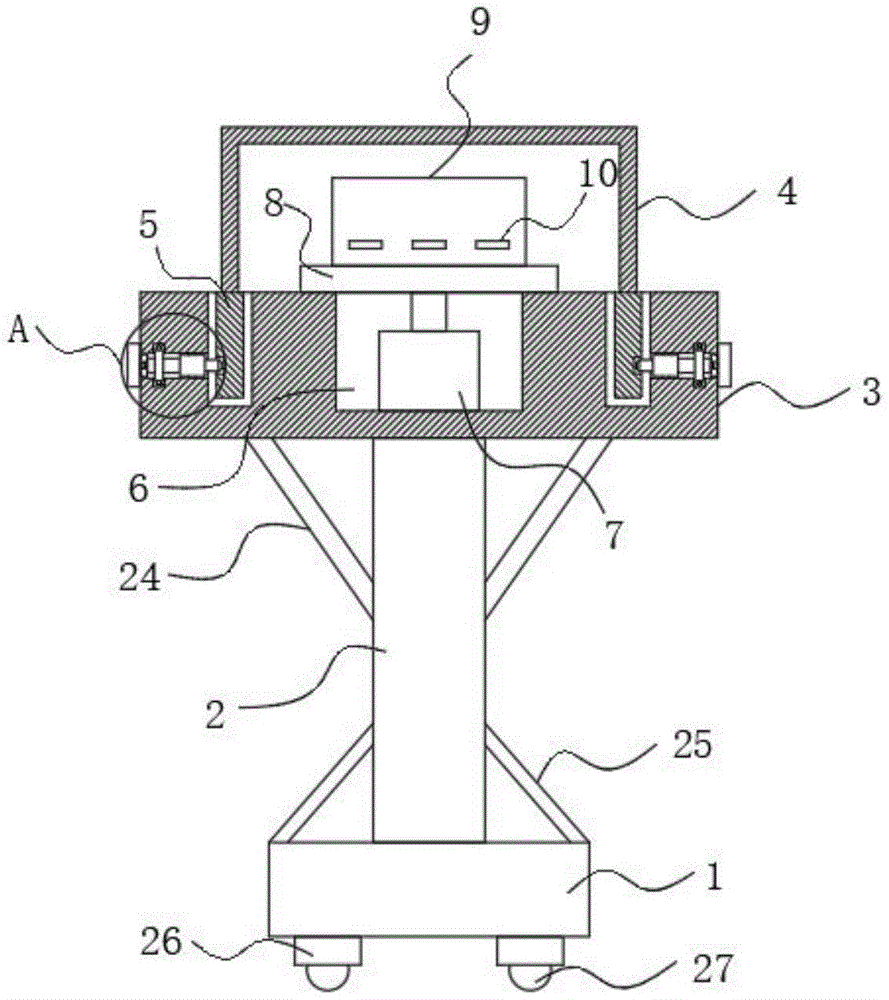

Fig. 1 is a schematic view of an overall structure of a computer software and hardware protection device provided by the present invention;
fig. 2 is an enlarged schematic view of a in fig. 1 according to the present invention;
fig. 3 is the utility model provides a computer software and hardware protection device's show board structure schematic diagram.
Illustration of the drawings:
1. a base; 2. mounting a column; 3. a display stand; 4. a transparent glass cover; 5. a clamping and connecting plate; 6. mounting grooves; 7. a motor; 8. a rotating plate; 9. a display board; 10. a lapping block; 11. mounting holes; 12. a threaded rod; 13. a fixing ring; 14. a threaded barrel; 15. a locking head; 16. a fixed block; 17. a limiting block; 18. A limiting groove; 19. mounting blocks; 20. a ball bearing; 21. an adjusting block; 22. a rectangular block; 23. a card slot; 24. A first reinforcing strip; 25. a second reinforcing strip; 26. a support block; 27. the wheel is moved.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the utility model provides a pair of computer software and hardware protection device: comprises a base 1, a mounting column 2 is fixedly arranged at the top of the base 1, a display platform 3 is fixedly arranged at the top of the mounting column 2, a transparent glass cover 4 is arranged on the upper surface of the display platform 3, clamping plates 5 are fixedly connected to two sides of the bottom of the transparent glass cover 4, the transparent glass cover 4 is clamped with the display platform 3 through the clamping plates 5, a mounting groove 6 is arranged at the center of the upper surface of the display platform 3, a motor 7 is fixedly arranged in the mounting groove 6, a rotating plate 8 is fixedly arranged on an output shaft of the motor 7, two display plates 9 are fixedly arranged on the upper surface of the rotating plate 8, mounting holes 11 are respectively arranged at two sides of the display platform 3, a threaded rod 12 is arranged in each mounting hole 11, a fixing ring 13 is fixedly arranged on the outer surface of the threaded rod 12, a threaded barrel 14 is connected to one end of the threaded rod 12, the locking head 15 is clamped with the clamping plate 5, and the other end of the threaded rod 12 is fixedly connected with a fixing block 16.
The end of the two display boards 9 far away from the upper surface of the rotating board 8 is fixedly connected, the outer side wall of the display board 9 is fixedly connected with a plurality of lapping blocks 10, the lapping blocks 10 are matched with the display boards 9 and used for placing computer software and hardware, one end of the locking head 15 far away from the thread cylinder 14 is arranged in a conical shape, the locking head 15 is conveniently clamped into the clamping board 5, the outer side wall of the clamping board 5 is provided with a clamping groove 23 corresponding to the locking head 15, the outer side wall of the display platform 3 is provided with an adjusting block 21, the outer side wall of the adjusting block 21 is fixedly connected with a rectangular block 22, the adjusting block 21 is clamped with a fixed block 16 through the rectangular block 22, the inner wall of the mounting hole 11 is provided with a limiting groove 18 corresponding to the fixed ring 13, the outer surface of the fixed ring 13 is fixedly connected with a mounting block 19, one side of the mounting block 19 far, outer fixed surface of a screw thread section of thick bamboo 14 is connected with stopper 17, the inner wall sliding connection of stopper 17 and mounting hole 11, stopper 17 can be spacing restriction screw thread section of thick bamboo 14's rotation, fixed mounting has second enhancement strip 25 between erection column 2 and the base 1, fixed mounting has first enhancement strip 24 between erection column 2 and the show stand 3, the intensity that whole device can be strengthened to first enhancement strip 24 and second enhancement strip 25, the bottom fixed mounting of base 1 has supporting shoe 26, the bottom surface movable mounting of supporting shoe 26 has removal wheel 27, be convenient for whole device to remove, show board 9 is located the inside of clear glass cover 4, rotor plate 8 is located the upper surface of show stand 3.
The working principle is as follows: during the use, place the computer software and hardware that will demonstrate on show board 9, then place transparent glass cover 4 at the upper surface of show stand 3, make joint board 5 and show stand 3 joint get up, then pass through rectangular block 22 with fixed block 16 joint with regulating block 21, it can take threaded rod 12 to rotate regulating block 21, because threaded rod 12 and 14 threaded connection of screw thread section of thick bamboo, and screw thread section of thick bamboo 14 is spacing by stopper 17, so screw thread section of thick bamboo 14 can take locking head 15 to remove in the horizontal direction, thereby locking head 15 can get up with joint board 5 joint, can take rotor plate 8 to rotate through starter motor 7, thereby make show board 9 can take the computer software and hardware to rotate.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
