CN211431482U

CN211431482U - From table body of taking in space

Info

Publication number: CN211431482U
Application number: CN201921361442.3U
Authority: CN
Inventors: 伍向群; 罗浩良; 徐博
Original assignee: Foshan Yuqiao Smart Home Technology Co ltd
Current assignee: Foshan Yuqiao Smart Home Technology Co ltd
Priority date: 2019-08-21
Filing date: 2019-08-21
Publication date: 2020-09-08
Anticipated expiration: 2029-08-21

Abstract

The utility model discloses a table body with a self-carrying storage space, which comprises a table top main body and a supporting component, wherein the table top main body comprises a table top frame and a table top plate, and the table top plate is arranged on the table top frame and is connected with the table top frame in a sliding way; the desktop frame is provided with an accommodating space, and the accommodating space is arranged below the desktop plate; the desktop main body also comprises a lengthened desktop plate which is arranged at the inner side of the desktop plate, so that the desktop area of the desk can be increased; the utility model discloses simple structure, the cost is lower, can guarantee the sufficient activity space of user's shank, can adjust the area of desktop according to the condition.

Description

From table body of taking in space

Technical Field

The utility model relates to an office accommodation field especially relates to a table body from taking storage space.

Background

The desk is an essential tool for daily work, work and study, and is mainly used for study, work and article placement, but the current desk has a single function, and a bookcase is required to be arranged on the traditional desk for storing articles, so that the desk occupies the movable space of the lower foot part of the desk; in addition, the size of the desk is fixed, the desk can be placed in an insufficient position due to the change of the space of a use place, or other situations of insufficient space can be caused after the desk is placed, and the desk can also be used for working and studying due to the insufficient space of the desktop of the desk caused by the change of the number of users, so that great inconvenience is caused.

SUMMERY OF THE UTILITY MODEL

The utility model mainly aims at providing a table body from taking storage space is equipped with accommodation space at the internal portion of table, and the size of desktop can be changeed to the table body to adapt to different space and number demand.

In order to achieve the above object, the utility model provides a from table body of taking in space, include: a desktop body and a support assembly.

Preferably, the desktop main body comprises a desktop frame and a desktop plate, and the desktop plate is arranged on the desktop frame and is connected with the desktop frame in a sliding manner.

Preferably, the desktop frame is provided with an accommodating space, the accommodating space is arranged below the desktop plate, and the desktop plate can be opened towards two sides to open the accommodating space and closed to close the accommodating space.

Preferably, the desktop frame is provided with a cabinet plate and a bottom plate; the bottom plate is fixedly connected to the bottom of the right center of the desktop frame; the cabinet plates are arranged on two sides of the bottom plate and fixedly connected with the desktop frame and the bottom plate to form the accommodating space.

Preferably, the desktop main body is further provided with a sliding block, and the sliding block is fixedly connected with the desktop plate.

Preferably, the inner side of the desktop frame is provided with a guide rail groove, and the slide block is arranged in the guide rail groove and is in sliding connection with the guide rail groove in a matched manner.

Preferably, the slide block is of a rectangular strip structure, one side of the slide block is provided with a rectangular strip bulge, and the bulge is installed in the guide rail groove in a matching manner; the guide rail groove is matched with the protrusion to form a rectangular groove structure.

Preferably, the desktop main body further comprises a lengthened desktop plate, and the lengthened desktop plate is arranged on the inner side of the desktop plate.

Preferably, one side of the table top plate is provided with a first slotted hole, and one side of the lengthened table top plate is provided with a second slotted hole.

Preferably, the support assembly comprises a support column, a support foot and a support base plate.

Preferably, the supporting feet are fixed on the desktop frame; the supporting bottom plate is fixedly connected to the supporting legs; the supporting upright posts are arranged on the supporting bottom plate.

Preferably, the supporting bottom plate is of a convex structure, the protruding part is provided with an upright column slotted hole, and the supporting upright column is arranged in the upright column slotted hole.

Preferably, the supporting legs comprise a main supporting leg and an auxiliary supporting leg, the main supporting leg and the auxiliary supporting leg are fixedly connected with the supporting base plate at one end, and the other end is fixedly connected with the desktop frame.

The utility model relates to a from beneficial effect who takes the table body in storage space:

1. the table body with the storage space provided by the utility model has stable integral structure and lower cost; the table top board can be pulled open towards two sides, the containing cavity is arranged in the table top board, articles can be stored, the use is convenient, and the containing space can be hidden under the table top board by closing the table top board.

2. The embodiment of the utility model provides an in the back is pulled open to both sides to the desktop board, can be through the installation extension desktop board increases the desktop area of desk, can decide whether to increase or dismantle according to user number or occupation of land space extension desktop board uses, can be suitable for with different occasions.

Drawings

FIG. 1 is a schematic view of an overall structure of a desk according to an embodiment;

FIG. 2 is a sectional view of a side view of a desk according to the first embodiment;

FIG. 3 is a schematic view showing the overall structure of a desk according to a second embodiment;

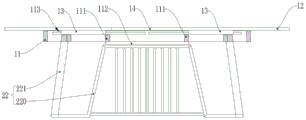

FIG. 4 is a sectional view of a front view of a desk according to the second embodiment;

FIG. 5 is a top view of a desk according to the second embodiment;

FIG. 6 is a schematic view of a middle desk frame of the utility model;

figure 7 is a schematic view of an extended table top for use in the second embodiment;

fig. 8 is a schematic structural view of the middle slider of the utility model.

The reference numbers illustrate:

reference numerals	Name (R)	Reference numerals	Name (R)	Reference numerals	Name (R)
						1	Desktop main body	120	First slot	22	Supporting foot
11	Desktop frame	13	Sliding block	220	Main supporting leg
						110	Accommodation space	131	Projection	221	Auxiliary supporting leg
111	Cabinet board	14	Lengthened table top plate	23	Supporting bottom plate
						112	Base plate	140	Second slot	230	Column slotted hole
113	Guide rail groove	2	Support assembly
						12	Table top board	21	Supporting upright post

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

It should be noted that if the embodiments of the present invention are described with reference to "first", "second", etc., the description of "first", "second", etc. is only for descriptive purposes and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature.

The first embodiment is as follows:

this embodiment a from table body of taking in space, include: a table top main body 1 and a support assembly 2.

Further, the desktop main body 1 comprises a desktop frame 11 and a desktop plate 12, wherein the desktop plate 12 is arranged on the desktop frame 11 and is slidably connected with the desktop frame 11; the table top frame 11 is provided with an accommodating space 110, and the accommodating space 110 is arranged below the table top 12.

Further, the desktop frame 11 is provided with a cabinet plate 111 and a bottom plate 112, the bottom plate 112 is fixedly connected to the center of the desktop frame 11, and the cabinet plates 111 are arranged on two sides of the bottom plate 112 and fixedly connected with the desktop frame 11 and the bottom plate 112; the receiving space 110 is surrounded by the desktop frame 11, the bottom plate 112 and the cabinet plate 111.

Further, the two table top boards 12 are arranged, when the two table top boards 12 are opened in a sliding manner towards two sides, the accommodating space 110 below the table top boards 12 can be opened and used, books, notebook computers and other articles can be stored, the table top boards 12 can be closed after the storage and taking are finished, the accommodating space 110 is closed, and the desk can be continuously used.

Furthermore, the sliding motion of the table top board 12 depends on the arrangement of the sliding block 13, the sliding block 13 is in a rectangular strip structure, one side of the sliding block is provided with a rectangular strip-shaped protrusion 131, the number of the sliding blocks 12 is four, the 4 sliding blocks 13 are respectively and fixedly connected to two sides of the bottom of the two table top boards 12, the inner side of the table top frame 11 is provided with a guide rail groove 113, the guide rail groove 113 is matched with the protrusion 131 to be in a rectangular groove structure, the guide rail groove 113 is correspondingly provided with 4 sliding blocks, the sliding blocks 13 are respectively arranged in the guide rail groove 113 and are matched and slidably connected with the guide rail groove 113, because the sliding block 13 is fixedly connected with the table top board 12, the sliding motion of the sliding block 12 in the guide rail groove 113 can drive the table top board 12 to move, so that the table top boards 12 can be opened and closed in, the structure is simple and the cost is low; in addition, the guide rail groove 113 is directly processed in the accommodating space 110, the guide rail groove 113 and the slider 12 can be arranged inside, an external guide rail groove is not needed, the installation is convenient, the drawing is smooth, and the structure is more compact compared with that of an external slider.

Further, the support assembly 2 comprises a support column 21, a support foot 22 and a support bottom plate 23; the supporting feet 22 are fixed on the desktop frame 11; the supporting bottom plate 23 is fixedly connected to the supporting legs 22; the support column 21 is disposed on the support base plate 23.

Specifically, the supporting bottom plate 23 is of a convex structure, the supporting bottom plate 23 is placed on the ground, two sides of the supporting bottom plate are attached to the ground, and the height of the central convex part from the ground is about 5 cm; the surface of the protruding portion is provided with a column slot 230, one end of the supporting column 21 is disposed in the column slot 230, and the other end is disposed on the bottom plate 112:

furthermore, the supporting legs 22 include a main supporting leg 220 and an auxiliary supporting leg 221, two main supporting legs 220 and two auxiliary supporting legs 221 are provided, one end of the ground supported by the main supporting leg 220 is fixedly connected to two sides of the ground-contacting portion of the supporting base plate 23, and the other end of the ground supported by the main supporting leg 220 is fixedly connected to the desktop frame 11; the auxiliary supporting legs 221 are fixedly connected to two sides of the supporting bottom plate 23, and the other ends of the auxiliary supporting legs are fixedly installed on the desktop frame 11, so that the four supporting legs 22 are fixedly connected with the supporting bottom plate 23 and the desktop frame 11, and the stability of the whole structure is ensured.

Example two:

different from the embodiment, the present embodiment increases the usable area of the desktop of the desk by installing the extended desktop 14.

Specifically, two lengthened table tops 14 are provided, one side of the table top 12 is provided with a first slotted hole 120, two sides of the lengthened table top 14 are provided with second slotted holes 140, when the lengthened table top 14 is installed, the table top 12 is opened towards two sides through a sliding block 13, a pin is installed in the first slotted hole 120, then the two lengthened table tops 14 are horizontally placed at the inner side of the table top 12 side by side, the second slotted holes 140 at two sides of the lengthened table top 14 are respectively aligned to the corresponding pins at two sides, the two opened table tops are closed towards the inner side, the pin is inserted into the second slotted hole 140 to complete installation, the length of the table top is increased after installation is completed, and the final total length is the length of the two table tops 12 plus the length of one lengthened table top 14; because the length of the desk top can be freely adjusted, the utility model can be suitable for different occasions, when the space is enough and the number of people using the desk is large, the lengthened desk top plate 14 can be installed to increase the area of the desk top, and the people using the desk can have enough space to study or work; when the space is insufficient and the number of users is small, the lengthened desktop plate 14 can be detached, so that the space occupied by the desk can be reduced, and the space resource utilization is maximized.

The above only be the preferred embodiment of the utility model discloses a not consequently restriction the utility model discloses a patent range, all are in the utility model discloses a conceive, utilize the equivalent structure transform of what the content was done in the description and the attached drawing, or direct/indirect application all is included in other relevant technical field the utility model discloses a patent protection within range.

Claims

1. The utility model provides a from table body of taking in space which characterized in that: comprises a desktop main body and a supporting component;

the desktop main body comprises a desktop frame and a desktop plate, and the desktop plate is arranged on the desktop frame and can be connected with the desktop frame in a sliding way;

the desktop main body is provided with a sliding block which is fixedly connected with the desktop plate;

the inner side of the desktop frame is provided with a guide rail groove, and the slide block is arranged in the guide rail groove and is matched and slidably connected with the guide rail groove;

the desktop frame is provided with an accommodating space, and the accommodating space is arranged below the desktop plate;

the desktop main body also comprises a lengthened desktop plate, and the lengthened desktop plate is arranged at the inner side of the desktop plate.

2. A table body as claimed in claim 1, wherein the table body comprises: the desktop frame is provided with a cabinet plate and a bottom plate;

the bottom plate is fixedly connected to the bottom of the right center of the desktop frame;

the cabinet plates are arranged on two sides of the bottom plate and fixedly connected with the desktop frame and the bottom plate to form the accommodating space.

3. A table body as claimed in claim 1, wherein the table body comprises: the sliding block is of a rectangular strip structure, one side of the sliding block is provided with a rectangular strip bulge, and the bulge is installed in the guide rail groove in a matching manner; the guide rail groove is matched with the protrusion to form a rectangular groove structure.

4. A table body as claimed in claim 1, wherein the table body comprises: one side of the table panel is provided with a first slotted hole, and one side of the lengthened table panel is provided with a second slotted hole.

5. A table body as claimed in claim 1, wherein the table body comprises: the supporting assembly comprises a supporting upright post, supporting legs and a supporting bottom plate;

the supporting legs are fixed on the desktop frame;

the supporting bottom plate is fixedly connected with the supporting legs;

the supporting upright posts are arranged on the supporting bottom plate.

6. A table body as claimed in claim 5, wherein the table body comprises: the supporting bottom plate is of a convex structure, the protruding part is provided with an upright slotted hole, and the supporting upright is arranged in the upright slotted hole.

7. A table body as claimed in claim 5, wherein the table body comprises: the supporting legs comprise main supporting legs and auxiliary supporting legs, the uniform ends of the main supporting legs and the auxiliary supporting legs are fixedly connected to the supporting bottom plate, and one ends of the main supporting legs and the auxiliary supporting legs are fixedly connected to the desktop frame.
