Abstract
The utility model provides a portable concrete slump tester, which comprises a base and a concrete slump measuring cylinder, wherein a movable pressing plate is arranged on a bottom plate, and a measuring cylinder fixing clamping plate is arranged on the outer side wall of the concrete slump measuring cylinder; when the concrete slump measuring cylinder is positioned on the base, the measuring cylinder fixing clamping plate is fixed by the movable pressing plate. The utility model discloses an aspect is in the same place base and concrete slump measurement section of thick bamboo combination to make up tamp, measuring tape and shovel spoon, conveniently carry and take, changed the non-standardization that traditional on-the-spot adoption is unset material or ground temporarily as the bottom plate simultaneously. On the other hand is fixed concrete slump measurement cylinder through movable pressing plate, can not shift, makes things convenient for testing personnel filling concrete, just can operate alone, reduces the labour and drops into. And thirdly, the handle is used as a marking line for measuring the concrete slump value, so that the concrete slump value can be measured without additionally adding auxiliary tools, the measurement purpose can be accurately and quickly achieved, and the operation errors of different operation testers are reduced.
Description
Technical Field
The utility model belongs to the building engineering field relates to a portable concrete slump tester for detecting concrete slump.
Background
The slump of concrete mainly refers to the plasticizing performance and the pumpability of concrete, the slump of concrete is influenced mainly by grading change, water content and weighing deviation of a weighing apparatus, and the dosage of additives is easily neglected and the temperature of cement is also a few aspects. Slump refers to the workability of concrete, and particularly to the normal progress of construction, including the water retention, fluidity and cohesiveness of concrete
Slump test method: pouring concrete into a horn-shaped slump measuring cylinder with an upper opening of 100mm, a lower opening of 200mm and a height of 300mm for three times, uniformly beating the concrete from outside to inside along the cylinder wall by using a tamping rod after each filling, and leveling the concrete after tamping. And then pulling up the measuring cylinder, wherein the concrete generates a slump phenomenon due to self weight, and the height of the highest point of the slump concrete is subtracted from the height (300mm) of the measuring cylinder, namely the slump.
In traditional operation, the site adopts unfixed material or level ground as the bottom plate of slump measuring cylinder temporarily, belongs to non-normative operation. And when the slump is tested, one person is usually required to be responsible for stabilizing the slump measuring cylinder, the other person is required to fill concrete, and when the slump is measured, the person is required to be matched beside the slump measuring cylinder, a rod is firstly erected beside the concrete and perpendicular to the bottom plate of the slump measuring cylinder, a cross rod is arranged above the concrete in a position 300mm away from the bottom plate of the slump measuring cylinder (namely the height of the slump measuring cylinder), the distance from the bottom surface of the cross rod to the top surface of the concrete is measured by a ruler, and the obtained data is a slump value, so that two persons are required to operate, and time and labor are not saved.
In order to solve the problem, the utility model relates to a developed a portable concrete slump tester, in standard operation, convenient to carry, the rapid survey, the effect is very showing.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a portable concrete slump tester, which comprises a base and a concrete slump measuring cylinder, wherein a movable pressing plate is arranged on the bottom plate, and a measuring cylinder fixing clamping plate is arranged on the outer side wall of the concrete slump measuring cylinder; when the concrete slump measuring cylinder is positioned on the base, the measuring cylinder fixing clamping plate is fixed by the movable pressing plate.
As a further improvement of the utility model: the base is also provided with a handle, and the handle is movably connected with the two sides of the base.
As a further improvement of the utility model: the lifting handle is connected to the two sides of the base through fixing bolts on the two sides of the bottom plate; the handle can rotate left and right along the fixing bolt. The handle can rotate left and right along the fixing bolt to be flatly placed with the bottom plate.
As a further improvement of the utility model: the shape of the handle is a bending structure formed by connecting a plurality of straight segments, and the top handle is designed into a straight segment which is parallel to the plane of the bottom plate.
As a further improvement of the utility model: the length of the straight section is 150 mm and 250 mm.
As a further improvement of the utility model: when the handle is vertically erected, the distance between the bottom plane of the straight section of the handle and the base is the same as the height of the concrete slump measuring cylinder. According to the design of the lifting handle, when the lifting handle is vertically erected, the concrete slump measuring cylinder can be just horizontally placed, namely the distance between the bottom surface of the straight section of the lifting handle and the plane of the base is 300 mm.
As a further improvement of the utility model: the movable pressing plates are two and symmetrically arranged on the base.
As a further improvement of the utility model: the movable pressing plate is connected to the base through bolts and can rotate left and right on the base.
As a further improvement of the utility model: the fixed cardboard of graduated flask is two, and the symmetry sets up in concrete slump measurement section of thick bamboo lateral wall bottom.
As a further improvement of the utility model: also comprises a tamping rod, a measuring scale and a scoop.
Advantageous effects
The utility model discloses a portable concrete slump tester is in the same place base and concrete slump measurement section of thick bamboo on the one hand to make up tamp, measuring tape and shovel spoon, conveniently carry and take, changed the unconventional of traditional on-the-spot adoption unfixed material or the interim bottom plate as on ground simultaneously. On the other hand is fixed concrete slump measurement cylinder through movable pressing plate, can not shift, makes things convenient for testing personnel filling concrete, just can operate alone, reduces the labour and drops into, can not pollute the testing personnel shoes moreover. And thirdly, the handle is used as a marking line for measuring the concrete slump value, so that the concrete slump value can be measured without additionally adding auxiliary tools, the measurement purpose can be accurately and quickly achieved, and the operation errors of different operation testers are reduced.
Drawings

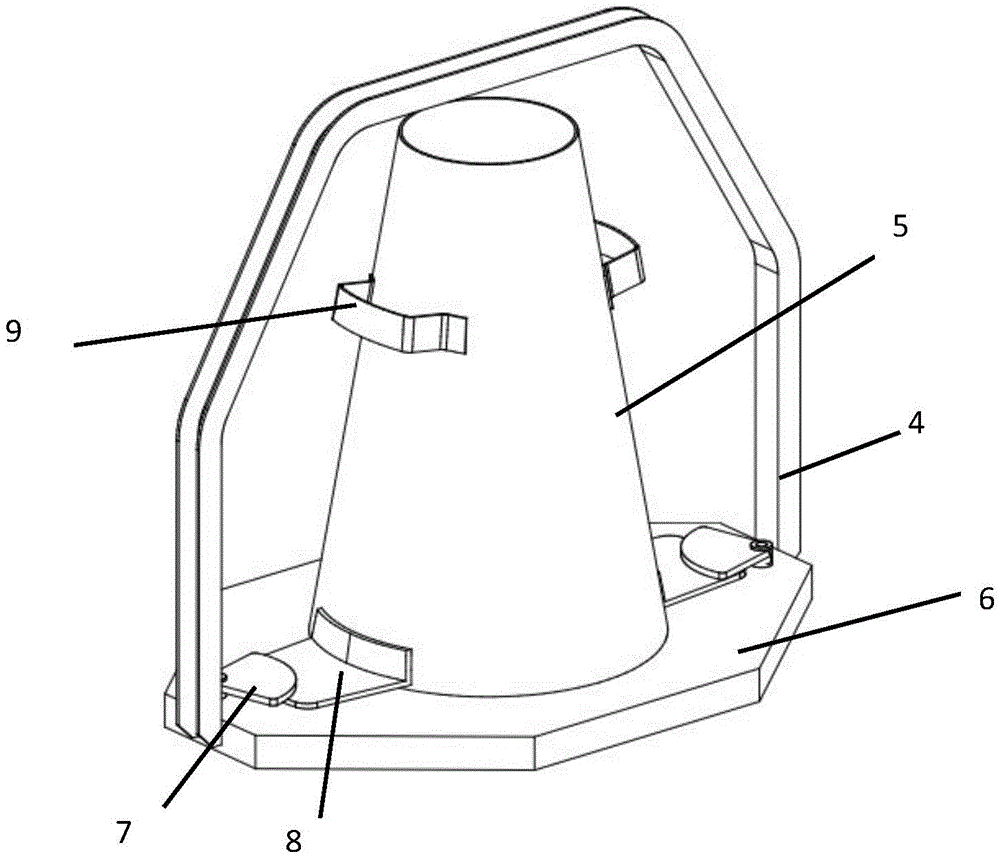

Fig. 1 is the utility model discloses portable concrete slump tester's schematic structure diagram.
Fig. 2 is another schematic structural diagram of the portable concrete slump tester of the utility model.
Fig. 3 is a schematic view of a measuring state of the portable concrete slump tester of the utility model.
Reference numerals
1-a tamper; 2-measuring a ruler; 3-scoop; 4- -handle; 41-handle connecting bolt; 42-straight section of handle; 5-concrete slump measuring cylinder; 6-a base; 7-movable pressing plate; 71-connecting bolts of the movable pressing plate and the base; 8-measuring cylinder fixing clamping plate; 9-measuring cylinder handle; 10-concrete in a natural slump state.
Detailed Description
The technical solution of the present invention is further specifically described below by way of specific embodiments and with reference to the accompanying drawings.
As shown in figures 1-3, the portable concrete slump tester of the utility model mainly detachably connects the concrete slump measuring cylinder (5) to the base (6), so as to conveniently load concrete into the concrete slump measuring cylinder (5), and in addition, after the test is completed, other measuring parts (such as a tamping bar (1), a measuring scale (2) and a shovel (3)) can be placed in the concrete slump measuring cylinder (5) so as to be convenient to carry. Specifically, two symmetrical movable pressing plates (7) are arranged on the base (6), and during manufacturing, the two movable pressing plates (7) capable of rotating left and right are symmetrically arranged on the upper plane of the base (6) in the left-right direction. Correspondingly, the bottom of the outer side wall of the concrete slump measuring cylinder (5) is provided with two symmetrical measuring cylinder fixing clamping plates (8), and in a specific embodiment, the two measuring cylinder fixing clamping plates (8) are welded below the concrete slump measuring cylinder (5) in a bilateral symmetry mode. After the concrete slump measuring cylinder (5) is arranged on the base (6), the movable pressing plate (7) presses and tightly clamps the measuring cylinder fixing clamping plate (8), so that the concrete slump measuring cylinder (5) is fixed on the base (6). When the concrete slump measuring cylinder (5) needs to leave the base (6), the movable pressing plate (7) is removed from the measuring cylinder fixing clamping plate (8). The specification of the concrete slump measuring cylinder (5) is customized according to the national standard size, and the concrete slump measuring cylinder is a horn-shaped hollow cylinder with an upper opening of 100mm, a lower opening of 200mm and a height of 300 mm. In some specific embodiments, the movable pressure plate (7) is connected to the upper surface of the base (6) through a bolt (71), and the movable pressure plate (7) can rotate along the bolt (71) on the upper surface of the base (6). When concrete slump graduated flask (5) is located base (6), be located fixed cardboard (8) of concrete slump graduated flask (5) bottom and also be located base (6) upper surface, rotate concrete slump graduated flask (5), make graduated flask fixed cardboard (8) on concrete slump graduated flask (5) be close activity clamp plate (7) department, then rotate activity clamp plate (7), make activity clamp plate (7) lid close on graduated flask fixed cardboard (8), thereby make graduated flask fixed cardboard (8) fixed on base (6), and then make concrete slump graduated flask (5) fixed on base (6). After the movable pressing plate (7) rotates to leave the measuring cylinder fixing clamping plate (8), the measuring cylinder fixing clamping plate (8) and the concrete slump measuring cylinder (5) are fixedly separated from the base (6), and the concrete slump measuring cylinder (5) can be taken out.
The utility model discloses in, still be connected with handle (4) on base (6), conveniently mention base (6) together with concrete slump measurement cylinder (5) and carry. In some embodiments, the handle (4) is rotatable relative to the base (6). The two ends of the handle (4) are connected to the two side walls of the base (6) through bolts (41), and the two ends of the handle (4) can rotate relative to the bolts (41), so that the handle (4) can rotate relative to the base (6). The structure of the handle (4) is a bending structure formed by connecting a plurality of straight segments, and the top handle is designed into a straight segment which is parallel to the plane of the bottom plate. As shown in figure 1, two ends of the top straight section are respectively connected with an inclined straight section, the bottoms of the two straight sections are connected with vertical straight sections, and the bottoms of the vertical straight sections are connected with two side edges of the base to form a handle (4). In addition, the distance between the lower plane of the straight section (42) of the handle (4) and the base (6) is the same as the height of the concrete slump measuring cylinder (5), namely the concrete slump measuring cylinder (5) can be just placed into the handle (4), and therefore the handle (4) can be used as a reference line for measuring the concrete slump.
In order to facilitate the extraction of the concrete slump measuring cylinder (5), the concrete slump measuring cylinder (5) is further provided with two handles (9), and in one embodiment, the two handles (9) are symmetrically fixed on the middle upper part of the outer wall of the concrete slump measuring cylinder (5).
In addition, portable concrete slump tester still includes tamp (1), measuring tape (2) and shovel spoon (3), and wherein, shovel spoon (3) are used for in shovel ladling concrete (10) to concrete slump measuring cylinder (5), and tamp (1) is used for the concrete tamping in concrete slump measuring cylinder (5), and measuring tape (2) are used for measuring the height that concrete (10) collapsed.
During the use, at first keep flat base (6) in ground, turn over flat handle (4) again, settle concrete slump measurement cylinder (5) in the central authorities of base (6), make fixed cardboard of graduated flask (8) aim at movable clamp plate (7), and with movable clamp plate (7) rotatory to the fixed cardboard of graduated flask on and the fixed cardboard of chucking graduated flask (8), in one embodiment, movable clamp plate (7) rotatory 90 reachs on the fixed cardboard of graduated flask and the fixed cardboard of chucking graduated flask (8), concrete slump measurement cylinder (5) is fixed on base (6) this moment.
Pack into the concrete toward concrete slump graduated flask (5) suitable for reading the mouth with shovel spoon (3), tamp with tamper (1), scrape movable pressing plate (7) on both sides about rotating base (6) at once after the strickle, make movable pressing plate (7) leave graduated flask fixed cardboard (8), hold graduated flask hand (9) fast up and extract concrete slump graduated flask (5), concrete (10) that lose the support this moment can down the part collapse, then, handle (4) are right, aim at the top central authorities of concrete (10) after collapsing with graduated flask (2) tip down, upper end lean on tight handle (4), read under handle (4) plane to concrete (10) top central authorities between scale (2) size, concrete slump numerical value promptly.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a portable concrete slump tester which characterized in that: the concrete slump measuring cylinder comprises a base and a concrete slump measuring cylinder, wherein a movable pressing plate is further arranged on a bottom plate, and a measuring cylinder fixing clamping plate is arranged on the outer side wall of the concrete slump measuring cylinder; when the concrete slump measuring cylinder is positioned on the base, the measuring cylinder fixing clamping plate is fixed by the movable pressing plate; the base is also provided with a handle, and the handle is movably connected with the two sides of the base; the lifting handle is connected to the two sides of the base through bolts; the handle can rotate left and right along the fixing bolt.
2. The portable concrete slump tester according to claim 1, wherein: the shape of the handle is a bending structure formed by connecting a plurality of straight segments, and the top handle is designed into a straight segment which is parallel to the plane of the bottom plate.
3. The portable concrete slump tester according to claim 2, wherein: the length of the straight section is 150 mm and 250 mm.
4. The portable concrete slump tester according to claim 1, wherein: when the handle is vertically erected, the distance between the bottom plane of the straight section of the handle and the base is the same as the height of the concrete slump measuring cylinder.
5. The portable concrete slump tester according to claim 1, wherein: the movable pressing plates are two and symmetrically arranged on the base.
6. The portable concrete slump tester according to claim 5, wherein: the movable pressing plate is connected to the base through bolts and can rotate left and right on the base.
7. The portable concrete slump tester according to claim 1, wherein: the fixed cardboard of graduated flask is two, and the symmetry sets up in concrete slump measurement section of thick bamboo lateral wall bottom.
8. The portable concrete slump tester according to claim 1, wherein: also comprises a tamping rod, a measuring scale and a scoop.
