Abstract

An intelligent network cabinet based on the Internet of Things relates to the technical field of network cabinets, in particular to an intelligent network cabinet based on the Internet of Things. It includes cabinet body, cabinet door, partition plate, heat dissipation chamber, first horizontal plate, second horizontal plate, engaging piece, chute, lighting, camera, control box, controller, power module, alarm module, sensor A module, a monitoring module, and an IoT connection device, the cabinet body is provided with a cabinet door on the outer end face, the inside of the cabinet body is provided with a first horizontal board and a second horizontal board, and the first horizontal board is set on the second horizontal board. Above, the first horizontal plate and the second horizontal plate are fixed in the chute through the engaging piece. After adopting the above technical scheme, the utility model has the beneficial effects that it can adjust the distance of the partitions inside the cabinet, has good heat dissipation, can monitor the situation inside the cabinet, and has a lighting function.

Description

An intelligent network cabinet based on the Internet of Things

technical field

The utility model relates to the technical field of network cabinets, in particular to an intelligent network cabinet based on the Internet of Things.

Background technique

The Internet of Things is an important part of the new generation of information technology, and it is also an important development stage in the "informationization" era. Its English name is: "Internet of things (IoT)". As the name suggests, the Internet of Things is the Internet of things connected. This has two meanings: first, the core and foundation of the Internet of Things is still the Internet, which is an extended and expanded network based on the Internet; second, its user end extends and expands to any item and item to carry out information Exchange and communication, that is, things are interrelated. The Internet of Things is widely used in the integration of networks through communication perception technologies such as intelligent perception, identification technology and ubiquitous computing. The Internet of Things is the application expansion of the Internet. Rather than saying that the Internet of Things is a network, it is better to say that the Internet of Things is a business and application. Therefore, application innovation is the core of IoT development, and innovation 2.0 with user experience as the core is the soul of IoT development. Cabinets are generally objects made of cold-rolled steel plates or alloys to store computers and related control equipment. They can provide protection for storage equipment, shield electromagnetic interference, and arrange equipment in an orderly and neat manner to facilitate future maintenance of equipment. Cabinets are generally divided into server cabinets, network cabinets, console cabinets, etc. The current cabinet does not have a relatively simple structure, and there is no Internet of Things control.

Utility model content

The purpose of the utility model is to aim at the defects and deficiencies of the prior art, and provide an intelligent network cabinet based on the Internet of Things, which can adjust the distance of the partitions inside the cabinet, has good heat dissipation, can monitor the situation inside the cabinet and has Lighting function.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions: it includes a cabinet body 1, a cabinet door 2, a partition 3, a heat dissipation chamber 4, a first horizontal plate 5, a second horizontal plate 6, an engaging piece 7, a sliding Slot 8, lighting 9, camera 10, control box 14, controller 141, power module 142, alarm module 143, sensing module 144, monitoring module 145, IoT connection device 15, the outer end face of the cabinet body 1 A cabinet door 2 is arranged on the top, a first horizontal plate 5 and a second horizontal plate 6 are arranged inside the cabinet body 1, and the first horizontal plate 5 is arranged above the second horizontal plate 6. The first horizontal plate 5 and the second horizontal plate 6 The plate 6 is fixed in the chute 8 through the engaging piece 7, and the chute 8 is arranged on the left and right sides of the inside of the cabinet body 1, the partition plate 3 is arranged under the cabinet body 1, and the heat dissipation chamber 4 is arranged under the partition plate 3, The lighting lamp 9 is arranged at the top of the inside of the cabinet body 1, and a camera 10 is arranged on the right side of the lighting lamp 9. The cabinet body 1 has a three-layer structure, including a dustproof layer 11, a heat insulation layer 12, an outer protective layer 13, and a dustproof layer. 11 is arranged on the inner side of the thermal insulation layer 12, the thermal insulation layer 12 is arranged on the inner side of the outer protective layer 13, a control box 14 is arranged on the back of the cabinet body 1, and an IoT connection device 15 is arranged above the control box 14. The controller 141 , the power module 142 , the alarm module 143 , the sensor module 144 and the monitoring module 145 are arranged inside. The controller 141 is electrically connected to the output terminal of the power module 142 , and the controller 141 is electrically connected to the output terminal of the alarm module 143 . For connection, the controller 141 is electrically connected to the output terminal of the sensing module 144 , and the controller 141 is electrically connected to the output terminal of the monitoring module 145 .

The cabinet door 2 is provided with a viewing window 21 .

The cabinet door 2 is provided with a handle 22 .

A fan 41 is provided inside the heat dissipation chamber 4 .

The structure of the first transverse plate 5 is the same as that of the second transverse plate 6 .

The working principle of the utility model is as follows: open the cabinet door 2, adjust the partition inside the cabinet body 1 according to the equipment to be installed, and perform the first step by sliding the first horizontal plate 5 and the second horizontal plate 6 on the chute 8. The distance between the first horizontal plate 5 and the second horizontal plate 6 is adjusted. After the adjustment is completed, the installation is carried out, and the entire cabinet is controlled through the Internet of Things.

After adopting the above technical scheme, the utility model has the beneficial effects that it can adjust the distance of the partitions inside the cabinet, has good heat dissipation, can monitor the situation inside the cabinet, and has a lighting function.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

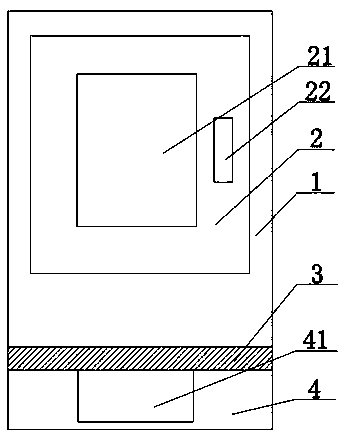

Fig. 1 is the structural representation of the present utility model;

FIG. 2 is a schematic structural diagram of the interior of the cabinet body 1 in the present invention;

FIG. 3 is a schematic structural diagram of the cabinet body 1 of the present invention;

Fig. 4 is the structural representation of the side of the present utility model;

FIG. 5 is a schematic structural diagram of the interior of the control box 14 in the present invention;

FIG. 6 is a schematic structural diagram of Embodiment 2 of the present invention.

Description of reference numerals: cabinet body 1, cabinet door 2, visual window 21, handle 22, partition 3, heat dissipation chamber 4, fan 41, first horizontal plate 5, second horizontal plate 6, engaging piece 7, chute 8. Lighting lamp 9, camera 10, dustproof layer 11, heat insulation layer 12, outer protective layer 13, control box 14, controller 141, power supply module 142, alarm module 143, sensing module 144, monitoring module 145, object Network connection device 15 .

Detailed ways

Example 1

1-5, the technical solution adopted in this specific embodiment is that it includes a cabinet body 1, a cabinet door 2, a visual window 21, a handle 22, a partition 3, a heat dissipation chamber 4, a fan 41, and a first horizontal plate. 5. The second horizontal plate 6, the engaging piece 7, the chute 8, the lighting lamp 9, the camera 10, the dustproof layer 11, the heat insulation layer 12, the outer protective layer 13, the control box 14, the controller 141, the power module 142 , an alarm module 143, a sensing module 144, a monitoring module 145, and an IoT connection device 15. The lower end of the cabinet body 1 is separated from the heat dissipation chamber 4 by the partition plate 3. The interior of the heat dissipation chamber 4 is provided with a fan 41. The cabinet body A cabinet door 2 is arranged on the outer end surface of the cabinet 1, a visual window 21 is inlaid on the cabinet door 2, and a handle 22 is welded on the cabinet door 2. The inside of the cabinet body 1 is provided with a first horizontal plate 5 and a second horizontal plate 6. A horizontal plate 5 and a second horizontal plate 6 are locked in the chute 8 through the engaging member 7. The chute 8 is arranged on both sides of the inside of the cabinet body 1, the lighting lamp 9 is arranged on the top of the inside of the cabinet body 1, and the camera 10 It is arranged on the top of the cabinet body 1. The shell of the cabinet body 1 is a multi-layer structure, which is composed of a dustproof layer 11, a heat insulation layer 12, and an outer protective layer 13. The back of the cabinet body 1 is provided with a control box 14. The control box 14 The Internet of Things connection device 15 is arranged above the control box 14, and a controller 141, a power module 142, an alarm module 143, a sensing module 144, a monitoring module 145 are arranged inside the control box 14, and the controller 141 is connected with the power module 142, the alarm module 143, The connection relationship between the sensing module 144 and the monitoring module 145 is electrical connection.

Example 2

Referring to FIG. 6, the technical solution adopted in this specific embodiment is that it includes a cabinet body 1, a cabinet door 2, a visual window 21, a handle 22, a partition 3, a heat dissipation chamber 4, a fan 41, a first horizontal plate 5, a first Two horizontal plates 6, engaging parts 7, chute 8, lighting lamp 9, camera 10, dustproof layer 11, outer protective layer 13, control box 14, controller 141, power module 142, alarm module 143, sensor module 144. The monitoring module 145 and the IoT connection device 15, the lower end of the cabinet body 1 is separated from the heat dissipation chamber 4 by the partition plate 3, the fan 41 is arranged inside the heat dissipation chamber 4, and the outer end surface of the cabinet body 1 is provided with a cabinet The door 2, the cabinet door 2 is inlaid with a visual window 21, the handle 22 is welded on the cabinet door 2, the interior of the cabinet body 1 is provided with a first horizontal plate 5 and a second horizontal plate 6, the first horizontal plate 5 and the second horizontal plate 5 and the second horizontal plate 5. The board 6 is clamped in the chute 8 through the engaging piece 7, the chute 8 is arranged on both sides of the inside of the cabinet body 1, the lighting lamp 9 is arranged on the top of the inside of the cabinet body 1, the camera 10 is arranged on the top of the cabinet body 1, The shell of the cabinet body 1 is a multi-layer structure, which is composed of a dustproof layer 11 and an outer protective layer 13. A control box 14 is arranged on the back of the cabinet body 1, and an IoT connection device 15 is arranged above the control box 14. The control box 14 The controller 141, the power module 142, the alarm module 143, the sensor module 144, and the monitoring module 145 are arranged inside the controller 141. The connection relationship between the controller 141 and the power module 142, the alarm module 143, the sensor module 144, and the monitoring module 145 for electrical connection.

The working principle of the utility model is as follows: open the cabinet door 2, adjust the partition inside the cabinet body 1 according to the equipment to be installed, and perform the first step by sliding the first horizontal plate 5 and the second horizontal plate 6 on the chute 8. The distance between the first horizontal plate 5 and the second horizontal plate 6 is adjusted. After the adjustment is completed, the installation is carried out, and the entire cabinet is controlled through the Internet of Things.

After adopting the above technical scheme, the utility model has the beneficial effects that it can adjust the distance of the partitions inside the cabinet, has good heat dissipation, can monitor the situation inside the cabinet, and has a lighting function.

The above is only used to illustrate the technical solution of the present invention and not to limit it. Other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solution of the present invention are not departing from the spirit and scope of the technical solution of the present invention. , should be included in the scope of the claims of the present utility model.

Claims (5)

1. An intelligent network cabinet based on the Internet of Things, characterized in that: it comprises a cabinet body (1), a cabinet door (2), a partition (3), a heat dissipation chamber (4), a first horizontal plate (5), The second horizontal plate (6), the engaging member (7), the chute (8), the lighting lamp (9), the camera (10), the control box (14), the controller (141), the power module (142), An alarm module (143), a sensing module (144), a monitoring module (145), and an IoT connection device (15), the cabinet body (1) is provided with a cabinet door (2) on the outer end surface, and the cabinet body ( 1) is provided with a first transverse plate (5) and a second transverse plate (6), the first transverse plate (5) is arranged above the second transverse plate (6), and the first transverse plate (5) and the first transverse plate (5) are arranged above the second transverse plate (6). The two horizontal plates (6) are fixed in the chute (8) by the engaging piece (7), the chute (8) is arranged on the left and right sides of the inside of the cabinet body (1), and the lower part of the cabinet body (1) is provided with a partition a plate (3), a heat dissipation chamber (4) is arranged below the partition plate (3), a lighting lamp (9) is arranged at the top inside the cabinet body (1), and a camera (10) is arranged on the right side of the lighting lamp (9) , the cabinet body (1) is a three-layer structure, including a dustproof layer (11), a heat insulation layer (12), an outer protective layer (13), and the dustproof layer (11) is arranged on the inner side of the heat insulation layer (12), The heat insulation layer (12) is arranged on the inner side of the outer protective layer (13), a control box (14) is arranged on the back of the cabinet body (1), and an IoT connection device (15) is arranged above the control box (14). The interior of (14) is provided with a controller (141), a power supply module (142), an alarm module (143), a sensing module (144), a monitoring module (145), and a connection between the controller (141) and the power supply module (142). The output terminal is electrically connected, the controller (141) is electrically connected to the output terminal of the alarm module (143), the controller (141) is electrically connected to the output terminal of the sensing module (144), and the controller (141) is connected to the monitoring The output end of the module (145) is electrically connected. 2 . The intelligent network cabinet based on the Internet of Things according to claim 1 , characterized in that: the cabinet door ( 2 ) is provided with a visual window ( 21 ). 3 . 3. The intelligent network cabinet based on the Internet of Things according to claim 1, wherein a handle (22) is provided on the cabinet door (2). 4. The intelligent network cabinet based on the Internet of Things according to claim 1, characterized in that: a fan (41) is arranged inside the heat dissipation chamber (4). 5. The intelligent network cabinet based on the Internet of Things according to claim 1, characterized in that: the structure of the first horizontal plate (5) is the same as that of the second horizontal plate (6).
