Abstract
The utility model discloses a monitoring devices for different water layer turbidity in river course, including fixed column, first waterproof housing, rotating electrical machines, connector, driving gear, surface mounting has first waterproof housing on the fixed column, install rotating electrical machines in the first waterproof housing, it has the connector to open on the first waterproof housing, the rotatory end of rotating electrical machines passes the connector and stretches first waterproof housing top, the driving gear is installed to the rotatory end of rotating electrical machines, be equipped with lift monitoring mechanism on the fixed column, lift monitoring mechanism includes lift passageway, guide way, elevating platform, guide block, threaded through hole, antifriction bearing, spliced pole, rotation screw rod, driven gear, second waterproof housing, exit, circulation turbidity sensor, toper inlet tube. The beneficial effects of the utility model are that, can be convenient for monitor the water level of the different degree of depth in the river course, prevent that river water from being polluted.
Description
Technical Field
The utility model relates to a water quality monitoring equipment technical field specifically is a monitoring devices that is used for different water layer turbidity in river course.
Background
The problem of water pollution is a serious problem in China, a lot of illegal enterprises discharge industrial wastewater into river channels, because the river channels are deep, pollutants in the industrial wastewater are heavy, the pollution is serious at the deep position of the water level, but the water surface top cannot be displayed, the river water pollution is not easy to find, in the prior art, water quality is generally detected by pumping water out, but some problems exist during the use of the water, when the water is pumped to the ground top, because the pollutants in the industrial wastewater are heavy, the pollutants in the river water have parts which cannot be pumped up, and therefore the detection accuracy is influenced.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a monitoring devices for different water layer turbidity in river course has and need not to draw water, detects accurate advantage, has solved the lower problem of general device detection precision.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a monitoring device for turbidity of different water layers in a river channel comprises a fixed column, a first waterproof shell, a rotating motor, a connecting port and a driving gear, wherein the lower end of the fixed column is fixedly arranged in the river channel, the upper end of the fixed column is positioned above the water surface, the first waterproof shell is arranged on the upper surface of the fixed column, the rotating motor is arranged in the first waterproof shell, the connecting port is formed in the upper end of the first waterproof shell, the rotating end of the rotating motor penetrates through the connecting port and extends to the upper part of the first waterproof shell, the driving gear is arranged at the rotating end of the rotating motor, a lifting monitoring mechanism is arranged on the fixed,
the lift monitoring mechanism, it includes: a lifting channel, a guide groove, a lifting platform, a guide block, a threaded through hole, a rolling bearing, a connecting column, a rotating screw, a driven gear, a second waterproof shell, an inlet and an outlet, a flow-type turbidity sensor and a conical water inlet pipe,
the lifting channel is positioned at one side of the fixed column, the number of the guide grooves is four, the guide grooves are positioned on two side surfaces in the lifting channel, the number of the guide blocks is four, the guide blocks are fixedly arranged on the two side surfaces of the lifting platform, one end of each guide block is positioned in the guide groove, the thread through hole is positioned on the lifting platform, the number of the rolling bearings is two, the rolling bearings are positioned at the upper end and the lower end in the lifting channel, the number of the connecting columns is two, one end of each connecting column is connected with the rolling bearing, the other end of each connecting column is fixedly connected with one side surface of the lifting channel, the rotating screw rod is positioned in the lifting channel, the lower end of the rotating screw rod is inserted into the rolling bearing below, the upper end of the rotating screw rod penetrates through the thread through, the second waterproof shell is fixedly installed on the surface of one side of the lifting platform, two inlets and outlets are arranged, the inlets and the outlets are located on two sides of the second waterproof shell, the flow-through turbidity sensor is fixedly installed in the second waterproof shell, and the conical water inlet pipe is fixedly installed on the lifting platform.
Preferably, the circulation type turbidity sensor is provided with a water inlet end, a water outlet end and an overflow end, the water inlet end of the circulation type turbidity sensor is connected with a water guide pipe, one end of the water guide pipe penetrates through the inlet and the outlet to be connected with the water outlet end of the conical water inlet pipe, the water outlet end of the circulation type turbidity sensor is connected with a water discharge pipe, the overflow end of the circulation type turbidity sensor is connected with an overflow pipe, and the water discharge pipe and the overflow pipe penetrate through the other inlet and the other outlet to extend to the outer side.
Preferably, a waterproof pad is installed at the inlet and the outlet.
Preferably, a water pressure sensor is mounted on the upper surface of the second waterproof shell.
Preferably, waterproof bearings are installed at the connecting openings, and the upper end of the rotating motor penetrates through the waterproof bearings to extend to the upper portion of the first waterproof shell.
The utility model provides a monitoring devices for be used for different water layer turbidity in river course, possess following beneficial effect, place circulation formula turbidity sensor in the surface of water below, free flow through the river can detect the river turbidity, need not to draw water, it is more accurate to detect the precision, rotation through the motor, can drive the rotation screw rod and rotate, and the lift through the elevating platform, adjustable circulation formula turbidity sensor's the degree of depth, and through water pressure sensor detectable water level depth, can monitor the river turbidity of a plurality of depths, application range is wider, the river through the different degree of depth washes the inside of circulation formula turbidity sensor, can reduce the error of monitoring, the real-time of monitoring has been guaranteed, has higher accuracy.
Drawings

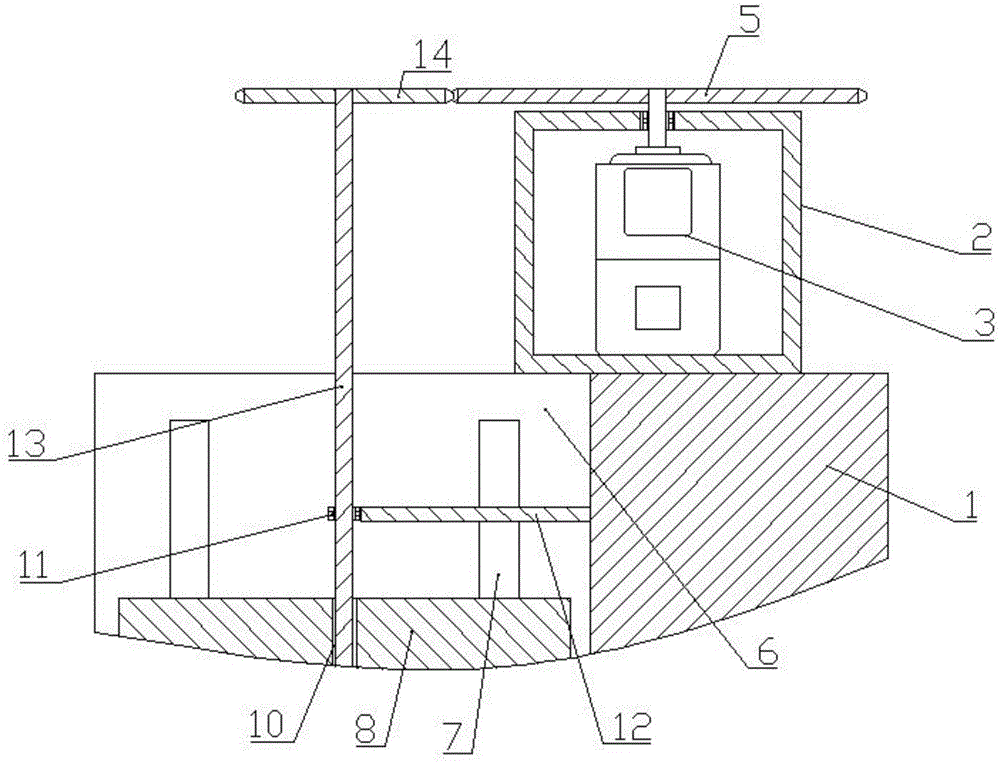

Fig. 1 is a schematic structural diagram of a monitoring device for monitoring turbidity of different water layers in a river according to the present invention;
fig. 2 is a partial enlarged view of a monitoring device for turbidity of different water layers in a river according to the present invention;
fig. 3 is a schematic top view of a monitoring device for turbidity of different water layers in a river according to the present invention;
FIG. 4 is a schematic view of the piping connection of the flow-through turbidity sensor of the present invention;
in the figure: 1. fixing a column; 2. a first waterproof housing; 3. a rotating electric machine; 4. a connecting port; 5. a driving gear; 6. a lifting channel; 7. a guide groove; 8. a lifting platform; 9. a guide block; 10. a threaded through hole; 11. a rolling bearing; 12. connecting columns; 13. rotating the screw; 14. a driven gear; 15. a second waterproof housing; 16. an inlet and an outlet; 17. a flow-through turbidity sensor; 18. a conical water inlet pipe; 19. a water conduit; 20. a drain pipe; 21. an overflow pipe; 22. a waterproof pad; 23. a water pressure sensor; 24. a waterproof bearing.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a monitoring device for turbidity of different water layers in a river channel comprises a fixed column 1, wherein a first waterproof shell 2 is mounted on the upper surface of the fixed column 1, a rotating motor 3 is mounted in the first waterproof shell 2, a connecting port 4 is formed in the upper end of the first waterproof shell 2, a driving gear 5 is mounted at the rotating end of the rotating motor 3, a lifting channel 6 is formed in one side of the fixed column 1, guide grooves 7 are formed in two sides of the lifting channel 6, a lifting platform 8 is arranged in the lifting channel 6, guide blocks 9 are mounted on the surfaces of two sides of the lifting platform 8, a threaded through hole 10 is formed in the lifting platform 8, rolling bearings 11 are arranged at the upper end and the lower end of the lifting channel 6, a connecting column 12 is mounted at one end of each rolling bearing 11, a rotating screw 13 is arranged in the lifting channel 6, a driven gear 14 is mounted at the upper end of the, install circulation formula turbidity sensor 17 in the waterproof shell of second 15, the toper inlet tube 18 is installed to elevating platform 8 one side, and toper inlet tube 18 passes through aqueduct 19 and is connected with circulation formula turbidity sensor 17, and circulation formula turbidity sensor 17 is connected with drain pipe 20 and overflow pipe 21, and waterproof pad 22 is installed to exit 16 department, and water pressure sensor 23 is installed to waterproof shell of second 15 top, and waterproof bearing 24 is installed to connector 4 department.
The following electrical device models are used in the present case:
a rotating electric machine: Y80M1-2 three-phase asynchronous motor;
flow-through turbidity sensor: ZS-7501;
a water pressure sensor: TS-9104;
the following is a description of the materials and shapes of the devices in this case:
waterproof cushion: rubber;
rotating the screw: stainless steel material.
All the electrical components in the present application are connected with the power supply adapted to the electrical components through the wires, and an appropriate controller should be selected according to actual conditions to meet the control requirements, and specific connection and control sequences should be obtained.
Example (b): the model of controller is AQMD6010BLS, thereby the power incoming end of controller and external power supply electric connection circular telegram, external power supply respectively with controller, rotating electrical machines 3, circulation turbidity sensor 17, water pressure sensor 23 electric connection, the control signal output part of controller carries out the controlling means operation through relay and rotating electrical machines 3, circulation turbidity sensor 17, water pressure sensor 23 electric connection.
When the water level of a certain depth needs to be monitored, the flow-through turbidity sensor 17 is corrected, the rotating motor 3 is started to rotate forwards, the driving gear 5 is driven to rotate, the driven gear 14 and the rotating screw 13 can be driven to rotate by meshing the driving gear 5 with the driven gear 14, the rotating screw 13 is only provided with external threads at the position between two rolling bearings 11, two ends of the rotating screw 13 can be fixed by the rolling bearings 11 to prevent the rotating screw from rotating, the lifting platform 8 can be driven to move downwards in the lifting channel 6 when the rotating screw 13 rotates, the moving direction of the lifting platform 8 can be ensured by the guide block 9 and the guide groove 7, the second waterproof shell 15 can be driven to enter water after the lifting platform 8 falls into the water, the pressure of the water is detected by the water pressure sensor 23 on the upper surface of the second waterproof shell 15, thereby can judge the degree of depth that second waterproof housing 15 located, after reaching the assigned position, close rotating electrical machines 3, river water passes through toper inlet tube 18, in aqueduct 19 inflow circulation type turbidity sensor 17, and discharge through drain pipe 20 and overflow pipe 21 with water, can make river water flow, detect quality of water through circulation type turbidity sensor 17, waterproof pad 22 can prevent that water from getting into in the second waterproof housing 15, prevent that circulation type turbidity sensor 17 from damaging, after the detection finishes, start rotating electrical machines 3 reversal, can remove second waterproof housing 15 and circulation type turbidity sensor 17 to the surface of water top, clear up circulation type turbidity sensor 17 inside, be convenient for use next time.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. A monitoring device for turbidity of different water layers in a river channel comprises a fixed column (1), a first waterproof shell (2), a rotating motor (3), a connecting port (4) and a driving gear (5), wherein the lower end of the fixed column (1) is fixedly arranged in the river channel, the upper end of the fixed column (1) is positioned above the water surface, the first waterproof shell (2) is arranged on the upper surface of the fixed column (1), the rotating motor (3) is arranged in the first waterproof shell (2), the connecting port (4) is formed in the upper end of the first waterproof shell (2), the rotating end of the rotating motor (3) penetrates through the connecting port (4) to extend above the first waterproof shell (2), the driving gear (5) is arranged at the rotating end of the rotating motor (3), and the monitoring device is characterized in that a lifting monitoring mechanism is arranged on the fixed column (,
the lift monitoring mechanism, it includes: a lifting channel (6), a guide groove (7), a lifting platform (8), a guide block (9), a threaded through hole (10), a rolling bearing (11), a connecting column (12), a rotating screw (13), a driven gear (14), a second waterproof shell (15), an inlet and an outlet (16), a flow-type turbidity sensor (17) and a conical water inlet pipe (18),
the lifting channel (6) is positioned on one side of the fixed column (1), four guide grooves (7) are arranged, the guide grooves (7) are positioned on the surfaces of two sides in the lifting channel (6), four guide blocks (9) are arranged, the guide blocks (9) are fixedly installed on the surfaces of two sides of the lifting platform (8), one end of each guide block (9) is positioned in the guide groove (7), the threaded through holes (10) are positioned on the lifting platform (8), two rolling bearings (11) are arranged, the rolling bearings (11) are positioned at the upper end and the lower end in the lifting channel (6), two connecting columns (12) are arranged, one end of each connecting column (12) is connected with the corresponding rolling bearing (11), the other end of each connecting column (12) is fixedly connected with the surface of one side of the lifting channel (6), the rotating screw (13) is positioned in the lifting channel (6), and the lower end of the rotating screw (13) is inserted into the rolling bearing (11, rotate screw rod (13) upper end and pass screw thread through-hole (10) and antifriction bearing (11) of top and extend driving gear (5) one side, driven gear (14) fixed mounting is in rotating screw rod (13) upper end, driven gear (14) and driving gear (5) meshing, second waterproof shell (15) fixed mounting is in elevating platform (8) side surface, exit (16) are equipped with two, exit (16) are located second waterproof shell (15) both sides, circulation turbidity sensor (17) fixed mounting is in second waterproof shell (15), toper inlet tube (18) fixed mounting is on elevating platform (8).
2. The monitoring device for the turbidity of different water layers in a river channel according to claim 1, wherein the flow-through turbidity sensor (17) is provided with a water inlet end, a water outlet end and an overflow end, the water inlet end of the flow-through turbidity sensor (17) is connected with a water guide pipe (19), one end of the water guide pipe (19) is connected with the water outlet end of the conical water inlet pipe (18) through an inlet and outlet (16), the water outlet end of the flow-through turbidity sensor (17) is connected with a water outlet pipe (20), the overflow end of the flow-through turbidity sensor (17) is connected with an overflow pipe (21), and the water outlet pipe (20) and the overflow pipe (21) extend to the outside of the second waterproof shell (15) through another inlet and outlet (16).
3. A device for monitoring the turbidity of different water layers in a river according to claim 1, wherein a waterproof pad (22) is installed at said access opening (16).
4. A device for monitoring the turbidity of different water layers in a river according to claim 1, wherein a water pressure sensor (23) is mounted on the upper surface of the second waterproof housing (15).
5. The monitoring device for the turbidity of different water layers in the river channel according to claim 1, wherein a waterproof bearing (24) is installed at the connecting port (4), and the upper end of the rotating motor (3) extends above the first waterproof housing (2) through the waterproof bearing (24).
