CN211397522U

CN211397522U - Geological core rope coring drilling well depth measuring device

Info

Publication number: CN211397522U
Application number: CN201922070129.0U
Authority: CN
Inventors: 李云宝
Original assignee: Shandong University of Science and Technology
Current assignee: Shandong University of Science and Technology
Priority date: 2019-11-27
Filing date: 2019-11-27
Publication date: 2020-09-01
Anticipated expiration: 2029-11-27

Abstract

The utility model relates to a rope coring drilling technical field just discloses a geological core rope coring drilling well depth measuring device, comprising a base plate, the equal fixedly connected with protection shield in both ends about the bottom plate bottom, a set of swing joint has the wheel between the relative one side of protection shield, the right side fixedly connected with fixed block of bottom plate, the equal fixedly connected with stand in both ends about the bottom plate top, right side the right side fixedly connected with servo motor of stand, servo motor's bottom and the top fixed connection of fixed block, right side the top fixedly connected with display screen of stand, servo motor's output shaft runs through and extends to the outside and the fixedly connected with bull stick of right side stand. This geology rock core rope coring probing well depth measuring device, overall structure is simple, through setting up servo motor, reaches the purpose of conveniently collecting the rope, does not collect with the staff manual work, has saved manpower and material resources, is applicable to various circumstances.

Description

Geological core rope coring drilling well depth measuring device

Technical Field

The utility model relates to a rope coring drilling technical field specifically is a geological core rope coring drilling well depth measuring device.

Background

The rope coring drilling method is characterized by that when the core is cored, it has no need of lifting all drill rods in the drill hole, and uses a special fishing device with steel wire rope to lift the hole bottom inner tube with core into the ground by means of centre hole of drill rod in the hole and obtain core so as to reduce the drilling times and auxiliary time for lifting drilling tool and raise drilling efficiency.

The application field of the wire line coring drilling is continuously expanded, the connection strength of drill rods is further improved in the technical aspect, diamond bits with high drilling speed and long service life, hole bottom bit replacing drilling tools, wire line coring drilling tools with hole bottom power machines and the like are researched, the existing geological core wire line coring drilling well depth measuring device on the market at present has the defect that wires are inconvenient to recover, after the measurement is completed, the wires need to be collected manually, the use of manpower and material resources is increased, and therefore the wire line coring drilling well depth measuring device for the geological core is provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a geological core rope coring drilling well depth measuring device possesses advantages such as conveniently retrieving the rope, has solved after the measurement is accomplished, needs the manual work to collect the rope, has increaseed the problem of the use of manpower and material resources.

(II) technical scheme

In order to realize the purpose of conveniently retrieving the rope, the utility model provides a following technical scheme: a geological core rope coring drilling well depth measuring device comprises a bottom plate, wherein the left end and the right end of the bottom plate are fixedly connected with a protection plate, one group of protection plates are movably connected between one opposite sides of the wheels, the right side of the bottom plate is fixedly connected with a fixed block, the left end and the right end of the top of the bottom plate are fixedly connected with a stand column, the right side of the stand column is fixedly connected with a servo motor, the bottom of the servo motor is fixedly connected with the top of the fixed block, the right side of the stand column is fixedly connected with a display screen, an output shaft of the servo motor penetrates through and extends to the outside of the stand column at the right side, a rotating rod is fixedly connected with the outer surface of the rotating rod, one end of the rotating rod penetrates through and extends to the outside of the stand column at the left side, a bearing seat is fixedly, the utility model discloses a safety protection device for a building, including stand, bottom plate, bottom fixedly connected with visor, the left side fixedly connected with fixture block of rope, the positive fixedly connected with degree of depth measuring apparatu of fixture block, the left side the equal fixedly connected with gyro wheel in both ends about the stand is inside, the top of gyro wheel and the bottom swing joint of rope, the equal fixedly connected with pillar in both ends about the bottom plate top, the inside swing joint between the relative one side of two pillars has the connecting rod, the top fixedly connected with visor of connecting rod, the equal fixedly connected with handrail in both ends.

Preferably, the number of the handrails is two, the handrails are distributed symmetrically and equidistantly, the right side of the outer surface of the handrail is fixedly connected with an anti-skidding sleeve, and the outer surface of the anti-skidding sleeve is provided with an anti-skidding groove.

Preferably, a fixing hole is formed in the right side of the upright column, the fixing hole is matched with an output shaft of the servo motor, and the upright column is located in the center of the front-back distance of the bottom plate.

Preferably, a through hole is formed in the upright column on the left side, the through hole is matched with the rope, and the size of the fixture block is larger than that of the through hole.

Preferably, the fixture block comprises a triangle and a rectangle, the right side fixedly connected with rectangle of triangle-shaped, the quantity of stand is two, two the stand is the symmetry equidistance and distributes.

Preferably, the pillar is located the back of stand, the fixed block comprises diaphragm and ejector pin, the top fixedly connected with ejector pin of diaphragm.

Preferably, the first and second liquid crystal materials are,

(III) advantageous effects

Compared with the prior art, the utility model provides a geological core rope coring drilling well depth measuring device possesses following beneficial effect:

1. this geology rock core rope coring drilling well depth measuring device, accomplish the back through measuring device, open servo motor, servo motor's output shaft rotates, it rotates to drive the bull stick, the setting of bearing frame, it is more stable to make the bull stick rotate, the right-hand member of rope rises from the underground step by step, the setting of gyro wheel, the removal of rope has been made things convenient for, and the size of fixture block is greater than the size of through-hole, make the fixture block can not pass the fixture block, thereby make the rope twine again on the bull stick, the device overall structure is simple, through setting up servo motor, reach the purpose of conveniently collecting the rope, collect without staff's manual work, manpower and material resources have been saved, and the device is suitable for various conditions.

2. This geology rock core rope coring drilling well depth measuring device, through opening servo motor, the left side of rope is held to the staff, and put into the drilling with the left side of rope, because the rope is wire rope, it is not flexible, the rope can be straight to the inside removal of drilling, when removing the bottommost, the degree of depth measuring apparatu can spread the signal and measure the degree of depth, and with measured data display to the display screen on, accomplish the measurement, the device passes through the cooperation between each part, measuring speed has been accelerated, measured accuracy has been ensured, easily staff's use.

Drawings

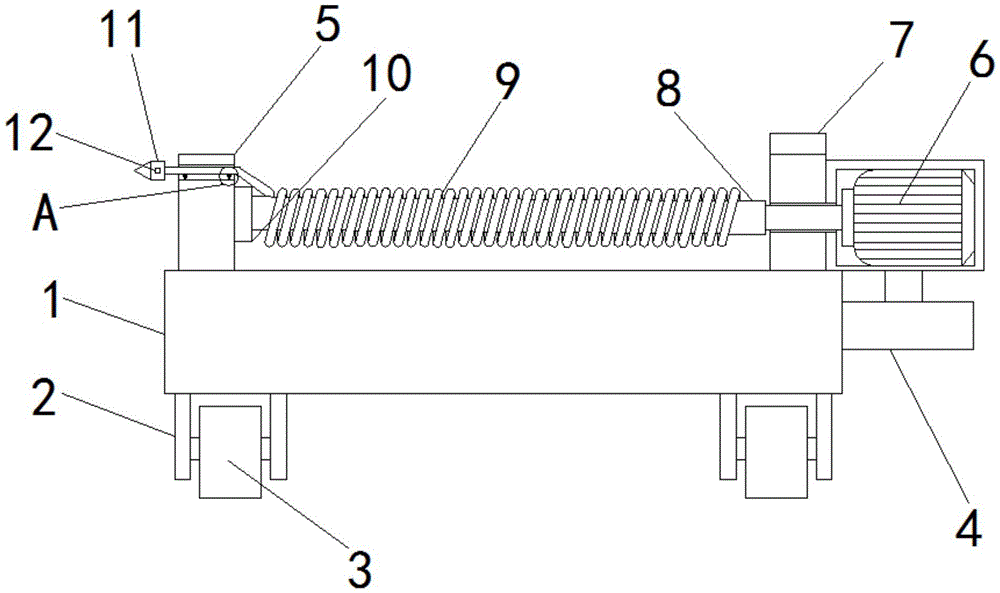

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a left side view of the present invention;

fig. 3 is an enlarged view of a portion a in fig. 1 according to the present invention.

In the figure: the device comprises a base plate 1, a protective plate 2, wheels 3, fixing blocks 4, upright posts 5, servo motors 6, a display screen 7, a rotating rod 8, a rope 9, a bearing seat 10, a clamping block 11, a depth measuring instrument 12, rollers 13, a supporting column 14, a connecting rod 15, a protective cover 16, armrests 17 and supporting rods 18.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a geological core rope coring drilling well depth measuring device comprises a bottom plate 1, wherein the left end and the right end of the bottom plate 1 are fixedly connected with a protection plate 2, a wheel 3 is movably connected between the opposite sides of a group of protection plates 2, the wheel 3 is arranged to facilitate the movement of the device, the right side of the bottom plate 1 is fixedly connected with a fixed block 4, the fixed block 4 is arranged to effectively support a servo motor 6, the fixed block 4 comprises a transverse plate and an ejector rod, the top of the transverse plate is fixedly connected with the ejector rod, the left end and the right end of the top of the bottom plate 1 are fixedly connected with upright posts 5, the number of the upright posts 5 is two, the two upright posts 5 are symmetrically and equidistantly distributed, the right side of the upright post 5 is fixedly connected with the servo motor 6, the type of the servo motor 6 can be ECMA-C20604RS, fixing holes are formed inside the, the upright post 5 is positioned at the center of the front-back distance of the bottom plate 1, so that the bottom plate 1 can be kept balanced, the bottom of the servo motor 6 is fixedly connected with the top of the fixed block 4, the top of the right upright post 5 is fixedly connected with a display screen 7, the model of the display screen 7 can be an LCD1602, the display screen 7 is matched with a depth measuring instrument 12, the display screen 7 is always positioned right above the hole, an output shaft of the servo motor 6 penetrates and extends to the outside of the right upright post 5 and is fixedly connected with a rotating rod 8, the outer surface of the rotating rod 8 is movably connected with a rope 9, one end of the rope 9 penetrates and extends to the outside of the left upright post 5, the left side of the rotating rod 8 is fixedly connected with a bearing seat 10, the left side of the bearing seat 10 is fixedly connected with the right side of the left upright post 5, the left side of the rope 9 is fixedly connected with a clamping, the through hole is matched with the rope 9, the size of the clamping block 11 is larger than that of the through hole, the front surface of the clamping block 11 is fixedly connected with a depth measuring instrument 12, the type of the depth measuring instrument 12 can be CH-SR04, the left end and the right end inside the left upright post 5 are fixedly connected with rollers 13, the rollers 13 are arranged to facilitate the movement of the rope 9, the top of the rollers 13 is movably connected with the bottom of the rope 9, the left end and the right end of the top of the bottom plate 1 are fixedly connected with supporting posts 14, the supporting posts 14 are positioned on the back surface of the upright post 5, the inner part between the opposite sides of the two supporting posts 14 is movably connected with a connecting rod 15, the top of the connecting rod 15 is fixedly connected with a protective cover 16, the left end and the right end of the back surface of the bottom plate 1 are fixedly connected with handrails 17, the number of the hand, the bottom of the handrail 17 is fixedly connected with a supporting rod 18, the arrangement of the supporting rod 18 ensures that the device can be stably fixed after the movement is finished, after the movement is finished by a measuring device, the servo motor 6 is started, an output shaft of the servo motor 6 rotates to drive the rotating rod 8 to rotate, the bearing seat 10 is arranged to ensure that the rotating rod 8 rotates more stably, the right end of the rope 9 ascends gradually from the ground, the arrangement of the roller 13 is convenient for the movement of the rope 9, the size of the clamping block 11 is larger than that of the through hole, the clamping block 11 can not pass through the clamping block 11, thereby the rope 9 is wound on the rotating rod 8 again, the whole structure of the device is simple, the purpose of conveniently collecting the rope 9 is achieved by arranging the servo motor 6, the manual collection of workers is not needed, the manpower and material resources are saved, the device is suitable for various conditions, by starting the servo motor 6, and put into the drilling with the left side of rope 9, because rope 9 is wire rope, and is not flexible, rope 9 can move to drilling inside straightly, when removing the bottommost, degree of depth measuring apparatu 12 can send out the signal and measure the degree of depth to on showing screen 7 with measured data display, accomplish the measurement, the device is through the cooperation between each part for measuring speed, has ensured measuring accuracy, easily staff's use.

When using, through opening servo motor 6, the staff holds the left side of rope 9, and put into the drilling with the left side of rope 9, because rope 9 is wire rope, it is not flexible, rope 9 can be straight to the inside removal of drilling, when removing the bottommost, degree of depth measuring apparatu 12 can spread signal and measuring depth, and with measured data display to display screen 7 on, accomplish the measurement, the device passes through the cooperation between each part, measuring speed has been accelerated, measured accuracy has been ensured, easy staff's use.

To sum up, the geological core rope coring and drilling well depth measuring device is characterized in that after the geological core rope coring and drilling well depth measuring device is completed through the measuring device, the servo motor 6 is started, the output shaft of the servo motor 6 rotates to drive the rotating rod 8 to rotate, the bearing seat 10 is arranged to enable the rotating rod 8 to rotate more stably, the right end of the rope 9 gradually rises from the underground, the roller 13 is arranged to facilitate the movement of the rope 9, the size of the clamping block 11 is larger than that of the through hole, the clamping block 11 cannot penetrate through the clamping block 11, and therefore the rope 9 is wound on the rotating rod 8 again, the device is simple in integral structure, the servo motor 6 is arranged to achieve the purpose of facilitating the collection of the rope 9, manual collection of workers is not needed, manpower and material resources are saved, the geological core rope coring and drilling well depth measuring device is applicable to various conditions, the workers can hold the left side of the rope 9 by hands by opening the, not flexible, rope 9 can be straight to the inside removal of drilling, when removing bottommost, degree of depth measuring apparatu 12 can spread signal and measurement depth, and with measured data display to display screen 7 on, accomplish the measurement, the device passes through the cooperation between each part, the measuring speed has been accelerated, the measuring accuracy has been ensured, easily staff's use has been solved after the measurement is accomplished, need the manual work to collect rope 9, the problem of the use of manpower and material resources has been increaseed.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A geological core wire line coring drilling well depth measuring device, includes bottom plate (1), its characterized in that: the automobile seat is characterized in that the left end and the right end of the bottom plate (1) are fixedly connected with protection plates (2), one group of protection plates (2) is movably connected with wheels (3) between one opposite side, the right side of the bottom plate (1) is fixedly connected with a fixing block (4), the left end and the right end of the top of the bottom plate (1) are fixedly connected with a stand column (5), the right side of the stand column (5) is fixedly connected with a servo motor (6), the bottom of the servo motor (6) is fixedly connected with the top of the fixing block (4), the right side of the top of the stand column (5) is fixedly connected with a display screen (7), an output shaft of the servo motor (6) penetrates through and extends to the outside of the right stand column (5) and is fixedly connected with a rotating rod (8), the outer surface of the rotating rod (8) is movably connected with a rope (9, the left side of the rotating rod (8) is fixedly connected with a bearing seat (10), the left side of the bearing seat (10) is fixedly connected with the right side of the left upright post (5), a clamping block (11) is fixedly connected to the left side of the rope (9), a depth measuring instrument (12) is fixedly connected to the front of the clamping block (11), rollers (13) are fixedly connected to the left end and the right end of the inner portion of the upright post (5) on the left side, the top of the roller (13) is movably connected with the bottom of the rope (9), the left end and the right end of the top of the bottom plate (1) are fixedly connected with supporting columns (14), a connecting rod (15) is movably connected in the space between the opposite sides of the two supporting columns (14), the top of the connecting rod (15) is fixedly connected with a protective cover (16), the left end and the right end of the back of the bottom plate (1) are fixedly connected with armrests (17), and the bottom of each armrest (17) is fixedly connected with a supporting rod (18).

2. A geologic core wireline coring drilling depth measurement device as defined in claim 1, wherein: the number of handrail (17) is two, two handrail (17) are the symmetry equidistance and distribute, the right side fixedly connected with antiskid cover of handrail (17) surface, antiskid groove has been seted up to the surface of antiskid cover.

3. A geologic core wireline coring drilling depth measurement device as defined in claim 1, wherein: the right side the inside of stand (5) has seted up the fixed orifices, the fixed orifices and servo motor (6) output shaft looks adaptation, stand (5) are located bottom plate (1) fore-and-aft distance's center.

4. A geologic core wireline coring drilling depth measurement device as defined in claim 1, wherein: the left side through-hole has been seted up to the inside of stand (5), the through-hole is with rope (9) looks adaptation, the size of fixture block (11) is greater than the size of through-hole.

5. A geologic core wireline coring drilling depth measurement device as defined in claim 1, wherein: the fixture block (11) comprises a triangle and a rectangle, the right side of the triangle is fixedly connected with the rectangle, the number of the upright posts (5) is two, and the upright posts (5) are distributed symmetrically and equidistantly.

6. A geologic core wireline coring drilling depth measurement device as defined in claim 1, wherein: the supporting column (14) is located on the back face of the upright column (5), the fixing block (4) is composed of a transverse plate and an ejector rod, and the top of the transverse plate is fixedly connected with the ejector rod.
