The utility model discloses a hidden gondola water faucet, including the gondola water faucet body, cup joint on this gondola water faucet body and be provided with plastic gondola water faucet cover, plastic gondola water faucet cover comprises play water portion and fixed part, it is used for hiding the gondola water faucet body to go out water portion, the fixed part comprises finger fixed part and wrist fixed part, is provided with the hole that supplies the inlet tube to pass on the wrist fixed part. The utility model discloses novel structure, reasonable in design, the appearance of cover hand formula need not to hold, releases both hands, can wash simultaneously and rub, hides the gondola water faucet, alleviates children's resistance psychology, the design of interim switch, and one-hand operation need not the shift switch.
Description
Technical Field
The utility model belongs to the technical field of bathroom accessory, concretely relates to hidden gondola water faucet.
Background
Shower that bathroom was used in the existing market is various in form, its function also increases gradually, but current shower structure is exposed and hangs on the wall, during the bathing, stand in shower below or hold the shower with one hand, another kind of hand is used for the bathing, the shower of this kind of structure is suitable for the adult, and to 6 months to 6 years old children, do not have the ability of independently washing the head, and children of this age bracket have used the shower to wash, on the existing market, most be hand-held shower, the head of a family is when helping children to wash the head, need one hand control or help children to drag the head, the other hand is accomplished to wash and is rubbed, and be difficult to control rivers and prevent that it from flowing into in children's eyes middle ear. It is inconvenient to switch back and forth by one hand. And the switch position of the common shower head is too high, so that the water is inconvenient to be turned off. For children, most of the shower heads have a psychological resistance to hair washing, and the shower head has a certain oppressive feeling to the children due to flushing, so that the hidden shower head is designed, and the oppressive feeling of the children in hair washing can be effectively relieved.
SUMMERY OF THE UTILITY MODEL
To the problem that exists among the prior art, the utility model aims to provide a hidden gondola water faucet to alleviate the oppression sense when children wash hair.
The utility model discloses a following technical scheme realizes:
the hidden shower head comprises a shower head body and is characterized in that a plastic shower head sleeve is sleeved on the shower head body and consists of a water outlet part and a fixing part, the water outlet part is used for hiding the shower head body, the fixing part consists of a finger fixing part and a wrist fixing part, and a hole for a water inlet pipe to pass through is formed in the wrist fixing part.
The hidden shower head is characterized in that the water outlet part is palm-shaped, and the hidden shower head
Be provided with the gondola water faucet body in the play water portion and hold the chamber, the position department that the positive gondola water faucet body that corresponds of play water portion is provided with a plurality of delivery ports.
The hidden shower head is characterized in that the back surface of the water outlet part is integrally provided with
Has a plurality of concave-convex textures.
The hidden shower head is characterized in that the finger fixing part is arranged in the direction of the water outlet part
The upper extending ring structure, and the finger fixing part is provided with a temporary switch for controlling the water outlet of the shower body.
The concealed shower head is characterized in that the wrist fixing part is of a two-body type
The fixing band, bipartition formula fixing band is established in the both sides of play water portion lower part branch, and the other end of bipartition formula fixing band realizes connecting fixedly through the magic subsides.
The hidden shower head is characterized in that the finger fixing part is sleeved and arranged on
On the index finger.
The utility model has the advantages of novel structure and reasonable design, the appearance of cover hand formula need not to hold, releases both hands, can wash simultaneously and rub, hides the gondola water faucet, alleviates children's resistance psychology, and the design of temporary switch, one-hand operation need not to stand repeatedly and squat down or move repeatedly body switch department and carry out the on-off operation.
Drawings

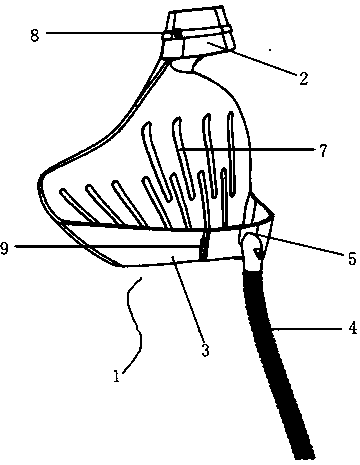

FIG. 1 is a schematic view of the reverse structure of the present invention;
FIG. 2 is a schematic front view of the present invention;
in the figure, 1-plastic shower sleeve, 2-finger fixing part, 3-wrist fixing part, 4-water inlet pipe, 5-hole, 6-water outlet, 7-concave-convex texture, 8-temporary switch and 9-magic tape.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings, and specific embodiments will be given.
As shown in fig. 1-2, the utility model relates to a hidden gondola water faucet, including the gondola water faucet body, cup joint on this gondola water faucet body and be provided with the plastic gondola water faucet cover, the plastic gondola water faucet cover hides the gondola water faucet body, wears at the hand rather than holding traditional gondola water faucet, and further reaches the purpose of hiding the gondola water faucet to alleviate children's resistance psychology.
Furthermore, the plastic shower sleeve comprises a palm-shaped water outlet part and a fixing part, a shower body accommodating cavity is arranged in the water outlet part and used for hiding the shower body, the fixing part comprises a finger fixing part and a wrist fixing part, and a hole for the water inlet pipe to pass through is formed in the wrist fixing part. The front of the water outlet part is provided with a plurality of water outlets corresponding to the position of the shower body. The back integral type of the portion of discharging water is provided with a plurality of unsmooth textures to guarantee the frictional force with the palm.
Further, the finger fixed part is the cyclic annular structure that water outlet portion upwards extended for the fixed cup joint is provided with the temporary switch that is used for controlling gondola water faucet body to go out water on the finger fixed part, closes the temporary switch, paints shampoo shower bath and rubs with hands. The wrist fixing part is a two-part fixing band which is respectively arranged at two sides of the lower part of the water outlet part, and the other ends of the two-part fixing band are connected and fixed through magic tapes.
The utility model discloses the working process takes off the gondola water faucet, embolias the finger fixed part with the forefinger on, then passes through the magic with split type fixed band and pastes and fix at the wrist position, fixes the back, opens gondola water faucet body switch, can wash, and the washing process still can close the temporary switch and carry out paining of shampoo or shower bath. The hidden shower head with the structure is convenient to operate, and the resistance to hair washing of children can be reduced.
Claims (6)
1. A hidden shower head comprises a shower head body and is characterized in that the shower head body is provided with
The plastic shower sleeve (1) is sleeved and arranged, the plastic shower sleeve (1) is composed of a water outlet portion and a fixing portion, the water outlet portion is used for hiding the shower body, the fixing portion is composed of a finger fixing portion (2) and a wrist fixing portion (3), and a hole (5) for the water inlet pipe (4) to pass through is formed in the wrist fixing portion (3).
2. The concealed sprinkler of claim 1, wherein the outlet water is
The part is palm-shaped, a shower body accommodating cavity is arranged in the water outlet part, and a plurality of water outlets (6) are arranged at the positions of the front surface of the water outlet part corresponding to the shower body.
3. The concealed sprinkler of claim 1, wherein the outlet water is
The back surface of the part is integrally provided with a plurality of concave-convex textures (7).
4. The concealed sprinkler of claim 1, wherein the finger is configured to be placed on a shower head
The fixing part (2) is an annular structure with a water outlet part extending upwards, and a temporary switch (8) for controlling the water outlet of the shower body is arranged on the finger fixing part (2).
5. The concealed sprinkler of claim 1, wherein the wrist is configured to receive a shower head
The fixing part (3) is a two-part fixing band which is respectively arranged at two sides of the lower part of the water outlet part, and the other end of the two-part fixing band is connected and fixed through a magic tape (9).
6. The concealed sprinkler of claim 4, wherein the finger is configured to be placed on the sprinkler head
The fixing part (2) is sleeved on the forefinger.
