Abstract

The utility model discloses an intelligent massage physiotherapy and breast strengthening underwear. It includes a bra body, an intelligent massage device and a remote control device. The bra body includes two cups. The intelligent massage device is detachably mounted on the bra body. It is characterized in that the intelligent massage device includes a host controller, a Right massage pad, left massage pad, and wires, the right massage pad and left massage pad are respectively fitted on the two cups, and are electrically connected with the host controller through wires; the remote control device includes a massage intensity adjustment unit, a massage mode A switching unit, a user habit memory unit, a wireless transmitting unit, a GPS positioning unit, a Bluetooth communication unit, a music playing unit, and a massage time setting unit are wirelessly connected to the intelligent massage device through the Bluetooth communication unit. The utility model has the functions of freely adjustable massage mode, reminder of incoming calls, and anti-lost mobile phone.

Description

A kind of intelligent massage physiotherapy and breast-boosting underwear

technical field

The utility model relates to a breast-healthy underwear, in particular to an intelligent massage physiotherapy breast-healthy underwear.

Background technique

Bras are almost a must-have item for women. They are mainly used as external support for breasts to prevent breast sagging. Later, technological progress enabled bras to have massage and health care functions. In addition to their original functions, bras with massage functions also have The function of massage and health care; in the prior art, the bra with massage function mainly includes a vibrator built in the bra body, a controller connected to the outside of the bra and a power supply part that provides power. Its working process Generally, the vibration of the vibrator is used to stimulate the corresponding acupuncture points on the chest to promote blood circulation in the chest, which is helpful for the development of the chest and protects cardiovascular health. It can also treat common diseases such as breast hyperplasia in the chest.

In the existing massage underwear, a massage piece is mainly placed on the inner side of the underwear, and the chest is massaged by vibration, but the massage mode is prefabricated, cannot be adjusted, has a single function, and has poor intelligent effect.

SUMMARY OF THE INVENTION

The purpose of the utility model is to overcome the deficiencies of the prior art, and to provide an intelligent massage physiotherapy and breast-healthy underwear whose mode is freely adjustable.

In order to achieve the above purpose, the technical solution of the present utility model is: an intelligent massage physiotherapy breast health underwear, including a bra body, an intelligent massage device and a remote control device, the bra body includes two cups, and the intelligent massage device can It is disassembled and installed on the bra body, and it is characterized in that the intelligent massage device includes a host controller, a right massage pad, a left massage pad, and a wire, and the right massage pad and the left massage pad are respectively adapted to the two cups. , is electrically connected with the host controller through a wire; the host controller includes a rechargeable battery unit, a wireless receiving unit, a GPS positioning unit, a Bluetooth communication unit, a music unit, an indicator light, and a switch button that are electrically connected to the host controller; the The remote control device includes a massage intensity adjustment unit, a massage mode switching unit, a user habit memory unit, a wireless transmitter unit, a GPS positioning unit, a Bluetooth communication unit, a music playback unit, and a massage time setting unit. connect.

The remote control device is a remote terminal equipped with the control software of the intelligent massage physiotherapy and breast health underwear, and the remote terminal is a mobile phone, a tablet or a computer.

The inner lining of the cup is made of one or more of magnetic therapy health care cloth, magnetic cloth, magnetic printed cloth and magnetic textile.

The wireless transmitting unit is wirelessly connected with the wireless receiving unit.

The right massage pad and the left massage pad are covered with waterproof sealing sleeves, and the waterproof sealing sleeves are connected with the inside of the bra body by sewing.

The beneficial effects of the utility model are as follows: the bra body of the utility model is detachably provided with a host controller, and the host controller is connected with a remote control device through a bluetooth communication unit; the remote control device is provided with a massage intensity adjustment unit, Massage mode switching unit, user habit memory unit, wireless transmission unit, GPS positioning unit, Bluetooth communication unit, music playback unit, massage time setting unit, the massage frequency and massage intensity can be freely adjusted according to the user's personal needs, and The user's usage habits are automatically memorized by the user's habit memory unit, the massage frequency and intensity are automatically matched according to the music, and the massage mode is intelligently adjusted; the utility model not only has good massage and physiotherapy effects, but also has the functions of reminding incoming calls and preventing the loss of mobile phones, and the adaptability Wide and easy to operate.

The vibration massage pad adopts the high-frequency pulse motor of the world's top massage motor manufacturer-Germany KE company, and the massage frequency can reach up to 18000RPM. Blood vessels and lymph, promote blood circulation, relieve breast pain, and prevent breast diseases; arbitrary combination of various modes, 30-second automatic circulation massage; 10 minutes at a time, it is recommended to re-use if the breast hyperplasia is severe; intelligent acupoint massage underwear, breast-feeding, During the menstrual period, it can be used with confidence without any side effects.

The host controller of the utility model is connected with the massage pad chip through a snap-fit socket, and the host controller is removed when cleaning is required to prevent the host controller from entering water and affecting normal use.

Description of drawings

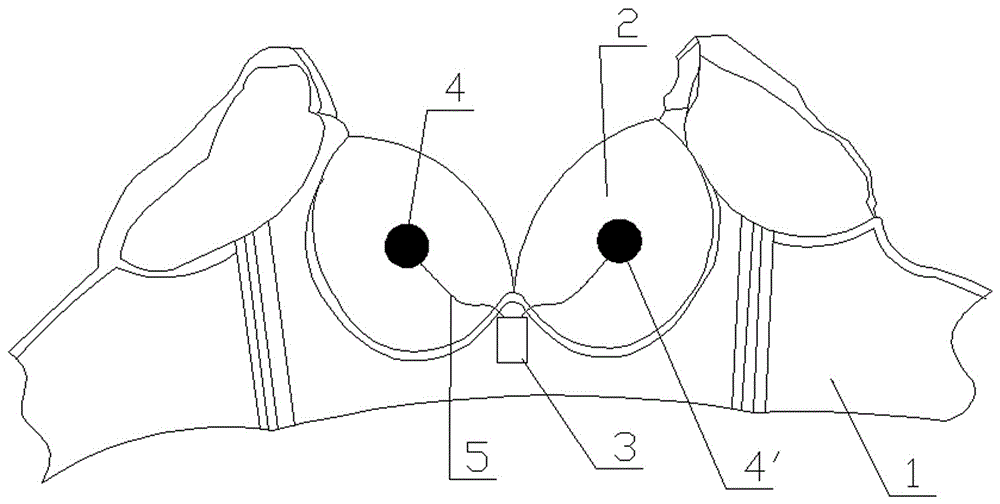

Fig. 1 is the partial structure schematic diagram of the present utility model;

Fig. 2 is the structural representation of the removal host controller of the present invention;

Fig. 3 is the principle schematic diagram of the present utility model;

In the picture: 1—bra body, 2—cups, 3—host controller, 4—right massage pad, 4'—left massage pad, 5—wire, 6—remote control device, 7—snap socket, 31—charging Battery unit, 32—wireless receiving unit, 33—GPS positioning unit, 34—Bluetooth communication unit, 35—music unit, 36—indicator light, 37—switch button, 61—massage intensity adjustment unit, 62—massage mode switching unit, 63—User Habit Memory Unit, 64—Wireless Transmitting Unit, 65—GPS Positioning Unit, 66—Bluetooth Communication Unit, 67—Music Playing Unit, 68—Massage Time Setting Unit.

Detailed ways

The present utility model and its specific embodiments will be further described in detail below with reference to the accompanying drawings.

1-3, the present invention includes a bra body 1, an intelligent massage device and a remote control device, the bra body 1 includes two cups 2, and the intelligent massage device is detachably mounted on the bra body 1, It is characterized in that the intelligent massage device includes a host controller 3, a right massage pad 4, a left massage pad 4', and an electric wire 5, and the right massage pad 4 and the left massage pad 4' are respectively fitted on the two cups 2, It is electrically connected with the host controller 3 through a wire 5; the host controller 3 includes a rechargeable battery unit 31, a wireless receiving unit 32, a GPS positioning unit 33, a Bluetooth communication unit 34, a music unit 35, Indicator light 36, switch button 37; the remote control device includes massage intensity adjustment unit 61, massage mode switching unit 62, user habit memory unit 63, wireless transmission unit 64, GPS positioning unit 65, Bluetooth communication unit 66, music playback unit 67. The massage time setting unit 68 is wirelessly connected to the intelligent massage device through the Bluetooth communication unit 66.

The remote control device is a remote terminal equipped with the control software of the intelligent massage physiotherapy and breast health underwear, and the remote terminal is a mobile phone, a tablet or a computer.

The inner lining of the cup 2 is made of one or more of magnetic health care cloth, magnetic cloth, magnetic printed cloth and magnetic textile.

The wireless transmitting unit 64 is wirelessly connected with the wireless receiving unit 32 .

The right massage pad 4 and the left massage pad 4' are covered with waterproof sealing sleeves, and the waterproof sealing sleeves are connected with the inside of the bra body 1 by sewing.

When the utility model is in use, first charge the host controller 3 and plug it into the snap-fit socket 7 in the middle of the bra body 1, put on the underwear, open the host controller 3 and select the massage mode vibration or pulse or arc punch or array Click any one of them to massage, you can choose the pulse massage in turn from left to right, or you can choose to massage at the same time, or find the device through a mobile phone or computer, connect to the host controller 3 via Bluetooth, and set the massage mode, massage intensity and time through the APP software, you can choose Loading music, the host controller 3 controls the intensity and rhythm of the massage pad through the frequency of the music, so that the human skin vibrates, pulses, arcs, or strikes to massage. When the phone has an incoming call, the host controller 3 controls the left, The right massage pad vibrates to remind you of incoming calls. When the mobile phone is 5-10 meters away from the active controller 3, the host controller 3 controls the left and right massage pads to vibrate to remind you that the mobile phone is not worn. It has the effect of gyromagnetic physiotherapy, can purify our blood, and can also metabolize toxins through our lymph, unclog the meridians, so that users can relax, prevent breast cancer and mammary gland hyperplasia, clear blood lipids, breast enhancement, breast enhancement, and breast enhancement. .

Claims (1)

1. An intelligent massage physiotherapy breast-healthy underwear, comprising a bra body, an intelligent massage device and a remote control device, the bra body includes two cups, and the intelligent massage device is detachably mounted on the bra body, and is characterized in that: The intelligent massage device includes a host controller, a right massage pad, a left massage pad, and a wire, the right massage pad and the left massage pad are respectively fitted on two cups, and are electrically connected to the host controller through wires; the The host controller includes a rechargeable battery unit, a wireless receiving unit, a GPS positioning unit, a Bluetooth communication unit, a music unit, an indicator light, and a switch button electrically connected to the host controller; the remote control device includes a massage intensity adjustment unit, a massage mode switch unit, user habit memory unit, wireless transmitting unit, GPS positioning unit, bluetooth communication unit, music playing unit, massage time setting unit, wirelessly connected with the intelligent massage device through the bluetooth communication unit; The remote control device is a remote terminal equipped with the control software of the intelligent massage physiotherapy underwear, and the remote terminal is a mobile phone, a tablet, or a computer; the wireless transmitting unit and the wireless receiving unit are wirelessly connected; The inner lining of the cup is made of one or more of magnetic therapy health care cloth, magnetic cloth, magnetic printed cloth and magnetic textile; The right massage pad and the left massage pad are covered with waterproof sealing sleeves, and the waterproof sealing sleeves are connected with the inside of the bra body by sewing.
