CN211349233U - A shock-proof protection structure for a computer all-in-one hard disk - Google Patents

Abstract

The utility model relates to the technical field of all-in-one computers, and discloses a shock-proof protection structure for a hard disk of an all-in-one computer, comprising a protective shell, a top of the protective shell is provided with a shell cover, and a notch groove is opened on the right side of the top of the protective shell , a telescopic assembly is arranged in the notch groove, the right side of the cover extends to the inside of the notch groove and is hinged with the telescopic assembly, and two slots are opened above the left side of the inner wall of the protective shell. The slots are arranged from front to back, insert blocks are inserted into the interior of the two slots, and the right sides of the two insert blocks are fixedly connected with the right side of the shell cover. In this solution, the hard disk body is placed on the placing block, and the insert block is inserted into the slot through the telescopic assembly, so that the shell cover is closed, and the hard disk body can be lifted by the mutual cooperation of the shock-proof assembly, the first shock-absorbing spring and the placing block. To the effect of shock resistance, thereby preventing damage to the hard disk body.

Description

A shock-proof protection structure for a computer all-in-one hard disk

technical field

The utility model relates to the field of computer all-in-one machines, in particular to a shock-proof protection structure for a hard disk of a computer all-in-one machine.

Background technique

The all-in-one computer is a new type of market product between desktop computers and notebook computers. It integrates the host part and the display part into a new form of computer. The innovation of this product lies in the high integration of internal components.

However, the current all-in-one computer hard disk lacks an anti-shock protection structure. If the all-in-one computer shakes during the moving process, it will cause the hard disk to vibrate and bump, causing damage to the hard disk.

Utility model content

1. Technical problems to be solved

Aiming at the problems existing in the prior art, the purpose of the present invention is to provide a shock-proof protection structure for the hard disk of an all-in-one computer, which solves the lack of a shock-proof protection structure for the hard disk of the current all-in-one computer. Shaking will cause the hard disk to vibrate and bump, causing the problem of hard disk damage.

2. Technical solutions

In order to solve the above-mentioned problems, the utility model adopts the following technical scheme:

An all-in-one computer hard disk shockproof protection structure, comprising a protective shell, the top of the protective shell is provided with a shell cover, the right side of the top of the protective shell is provided with a notch groove, the notch groove is provided with a telescopic component, the The right side of the cover extends to the inside of the notch slot and is hinged with the telescopic assembly. Two slots are opened above the left side of the inner wall of the protective shell. The two slots are arranged from the front to the back, and the two slots are Insert blocks are inserted into the inside of the two insert blocks, and the right sides of the two insert blocks are fixedly connected with the right side of the shell cover;

The inside of the protective shell is provided with a placing block, the bottom of the placing block is fixedly connected with the first shock absorbing springs evenly distributed, the bottom of the first shock absorbing spring is fixedly connected with the top of the placing block, and the placing block is A hard disk body is placed on the top of the casing cover, shock-proof components are fixedly connected to the left and right sides of the bottom of the casing cover, and the bottoms of the two shock-proof components are respectively in contact with the top of the hard disk body.

Preferably, the telescopic assembly includes a movable block, the left side of the top of the movable block is hinged with the shell cover through a hinge, and the right side of the movable block is fixedly connected with telescopic springs arranged at equal distances from front to back. The right end of the telescopic spring is fixedly connected with the inner wall of the right side of the notch groove.

Preferably, the anti-vibration assembly includes uniformly distributed second shock-absorbing springs, the top of the second shock-absorbing spring is fixedly connected to the bottom of the housing cover, and the bottom of the second shock-absorbing spring is fixedly connected with a buffer block, so A protective pad is fixedly connected to the bottom of the buffer block, and the bottom of the protective pad is in contact with the top of the hard disk body.

Preferably, the inner bottom wall of the notch groove is provided with a limit groove extending from left to right, the limit groove is slidably connected with a limit block, and the top of the limit block is fixedly connected with the bottom of the movable block.

Preferably, the top of the cover is fixedly connected with a "ji"-shaped mounting block, the inner side of the mounting block is in contact with the front and back of the protective case, and four corners of the bottom of the mounting block are provided with mounting holes.

Preferably, the top of the placement block is provided with a placement slot, the hard disk body is located in the placement slot, and the bottom of the placement block is provided with evenly distributed through holes, and the through holes communicate with the placement slot.

Preferably, the left and right sides of the inner wall of the protective shell are provided with a plurality of heat dissipation holes, and the outer side surface of the placing block is in smooth contact with the inner side wall of the protective shell.

3. Beneficial effects

Compared with the prior art, the advantages of the present utility model are:

(1) In this solution, the hard disk body is placed on the placing block, and the plug-in block is inserted into the slot through the telescopic assembly, so that the shell cover is closed, and the anti-vibration assembly, the first shock-absorbing spring and the placing block can cooperate with each other. The hard disk body has an anti-vibration effect, thereby preventing damage to the hard disk body.

(2) The extruding force can be continuously applied to the shell cover through the telescopic spring, so that the insert block and the slot are tightly connected. When the shell cover needs to be opened, the moving force is first applied to the movable block to the right, so that the telescopic spring is compressed and deformed. Then, the movable block and the shell cover are driven to move to the left, so that the insert block is separated from the slot, and then a rotating and pulling force can be applied to the shell cover.

(3) The top of the hard disk body can be protected from shock by the cooperation of the second shock spring and the buffer block, and the hard disk body can be protected by the protective pad to avoid friction between the hard disk body and the buffer block.

(4) Through the limit groove and the limit block, the movable block plays a limiting and guiding role to avoid the phenomenon that the movable block is separated from the notch groove.

(5) The shock-proof protection structure of the hard disk can be quickly and conveniently transferred to the all-in-one computer through the "ji"-shaped mounting block and the mounting hole.

(6) The through hole is communicated with the placement slot, the placement slot can make the hard disk body more stable when placed on the placement block, and the heat dissipation of the hard disk body is facilitated through the through hole and the heat dissipation hole.

(7) The arrangement that the outer side surface of the placing block is in smooth contact with the inner side wall of the protective shell can increase the stability of the placing block and make the shock absorption effect better.

Description of drawings

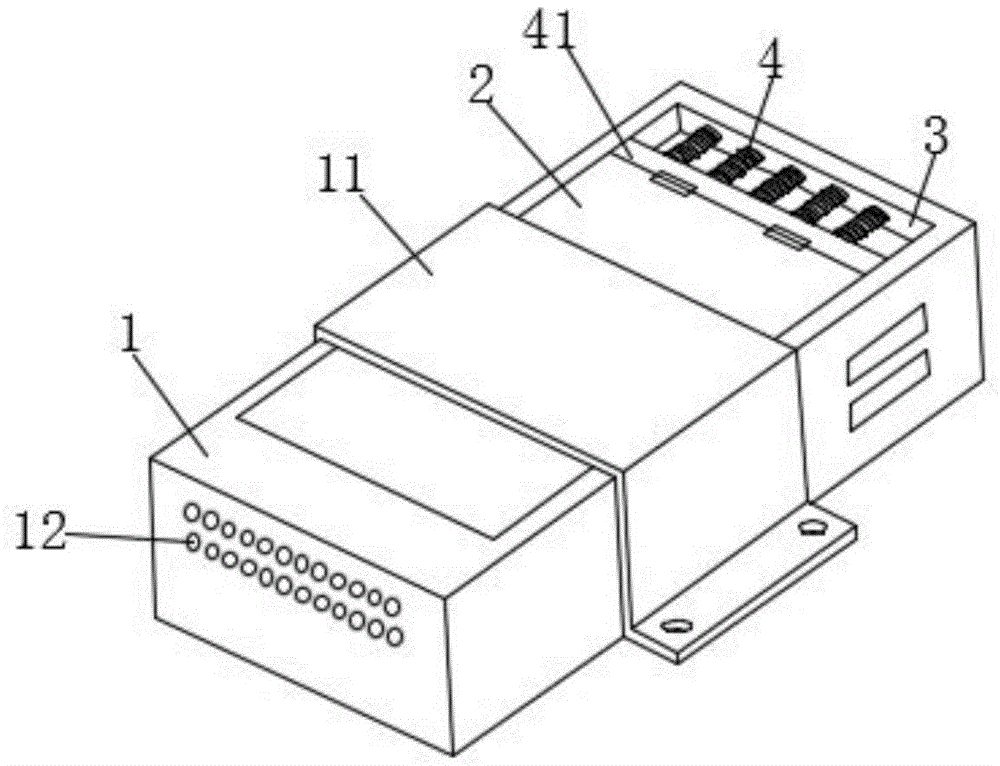

Fig. 1 is the perspective view of the utility model;

Fig. 2 is the front sectional view of Fig. 1 of the utility model;

FIG. 3 is a perspective view of the connection between the shock-proof protection structure of the hard disk of the present invention and the integrated computer.

Description of the labels in the figure:

1. Protective shell; 2. Shell cover; 3. Notched slot; 4. Telescopic assembly; 41. Active block; 42. Telescopic spring; 43. Limit slot; 44. Limit block; 5. Slot; 6. Insert Block; 7. Placement block; 8. First shock-absorbing spring; 9. Hard disk body; 10. Shock-proof assembly; 101. Second shock-absorbing spring; 102. Buffer block; 103. Protective pad; 11. Mounting block; 12. Vents.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model; obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientations or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. are based on the orientations shown in the accompanying drawings Or the positional relationship is only for the convenience of describing the present utility model and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present utility model. . Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be two elements Internal connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Fig. 1-3, an all-in-one computer hard disk shockproof protection structure, including a protective shell 1, the front of the protective shell 1 is provided with a flexible wire outlet to facilitate the use of the hard disk body 9, and the top of the protective shell 1 is provided with a shell cover 2. A notch groove 3 is opened on the right side of the top of the protective shell 1, and a telescopic assembly 4 is arranged in the notch groove 3. The right side of the shell cover 2 extends to the interior of the notch groove 3 and is hinged with the telescopic assembly 4. The left side of the inner wall of the protective shell 1 There are two slots 5 on the upper part, the two slots 5 are arranged from the front to the back, and the inside of the two slots 5 are inserted with insert blocks 6, and the right sides of the two insert blocks 6 are connected with the shell cover 2. Right fixed connection;

The inside of the protective shell 1 is provided with a placing block 7, the bottom of the placing block 7 is fixedly connected with the first shock-absorbing springs 8 evenly distributed, the bottom of the first shock-absorbing spring 8 is fixedly connected with the top of the placing block 7, and the bottom of the placing block 7 is fixedly connected. A hard disk body 9 is placed on the top, and shockproof assemblies 10 are fixedly connected to the left and right sides of the bottom of the case cover 2. The bottoms of the two shockproof assemblies 10 are respectively in contact with the top of the hard disk body 9. In this solution, the hard disk body 9 is placed on the placing block. 7, the insert block 6 is inserted into the slot 5 through the telescopic assembly 4, so that the case cover 2 is closed, and through the mutual cooperation of the anti-vibration assembly 10, the first shock spring 8 and the placing block 7, the hard disk body 9 can be played. Anti-shock effect, thereby preventing the hard disk body 9 from being damaged.

Further, the telescopic assembly 4 includes a movable block 41, the left side of the top of the movable block 41 is hinged with the shell cover 2 through a hinge, and the right side of the movable block 41 is fixedly connected with a telescopic spring 42 arranged at an equal distance from front to back. The right end of 42 is fixedly connected with the inner wall of the right side of the notch groove 3. When the plug 6 on the cover 2 is inserted into the slot 5 on the protective shell 1, the expansion spring 42 can continuously exert a pressing force on the cover 2. , so that the insertion block 6 is tightly connected with the slot 5. When it is necessary to open the cover 2, first apply a moving force to the right of the movable block 41, so that the expansion spring 42 is compressed and deformed, and then drives the movable block 41 and the cover 2 to the left. Move to separate the insert block 6 from the slot 5 , and then apply a rotating and pulling force to the cover 2 .

Further, the anti-vibration assembly 10 includes evenly distributed second shock-absorbing springs 101 , the top of the second shock-absorbing spring 101 is fixedly connected to the bottom of the housing cover 2 , and the bottom of the second shock-absorbing spring 101 is fixedly connected with a buffer block 102 . The bottom of the block 102 is fixedly connected with a protective pad 103, the bottom of the protective pad 103 is in contact with the top of the hard disk body 9, and the top of the hard disk body 9 can be anti-vibrated through the cooperation of the second shock spring 101 and the buffer block 102. , the protective pad 103 can play a protective effect on the hard disk body 9 to avoid friction between the hard disk body 9 and the buffer block 102 .

Further, the inner bottom wall of the notch slot 3 is provided with a limit slot 43 extending from left to right, the limit slot 43 is slidably connected with a limit block 44, and the top of the limit block 44 is fixedly connected with the bottom of the movable block 41. Through the limiting groove 43 and the limiting block 44, the movable block 41 plays the role of limiting and guiding, so as to avoid the phenomenon that the movable block 41 is separated from the notch groove 3.

Further, the top of the shell cover 2 is fixedly connected with a mounting block 11 in the shape of a "ji". The inner side of the mounting block 11 is in contact with the front and back of the protective shell 1. The four corners of the bottom of the mounting block 11 are provided with mounting holes. The "ji"-shaped mounting block 11 and the mounting holes can quickly and conveniently transfer the shock-proof protection structure of the hard disk to the all-in-one computer.

Further, the top of the placement block 7 is provided with a placement slot, the hard disk body 9 is located in the placement slot, the bottom of the placement block 7 is provided with evenly distributed through holes, the through holes are communicated with the placement slot, and the hard disk body 9 can be made through the placement slot. It is more stable when placed on the placing block 7. There are several heat dissipation holes 12 on the left and right sides of the inner wall of the protective shell 1. The outer side of the placing block 7 is in smooth contact with the inner side wall of the protective shell 1. It is convenient to pass the through holes and the heat dissipation holes 12. For the heat dissipation of the hard disk body 9, the arrangement that the outer side surface of the placement block 7 is in smooth contact with the inner side wall of the protective shell 1 can increase the stability of the placement block 7 and make the shock absorption effect better.

Working principle: In this solution, by placing the hard disk body 9 in the placement slot of the placing block 7, and applying a moving force to the right of the movable block 41 in the telescopic assembly 4, the expansion spring 42 is compressed and deformed, and the movable block 41 and the shell are driven. The cover 2 is moved to the left, and then the cover 2 is turned in the direction of the slot 5, and the cover 2 is closed, and then the force on the movable block 41 is cancelled, so that the insert block 6 is inserted into the slot 5, and the expansion spring 42 Continuously apply a squeezing force to the shell cover 2, so that the insert block 6 is tightly connected with the slot 5, thereby realizing the limit of the shell cover 2;

Then, the shock-proof protection structure of the hard disk can be quickly and easily turned on the computer integrated machine through the "ji"-shaped mounting block 11 and the mounting holes. 103 The mutual cooperation of the first shock-absorbing spring 8 and the placing block 7 can restrict the top and bottom of the hard disk body 9, and the first shock-absorbing spring 8 and the second shock-absorbing spring 101 can prevent the hard disk body 9 from shocking effect, thereby preventing the hard disk body 9 from being damaged.

The above descriptions are only preferred specific embodiments of the present invention; however, the protection scope of the present invention is not limited thereto. Any person skilled in the art who is familiar with the technical scope disclosed by the present utility model, according to the technical solution of the present utility model and its improvement concept, equivalently replaces or changes, should be covered within the protection scope of the present utility model.

Claims (7)

1. The utility model provides a computer all-in-one hard disk protection architecture that takes precautions against earthquakes, includes protecting crust (1), its characterized in that: the top of the protective shell (1) is provided with a shell cover (2), the right side of the top of the protective shell (1) is provided with a notch groove (3), a telescopic assembly (4) is arranged in the notch groove (3), the right side of the shell cover (2) extends to the inside of the notch groove (3) and is hinged with the telescopic assembly (4), two inserting grooves (5) are formed above the left side of the inner wall of the protective shell (1), the two inserting grooves (5) are arranged from front to back, inserting blocks (6) are inserted into the two inserting grooves (5), and the right sides of the two inserting blocks (6) are fixedly connected with the right side of the shell cover (2);

the utility model discloses a hard disk drive, including protective housing (1), the inside of placing piece (7) is provided with places piece (7), place the first damping spring (8) of the bottom fixedly connected with evenly distributed of piece (7), the bottom of first damping spring (8) and the top fixed connection who places piece (7), place the top of piece (7) and placed hard disk body (9), the equal fixedly connected with subassembly (10) that take precautions against earthquakes of the left and right sides of cap (2) bottom, two the bottom of subassembly (10) that takes precautions against earthquakes contacts with the top of hard disk body (9) respectively.

2. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 1, characterized in that: flexible subassembly (4) are including movable block (41), the left side at movable block (41) top is passed through the hinge and is articulated with cap (2), the right side fixedly connected with equidistance of movable block (41) is by preceding expanding spring (42) of arranging backward, the right-hand member and breach groove (3) right side inner wall fixed connection of expanding spring (42).

3. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 1, characterized in that: the shockproof assembly (10) comprises second damping springs (101) which are uniformly distributed, the top ends of the second damping springs (101) are fixedly connected with the bottom of the shell cover (2), the bottom of each second damping spring (101) is fixedly connected with a buffer block (102), the bottom of each buffer block (102) is fixedly connected with a protection pad (103), and the bottom of each protection pad (103) is in contact with the top of the hard disk body (9).

4. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 2, characterized in that: the inner bottom wall of breach groove (3) has been seted up and has been extended to spacing groove (43) from a left side right side, sliding connection has stopper (44) in spacing groove (43), the top of stopper (44) and the bottom fixed connection of movable block (41).

5. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 1, characterized in that: the top fixedly connected with of cap (2) is installation piece (11) that are "nearly" font, the medial surface of installation piece (11) and the front and the back contact of protecting crust (1), the mounting hole has all been seted up in the four corners of installation piece (11) bottom.

6. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 1, characterized in that: the hard disk drive is characterized in that a placing groove is formed in the top of the placing block (7), the hard disk body (9) is located in the placing groove, through holes are formed in the bottom of the placing block (7) and are evenly distributed, and the through holes are communicated with the placing groove.

7. The shockproof protection structure of the hard disk of the all-in-one computer according to claim 1, characterized in that: a plurality of heat dissipation holes (12) are formed in the left side and the right side of the inner wall of the protective shell (1), and the outer side face of the placing block (7) is in smooth contact with the inner side wall of the protective shell (1).
