CN211336792U - Multi-angle folding box - Google Patents
Multi-angle folding box Download PDFInfo
- Publication number
- CN211336792U CN211336792U CN201922026727.8U CN201922026727U CN211336792U CN 211336792 U CN211336792 U CN 211336792U CN 201922026727 U CN201922026727 U CN 201922026727U CN 211336792 U CN211336792 U CN 211336792U
- Authority
- CN
- China
- Prior art keywords
- box
- triangular
- supporting
- unfolded
- boxes
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Cartons (AREA)
Abstract
The utility model relates to the technical field of gift box structures, in particular to a multi-angle folding box which solves the defects in the prior art and comprises a plurality of supporting paperboards, the supporting paper boards are movably connected, one side of each supporting paper board close to the end part is fixedly connected with symmetrically arranged triangular boxes, the triangular box is in a cavity structure, an inner lining is arranged in the inner cavity of the triangular box, a circular groove is arranged on the inner lining, matched silk ribbons and monks are fixedly connected on supporting paperboards connected to two ends respectively, the traditional gift box body is divided into a plurality of same parts, isosceles triangular boxes are additionally arranged at two ends of the paperboards, the triangular boxes can be closed to be in a box body shape, or the flower-shaped umbrella can be unfolded at 180 degrees to form a straight line and can be unfolded to form an S shape, or can be unfolded at 360 degrees to form a flower shape, the box type has various changeable structures, and can display and place articles from multiple angles, so that the requirements of users are met.
Description
Technical Field
The utility model relates to a gift box technical field especially relates to a box is folded to multiangular.
Background
The existing gift boxes are fixed in style, and are commonly used in a top-bottom cover box, a book-shaped box, a flip-open cover box, a drawer box and a round can. The gift box in the prior art has the following defects: 1. the existing box type is relatively fixed, and few innovations exist, so that people feel tired visually and are difficult to stand out; 2. the existing gift boxes rarely have multiple bottles, and the multiple bottles are generally packed by boxes; multiple bottles are generally only tiled, so that three-dimensional presentation is difficult to realize; 3. the same gift box is limited in the applicable different product categories.
Disclosure of Invention
The utility model aims at solving the defects in the prior art and providing a multi-angle folding box.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a multiangular folding box, includes a plurality of support cardboard, swing joint between the support cardboard, the equal fixedly connected with symmetrical arrangement's in one side triangle box of support cardboard near the tip, the triangle box is the cavity structure, is equipped with the inside lining in the inner chamber of triangle box, seted up the circular slot on the inside lining, connect respectively fixedly connected with assorted silk ribbon and fashion head on the support cardboard at both ends.
Preferably, the inner liner is made of an EVA material.
Preferably, the number of the supporting paperboards is set to be five to nine, and the number of the corresponding triangular boxes is set to be ten to eighteen.
Preferably, inner magnets are arranged in the side walls of the two sides of the triangular box, which are not in contact with the supporting paper board.
The utility model has the advantages that:
1. the utility model discloses in, divide into the same many shares with traditional gift box body, the isosceles triangle box is add at the cardboard both ends, and the triangle box can close and be the box body form, or 180 degrees expand and be the linearity to can expand and be the S type, or 360 degrees expand and be the flower form, and its box type has the structure of multiple transform, can demonstrate and put article from the multi-angle, satisfies user' S demand.
2. The utility model discloses in, every solitary triangle box can be used for many bottles of packing according to the inside lining of corresponding size of product customization, compact structure, and space utilization is big, is fit for display drinks, beverage, tealeaves, cosmetics, daily necessities, handicraft etc. can satisfy the user demand of different trades, is suitable for extensively wider.
Drawings

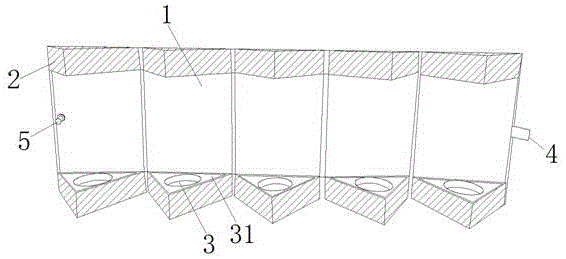

FIG. 1 is a first schematic view of a multi-angle foldable box according to the present invention;
FIG. 2 is a second schematic view of the multi-angle foldable box of the present invention;
FIG. 3 is a third illustration of the multi-angle foldable box of the present invention;
FIG. 4 is a fourth illustration of the multi-angle foldable box of the present invention;
fig. 5 is a top view of fig. 4 according to the present invention.
In the figure: 1 supporting cardboard, 2 triangular boxes, 3 inner liner, 31 circular groove, 4 ribbon, 5 and top.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, a multi-angle folding box comprises a plurality of supporting paper boards 1, the supporting paper boards 1 are movably connected, one side of each supporting paper board 1 close to the end portion is fixedly connected with symmetrically arranged triangular boxes 2, each triangular box 2 is of a cavity structure, an inner lining 3 is arranged in an inner cavity of each triangular box 2, each inner lining 3 is provided with a circular groove 31, the supporting paper boards 1 connected to the two ends are respectively and fixedly connected with a silk ribbon 4 and a monk head 5 which are matched with each other, a traditional gift box body is divided into a plurality of same parts, isosceles triangular boxes 2 are additionally arranged at the two ends of each paper board, each triangular box 2 can be folded to be in a box shape, or unfolded in a linear shape at 180 degrees and be in an S shape, or unfolded in a flower shape at 360 degrees, the box shape has various changeable structures, articles can be displayed and placed from multiple angles, the requirements of users are met, each independent triangular box 2 can be customized into inner linings with corresponding sizes according to products, can be used for many bottles of packing, compact structure, space utilization is big, be fit for display drinks, beverage, tealeaves, cosmetics, daily necessities, handicraft etc. can satisfy the user demand of different trades, it is suitable for extensively wider, inside lining 3 is made by the EVA material, the quantity of support cardboard 1 sets up to five to nine, and is five at least, and the quantity of the triangle box 2 that corresponds sets up to ten to eighteen, all be equipped with interior magnet in the triangle box 2 and the not contacted both sides lateral wall of support cardboard 1.
In the first embodiment, when the gift box is manufactured, corresponding sizes can be customized according to different products, the packaging requirements of all articles are met, the number of the supporting paperboards 1 and the triangular boxes 2 in the box body can be increased or reduced according to requirements, and the inner linings 3 made of EVA materials are arranged in the triangular boxes 2, so that the effects of shock absorption and collision prevention are achieved, and the articles are prevented from being damaged.
Referring to fig. 1 to 5, in a second embodiment, fig. 1 is a schematic view illustrating that the gift box 180 is linearly unfolded, and a plurality of products can be displayed and placed between two corresponding triangular boxes 2;
fig. 2 is a schematic view of the closed gift box, after the product is placed, the gift box is folded inwards from the state shown in fig. 1, the product is positioned in the gift box, when the gift box is closed, two sides of the triangular box 2 are mutually attracted due to the action of the inner magnet, the folding is convenient, and the fixation is strong;
fig. 3 is a schematic view showing the gift box opened in a flower shape, which is opened outward from the state of fig. 2, and then the silk ribbon 4 is tied on the front head 5 to fix the gift box and keep the flower shape;
fig. 4 and 5 are schematic views showing an S-shaped gift box, from the state of fig. 3, the silk ribbon 4 and the front head 5 are loosened, and the corresponding supporting paper boards 1 are rotated in sequence, and the box body is in an S-shaped;
to sum up, this gift box can demonstrate multiple show state through the turned position that changes support cardboard 1, according to the demand, can be diversified and show placing the product comprehensively three-dimensionally, and convenient operation, powerful.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (4)
1. The utility model provides a multiangular folding box, includes a plurality of support cardboard (1), its characterized in that, swing joint between the support cardboard (1), support cardboard (1) and be close to equal fixedly connected with symmetrical arrangement's of one side triangle box (2) of tip, triangle box (2) are the cavity structure, are equipped with inside lining (3) in the inner chamber of triangle box (2), circular slot (31) have been seted up on inside lining (3), connect respectively fixedly connected with assorted silk ribbon (4) and fashion head (5) on the support cardboard (1) at both ends.
2. A polygonal folding box according to claim 1, characterized in that the inner lining (3) is made of EVA material.
3. A polygonal folding carton according to claim 1, characterized in that the number of supporting sheets (1) is set to five to nine and the number of corresponding triangular boxes (2) is set to ten to eighteen.
4. A polygonal folding carton according to claim 1, characterized in that the inner magnets are arranged in the side walls of the triangular carton (2) which are not in contact with the supporting cardboard (1).
