CN211310488U - Villa elevator buffer - Google Patents
Villa elevator buffer Download PDFInfo
- Publication number
- CN211310488U CN211310488U CN201922139155.4U CN201922139155U CN211310488U CN 211310488 U CN211310488 U CN 211310488U CN 201922139155 U CN201922139155 U CN 201922139155U CN 211310488 U CN211310488 U CN 211310488U
- Authority
- CN
- China
- Prior art keywords
- buffer
- fixed
- slide bar
- bottom plate
- spout
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Vibration Dampers (AREA)
Abstract
The utility model discloses a villa elevator buffer, comprising a base plate, the side fixing of bottom plate has fixed frame, be fixed with a plurality of dead levers around bottom plate central line circumference evenly distributed on the outer wall of fixed frame, be equipped with the spout that communicates with the inner wall of fixed frame in the dead lever, it has the slide bar to peg graft in the spout, be equipped with first buffer spring between the one end that slide bar and spout peg graft and the bottom surface of spout, the other end of slide bar articulates there is the buffer beam, the top of bottom plate is equipped with first buffer board, the one end that the slide bar was kept away from to every buffer beam all articulates with first buffer board, the side of going up of bottom plate still is fixed with the fixed column, the side of going up of fixed column is equipped with the mounting groove, it has the bracing piece to peg graft in the mounting groove, be equipped with second buffer spring between. The utility model discloses can drop the messenger to elevator car through the cooperation of first buffer board and second buffer board and play fine cushioning effect.
Description
Technical Field
The utility model belongs to the elevator field, more specifically the utility model relates to a villa elevator buffer that says so.
Background
An elevator is a permanent transport device serving a number of specific floors in a building, the car of which travels in at least two rigid orbital movements perpendicular to the horizontal or inclined at an angle of less than 15 ° to the vertical, a fixed lifting device serving the given floor.
Under some extreme circumstances, the car body can take place the dangerous situation of falling rapidly, treats that the car body falls the well bottom rapidly, because the car bottom lacks the damper who can realize the buffering effect, the personnel that are located the car can receive the injury of different degrees because huge impact force can, and the falling force that produces can not obtain timely dispersion, can lead to dying when serious.
SUMMERY OF THE UTILITY MODEL
To the not enough of prior art, the utility model provides a can play the villa elevator buffer of cushioning effect when dropping the car.
In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides a villa elevator buffer, includes the bottom plate, the side fixing has fixed frame on the bottom plate, be fixed with a plurality of dead levers around bottom plate central line circumference evenly distributed on the outer wall of fixed frame, be equipped with the spout that communicates with the inner wall of fixed frame in the dead lever, it has the slide bar to peg graft in the spout, be equipped with first buffer spring between the one end that slide bar and spout were pegged graft and the bottom surface of spout, the other end of slide bar articulates there is the buffer beam, the top of bottom plate is equipped with first buffer board, every the one end that the slide bar was kept away from to the buffer beam all articulates with first buffer board.
By adopting the technical scheme, when the lift car falls onto the first buffer plate to apply pressure to the first buffer plate, the first buffer plate moves downwards under the pressure, the buffer rod drives the sliding rod to move towards the sliding groove, and the first buffer spring is compressed by the acting force of the sliding rod, so that the buffering effect can be achieved; because first buffer spring sets up in the spout to avoid outside material to drop inside first buffer spring and lead to first buffer spring's inefficacy.
Further, the side of going up of bottom plate still is fixed with the fixed column, the side of going up of fixed column is equipped with the ascending mounting groove of opening, it has the bracing piece to peg graft in the mounting groove, the bracing piece extends into and is equipped with second buffer spring between the one end of mounting groove and the bottom surface of mounting groove, the bracing piece is kept away from the one end of second buffer spring and is extended the buffer board.
Through adopting above-mentioned technical scheme, contact the bracing piece earlier when the car drops, bracing piece atress moves down and extrudees second buffer spring, cushions the pressure of a part car earlier, and the car continues to move down and contacts first buffer board, and the car drives first buffer board downstream, and first buffer spring and second buffer spring play the cushioning effect to the car jointly this moment, and the effect of buffering is better.
Furthermore, a second buffer plate is fixed at one end of the support rod extending out of the buffer plate.
Through adopting above-mentioned technical scheme, the area of contact of bracing piece and car can be increased to the second buffer board, more steady when making the car drop.
Furthermore, a plurality of reinforcing ribs are arranged between the fixing column and the bottom plate, and the reinforcing ribs are uniformly distributed around the circumference of the axis of the fixing column.
Through adopting above-mentioned technical scheme, the strengthening rib can increase the joint strength between fixed column and the bottom plate.
Further, the side of going up of slide bar is equipped with the constant head tank that extends along slide bar length, the bottom surface of constant head tank is equipped with a plurality of location steps of arranging in proper order along constant head tank length direction, the height of location step increases in proper order to fixed frame outside direction from fixed frame center, wear to be equipped with the locating lever that one end extended into the constant head tank on the dead lever.
Through adopting above-mentioned technical scheme, drive the slide bar and remove in the spout when first buffer board pressurized downstream, the locating lever removes highly lower location step owing to receive its lower extreme of gravity reason this moment, when the car drops to the minimum, the lower extreme of locating lever removes highly minimum location step this moment on, the slide bar receives first buffer spring's resilience force and removes outside the spout after that, the distance that the slide bar outwards removed can be restricted to minimum location step, thereby avoid the car because the resilience force of first buffer spring upwards bounces the car and causes the personnel discomfort in the car.
Furthermore, a first elastic layer is arranged above the first buffer plate.
Furthermore, a second elastic layer is arranged at the upper end of the fixing column.
To sum up, the utility model has the advantages that: 1. when the lift car drops, the lift car contacts with the second buffer plate firstly, the second buffer plate is stressed to move downwards, the second buffer spring is extruded through the support rod, the second buffer spring plays a buffering role firstly, the lift car continues to move downwards until the second buffer plate contacts with the first buffer plate, the lift car drives the second buffer plate and the first buffer plate to move downwards, the second buffer plate drives the slide rod to move towards the sliding chute through the buffer rod, the first buffer spring is compressed by the acting force of the slide rod, at the moment, the first buffer spring and the second buffer spring play a buffering role on the lift car together, and the buffering effect is good; 2. first buffer spring sets up in the spout to avoid outside material to drop inside first buffer spring and lead to first buffer spring's inefficacy.
Drawings
Fig. 1 is a schematic perspective view of a buffering device for a villa elevator;
FIG. 2 is a front view of FIG. 1;

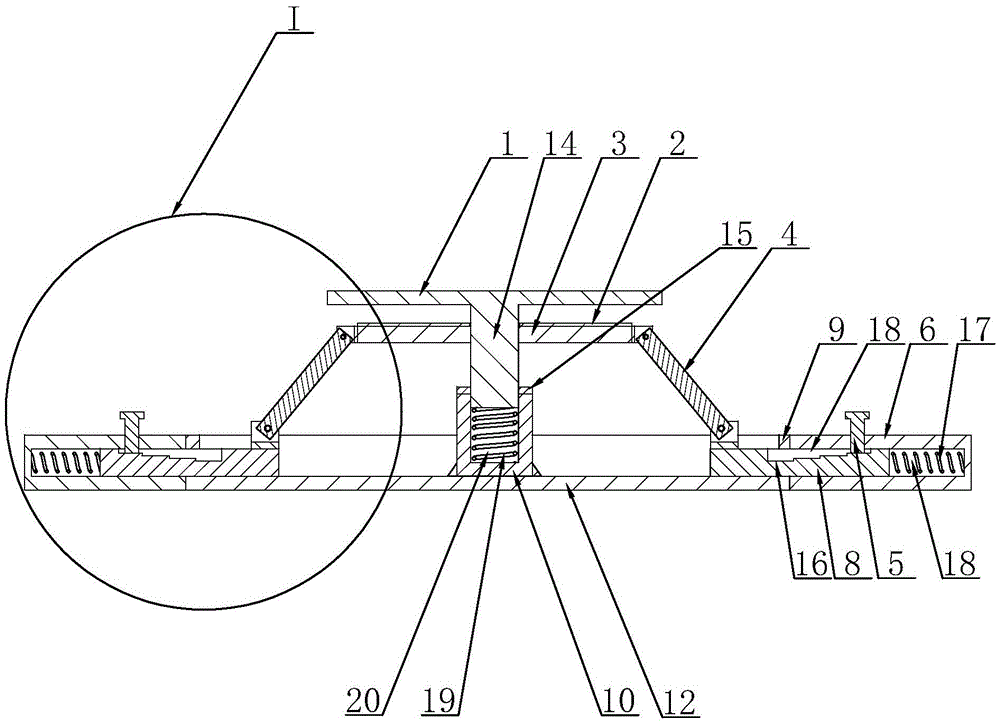

FIG. 3 is a cross-sectional view taken at A-A of FIG. 1;
fig. 4 is a partial enlarged view at I in fig. 3.
Reference numerals: 1. a second buffer plate; 2. a first elastic layer; 3. a first buffer plate; 4. a buffer rod; 5. positioning a rod; 6. fixing the rod; 7. positioning a groove; 8. a slide bar; 9. a fixing frame; 10. fixing a column; 11. reinforcing ribs; 12. a base plate; 14. a support bar; 15. a second elastic layer; 16. positioning a step; 17. a first buffer spring; 18. a chute; 19. a second buffer spring; 20. and (4) mounting the groove.
Detailed Description
The embodiment of the buffering device for villa elevator of the present invention is further described with reference to fig. 1 to 4.
As shown in fig. 1 and 4, a villa elevator buffer device, including bottom plate 12, the side of going up of bottom plate 12 is fixed with fixed frame 9, be fixed with a plurality of dead levers 6 around 12 central line circumference evenly distributed of bottom plate on the outer wall of fixed frame 9, dead lever 6 is preferred to be provided with four, be equipped with the spout 18 with the inner wall intercommunication of fixed frame 9 in each dead lever 6, it has slide bar 8 to peg graft in the spout 18, be equipped with first buffer spring 17 between the one end of slide bar 8 and the spout 18 grafting and the bottom surface of spout 18, the inner wall that the other end of slide bar 8 extended into fixed frame 9 articulates there is buffer beam 4, the top of bottom plate 12 is equipped with first buffer board 3, the one end that slide bar 8 was kept away from to every buffer beam 4 all articulates with the outer wall.
As shown in fig. 3, the upper side of the bottom plate 12 is further fixed with a fixing column 10, the upper side of the fixing column 10 is provided with an installation groove 20 with an upward opening, a support rod 14 is inserted in the installation groove 20, a second buffer spring 19 is arranged between one end of the support rod 14 extending into the installation groove 20 and the bottom surface of the installation groove 20, one end of the support rod 14 far away from the second buffer spring 19 extends out of the buffer plate, one end of the support rod 14 extending out of the buffer plate is fixed with a second buffer plate 1, and the support rod 14 can also play a role in limiting the first buffer plate 3.
As shown in fig. 1, in order to increase the connection strength between the fixing column 10 and the bottom plate 12, a plurality of reinforcing ribs 11 are arranged between the fixing column 10 and the bottom plate 12, the cross sections of the reinforcing ribs 11 are triangular, and the reinforcing ribs 11 are uniformly distributed around the circumference of the axis of the fixing column 10.
As shown in fig. 4, the upper side of the sliding rod 8 is provided with a positioning groove 7 extending along the length of the sliding rod 8, the bottom of the positioning groove 7 is provided with a plurality of positioning steps 16 sequentially arranged along the length direction of the positioning groove 7, the height of the positioning steps 16 increases from the center of the fixing frame 9 to the outside direction of the fixing frame 9 (direction B in fig. 4), the fixing rod 6 is provided with a positioning rod 5 with one end extending into the positioning groove 7, the lower end of the fixing rod 6 is abutted against the positioning steps 16, when the first buffer plate 3 is pressed to move downwards, the sliding rod 8 is driven to move towards the sliding groove 18, the lower end of the positioning rod 5 moves to the positioning step 16 with lower height due to gravity, when the car falls to the lowest point, the lower end of the positioning rod 5 moves to the positioning step 16 with lowest height, then the sliding rod 8 moves towards the outside of the sliding groove 18 due to the resilience of the first buffer spring 17, the lowest positioning step 16 can, thereby avoiding discomfort of people in the car caused by the car bouncing upwards due to the resilience of the first buffer spring 17.
As shown in fig. 3, a first elastic layer 2 is arranged above the first buffer board 3, the first elastic layer 2 can play a role of buffering when the second buffer board 1 contacts with the first buffer board 3, a second elastic layer 15 is arranged at the upper end of the fixing column 10, and the first elastic layer 2 and the second elastic layer 15 are made of rubber.
The working principle is as follows: when the car drops, the car contacts the second buffer plate 1 firstly, the second buffer plate 1 is stressed to move downwards, the second buffer spring 19 is extruded through the supporting rod 14, the second buffer spring 19 plays a buffering role firstly, the car continues to move downwards until the second buffer plate 1 contacts the first buffer plate 3, the car drives the second buffer plate 1 and the first buffer plate 3 to move downwards, the second buffer plate 1 drives the sliding rod 8 to move towards the sliding groove 18 through the buffer rod 4, the first buffer spring 17 is compressed by the acting force of the sliding rod 8, at the moment, the first buffer spring 17 and the second buffer spring 19 play a buffering role together for the car, and the buffering effect is better.
It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (7)
1. The utility model provides a villa elevator buffer which characterized in that: the bottom plate comprises a base plate, the side of going up of bottom plate is fixed with fixed frame, be fixed with a plurality of dead levers around bottom plate central line circumference evenly distributed on the outer wall of fixed frame, be equipped with the spout that communicates with the inner wall of fixed frame in the dead lever, it has the slide bar to peg graft in the spout, be equipped with a buffer spring between the one end that slide bar and spout were pegged graft and the bottom surface of spout, the other end of slide bar articulates there is the buffer beam, the top of bottom plate is equipped with first buffer board, every the one end that the slide bar was kept away from to the buffer beam all articulates with first buffer board.
2. A villa elevator buffer as defined in claim 1, wherein: the side of going up of bottom plate still is fixed with the fixed column, the side of going up of fixed column is equipped with the ascending mounting groove of opening, it has the bracing piece to peg graft in the mounting groove, the bracing piece extends into and is equipped with second buffer spring between the one end of mounting groove and the bottom surface of mounting groove, the bracing piece is kept away from the one end of second buffer spring and is extended the buffer board.
3. A villa elevator buffer as defined in claim 2, wherein: and a second buffer plate is fixed at one end of the support rod extending out of the buffer plate.
4. A villa elevator buffer as defined in claim 2, wherein: and a plurality of reinforcing ribs are arranged between the fixed column and the bottom plate, and the reinforcing ribs are uniformly distributed around the circumference of the axis of the fixed column.
5. A villa elevator buffer as defined in claim 1, wherein: the side of going up of slide bar is equipped with the constant head tank that extends along slide bar length, the bottom surface of constant head tank is equipped with a plurality of location steps of arranging in proper order along constant head tank length direction, the height of location step increases in proper order to fixed frame outside direction from fixed frame center, wear to be equipped with the locating lever that one end extended into the constant head tank on the dead lever.
6. A villa elevator buffer as defined in claim 2, wherein: and a first elastic layer is arranged above the first buffer plate.
7. A villa elevator buffer as defined in claim 2, wherein: and a second elastic layer is arranged at the upper end of the fixing column.
