Abstract
The utility model discloses an electric automatization safety cabinet, including the safety cabinet main part, still include clamping mechanism, the safety cabinet main part lateral wall is provided with a plurality of clamping mechanism, and the clamping mechanism and the components and parts fixed plate through both sides are connected, clamping mechanism includes connecting bolt and T-shaped connecting rod and connecting spring and connecting clamp plate, connecting bolt and safety cabinet main part lateral wall close the connection soon, the laminating of connecting bolt bottom and the connecting clamp plate outside, the connecting clamp plate outside symmetry is connected with T-shaped connecting rod, and connecting clamp plate opposite side and components and parts fixed plate laminating connection, the safety cabinet main part is seted up the accomodating groove that T-shaped connecting rod inserted and establish, T-shaped connecting rod passes through connecting spring and accomodates the groove and connect; when the components which are difficult to install or the connection between the components is difficult to route, the clamping devices on the two side walls of the safety cabinet main body selective for the component fixing plates are connected, so that the universality of the electric automation safety cabinet is improved.
Description
Technical Field
The utility model relates to an electrical safety cabinet technical field especially relates to an electrical automation safety cabinet.
Background
Electric safety cabinet, as the name suggests, is the cupboard that is used for protecting components and parts normal work, generally is the cuboid structure, and electric safety cabinet generally is made by hot rolled steel sheet or cold-rolled steel sheet, and comparatively speaking, the cold-rolled steel sheet is softer relatively to hot rolled steel sheet, more is fit for the preparation of regulator cubicle, and the regulator cubicle usage is extensive, and is comparatively common in daily life, mainly used mechanical industry, environmental protection trade, electric power system, fields such as metallurgical industry, fire control safety monitoring.
Current electric automatization safety cabinet is because the fixed of components and parts fixed plate that leads to of structure, fixed to some components and parts and to the restriction when walking the line to being connected between the components and parts great, the commonality that can lead to electric automatization safety cabinet like this reduces, current electric automatization safety cabinet body radiating effect is not good, because the heat that components and parts long-time work produced is difficult to in time distribute away, inside heat gathers and not only causes the internals to damage easily and has reduced the life of internals, still cause inside to catch fire easily, the security performance is not good.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the prior art has the defects of low universality and poor heat dissipation effect, and providing an electric automation safety cabinet.
In order to achieve the above purpose, the utility model adopts the following technical scheme: an electric automation safety cabinet comprises a safety cabinet main body and a clamping mechanism, wherein a plurality of rain baffles are symmetrically arranged on two sides of the safety cabinet main body, the outer side of the safety cabinet main body is rotationally connected with a door of the safety cabinet through a connecting hinge, the bottom of the safety cabinet main body is fixedly connected with a power driving chamber, a plurality of clamping mechanisms are arranged on the side wall of the safety cabinet main body and are connected with a component fixing plate through the clamping mechanisms on two sides, each clamping mechanism comprises a connecting bolt, a T-shaped connecting rod, a connecting spring and a connecting pressing plate, the connecting bolt is rotationally connected with the side wall of the safety cabinet main body, the bottom of the connecting bolt is attached to the outer side of the connecting pressing plate, the outer side of the connecting pressing plate is symmetrically connected with the T-shaped connecting rod, the other side of the connecting pressing plate is attached to the component fixing plate, the safety cabinet main, t shape connecting rod passes through coupling spring and accomodates the groove and connects, the safety cabinet main part outside is provided with the dust cover, the inside rotation of safety cabinet main part is connected with the rotation connecting rod, the outside and the first connecting band pulley of rotation connecting rod are connected, the tip and the multi-disc radiating blade that rotate the connecting rod are connected, safety cabinet main part bottom and power drive room are connected, power drive indoor portion and driving motor fixed connection, power drive room output shaft tip and second are connected the band pulley and are connected, the band pulley is connected through connecting belt and first connecting band pulley transmission to the second.
Furthermore, the safety cabinet main body is provided with a threaded hole screwed with the connecting bolt.
Furthermore, one end of the connecting spring is connected with the accommodating groove, and the other end of the connecting spring is connected with the T-shaped connecting rod.
Further, the side wall of the safety cabinet main body connected with the dust cover is provided with a ventilation through hole.
Furthermore, a through hole for the connection belt to penetrate through is formed in the top of the power driving chamber.
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. be difficult to the components and parts of installation or be difficult to when walking the line to the connection between the components and parts, connect the clamping device of the safety cabinet main part both sides wall of components and parts fixed plate selectivity, install again components and parts and walk the line with the connection between the components and parts to this increases the commonality of electric automatization safety cabinet, dispels the heat to components and parts through driving motor drive radiating vane, with this heat that reduces electric automatization safety cabinet inside, has reduced the use risk.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

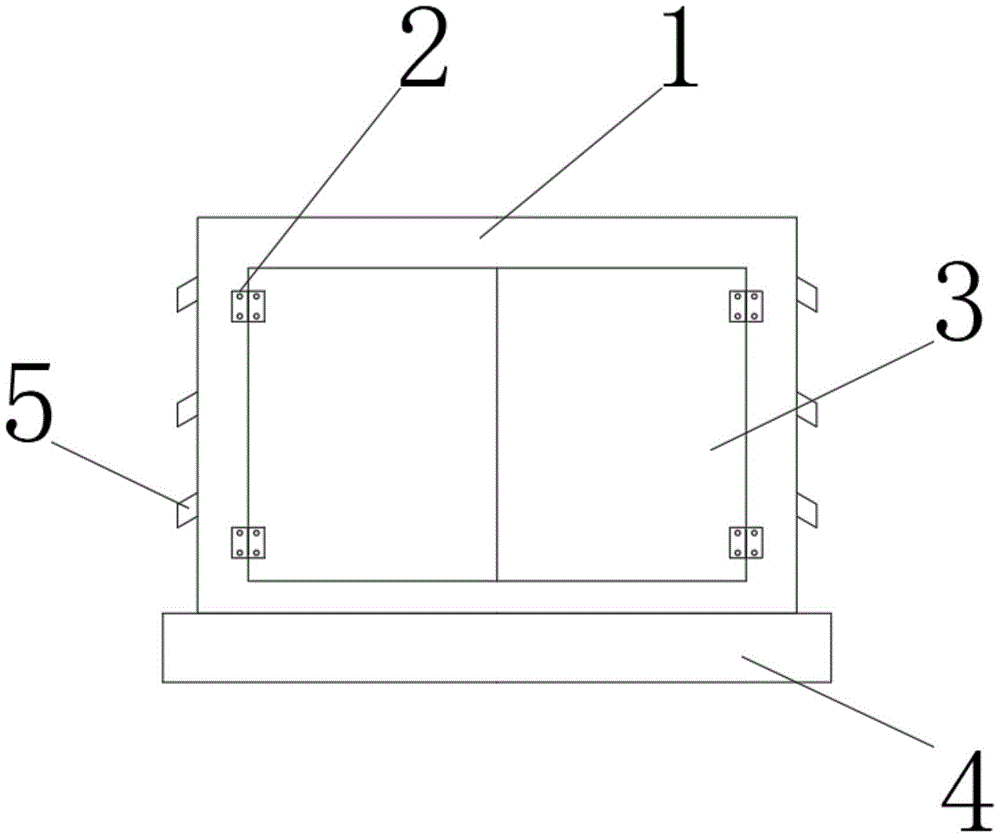

Fig. 1 is a schematic view of an overall structure of an electrical automation safety cabinet according to the present invention;
fig. 2 is a front sectional view of an electrical automation safety cabinet according to the present invention;
fig. 3 is a side sectional view of an electrical automation safety cabinet according to the present invention;
fig. 4 is the utility model provides a connection schematic diagram of components and parts fixed plate and connection clamp plate of electric automatization safety cabinet.
In the figure: 1. a safety cabinet main body; 2. a connecting hinge; 3. a safety cabinet door; 4. a power drive chamber; 5. a rain shield; 6. a component fixing plate; 7. a heat dissipating fin; 8. rotating the connecting rod; 9. a first connecting pulley; 10. connecting a belt; 11. a drive motor; 12. a second connecting pulley; 13. a dust cover; 14. a connecting bolt; 15. a T-shaped connecting rod; 16. a connecting spring; 17. and connecting the pressing plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: an electric automation safety cabinet comprises a safety cabinet main body 1 and a clamping mechanism, wherein a plurality of rain baffles 5 are symmetrically connected to two sides of the safety cabinet main body 1 through screws, the outer side of the safety cabinet main body 1 is rotatably connected with a safety cabinet door 3 through a connecting hinge 2, the bottom of the safety cabinet main body 1 is welded with a power driving chamber 4, the side wall of the safety cabinet main body 1 is provided with a plurality of clamping mechanisms and is connected with a component fixing plate 6 through the clamping mechanisms at two sides, each clamping mechanism comprises a connecting bolt 14, a T-shaped connecting rod 15, a connecting spring 16 and a connecting pressing plate 17, the connecting bolt 14 is screwed and connected with the side wall of the safety cabinet main body 1, the bottom of the connecting bolt 14 is attached to the outer side of the connecting pressing plate 17, the T-shaped connecting rod 15 is symmetrically welded to the outer side of the connecting pressing plate 17, the other side of the connecting pressing plate 17 is attached to the component, t shape connecting rod 15 passes through coupling spring 16 and accomodates the groove and connect, there is dust cover 13 safety cabinet main part 1 outside through screwed connection, 1 inside rotation of safety cabinet main part is connected with rotation connecting rod 8, the outside and the first connecting band pulley 9 interference fit of rotation connecting rod 8, the tip and the multi-disc radiating blade 7 welding of rotation connecting rod 8, bolt and driving motor 11 fixed connection are passed through to power drive room 4 is inside, power drive room 4 output shaft tip and the interference fit of second connecting band pulley 12, second connecting band pulley 12 is connected through connecting belt 10 and the transmission of first connecting band pulley 9.
Further, the safety cabinet body 1 is provided with a threaded hole screwed with the connecting bolt 14.
Further, one end of the connecting spring 16 is welded to the receiving groove, and the other end is welded to the T-shaped connecting rod 15.
Further, the side wall where the safety cabinet main body 1 and the dust cover 13 are connected is provided with a ventilation through hole.
Further, a through hole for the connecting belt 10 to pass through is formed at the top of the power driving chamber 4.
Further, the drive motor 11 model may be YS 7124.
The utility model discloses a theory of operation and use flow: when the electric automation safety cabinet needs to be installed and used, firstly, the door 3 of the safety cabinet is rotated and opened, then, two ends of the component fixing plate 6 are fixed on the inner wall of the safety cabinet main body 1 through the clamping mechanism, wherein the component fixing plate 6 is selectively fixed according to needs, wherein the working mode of the clamping mechanism is that the connecting bolt 14 is screwed, the end part of the connecting bolt 14 is attached to the connecting pressing plate 17, the connecting pressing plate 17 moves to be close to the end part of the component fixing plate 6 until the component fixing plate 6 is closely attached to realize the fixation of the component fixing plate 6, the T-shaped connecting rod 15 is driven to move when the connecting pressing plate 17 moves, at the moment, the connecting spring 16 is in a compression state, after the component fixing plate 6 is fixed, the components are installed and fixed and connected and wires are arranged among the components, the driving motor 11 is opened to drive the second connecting belt wheel 12 at the output, the second connecting belt wheel 12 transmits power to the first connecting belt wheel 9 through the connecting belt 10, the first connecting belt wheel 9 drives the rotating connecting rod 8 and the radiating blades 7 to rotate, wind power generated by the radiating blades 7 dissipates heat of components in work, and radiating holes in the side face of the safety cabinet main body 1 also improve radiating effect.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. An electric automatization safety cabinet, includes safety cabinet main part (1), still includes clamping mechanism, its characterized in that, safety cabinet main part (1) bilateral symmetry is provided with a plurality of weather shields (5), the safety cabinet main part (1) outside is rotated through connecting hinge (2) and safety cabinet door (3) and is connected, safety cabinet main part (1) bottom and power drive room (4) fixed connection, safety cabinet main part (1) lateral wall is provided with a plurality of clamping mechanism, and is connected through the clamping mechanism and components and parts fixed plate (6) of both sides, clamping mechanism includes connecting bolt (14) and T shape connecting rod (15) and coupling spring (16) and connection clamp plate (17), connecting bolt (14) and safety cabinet main part (1) lateral wall close the connection soon, connecting bolt (14) bottom and connection clamp plate (17) outside laminating, the outer side of the connecting pressing plate (17) is symmetrically connected with T-shaped connecting rods (15), the other side of the connecting pressing plate (17) is attached to the component fixing plate (6), the safety cabinet body (1) is provided with a containing groove in which the T-shaped connecting rods (15) are inserted, the T-shaped connecting rods (15) are connected with the containing groove through connecting springs (16), a dust cover (13) is arranged on the outer side of the safety cabinet body (1), the inner part of the safety cabinet body (1) is rotatably connected with a rotating connecting rod (8), the outer side of the rotating connecting rod (8) is connected with a first connecting belt wheel (9), the end part of the rotating connecting rod (8) is connected with a plurality of radiating blades (7), the inner part of the power driving chamber (4) is fixedly connected with a driving motor (11), and the end part of an output shaft of the power driving chamber (4) is connected with a second connecting belt wheel, the second connecting belt wheel (12) is in transmission connection with the first connecting belt wheel (9) through a connecting belt (10).
2. The electric automation safety cabinet according to claim 1, characterized in that the safety cabinet body (1) is provided with a threaded hole screwed with the connecting bolt (14).
3. An electric automation safety cabinet according to claim 1 characterised in that the connecting spring (16) is connected to the housing slot at one end and to the T-shaped connecting rod (15) at the other end.
4. An electric automation safety cabinet according to claim 1, characterized in that the side walls where the safety cabinet body (1) and the dust cover (13) are connected are provided with ventilation through holes.
5. An electric automation safety cabinet according to claim 1, characterized in that the top of the power driving chamber (4) is provided with a through hole for the connection belt (10) to pass through.
