CN211275649U - A disinfection and cleaning device for acupuncture silver needles - Google Patents

Abstract

The utility model discloses a disinfection and cleaning device for acupuncture silver needles, which comprises a cleaning box, a support block is fixedly installed in the cleaning box, a groove is formed on the upper surface of the support block, and the inner surface of the groove is provided with a clamping groove. The card slot is equipped with a silver needle storage device that can be moved out, the cleaning box is equipped with a rotatable brush device, and the upper surface of the inner cavity of the cleaning box is equipped with a spray water pipe, and the spray water pipe is connected with a water inlet pipe. The silver needle storage device is taken out, then the silver needle is put into the conical groove, the silver needle storage device is clamped in the card groove through the card block, and the disinfection and cleaning solution is injected into the water inlet pipe, and the disinfection and cleaning solution is sprayed from the spray. It is sprayed from the water pipe to disinfect and moisten the silver needle. Finally, the driving motor is started, and the driving motor drives the first rotating rod to rotate. Under the action of the transmission wheel and the transmission belt, it will drive the second transmission rod to rotate. The transmission rod drives the fine-bristle brush to rotate, thereby brushing the silver needle.

Description

A disinfection and cleaning device for acupuncture silver needles

technical field

The utility model relates to the technical field of acupuncture silver needle cleaning, in particular to a disinfection and cleaning device for acupuncture silver needles.

Background technique

Acupuncture is a unique Chinese method of treating diseases. It is a medical technique of "external treatment of internal diseases". It is used to treat systemic diseases through the conduction of meridians and acupoints and the application of certain operating methods. Clinically, according to the diagnosis and treatment methods of traditional Chinese medicine, the cause is diagnosed, the key is identified, the nature is identified, which meridian and which viscera the disease belongs to, and whether it belongs to the type of external and internal, cold and heat, deficiency and excess, make a diagnosis, and then Carry out the corresponding acupoint prescription for treatment, in order to open the meridians, regulate qi and blood, make yin and yang return to relative balance, and the functions of the zang-fu organs tend to be in harmony, so as to achieve the purpose of disease prevention. After acupuncture is used, it needs to be disinfected and cleaned to facilitate the next time However, the previous silver needle cleaning device has poor cleaning effect, cannot achieve comprehensive cleaning and brushing, and is inconvenient to prevent the silver needle from entering the cleaning cavity.

Utility model content

The purpose of this utility model is to provide a disinfection and cleaning device for silver needles of acupuncture and moxibustion, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a disinfection and cleaning device for acupuncture silver needles, comprising a cleaning box, the lower surface of the cleaning box is equipped with a support column, and the upper surface of the cleaning box is provided with an opening, The lower surface of the cleaning box is equipped with a water outlet pipe, and a support block is fixedly installed in the cleaning box. The upper surface of the support block is provided with a groove, and the inner surface of the groove is provided with a clamping groove. It is equipped with a silver needle storage device that can be moved out, the cleaning box is equipped with a rotatable brush device, and the upper surface of the inner cavity of the cleaning box is equipped with a spray water pipe, and the spray water pipe is located in the silver needle storage device. Above, and the spray water pipe runs through the left surface of the cleaning box and is connected with a water inlet pipe.

Preferably, the silver needle storage device includes a fixing block, the upper surface of the fixing block is provided with a conical groove, the silver needle is assembled in the conical groove, and the lower surface of the fixing block is equipped with a clamping block, so The card block is snap-fitted in the card slot.

Preferably, the brushing device includes a first rotating rod and a second rotating rod, both of the first rotating rod and the second rotating rod are assembled in the cleaning box through a bearing embedded in the inner surface of the cleaning box, and the first rotating rod and the second rotating rod The outer surfaces of the first rotating rod and the second rotating rod are equipped with fine-bristle brushes, and the thin-bristle brushes are attached to the silver needles.

Preferably, a drive motor is mounted on the right surface of the first rotating rod, the driving motor is mounted on the right surface of the cleaning box through a support plate, and the outer surfaces of the first rotating rod and the second rotating rod are fixedly equipped with A transmission wheel, and a transmission belt is assembled between the two transmission wheels.

Preferably, a cover plate is rotatably installed at the opening of the cleaning box, the outer surface of the cover plate is attached to the inner surface of the opening, and a handle is fixedly installed on the upper surface of the cover plate.

Preferably, the distance between the support block and the lower surface of the inner cavity of the cleaning box is at least centimeters.

Compared with the prior art, the beneficial effect of the present utility model is: the utility model is provided with a rubbing brush device and a support block, and the first transmission rod and the second rotating rod in the rubbing brush device are respectively assembled on the front and rear of the supporting block. On both sides, the silver needles can be thoroughly brushed, so that the cleaning effect is better. The utility model is provided with a silver needle storage device. The card is connected to the card slot, which is convenient to store the silver needle in the silver needle storage device, and after cleaning, it is also convenient to take out the silver needle from the cleaning box, which makes the operation more convenient.

Description of drawings

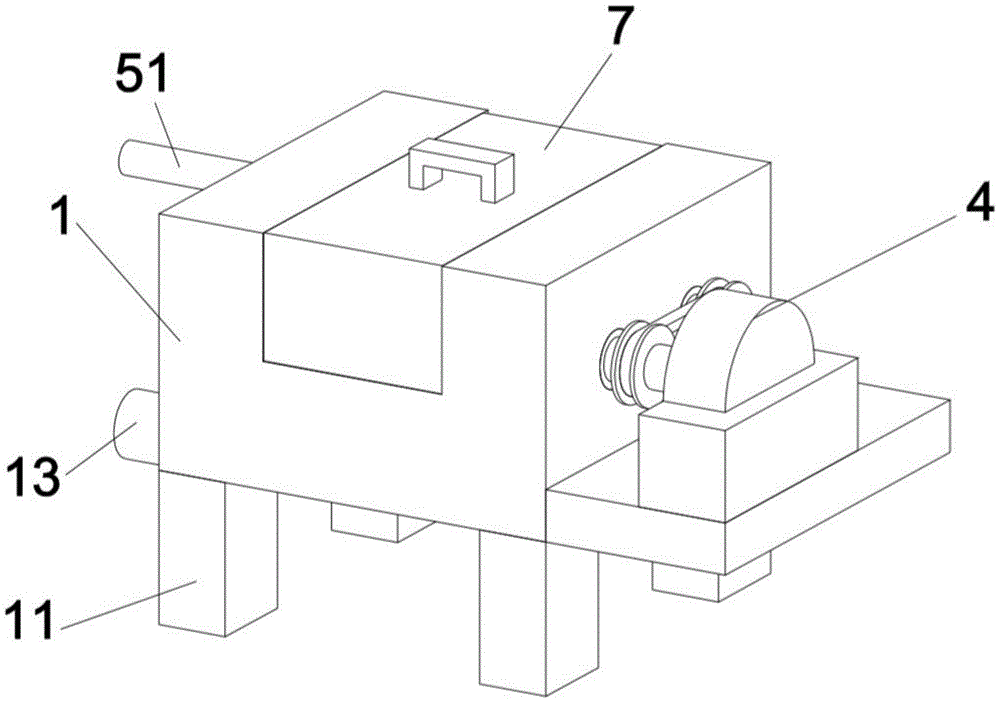

Figure 1 is a schematic structural diagram of the utility model.

Figure 2 is a schematic diagram of the explosion structure of the present utility model.

In the figure: 1. Cleaning box, 11, support column, 12, opening, 13, water outlet pipe, 2, support block, 21, groove, 22, card slot, 3, silver needle storage device, 31, fixing block, 32 , Conical groove, 33, Silver needle, 34, Block, 4, Brush device, 41, First rotating rod, 42, Second rotating rod, 43, Bearing, 44, Fine brush, 45, Drive motor, 46 , Support plate, 5, spray water pipe, 51, water inlet pipe, 6, transmission wheel, 61, transmission belt, 7, cover plate, 71, handle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 to FIG. 2 , the present utility model provides a technical solution: a disinfection and cleaning device for acupuncture silver needles, comprising a cleaning box 1 , the lower surface of the cleaning box 1 is equipped with a support column 11 , and the upper surface of the cleaning box 1 is equipped with a support column 11 . There is an opening 12, the lower surface of the cleaning box 1 is equipped with a water outlet pipe 13, a support block 2 is fixedly installed in the cleaning box 1, the upper surface of the support block 2 is provided with a groove 21, and the inner surface of the groove 21 is provided with The card slot 22 is equipped with a silver needle storage device 3 that can be moved and taken out, the cleaning box 1 is equipped with a rotatable brush device 4, and the upper surface of the inner cavity of the cleaning box 1 is equipped with a spray water pipe 5, The spray heads of the spray pipe 5 all rush to the direction of the silver needle, the spray water pipe 5 is located above the silver needle storage device 3, and the spray water pipe 5 runs through the left surface of the cleaning box 1 and is connected with a water inlet pipe 51. When in use, carry the handle. 71 Open the cover 7, lift up the silver needle storage device 3 and take it out, then put the silver needle 33 to be cleaned into the conical groove 32, and then visually check the position of the card slot 22 in the support block 2, and store the silver needle The device 3 is clamped in the card slot 22 by the clamping block 34, and then the opening 12 is closed with the cover plate 7, and the disinfection and cleaning liquid is injected into the water inlet pipe 51. At this time, the disinfection and cleaning liquid will be sprayed from the spray water pipe 5. The silver needle 33 is sterilized and moistened, and finally the driving motor 45 is started, and the driving motor 45 drives the first rotating rod 41 to rotate. The first rotating rod 41 will drive the second transmission rod 42 to rotate under the action of the transmission wheel 6 and the transmission belt 61. At the same time, the first transmission rod 41 and the second transmission rod 42 will drive the fine-bristle brush 44 on the outer surface to rotate, so as to disinfect and clean the silver needle 33 .

Specifically, the silver needle storage device 3 includes a fixing block 31, the upper surface of the fixing block 31 is provided with a conical groove 32, the silver needle 33 is assembled in the conical groove 32, and the locking block 34 is assembled on the lower surface of the fixing block 31, The card block 34 is snap-fitted in the card slot 22, and the silver needle storage device 3 is snap-fitted into the card slot 22 through the card block. When in use, the silver needle storage device 3 can be taken out from the cleaning box 1 to facilitate the storage of silver needles. The needles 33 are inserted into the conical grooves 32 , so that the silver needles 33 can be easily taken out from the cleaning box 1 after cleaning.

Specifically, the brushing device 4 includes a first rotating rod 41 and a second rotating rod 42 . Both the first rotating rod 41 and the second rotating rod 42 are assembled to the cleaning box 1 through a bearing 43 embedded in the inner surface of the cleaning box 1 . inside, and the outer surfaces of the first rotating rod 41 and the second rotating rod 42 are equipped with a fine brush 44, the fine brush 44 is fitted with the silver needle 33, and the first rotating rod 41 and the second rotating rod 42 are respectively assembled on the On the front and rear sides of the support block 2, the silver needles 33 are thoroughly brushed by the fine-bristle brushes 44 on the front and rear sides, so that the cleaning effect is better.

Specifically, a drive motor 45 is mounted on the right surface of the first rotating rod 41, and the driving motor 45 is mounted on the right surface of the cleaning box 1 through a support plate 46. The outer surfaces of the first rotating rod 41 and the second rotating rod 42 are both fixed A transmission wheel 6 is assembled, a transmission belt 61 is assembled between the two transmission wheels 6, the first rotating rod 41 is driven to rotate by the driving motor 45, and the first rotating rod 41 will drive the second transmission under the action of the transmission wheel 6 and the transmission belt 61. When the rod 42 rotates, the first transmission rod 41 and the second transmission rod 42 will drive the fine brush 44 on the outer surface to rotate, thereby sterilizing and cleaning the silver needle 33, mechanized cleaning, saving manpower and improving cleaning efficiency.

Specifically, the cover plate 7 is rotatably installed at the opening 12 of the cleaning box 1 , the outer surface of the cover plate 7 is attached to the inner surface of the opening 12 , and the handle 71 is fixedly installed on the upper surface of the cover plate 7 . By assembling the cover plate 7. It can prevent water splashing to the outside of the cleaning box 1 during cleaning, which affects the surrounding environment.

Specifically, the distance between the support block 2 and the lower surface of the inner cavity of the cleaning box 1 is at least 5 cm, so as to prevent the cleaned liquid from being blocked by the support block 2 and prevent the cleaned liquid on both sides from being unable to flow out of the water outlet pipe 13 in time. outflow.

Working principle: when in use, the cover 7 is opened by the handle 71, the silver needle storage device 3 is lifted up and taken out, and then the silver needle 33 to be cleaned is put into the conical groove 32, and then the card slot in the support block 2 is visually inspected. At the position of 22, the silver needle storage device 3 is clamped into the card slot 22 through the block 34, and then the opening 12 is closed with the cover plate 7, and the disinfection and cleaning liquid is injected into the water inlet pipe 51. The spray water is sprayed from the spray pipe 5 to disinfect and moisten the silver needle 33, and finally the driving motor 45 is started, and the driving motor 45 drives the first rotating rod 41 to rotate. Drive the second transmission rod 42 to rotate, and at the same time the first transmission rod 41 and the second transmission rod 42 will drive the fine brush 44 on the outer surface to rotate, so as to disinfect and clean the silver needle 33. The lower surface of the inner cavity of the cleaning box 1 finally flows out from the water outlet pipe 13 .

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (6)

1. A disinfection and cleaning device for acupuncture silver needles, comprising a cleaning box (1), the lower surface of the cleaning box (1) is equipped with a support column (11), and the upper surface of the cleaning box (1) is provided with an opening (12), the lower surface of the cleaning box (1) is equipped with a water outlet pipe (13), which is characterized in that a support block (2) is fixedly installed in the cleaning box (1), and the upper part of the support block (2) The surface is provided with a groove (21), and the inner surface of the groove (21) is provided with a card slot (22), and a silver needle storage device (3) that can be moved and taken out is equipped in the card slot (22), so The cleaning box (1) is equipped with a rotatable brush device (4), and the upper surface of the inner cavity of the cleaning box (1) is equipped with a spray water pipe (5), and the spray water pipe (5) is located at the silver needle Above the storage device (3), and the spray water pipe (5) penetrates the left surface of the cleaning box (1) and is connected with a water inlet pipe (51). 2. A disinfection and cleaning device for acupuncture silver needles according to claim 1, characterized in that: the silver needle storage device (3) comprises a fixing block (31), and the upper surface of the fixing block (31) is provided with a There is a conical groove (32), a silver needle (33) is assembled in the conical groove (32), a clamping block (34) is assembled on the lower surface of the fixing block (31), and the clamping block (34) The snap fit is in the snap slot (22). 3. A disinfection and cleaning device for acupuncture silver needles according to claim 2, characterized in that: the brushing device (4) comprises a first rotating rod (41) and a second rotating rod (42), the Both the first rotating rod (41) and the second rotating rod (42) are assembled in the cleaning box (1) through a bearing (43) embedded in the inner surface of the cleaning box (1), and the first rotating rod (41) The outer surfaces of the second and second rotating rods (42) are equipped with fine brushes (44), and the fine brushes (44) are fitted with the silver needles (33). 4. A disinfection and cleaning device for acupuncture silver needles according to claim 3, characterized in that: the right surface of the first rotating rod (41) is equipped with a drive motor (45), and the drive motor (45) The support plate (46) is assembled on the right surface of the cleaning box (1). The outer surfaces of the first rotating rod (41) and the second rotating rod (42) are fixedly equipped with a transmission wheel (6). A transmission belt (61) is assembled between the transmission wheels (6). 5. A disinfection and cleaning device for acupuncture silver needles according to claim 1, characterized in that: a cover plate (7) is rotatably installed at the opening (12) of the cleaning box (1), and the cover plate ( The outer surface of 7) is in contact with the inner surface of the opening (12), and a handle (71) is fixedly installed on the upper surface of the cover plate (7). 6 . The disinfection and cleaning device for acupuncture silver needles according to claim 1 , wherein the distance between the support block ( 2 ) and the lower surface of the inner cavity of the cleaning box ( 1 ) is at least 5 cm. 7 .
