CN211261501U

CN211261501U - Extrusion type dewatering device for producing blanket

Info

Publication number: CN211261501U
Application number: CN201922341916.4U
Authority: CN
Inventors: 易分荣
Original assignee: Jiangxi Xinxing Home Textile Co ltd
Current assignee: Jiangxi Xinxing Home Textile Co ltd
Priority date: 2019-12-23
Filing date: 2019-12-23
Publication date: 2020-08-14
Anticipated expiration: 2029-12-23

Abstract

The utility model discloses an extrusion formula dewatering device for producing woollen blanket, including the base. The extrusion type dehydration device for producing the blanket drives the cam to rotate through the first motor, when the cam rotates to a certain position, the first press roller and the second press roller are driven to shake up and down through the connecting column and the connecting plate, the first press roller and the second press roller drive the blanket to shake through the first press roller and the second press roller, and part of water in the blanket is thrown out, meanwhile, the driving disc is driven to rotate by the second motor, the driving disc drives the driven disc to rotate by the belt, the driven disc drives the first press roll to rotate by the rotating shaft, the blanket is extruded and dehydrated by the first compression roller and the second compression roller, the driving shaft is driven to rotate by the third motor, the movable block drives the second compression roller to move up and down, the whole device has simple structure and convenient use, the blanket is shaken firstly and then extruded, so that the dewatering effect is better, and the blanket can adapt to blankets with different thicknesses by adjusting the distance between the two press rollers.

Description

Extrusion type dewatering device for producing blanket

Technical Field

The utility model relates to a woollen blanket production technical field specifically is an extrusion formula dewatering device for producing woollen blanket.

Background

The blanket is a bed wool fabric with both sides provided with full and thick plush, the surface is full and thick plush, the blanket has heat preservation performance, and can also be used as bed cover, wall blanket and other ornaments, the raw materials of the blanket mostly adopt animal fibers (such as wool, mohair, rabbit hair, cashmere, camel hair, yak hair) or acrylic fibers, viscose fibers and other chemical fibers, and the blanket is also made by blending animal fibers and chemical fibers and is divided into three types of pure blankets, blended blankets and chemical fiber blankets. The carpet surface patterns comprise jacquard patterns, printing patterns, plain colors, mandarin duck colors, streets, lattices and the like, and the carpet surface patterns comprise a velvet surface type, a raised velvet type, a smooth wool type, a rolling ball type, a water texture type and the like. The blanket has strong elasticity and heat retention, thick texture, various appearance images, plump and curled velvet surface types, upright and rich velvet, and various patterns are matched in color. The carpet needs to be cleaned in the production process, but the extrusion dehydration equipment used at present has poor extrusion dehydration effect, and the extrusion process can not be adjusted according to carpets with different thicknesses.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an extrusion formula dewatering device for producing woollen blanket to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: an extrusion type dehydration device for producing blankets comprises a base, wherein a first motor is arranged at the top of the base, a rotating shaft of the first motor is connected with one end of a rotating rod through a belt in a transmission way, the other end of the rotating rod is rotationally connected with one side of a fixed block, the bottom of the fixed block is fixedly connected with the top of the base, a cam is sleeved on the rotating rod, a connecting column is arranged above the cam and contacts with the bottom of the connecting column, the top of the connecting column is fixedly connected with the bottom of a connecting plate, the two ends of the bottom of the connecting plate are respectively fixedly connected with the top of the base through spring connecting frames, the two ends of the top of the connecting plate are respectively fixedly connected with a first support and a second support, a driving box is arranged on one side of the first support, a second motor is arranged inside the driving box, and the rotating shaft of the second motor is in a transmission way, the driving disc is in transmission connection with the driven disc through a belt, one side of the driven disc is fixedly connected with one end of a rotating shaft, the other end of the rotating shaft penetrates through the first support, extends to the other side of the first support and is in rotation connection with one side of the second support, a first compression roller is arranged on the rotating shaft, a second compression roller is arranged above the first compression roller, a rack is arranged on one side of the second compression roller, the bottom end of the rack is fixedly connected with the top of the first support, a movable block is arranged on the rack, a motor box is arranged inside the movable block, a third motor is arranged inside the motor box, a rotating shaft of the third motor is in transmission connection with one end of a driving shaft, the driving shaft is in transmission connection with the central column through a belt, two ends of the central column are respectively in movable connection with the inner walls on two sides of the movable block, and gears are, and the gear is meshed with the rack, a sliding rod is arranged on the other side of the second pressing roller, and the bottom end of the sliding rod is fixedly connected with the top of the second support.

Preferably, a water collecting tank is arranged below the first pressing roller, and the bottom of the water collecting tank is fixedly connected with the top of the connecting plate.

Preferably, a rotating shaft is arranged on the second pressing roller, one end of the second pressing roller is rotatably connected with one side of the movable block through the rotating shaft, and the other end of the second pressing roller is slidably connected with one side of the sliding rod through a bearing.

Preferably, one side of the rack close to the gear is provided with teeth, and the rack is meshed with the gear through the teeth.

Preferably, the top ends of the rack and the sliding rod are provided with limiting plates.

Compared with the prior art, the beneficial effects of the utility model are that: the extrusion type dehydration device for producing the blanket drives the cam to rotate through the first motor, when the cam rotates to a certain position, the cam can drive the first compression roller and the second compression roller to shake up and down through the connecting column and the connecting plate, the first compression roller and the second compression roller can drive the blanket to shake through the first compression roller and the second compression roller, part of water in the blanket is thrown out, meanwhile, the driving disc is driven to rotate through the second motor, the driving disc drives the driven disc to rotate through the belt, the driven disc drives the first compression roller to rotate through the rotating shaft, the blanket is extruded and dehydrated through the first compression roller and the second compression roller, the driving shaft is driven to rotate through the third motor, the driving shaft drives the gear to rotate through the belt, the gear drives the movable block to move up and down on the rack, the movable block drives the second compression roller to move up and down, thereby the distance between the second compression roller and the, convenient to use, through shaking earlier the extrusion afterwards to the woollen blanket for dehydration effect is better, and can adapt to the woollen blanket of different thickness through adjusting the distance between two compression rollers.

Drawings

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a structural side view of the cam of the present invention;

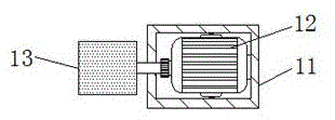

FIG. 3 is a sectional view of the driving box of the present invention;

fig. 4 is a sectional view of the movable block of the present invention.

In the figure: 1. a base; 2. a first motor; 3. rotating the rod; 4. a fixed block; 5. a cam; 6. connecting columns; 7. a connecting plate; 8. a spring connecting frame; 9. a first bracket; 10. a second bracket; 11. a drive box; 12. a second motor; 13. a driving disk; 14. a driven plate; 15. a rotating shaft; 16. a first press roll; 17. a second press roll; 18. a rack; 19. a movable block; 20. a motor case; 21. a third motor; 22. a drive shaft; 23. a central column; 24. a gear; 25. a slide bar; 26. a water collection tank; 27. a bearing; 28. and a limiting plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: an extrusion type dehydration device for producing a blanket comprises a base 1, wherein a first motor 2 is arranged at the top of the base 1, a rotating shaft of the first motor 2 is in transmission connection with one end of a rotating rod 3 through a belt, the other end of the rotating rod 3 is in rotation connection with one side of a fixed block 4, the bottom of the fixed block 4 is fixedly connected with the top of the base 1, a cam 5 is sleeved on the rotating rod 3, a connecting column 6 is arranged above the cam 5, the cam 5 is in contact with the bottom of the connecting column 6, the top of the connecting column 6 is fixedly connected with the bottom of a connecting plate 7, two ends of the bottom of the connecting plate 7 are respectively and fixedly connected with the top of the base 1 through spring connecting frames 8, two ends of the top of the connecting plate 7 are respectively and fixedly connected with a first bracket 9 and a second bracket 10, a driving box 11 is arranged at one side of the first bracket 9, a second motor 12 is arranged inside the driving box 11, the driving disc 13 is in transmission connection with the driven disc 14 through a belt, one side of the driven disc 14 is fixedly connected with one end of a rotating shaft 15, the other end of the rotating shaft 15 penetrates through the first support 9 and extends to the other side of the first support 9 to be rotatably connected with one side of the second support 10, a first compression roller 16 is arranged on the rotating shaft 15, a water collecting tank 26 is arranged below the first compression roller 16, the bottom of the water collecting tank 26 is fixedly connected with the top of the connecting plate 7, a second compression roller 17 is arranged above the first compression roller 16, a rack 18 is arranged on one side of the second compression roller 17, the bottom end of the rack 18 is fixedly connected with the top of the first support 9, a movable block 19 is arranged on the rack 18, a motor box 20 is arranged inside the movable block 19, a third motor 21 is arranged inside the motor box 20, the rotating shaft of the third motor 21 is in transmission connection with one end of a driving shaft 22, the driving shaft 22 is, two ends of a central column 23 are movably connected with inner walls of two sides of a movable block 19 respectively, a gear 24 is arranged on the central column 23, the gear 24 is meshed with a rack 18, teeth are arranged on one side, close to the gear 24, of the rack 18, the rack 18 is meshed with the gear 24 through the teeth, a slide rod 25 is arranged on the other side of a second press roller 17, the bottom end of the slide rod 25 is fixedly connected with the top of a second support 10, limit plates 28 are arranged at the top ends of the rack 18 and the slide rod 25, a rotating shaft 15 is arranged on the second press roller 17, one end of the second press roller 17 is rotatably connected with one side of the movable block 19 through the rotating shaft 15, the other end of the second press roller 17 is slidably connected with one side of the slide rod 25 through a bearing 27, control and power supply of a first motor 2, a second motor 12 and a third motor 21 in the using process are external, a cam 5 is driven to rotate through the first, will drive the first compression roller 16 and the second compression roller 17 to shake up and down through the connecting post 6 and the connecting plate 7, the first compression roller 16 and the second compression roller 17 will drive the woollen blanket to shake through the woollen blanket, throw off a part of water in the woollen blanket, drive the driving disk 13 to rotate through the second motor 12 at the same time, the driving disk 13 drives the driven disk 14 to rotate through the belt, the driven disk 14 drives the first compression roller 16 to rotate through the rotating shaft 15, squeeze and dewater the woollen blanket through the first compression roller 16 and the second compression roller 17, drive the driving shaft 22 to rotate through the third motor 21, the driving shaft 22 drives the gear 24 to rotate through the belt, the gear 24 drives the movable block 19 to move up and down on the rack 18, the movable block 19 drives the second compression roller 17 to move up and down, thereby the distance between the second compression roller 17 and the first compression roller 16 can be adjusted according to the situation, the whole, the dewatering effect is better, and the distance between the two press rolls can be adjusted to adapt to blankets with different thicknesses.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an extrusion formula dewatering device for producing woollen blanket, includes base (1), its characterized in that: the top of base (1) is provided with first motor (2), the pivot of first motor (2) is passed through the belt and is connected with the one end transmission of rotary rod (3), the other end of rotary rod (3) is rotated with one side of fixed block (4) and is connected, the bottom of fixed block (4) and the top fixed connection of base (1), the cover is equipped with cam (5) on rotary rod (3), the top of cam (5) is provided with spliced pole (6), and the bottom contact of cam (5) and spliced pole (6), the top of spliced pole (6) and the bottom fixed connection of connecting plate (7), the top fixed connection of spring coupling frame (8) and base (1) is passed through respectively at the both ends of connecting plate (7) bottom, the both ends at connecting plate (7) top are fixedly connected with first support (9) and second support (10) respectively, one side of the first support (9) is provided with a driving box (11), a second motor (12) is arranged inside the driving box (11), a rotating shaft of the second motor (12) is in transmission connection with one side of a driving disc (13), the driving disc (13) is in transmission connection with a driven disc (14) through a belt, one side of the driven disc (14) is fixedly connected with one end of a rotating shaft (15), the other end of the rotating shaft (15) penetrates through the first support (9), the other side of the rotating shaft extends to the first support (9), the other side of the first support (9) is in rotation connection with one side of a second support (10), a first compression roller (16) is arranged on the rotating shaft (15), a second compression roller (17) is arranged above the first compression roller (16), a rack (18) is arranged on one side of the second compression roller (17), and the bottom end of the rack (18) is fixedly connected with the top of the first support (9), the utility model discloses a press roller press.

2. The press type dewatering device for producing a carpet as claimed in claim 1, wherein: a water collecting tank (26) is arranged below the first pressing roller (16), and the bottom of the water collecting tank (26) is fixedly connected with the top of the connecting plate (7).

3. The press type dewatering device for producing a carpet as claimed in claim 1, wherein: the second pressing roller (17) is provided with a rotating shaft (15), one end of the second pressing roller (17) is rotatably connected with one side of the movable block (19) through the rotating shaft (15), and the other end of the second pressing roller (17) is slidably connected with one side of the sliding rod (25) through a bearing (27).

4. The press type dewatering device for producing a carpet as claimed in claim 1, wherein: one side of the rack (18) close to the gear (24) is provided with teeth, and the rack (18) is meshed with the gear (24) through the teeth.

5. The press type dewatering device for producing a carpet as claimed in claim 1, wherein: and limiting plates (28) are arranged at the top ends of the rack (18) and the sliding rod (25).
