The utility model discloses a sponge brick equidistant cutting device, which comprises a supporting plate, wherein an equidistant cutting structure is arranged on the supporting plate; wherein, equidistance cutting structure mainly includes: the device comprises a conveyor belt, a motor, a screw rod, a bearing, a moving block, a sliding rail, a sliding block, a portal frame, a cylinder, a cutting edge, a supporting table, an electric push rod, a baffle and a microswitch, wherein the conveyor belt is arranged on the conveyor belt; the conveyer belt is placed on the wall in the backup pad, the motor is installed on the wall in the backup pad, and is located conveyer belt the place ahead, the bearing inlays the dress and is in on the wall in the backup pad, and is located conveyer belt the place ahead, the utility model relates to a sponge brick production technical field has solved in the continuous brick production process, because the sponge brick after producing can not directly use, needs cut it according to prescribed length, because need artifical regulation cutting length at every turn, can not realize automatic problem.
Description
Technical Field
The utility model relates to a sponge brick production technical field specifically is a sponge brick equidistance cutting device.
Background
The sponge brick is a new stone material in urban construction, is a special brick for constructing a sponge city, can fully play the role of absorbing rainwater, furthest relieves the urban waterlogging problem, plays a role in improving the urban ecological environment, and in the production process of the sponge brick, the sponge brick cannot be directly used after being produced, needs to be cut according to the specified length, and cannot realize the automatic problem because the cutting length needs to be manually adjusted every time.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a sponge brick equidistance cutting device has solved in the continuous brick production process, because sponge brick after the production can not directly be used, needs cut it according to prescribed length, because need manual regulation cutting length at every turn, can not realize automatic problem.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a sponge brick equidistant cutting device comprises a supporting plate, wherein an equidistant cutting structure is arranged on the supporting plate;
wherein, equidistance cutting structure mainly includes: the device comprises a conveyor belt, a motor, a screw rod, a bearing, a moving block, a sliding rail, a sliding block, a portal frame, a cylinder, a cutting edge, a supporting table, an electric push rod, a baffle and a microswitch, wherein the conveyor belt is arranged on the conveyor belt;
the conveyer belt is placed on the upper wall surface of the supporting plate, the motor is installed on the upper wall surface of the supporting plate and positioned in front of the conveyer belt, the bearing is embedded on the upper wall surface of the supporting plate and positioned in front of the conveyer belt, one end of the lead screw is embedded in the bearing, the other end of the lead screw is fixed on the driving end of the motor, the movable block is provided with a threaded hole, the movable block is sleeved on the lead screw, the slide rail is installed on the upper wall surface of the supporting plate and positioned behind the conveyer belt, the slide block is movably installed on the slide rail, two support legs of the portal frame are respectively installed on the upper wall surface of the movable block and the upper wall surface of the slide block, the air cylinder is installed on the lower wall surface of the portal frame beam, the cutting edge is installed on the driving end, the electric push rod is installed on the upper wall surface of the support table, the baffle is installed on the right side of the conveyor belt and located on the right side of the electric push rod, and the micro switch is installed in the center of the baffle.
Preferably, a limiting block for limiting is arranged at the position, close to the motor, of the moving block.
Preferably, the wall is located in backup pad upper shed the slide rail rear is equipped with the scale that is used for the range finding.
Preferably, the cylinder is provided with a support frame for supporting the cylinder.
Preferably, the electric push rod is provided with a fixing frame for fixing the electric push rod.
Preferably, the motor is provided with a motor frame for fixing the motor.
Advantageous effects
The utility model provides a sponge brick equidistance cutting device. The technical scheme has the advantages that the sponge bricks after production are cut equidistantly according to requirements by mainly adopting equidistant cutting, and the problem that automation cannot be realized due to the fact that the cutting length needs to be manually adjusted each time in the production process of the sponge bricks because the sponge bricks after production cannot be directly used and need to be cut according to the specified length is solved.
Drawings

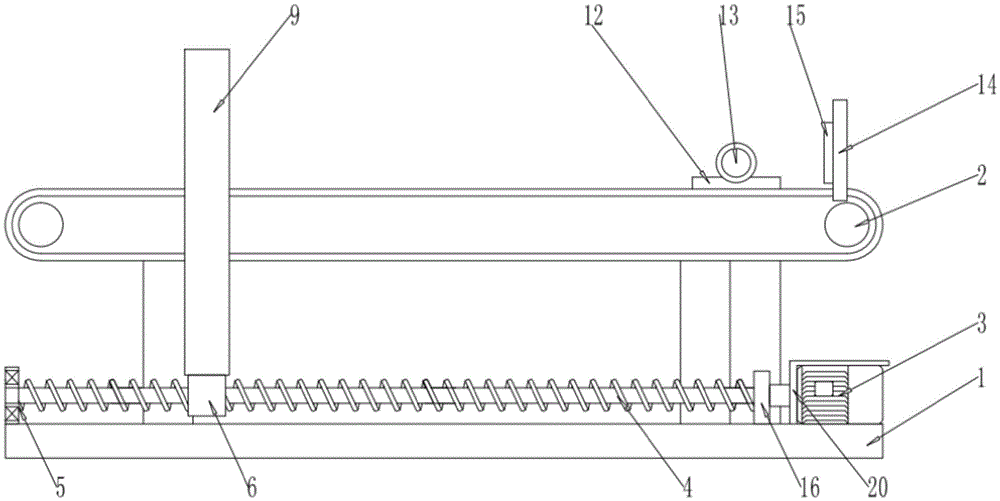

Figure 1 is the utility model discloses a sponge brick equidistance cutting device's main structure sketch map of looking.
Fig. 2 is the utility model discloses a sponge brick equidistance cutting device overlook the structure schematic diagram.
Fig. 3 is a side-looking structural schematic diagram of a sponge brick equidistance cutting device.
In the figure: 1-a support plate; 2-a conveyor belt; 3, a motor; 4-a lead screw; 5-a bearing; 6-moving block; 7-a slide rail; 8-a slide block; 9-a gantry; 10-cylinder; 11-a blade edge; 12-a support table; 13-an electric push rod; 14-a baffle; 15-a microswitch; 16-a limiting block; 17-a graduated scale; 18-a support frame; 19-a fixed mount; and 20-motor frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a sponge brick equidistance cutting device, the present case major assembly is: the cutting device comprises a supporting plate 1, wherein equidistant cutting structures are arranged on the supporting plate 1;
it should be noted that, equidistant cutting structure can carry out distance adjustment according to the demand and cut.
In the specific implementation process, the equidistance cutting structure mainly comprises: the device comprises a conveyor belt 2, a motor 3, a screw rod 4, a bearing 5, a moving block 6, a sliding rail 7, a sliding block 8, a portal frame 9, a cylinder 10, a blade 11, a supporting table 12, an electric push rod 13, a baffle 14 and a microswitch 15;
the conveyor belt 2 is placed on the upper wall surface of the support plate 1, the motor 3 is installed on the upper wall surface of the support plate 1 and positioned in front of the conveyor belt 2, the bearing 5 is embedded on the upper wall surface of the support plate 1 and positioned in front of the conveyor belt 2, one end of the lead screw 4 is embedded in the bearing 5, the other end of the lead screw is fixed on the driving end of the motor 3, the moving block 6 is provided with a threaded hole, the moving block 6 is sleeved on the lead screw 4, the slide rail 7 is installed on the upper wall surface of the support plate 1 and positioned behind the conveyor belt 2, the slide block 8 is movably installed on the slide rail 7, two support legs of the portal frame 9 are respectively installed on the upper wall surface of the moving block 6 and the upper wall surface of the slide block 8, the cylinder 10 is installed on the lower wall surface of the cross beam of the portal frame 9, the supporting table 12 is installed on the upper wall surface of the supporting plate 1 and located behind the sliding rail 7, the electric push rod 13 is installed on the upper wall surface of the supporting table 12, the baffle 14 is installed on the right side of the conveying belt 2 and located on the right side of the electric push rod 13, and the micro switch 15 is installed in the center of the baffle 14.
It should be noted that, the device is powered on, operation is started, a motor 3 which is arranged on the upper wall surface of a support plate 1 and is positioned in front of a conveyor belt 2 is powered on, the driving end of the motor 3 rotates to drive a lead screw 4 which is arranged at the driving end of the motor 3 to rotate, the other end of the lead screw 4 is sleeved in a bearing 5, a threaded hole is arranged on a movable block 6 and is sleeved on the lead screw 4 to drive the movable block 6 to move, a slide rail 7 is arranged on the upper wall surface of the support plate 1 and is positioned behind the conveyor belt 2, the slide rail 8 is movably arranged on the slide rail 7, two legs of a portal frame 9 are respectively arranged on the slide rail 8 and the movable block 6, the portal frame 9 moves, a graduated scale 17 is arranged behind the slide rail 7 and can move according to the length of the graduated scale 17, when the required length is reached, the motor 3 stops rotating, the conveyor, after the micro-gap switch 15 of baffle 14 installed in 2 one ends of conveyer belt is touched to the sponge brick, 2 stall of conveyer belt, install the cylinder 10 downstream of wall under the door type frame 9 crossbeam, the cutting edge 11 downstream installed at the cylinder 10 drive end is driven, cutting edge 11 cuts the sponge brick according to the length of demand this moment, after the cutting finishes, install the sponge brick that the cutting is good from conveyer belt 2 and push down at the electric putter 13 of the last wall of the brace table 12 of wall on support frame 18, conveyer belt 2 continues the rotation this moment, repeat above-mentioned flow, carry out the equidistance cutting.
In a specific implementation process, a limiting block 16 is further arranged at a position, close to the motor 3, of the moving block 6.
In the specific implementation process, furthermore, a graduated scale 17 for distance measurement is arranged on the upper wall surface of the support plate 1 behind the slide rail 7.
In a specific implementation, the cylinder 10 is further provided with a support frame 18 for supporting the cylinder 10.
In the specific implementation process, furthermore, the electric push rod 13 is provided with a fixing frame 19 for fixing the electric push rod 13.
In a specific implementation, further, the motor 3 is provided with a motor frame 20 for fixing the motor 3.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A sponge brick equidistant cutting device comprises a supporting plate (1), and is characterized in that an equidistant cutting structure is arranged on the supporting plate (1);
wherein, equidistance cutting structure mainly includes: the device comprises a conveyor belt (2), a motor (3), a lead screw (4), a bearing (5), a moving block (6), a sliding rail (7), a sliding block (8), a portal frame (9), a cylinder (10), a blade (11), a supporting table (12), an electric push rod (13), a baffle (14) and a microswitch (15);
the conveying belt (2) is placed on the upper wall surface of the supporting plate (1), the motor (3) is installed on the upper wall surface of the supporting plate (1) and is positioned in front of the conveying belt (2), the bearing (5) is embedded on the upper wall surface of the supporting plate (1) and is positioned in front of the conveying belt (2), one end of the lead screw (4) is embedded in the bearing (5), the other end of the lead screw is fixed on the driving end of the motor (3), the moving block (6) is provided with a threaded hole, the moving block (6) is sleeved on the lead screw (4), the sliding rail (7) is installed on the upper wall surface of the supporting plate (1) and is positioned behind the conveying belt (2), the sliding block (8) is movably installed on the sliding rail (7), two legs of the portal frame (9) are respectively installed on the upper wall surface of the moving block (6) and the upper wall surface of the sliding block (8), cylinder (10) are installed on the wall under door type frame (9) crossbeam, install cutting edge (11) on cylinder (10) drive end, install brace table (12) on backup pad (1) the wall, and be located slide rail (7) rear, install electric putter (13) on brace table (12) the wall, install baffle (14) conveyer belt (2) right side, and be located electric putter (13) right side, micro-gap switch (15) are installed baffle (14) center.
2. The sponge brick equidistant cutting device according to claim 1, characterized in that a limiting block (16) is arranged at the position of the moving block (6) close to the motor (3).
3. The sponge brick equidistant cutting device according to claim 1, characterized in that a graduated scale (17) for distance measurement is arranged on the upper wall surface of the supporting plate (1) behind the sliding rail (7).
4. A sponge brick equidistant cutting device according to claim 1, characterized in that the cylinder (10) is provided with a support frame (18) for supporting the cylinder (10).
5. A sponge brick equidistant cutting device according to claim 1, characterized in that the electric push rod (13) is provided with a fixing frame (19) for fixing the electric push rod (13).
6. A sponge brick equidistant cutting device according to claim 1, characterized in that the motor (3) is provided with a motor holder (20) for fixing the motor (3).
