Abstract

The utility model provides an activated carbon crushing device, which comprises a casing, a vertical crushing mechanism arranged in the casing, a horizontal crushing mechanism arranged below the vertical crushing mechanism, and two sieve plates arranged below the horizontal crushing mechanism. The pulverizing mechanism includes a first motor, a first rotating shaft, a first vertical pulverizing blade, a second motor, a second rotating shaft and a second vertical pulverizing blade, and the horizontal pulverizing mechanism includes a horizontal pulverizing blade. The utility model drives the first rotating shaft to rotate through the first motor, the first rotating shaft drives the first vertical pulverizing blade to rotate, the second rotating shaft drives the second rotating shaft to rotate through the second motor, and the second rotating shaft drives the second vertical pulverizing blade Rotation, the third rotating shaft is driven to rotate by the rotating motor, and the third rotating shaft drives the horizontal pulverizing blade. The first vertical pulverizing blade, the second vertical pulverizing blade and the horizontal pulverizing blade cooperate with each other to quickly pulverize the material and improve the pulverization efficiency. .

Description

An activated carbon crushing device

technical field

The utility model relates to the technical field of activated carbon treatment equipment, in particular to an activated carbon pulverizing device.

Background technique

Activated carbon is black powder or block, granular and honeycomb amorphous carbon, as well as regular crystalline carbon. In addition to carbon, activated carbon also contains two types of admixtures: one is chemically combined elements, Mainly oxygen and hydrogen, these elements remain in the carbon due to incomplete carbonization, or during the activation process, foreign non-carbon elements are chemically combined with the surface of activated carbon; another type of admixture is ash, which is the inorganic substance of activated carbon. In part, ash is easy to cause secondary pollution in activated carbon. Because of its strong adsorption, activated carbon is widely used in production and life.

In the production process of activated carbon, the raw material needs to be crushed, and then an appropriate amount of binder is added, and finally it is formed by carbonization. The crushing device currently used has the problems of low crushing efficiency and poor crushing effect. In addition, when the activated carbon is broken, it is easy to generate dust, which affects the experimental environment and causes harm to the staff.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned defects, the utility model provides an activated carbon pulverizing device, which can quickly pulverize materials through the cooperation of the first vertical pulverizing blade, the second vertical pulverizing blade and the horizontal pulverizing blade, thereby improving the pulverizing efficiency.

An activated carbon pulverizing device, comprising a casing, a vertical pulverizing mechanism arranged in the casing, a horizontal pulverizing mechanism disposed below the vertical pulverizing mechanism, and two sieve plates disposed below the horizontal pulverizing mechanism, the The vertical pulverizing mechanism includes a first motor, a first rotating shaft, a first vertical pulverizing blade, a second motor, a second rotating shaft and a second vertical pulverizing blade, and both ends of the first rotating shaft are horizontally installed on the On the casing, one end of the first rotating shaft is connected to the first motor, a plurality of the first vertical pulverizing blades are evenly arranged on the first rotating shaft, and the second rotating shaft is arranged on the Below the first rotating shaft, both ends of the second rotating shaft are horizontally installed on the casing, one end of the second rotating shaft is connected to the second motor, and the second rotating shaft is evenly A plurality of the second vertical pulverizing blades are arranged; the horizontal pulverizing mechanism includes a mounting plate, a rotating motor and a horizontal pulverizing blade, the mounting plate is arranged below the second rotating shaft, and the rotating motor is arranged at The bottom end of the mounting plate and the top output end of the rotating motor are vertically mounted with the third rotating shaft, the upper end of the third rotating shaft is provided with the horizontal crushing blade, and the two sides of the mounting plate are provided with the horizontal crushing blade. The ends are respectively connected with one end of the two sieve plates, and the other ends of the two sieve plates are respectively connected with the shell through the connecting plate.

In an embodiment of the present invention, a dust removal port is provided on the top of the casing, and the dust removal port is connected to the exhaust fan through a pipeline.

In an embodiment of the present invention, the connecting plate is in an inverted L shape, one end of the connecting plate is connected to the sieve plate, and the other end of the connecting plate is connected to the casing.

In an embodiment of the present invention, a vibrator is installed on the connecting plate.

In an embodiment of the present invention, the horizontal crushing blade is provided with a plurality of teeth.

In an embodiment of the present invention, the first vertical pulverizing blades and the second vertical pulverizing blades are alternately arranged in sequence.

In an embodiment of the present invention, a storage hopper is located below the sieve plate, and a discharge port is provided at the bottom of the storage hopper.

To sum up, the present utility model provides an activated carbon pulverizing device, and the beneficial effects of the present utility model are:

The utility model drives the first rotating shaft to rotate through the first motor, the first rotating shaft drives the first vertical pulverizing blade to rotate, the second rotating shaft drives the second rotating shaft to rotate through the second motor, and the second rotating shaft drives the second vertical pulverizing blade Rotation, the rotating motor drives the third rotating shaft to rotate, the third rotating shaft drives the horizontal pulverizing blade, the first vertical pulverizing blade, the second vertical pulverizing blade and the horizontal pulverizing blade cooperate with each other to quickly pulverize the material and improve the pulverization efficiency. . Further, the lower surface of the horizontal pulverizing blade is arc-shaped, so that the horizontal pulverizing blade can not only play the role of pulverization, but also play the role of stirring the activated carbon at the bottom, so that the material can be fully pulverized. By setting the vibrator to make the sieve plate vibrate, not only can the materials on the vibrating sieve plate be quickly stirred and pulverized, but also qualified materials can be filtered from the sieve holes of the sieve plate into the storage hopper. The dust generated in the pulverization process of the utility model enters the dust treatment device through the exhaust fan for treatment, so as to avoid the dust from directly entering the air pollution environment and prevent the dust from damaging the health of the staff.

Description of drawings

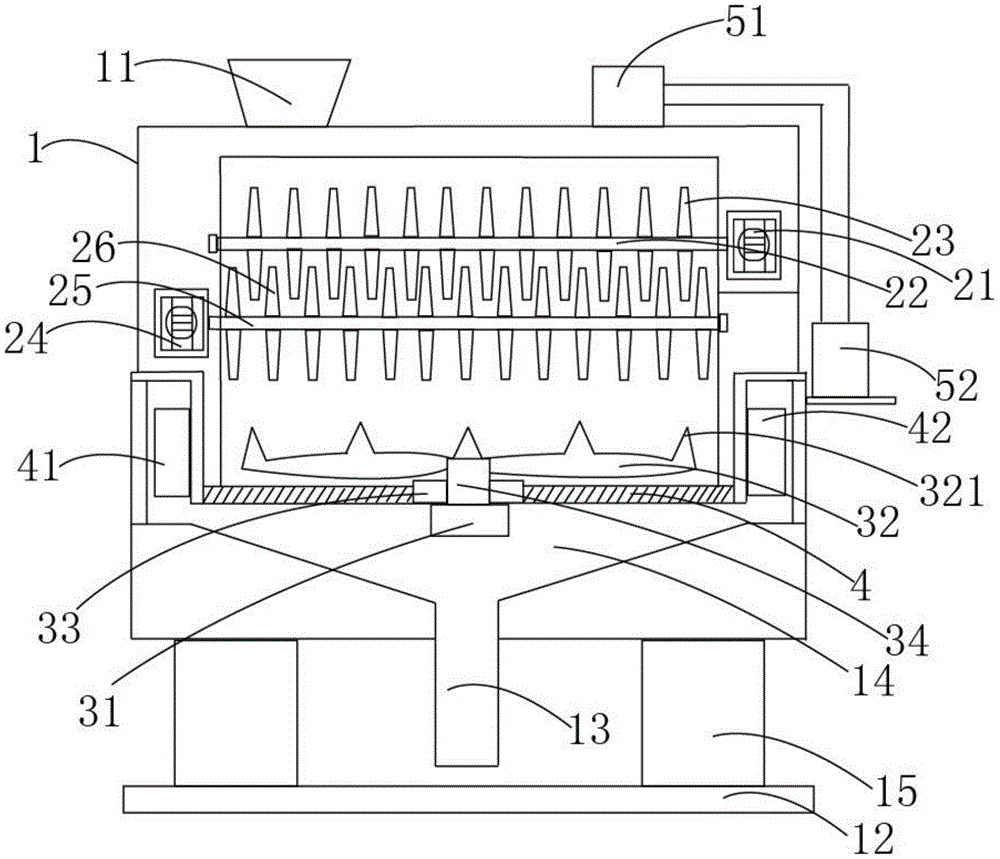

FIG. 1 is a schematic structural diagram of an activated carbon pulverizing device provided by an embodiment of the present invention.

Description of main element symbols:

1. Shell; 11. Feeding port; 12. Base; 13. Discharging port; 14. Storage hopper; 15. Support column; 21. First motor; 22. First rotating shaft; 23. First vertical crushing Blade; 24, second motor; 25, second rotating shaft; 26, second vertical crushing blade; 31, rotary motor; 32, horizontal crushing blade; 321, blade teeth; 33, mounting plate; 34, third rotation Shaft; 4, sieve plate; 41, vibrator; 42, vibrator; 51, dust outlet; 52, exhaust fan.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described The embodiments of the present invention are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise" etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed in a specific orientation and operation, so it cannot be construed as a limitation to the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

As shown in Figure 1, the present utility model provides an activated carbon pulverizing device, which is used to pulverize the raw materials required for the activated carbon in advance. The activated carbon crushing device includes a casing 1, a vertical crushing mechanism arranged in the casing 1, a horizontal crushing mechanism arranged under the vertical crushing mechanism, two sieve plates 4 arranged under the horizontal crushing mechanism, and a sieve plate 4 arranged below the sieve plate 4. The storage hopper 14 and the dust removal port 51 provided on the top of the casing 1 .

Wherein, the top of the casing 1 is provided with a feeding port 11 . The feed port 11 is provided with a pluggable feed cover. The bottom of the casing is connected with the base 12 through the support column 15 .

The vertical pulverizing mechanism includes a first motor 21, a first rotating shaft 22, a first vertical pulverizing blade 23, a second motor 24, a second rotating shaft 25 and a second vertical pulverizing blade 26. The end is horizontally installed on the casing 1, one end of the first rotating shaft 22 is connected to the first motor 21, a plurality of first vertical crushing blades 23 are evenly arranged on the first rotating shaft 22, and the second rotating shaft 25 is arranged on the first Below the rotating shaft 22, both ends of the second rotating shaft 25 are horizontally mounted on the casing 1, one end of the second rotating shaft 25 is connected to the second motor 24, and a plurality of second vertical shafts 25 are evenly arranged on the second rotating shaft 25. The crushing blades 26; the first vertical crushing blades 23 and the second vertical crushing blades 26 are arranged alternately in turn. The first vertical pulverizing blade 23 is driven to rotate through the first rotating shaft 22, and the second vertical pulverizing blade 26 is driven to rotate through the second rotating shaft 25. The first vertical pulverizing blade 23 and the second vertical pulverizing blade 26 cooperate to horizontally pulverize The mechanism pulverizes the activated carbon in the casing 1 .

In this embodiment, the horizontal crushing mechanism includes a mounting plate 33, a rotating motor 31 and a horizontal crushing blade 32. The mounting plate 33 is arranged below the second rotating shaft 25, the rotating motor 31 is arranged at the bottom end of the mounting plate 33, and the rotating motor A third rotating shaft 34 is vertically installed on the top output end of the 31, and a horizontal pulverizing blade 32 is arranged on the upper end of the third rotating shaft 34. crushing efficiency. The lower surface of the horizontal pulverizing blade 32 is arc-shaped, so that the horizontal pulverizing blade can not only play the role of pulverization, but also play the role of stirring the activated carbon at the bottom, so that the material can be fully pulverized.

Both ends of the mounting plate 33 are connected to one end of the two sieve plates 4 respectively, and the other ends of the two sieve plates 4 are respectively connected to the casing 1 through the connecting plate. In this embodiment, the connecting plate is in an inverted L shape, one end of the connecting plate is connected to the sieve plate 4 , and the other end of the connecting plate is connected to the casing 1 . Vibrators 41 and 42 are installed on the side of the connecting plate facing the housing 1. The vibrators are conducive to the vibration of the sieve plate 4, which not only can vibrate the materials on the sieve plate 4 for rapid crushing, but also facilitate the removal of qualified materials from the sieve plate 4. filter into the storage hopper 14.

The dust removal port 51 is arranged on the top of the casing 1, and the dust removal port 51 is connected with the exhaust fan 52 through the pipeline. The dust enters the dust treatment device through the exhaust fan 52, so as to prevent the dust from directly entering the air pollution environment and prevent the dust from damaging the health of the staff.

The bottom of the storage hopper 14 is provided with a discharge port 13 . The discharge port 13 is used to discharge qualified materials.

Working process: then plug the plug-type feed cover, turn on the first motor 21, the second motor 24 and the rotating motor 31, the first motor 21 drives the first rotating shaft 22 to rotate, and the first rotating shaft 22 drives the first vertical The pulverizing blade 23 rotates, the second motor 24 drives the second rotating shaft 25 to rotate, the second rotating shaft 25 drives the second vertical pulverizing blade 26 to rotate, the rotating motor 31 drives the third rotating shaft 34 to rotate, and the third rotating shaft 34 Drive the horizontal pulverizing blade 32, the first vertical pulverizing blade 23, the second vertical pulverizing blade 26 and the horizontal pulverizing blade 32 cooperate with each other to quickly pulverize the materials. The material port 13 is discharged. At the same time, the dust generated in the pulverization process enters the dust processing device through the exhaust fan 52 for processing, so as to avoid the dust from directly entering the air pollution environment and prevent the dust from damaging the health of the staff.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. An active carbon smashing device is characterized by comprising a shell, a vertical smashing mechanism arranged in the shell, a horizontal smashing mechanism arranged below the vertical smashing mechanism and two sieve plates arranged below the horizontal smashing mechanism, wherein the vertical smashing mechanism comprises a first motor, a first rotating shaft, a first vertical smashing blade, a second motor, a second rotating shaft and a second vertical smashing blade, two ends of the first rotating shaft are horizontally arranged on the shell, one end of the first rotating shaft is connected with the first motor, the first rotating shaft is evenly provided with a plurality of the first vertical smashing blades, the second rotating shaft is arranged below the first rotating shaft, two ends of the second rotating shaft are horizontally arranged on the shell, one end of the second rotating shaft is connected with the second motor, a plurality of second vertical crushing blades are uniformly arranged on the second rotating shaft; horizontal crushing mechanism includes mounting panel, rotating electrical machines and horizontal crushing blade, the mounting panel set up in the below of second axis of rotation, the rotating electrical machines sets up the bottom of mounting panel, the vertical third axis of rotation of installing on the top output of rotating electrical machines, the upper end of third axis of rotation is provided with horizontal crushing blade, the both ends and two of mounting panel the one end of sieve links to each other respectively, two the other end of sieve respectively through the connecting plate with the shell links to each other.

2. The activated carbon pulverizing device of claim 1, wherein the top of the casing is provided with a dust removing port, and the dust removing port is connected with an exhaust fan through a pipeline.

3. The activated carbon pulverizing apparatus of claim 1, wherein the connecting plate is of an inverted L shape, one end of the connecting plate is connected to the sieve plate, and the other end of the connecting plate is connected to the housing.

4. The activated carbon crushing device according to claim 1 or 3, wherein a vibrator is mounted on the connecting plate.

5. The activated carbon pulverizing apparatus of claim 1 wherein the horizontal pulverizing blade is provided with a plurality of cutter teeth thereon.

6. The activated carbon pulverizing apparatus of claim 1, wherein the first vertical pulverizing blades and the second vertical pulverizing blades are alternately arranged in sequence.

7. The activated carbon crushing device as claimed in claim 1, wherein a storage hopper is arranged below the sieve plate, and a discharge hole is formed in the bottom of the storage hopper.
