Abstract
The utility model discloses an ash discharging device with adjustable sack cleaner, including dust remover body and water tank, dust remover body lower extreme fixedly connected with ash collecting bucket, ash collecting bucket lower extreme fixedly connected with ash discharging pipe, ash discharging pipe right-hand member fixedly connected with drive case, be provided with the motor in the drive case, ash discharging pipe inner chamber lower part is provided with the baffle, ash discharging pipe fixed connection is in water tank upper end right part, water tank upper end left part fixed mounting has the mounting panel, the anterior fixed mounting in water tank upper end has the control box, water tank front end lower part fixedly connected with goes out dirty pipe, water tank right-hand member upper portion fixedly connected with inlet tube, mounting panel upper end fixed mounting has the cylinder, the output fixedly connected with telescopic link of cylinder. An ash discharging device with adjustable sack cleaner, can prevent that the ash hole from blockking up, avoid producing the raise dust to human health and all ring edge borders have been protected.
Description
Technical Field
The utility model relates to a dust collector field, in particular to dust discharging device with adjustable sack cleaner.
Background
One method is to use a bag-type dust collector, after gas passes through one or a plurality of bag-type dust collectors, dust can be adhered to a bag of the bag-type dust collector, then the dust falls to the bottom of the bag-type dust collector through a dust cleaning device, and after a period of time, the dust can be accumulated at the bottom of the bag-type dust collector, so that the using effect of the bag-type dust collector is influenced; most of the existing treatment methods are that a dust collecting box is additionally arranged at an opening at the bottom of a dust remover, and a pneumatic valve or a turning plate is periodically opened to remove dust, but when the dust is accumulated to a certain degree, a dust outlet is easily blocked and is difficult to clean.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides an ash discharging device with adjustable sack cleaner can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an ash discharging device with adjustable sack cleaner, includes dust remover body and water tank, dust remover body lower extreme fixedly connected with ash collecting bucket, ash collecting bucket lower extreme fixedly connected with unloads the ash pipe, it drives the case to unload ash pipe right-hand member fixedly connected with, be provided with the motor in the drive case, it is provided with the baffle to unload ash intraductal chamber lower part, it is connected in water tank upper end right part to unload ash pipe fixed connection, water tank upper end left part fixed mounting has the mounting panel, the anterior fixed mounting in water tank upper end has the control box, water tank front end lower part fixedly connected with goes out the dirty pipe, water tank right-hand member upper portion fixedly connected with inlet tube, mounting panel upper end fixed mounting has the cylinder, the output fixedly connected with.
Preferably, the lower parts of the front box wall and the rear box wall of the inner cavity of the ash discharging pipe are respectively and fixedly provided with a first sliding block and a second sliding block, the mounting heights of the first sliding block and the second sliding block are the same, the middle parts of opposite surfaces of the first sliding block and the second sliding block are respectively provided with a sliding groove, the front end and the rear end of the partition plate are respectively positioned in the two groups of sliding grooves to slide and mount the partition plate and the ash discharging pipe together, and the left end of the partition plate penetrates through the left box wall of the ash discharging pipe and is fixedly connected with one end, far away from the air cylinder.
Preferably, the middle part of the upper end of the partition board is embedded with a first pressure sensor, the right part of the upper end of the partition board is fixedly connected with a limiting strip, the limiting strip and the partition board are of an integral structure, the right part of the partition board is fixedly connected with a sponge strip, the middle part of the right end of the sponge strip is embedded with a second pressure sensor, the right box wall of the ash discharging pipe is provided with a groove corresponding to the position of the partition board, and the right box wall of the groove is fixedly provided with a spring pad.
Preferably, the bearing is fixedly mounted on the left box wall of the inner cavity of the ash discharging pipe, the motor is fixedly mounted at the bottom of the inner cavity of the driving box, the output end of the motor is fixedly connected with a shaft lever, one end, far away from the motor, of the shaft lever penetrates through the right box wall of the ash discharging pipe and is fixedly connected with the bearing, a plurality of connecting rods are fixedly mounted on the annular array of the partial outer wall of the shaft lever, located in the ash discharging pipe, and one end, far away from the shaft lever, of the connecting rods is.
Preferably, the motor and the cylinder are both electrically connected with the control box, and the ash collecting hopper is communicated with the inside of the water tank through an ash discharging pipe.
Preferably, it all is the same with water tank inside to go out dirty pipe and inlet tube, it is provided with the pipe stopper to go out dirty pipe orifice department, the external water source of inlet tube intercommunication.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. through being provided with cylinder, baffle and pressure sensors, can realize the automation of device and unload the ash, reduce the input of manpower, through being provided with the motor, when the dust in the ash collecting bucket accumulated to a certain extent, the motor drove connecting rod and lower ash plate work, can be fast with unloading the dust pipe and the dust in the ash collecting bucket discharges, prevents to block up, has improved work efficiency.
2. Through being provided with the water tank, the water tank is connected with the dust outlet lug connection of unloading the ash pipe, and the dust of discharging directly gets into in the water tank and mixes with water from unloading the ash pipe, can avoid producing the raise dust effectively, has protected peripheral environment and health.
Drawings

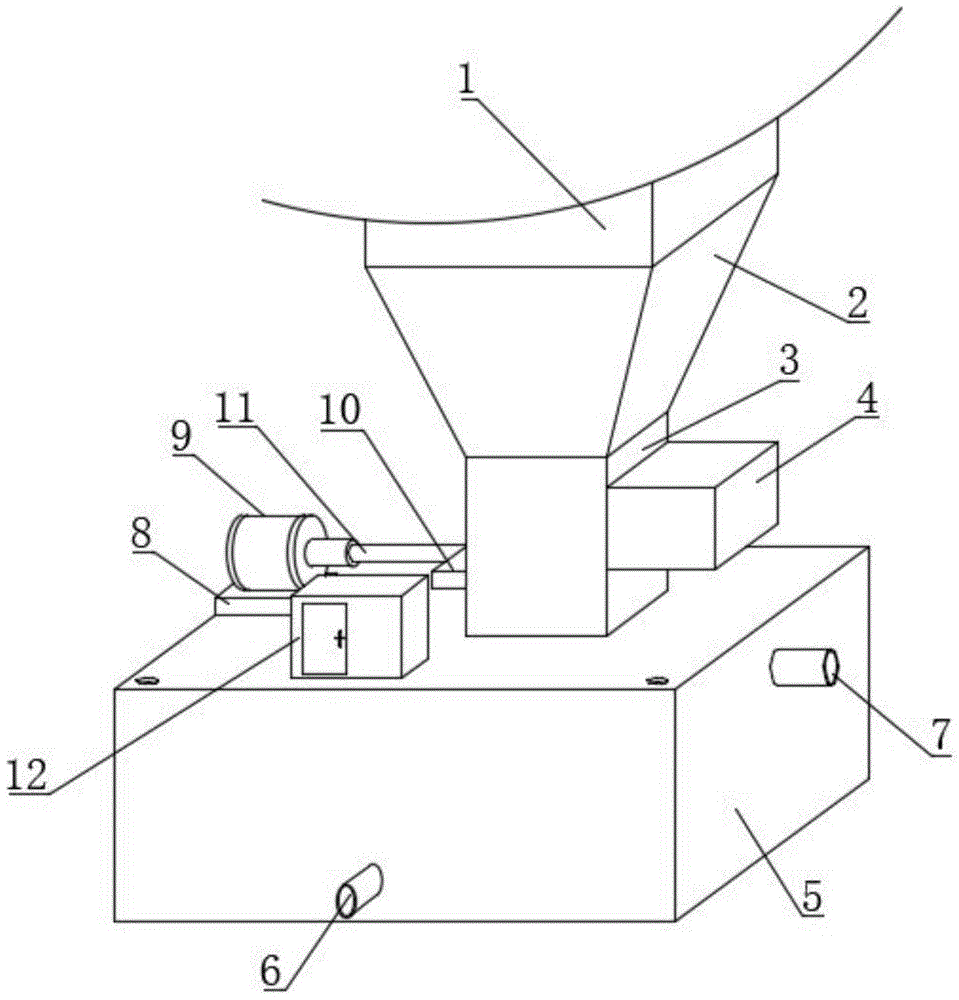

FIG. 1 is a schematic view of the overall structure of an adjustable dust discharging device of a bag-type dust collector of the present invention;
FIG. 2 is a schematic connection diagram of a baffle plate of an adjustable dust discharging device of the bag-type dust collector of the present invention;
FIG. 3 is a schematic view of the overall structure of a baffle plate of an adjustable dust discharging device of the bag-type dust collector of the present invention;
fig. 4 is the internal structure schematic diagram of the ash discharging pipe of the ash discharging device with the adjustable bag-type dust collector of the utility model.
In the figure: 1. a dust collector body; 2. a dust collecting hopper; 3. an ash discharge pipe; 4. a drive box; 5. a water tank; 6. a sewage outlet pipe; 7. a water inlet pipe; 8. mounting a plate; 9. a cylinder; 10. a partition plate; 11. a telescopic rod; 12. a control box; 13. a first slider; 14. a second slider; 15. a chute; 16. a first pressure sensor; 17. a limiting strip; 18. a sponge strip; 19. a second pressure sensor; 20. a groove; 21. a spring pad; 22. a motor; 23. a shaft lever; 24. a bearing; 25. a connecting rod; 26. and (5) discharging an ash plate.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
As shown in fig. 1-4, an adjustable dust discharging device of a bag-type dust collector comprises a dust collector body 1 and a water tank 5, wherein a dust collecting hopper 2 is fixedly connected to the lower end of the dust collector body 1, a dust discharging pipe 3 is fixedly connected to the lower end of the dust collecting hopper 2, a driving box 4 is fixedly connected to the right end of the dust discharging pipe 3, a motor 22 is arranged in the driving box 4, a partition plate 10 is arranged on the lower portion of an inner cavity of the dust discharging pipe 3, the dust discharging pipe 3 is fixedly connected to the right portion of the upper end of the water tank 5, a mounting plate 8 is fixedly mounted on the left portion of the upper end of the water tank 5, a control box 12 is fixedly mounted on the front portion of the upper end of the water tank 5, a sewage outlet pipe 6 is fixedly connected to the lower portion of the.
The lower parts of the front box wall and the rear box wall of the inner cavity of the ash discharging pipe 3 are respectively and fixedly provided with a first sliding block 13 and a second sliding block 14, the mounting heights of the first sliding block 13 and the second sliding block 14 are the same, the middle parts of the opposite surfaces of the first sliding block 13 and the second sliding block 14 are respectively provided with a sliding groove 15, the front end and the rear end of the partition plate 10 are respectively positioned in the two groups of sliding grooves 15 to slidably mount the partition plate 10 and the ash discharging pipe 3 together, the left end of the partition plate 10 penetrates through the left box wall of the ash discharging pipe 3 and is fixedly connected with one end of the telescopic rod 11, which is far away from the air cylinder 9, so that the partition plate 10 can slide; a first pressure sensor 16 is embedded in the middle of the upper end of the partition plate 10, a limiting strip 17 is fixedly connected to the right portion of the upper end of the partition plate 10, the limiting strip 17 and the partition plate 10 are of an integral structure, a sponge strip 18 is fixedly connected to the right end of the partition plate 10, a second pressure sensor 19 is embedded in the middle of the right end of the sponge strip 18, a groove 20 corresponding to the partition plate 10 is formed in the right box wall of the ash discharge pipe 3, a spring pad 21 is fixedly mounted on the right box wall of the groove 20, and the remaining sponge strip 18 of the spring pad 21 can well protect the first pressure sensor 16; a bearing 24 is fixedly arranged on the left box wall of the inner cavity of the ash discharging pipe 3, a motor 22 is fixedly arranged at the bottom of the inner cavity of the driving box 4, the output end of the motor 22 is fixedly connected with a shaft rod 23, one end of the shaft rod 23, far away from the motor 22, penetrates through the right box wall of the ash discharging pipe 3 and is fixedly connected with the bearing 24, a plurality of connecting rods 25 are fixedly arranged in an annular array on the part of the outer wall of the shaft rod 23, which is positioned in the ash discharging pipe 3, one ends of the connecting rods 25, far away from the shaft rod 23, are fixedly connected with a lower ash plate 26, and the connecting rods 25 and; the motor 22 and the cylinder 9 are both electrically connected with the control box 12, and the dust collecting hopper 2 is communicated with the inside of the water tank 5 through the dust discharging pipe 3; go out dirty pipe 6 and inlet tube 7 all with 5 inside the same of water tank, go out dirty 6 mouth of pipe departments of pipe and be provided with the pipe stopper, inlet tube 7 communicates external water source, can prevent to produce the raise dust, has protected environment and health.
It should be noted that, the utility model relates to an adjustable dust discharging device of a bag-type dust collector, when in use, the dust cleaning device in the dust collector body 1 drops dust into the dust collecting hopper 2, at the moment, the baffle 10 is positioned in the dust discharging pipe 3 to block the dust discharging pipe 3, the reaction value of the first pressure sensor 16 is set by the control box 12, when the dust in the dust collecting hopper 2 is accumulated to a certain degree, the gravity of the dust reaches a preset value, the first pressure sensor 16 controls the cylinder 9 to work through the control box 12, the telescopic rod 11 is contracted to draw out the baffle 10 along the chute 15, the baffle 17 stops after abutting against the left wall of the dust discharging pipe 3, at the moment, the shaft rod 23 rotates when the motor 22 works, the connecting rod 25 fixedly connected to the outer wall of the shaft rod 23 rotates to drive the dust discharging plate 26 to rotate to block the dust discharging, thereby preventing the dust discharging difficulty caused by the blocking in the dust discharging pipe 3, the dust directly enters the water tank 5 after being discharged from the, external water source gets into water tank 5 from inlet tube 7 and mixes with the dust, can effectively avoid the raise dust to produce, thereby human health has been protected, can also protect all ring edge borders, when needs clearance sewage, only need to go out the pipeline stopper of 6 pipe orifices departments of dirty pipe take off can, it is one minute to set for 9 work intervals of cylinder through control box 12, 11 extensions of telescopic link are sent the baffle 10 back to original position after one minute, when second pressure-sensitive ware 19 senses pressure, cylinder 9 and 11 stop work of telescopic link, can plug up the ash discharge pipe 3, accomplish whole course of work.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides an ash discharging device with adjustable sack cleaner, includes dust remover body (1) and water tank (5), its characterized in that: the lower end of the dust remover body (1) is fixedly connected with an ash collecting hopper (2), the lower end of the ash collecting hopper (2) is fixedly connected with an ash discharging pipe (3), the right end of the ash discharging pipe (3) is fixedly connected with a driving box (4), a motor (22) is arranged in the driving box (4), a baffle plate (10) is arranged at the lower part of the inner cavity of the ash discharging pipe (3), the ash discharging pipe (3) is fixedly connected with the right part of the upper end of the water tank (5), a mounting plate (8) is fixedly arranged at the left part of the upper end of the water tank (5), a control box (12) is fixedly arranged at the front part of the upper end of the water tank (5), the lower part of the front end of the water tank (5) is fixedly connected with a sewage outlet pipe (6), the upper part of the right end of the water tank (5) is fixedly connected with a water inlet pipe (7), mounting panel (8) upper end fixed mounting has cylinder (9), the output fixedly connected with telescopic link (11) of cylinder (9).
2. The adjustable ash discharging device of a bag-type dust collector according to claim 1, wherein: the ash discharging pipe is characterized in that a first sliding block (13) and a second sliding block (14) are fixedly mounted on the lower portion of the front box wall and the lower portion of the rear box wall of an inner cavity of the ash discharging pipe (3) respectively, the mounting heights of the first sliding block (13) and the second sliding block (14) are the same, sliding grooves (15) are formed in the middle portions of opposite surfaces of the first sliding block (13) and the second sliding block (14), the front end and the rear end of a partition plate (10) are located in the two sliding grooves (15) respectively to slidably mount the partition plate (10) and the ash discharging pipe (3), and the left end of the partition plate (10) penetrates through the left box wall of the ash discharging pipe (3) and is fixedly connected with one end, far away from an air cylinder.
3. The adjustable ash discharging device of a bag-type dust collector according to claim 1, wherein: baffle (10) upper end middle part is inlayed and is installed first pressure sensors (16), baffle (10) upper end right part fixedly connected with spacing (17), and spacing (17) and baffle (10) structure as an organic whole, baffle (10) right-hand member fixedly connected with sponge strip (18), inlay in the middle part of sponge strip (18) right-hand member and install second pressure sensors (19), unload ash pipe (3) right tank wall and set up recess (20) corresponding with the position of baffle (10), recess (20) right tank wall fixed mounting has spring pad (21).
4. The adjustable ash discharging device of a bag-type dust collector according to claim 1, wherein: the ash discharging pipe is characterized in that a bearing (24) is fixedly mounted on the left box wall of the inner cavity of the ash discharging pipe (3), the motor (22) is fixedly mounted at the bottom of the inner cavity of the driving box (4), an output end of the motor (22) is fixedly connected with a shaft lever (23), one end, far away from the motor (22), of the shaft lever (23) penetrates through the right box wall of the ash discharging pipe (3) and is fixedly connected with the bearing (24), a plurality of connecting rods (25) are fixedly mounted on the outer wall of the part, located in the ash discharging pipe (3), of the shaft lever (23), and one end, far away from the shaft lever (23), of each connecting rod (25) is.
5. The adjustable ash discharging device of a bag-type dust collector according to claim 1, wherein: the motor (22) and the cylinder (9) are both electrically connected with the control box (12), and the ash collecting hopper (2) is communicated with the inside of the water tank (5) through the ash discharging pipe (3).
6. The adjustable ash discharging device of a bag-type dust collector according to claim 1, wherein: go out dirty pipe (6) and inlet tube (7) and all be the same with water tank (5) inside, it is provided with the pipe stopper to go out dirty pipe (6) mouth of pipe department, inlet tube (7) intercommunication external water source.
