CN211245741U

CN211245741U - Filter equipment of turpentine

Info

Publication number: CN211245741U
Application number: CN201922273682.4U
Authority: CN
Inventors: 张闻; 冯钰权; 苏丽斌
Original assignee: Deqing Wansonglin Flavor Manufacturing Co ltd
Current assignee: Deqing Wansonglin Flavor Manufacturing Co ltd
Priority date: 2019-12-18
Filing date: 2019-12-18
Publication date: 2020-08-14
Anticipated expiration: 2029-12-18

Abstract

The utility model discloses a filter equipment of turpentine, including filter equipment body, motor, first spring, second spring and shift knob, the hydraulic fluid inlet has been seted up on the top of filter equipment body, the oil-out has been seted up to the bottom of filter equipment body, the motor is installed on the top of filter equipment body, and the output of motor is connected with the connecting rod to the stirring board has been cup jointed on the connecting rod, the bottom fixedly connected with bevel gear of connecting rod, fixedly connected with fixed block on the filter equipment body inner wall. The utility model discloses be provided with connecting rod and stirring board, carry out stirring work with the turpentine for the turpentine intensive mixing conveniently carries out follow-up filtering work, is provided with first filter and second filter, and the turpentine of being convenient for carries out secondary filtering work, and reduces the production of first filter and second spring blocking phenomenon.

Description

Filter equipment of turpentine

Technical Field

The utility model relates to a turpentine production facility technical field specifically is a filter equipment of turpentine.

Background

Turpentine is the oleoresin of pine needle branch of academic or vocational study tree class is colorless volatile liquid, the turpentine is used extensively as chemical raw materials, all have the chance to contact the turpentine in industries such as art glass, paint, camphor manufacturing, pharmacy, rosin preparation, often need carry out filtering operation to the turpentine in the turpentine carries out the production process, but current turpentine filter equipment structure is more single, often be difficult to carry out stirring operation to the turpentine before filtering, the phenomenon of easy production caking, and current turpentine filter equipment only carries out one filtering program, the filter effect is not good, and the filter screen easily produces the phenomenon of jam, the practicality is lower, consequently, the filter equipment of a turpentine need be urgently to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a filter equipment of turpentine to what provide in solving above-mentioned background art is difficult to carry out stirring work to the turpentine before filtering, easily produces the phenomenon of caking, and current turpentine filter equipment only carries out one filtering program, and the filter effect is not good, and the filter screen easily produces the problem of the phenomenon of jam.

In order to achieve the above object, the utility model provides a following technical scheme: a filter device for turpentine comprises a filter device body, a motor, a first spring, a second spring and a switch button, wherein an oil inlet is formed in the top end of the filter device body, an oil outlet is formed in the bottom end of the filter device body, the motor is installed at the top end of the filter device body, the output end of the motor is connected with a connecting rod, a stirring plate is sleeved on the connecting rod, a conical gear is fixedly connected to the bottom end of the connecting rod, a fixed block is fixedly connected to the inner wall of the filter device body and is connected with a sliding block through the first spring, a first filter plate is inserted into the inner side of the sliding block and is connected with a second filter plate through the second spring, a cleaning door is arranged on the right side of the filter device body, and a guide plate is fixedly connected to the inner wall of the filter device body, the access door is arranged on the front side of the filtering device body, and the switch button is arranged on the front side of the filtering device body.

Preferably, four groups of stirring plates are arranged, and holes are uniformly formed in the stirring plates.

Preferably, a rotating gear is engaged with the back surface of the bevel gear, and a contact block is fixedly connected to the outer side of the rotating gear.

Preferably, the one end of first spring links to each other with the fixed block top, the other end of first spring links to each other with the bottom of sliding block, the sliding block passes through first spring and constitutes sliding construction with the fixed block.

Preferably, the sliding block is provided with a sliding block, the inner wall of the filtering device body is provided with a sliding groove, and the sliding block and the filtering device body form a sliding structure through the sliding groove and the sliding block.

Preferably, the guide plates are arranged in two groups, and the two groups of guide plates are arranged in an inclined shape.

Compared with the prior art, the beneficial effects of the utility model are that: this filter equipment of turpentine is provided with connecting rod and stirring board, carries out stirring work with the turpentine for the turpentine intensive mixing conveniently carries out follow-up filtering work, is provided with first filter and second filter, and the turpentine of being convenient for carries out secondary filtering work, and reduces the production of first filter and second spring blocking phenomenon.

(1) The device is through being provided with connecting rod and stirring board, and convenient to use person carries out stirring work with the turpentine before filtering the turpentine for the turpentine intensive mixing conveniently carries out follow-up filtering work, reduces the inside caking phenomenon of turpentine simultaneously, and the work efficiency that the user filtered the turpentine improves, strengthens the practicality of this device.

(2) The device is through being provided with first filter and second filter, and the turpentine of being convenient for carries out secondary filter work, effectively clears away the impurity in the turpentine, has improved the quality of the turpentine after the processing, and the contact piece constantly contradicts with first filter, drives first filter and the continuous shake of second spring, reduces the production of first filter and second spring blocking phenomenon, further strengthens the practicality of this device.

Drawings

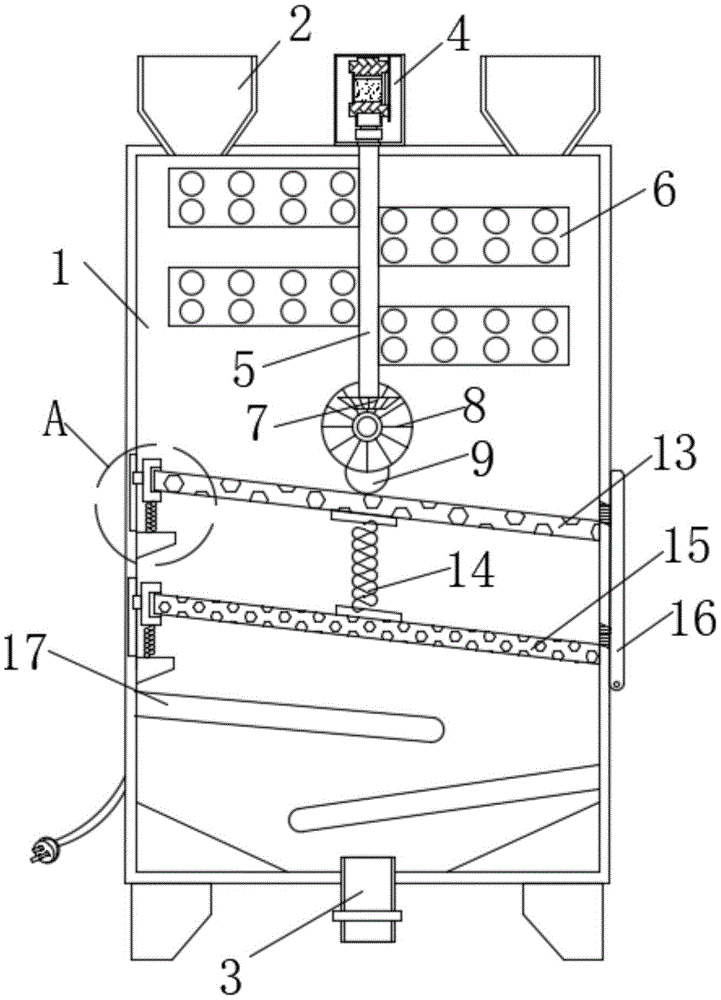

FIG. 1 is a schematic sectional view of the front view of the structure of the present invention;

FIG. 2 is a schematic front view of the structure of the present invention;

fig. 3 is an enlarged schematic view of a structure in fig. 1 according to the present invention.

In the figure: 1. a filter device body; 2. an oil inlet; 3. an oil outlet; 4. a motor; 5. a connecting rod; 6. a stirring plate; 7. a bevel gear; 8. a rotating gear; 9. a contact block; 10. a fixed block; 11. a first spring; 12. a slider; 13. a first filter plate; 14. a second spring; 15. a second filter plate; 16. cleaning the door; 17. a baffle; 18. an access door; 19. and a button is switched on and off.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides an embodiment:

a filtering device for turpentine comprises a filtering device body 1, a motor 4, a first spring 11, a second spring 14 and a switch button 19, wherein an oil inlet 2 is formed in the top end of the filtering device body 1, an oil outlet 3 is formed in the bottom end of the filtering device body 1, the motor 4 is installed at the top end of the filtering device body 1, the output end of the motor 4 is connected with a connecting rod 5, and the stirring board 6 has been cup jointed on connecting rod 5, stirring board 6 is provided with four groups, and evenly seted up the hole on the stirring board 6, motor 4 work drives the continuous rotation of connecting rod 5 who links to each other with the 4 output of motor, cup joint stirring board 6 synchronous rotations on connecting rod 5, constantly stir the intensive mixing with the turpentine, the hole reinforcing turpentine circulation of seting up on the stirring board 6, the better intensive mixing of the turpentine of being convenient for, reduce the caking phenomenon, the bottom fixedly connected with conical gear 7 of connecting rod 5.

According to the attached figure 1, a rotating gear 8 is engaged with the back of a conical gear 7, a contact block 9 is fixedly connected to the outer side of the rotating gear 8, when a connecting rod 5 rotates, the rotating gear 8 engaged with the conical gear 7 continuously rotates, the contact block 9 connected with the rotating gear 8 continuously contacts with a first filter plate 13 while rotating along with the rotating gear 8, the first filter plate 13 is knocked to drive a second spring 14 to synchronously move with the first filter plate 13, the generation of the filter hole blocking phenomenon is avoided, the filtering effect is enhanced, a fixed block 10 is fixedly connected to the inner wall of a filtering device body 1, the fixed block 10 is connected with a sliding block 12 through a first spring 11, one end of the first spring 11 is connected with the top end of the fixed block 10, the other end of the first spring 11 is connected with the bottom end of the sliding block 12, the sliding block 12 forms a sliding structure with the fixed block 10 through the first spring 11, a sliding block is arranged on the sliding block 12, a sliding groove is arranged on the inner wall of the filtering device body 1, the sliding block 12 and the sliding block form a sliding structure with the filtering device body 1 through the sliding groove, when the contact block 9 is contacted with the first filtering plate 13, the first filtering plate 13 is forced downwards, the sliding block 12 sleeved on the first filtering plate 13 synchronously downwards to extrude the first spring 11 downwards to move with one side of the fixed block 10, meanwhile, the sliding block arranged on the sliding block 12 moves downwards in the sliding groove arranged on the filtering device body 1, so that the first filtering plate 13 and the second filtering plate 15 can conveniently carry out filtering work, the first filtering plate 13 is inserted in the inner side of the sliding block 12, the first filtering plate 13 is connected with the second filtering plate 15 through the second spring 14, a cleaning door 16 is arranged on the right side of the filtering device body 1, and a guide plate 17 is fixedly connected with the inner wall of the filtering device, the guide plate 17 is provided with two sets ofly, and two sets of guide plate 17 set up to the slope shape, and when the turpentine fell to the guide plate 17 on, the work of producing oil was carried out on the oil-out 3 to the bottom stream of slowly following filter equipment body 1, reduced the turpentine and played the phenomenon of foam in filtering process, strengthened this device's practicality, access door 18 has been seted up in the front of filter equipment body 1, the front of filter equipment body 1 is provided with shift knob 19.

The working principle is as follows: when the device is used, the device is connected with an external power supply to provide electric power support for the device, and then the device is started through the switch button 19 and keeps the working state.

When a user needs to filter turpentine, the turpentine is slowly poured into the filtering device body 1 from the oil inlet 2, at the moment, the motor 4 works to drive the connecting rod 5 connected with the output end of the motor 4 to continuously rotate, the stirring plate 6 sleeved on the connecting rod 5 synchronously rotates to continuously stir the turpentine, the turpentine is fully mixed, subsequent filtering work is convenient to carry out, the phenomenon of agglomeration inside the turpentine is reduced, the connecting rod 5 drives the conical gear 7 to continuously rotate when rotating, the rotating gear 8 meshed with the conical gear 7 continuously rotates at the moment, the contact block 9 connected with the rotating gear 8 continuously contacts with the first filtering plate 13 while rotating along with the rotating gear 8, when the contact block 9 contacts with the first filtering plate 13, the first filtering plate 13 is forced downwards, the sliding block 12 sleeved on the first filtering plate 13 synchronously downwards, the first spring 11 is extruded to move downwards to one side of the fixed block 10, meanwhile, a sliding block arranged on the sliding block 12 moves downwards in a sliding groove arranged on the filtering device body 1, when the first filter plate 13 is contacted with the contact block 9 and continuously shakes up and down, turpentine falling on the first filter plate 13 flows down from a hole arranged on the first filter plate 13 and falls on the second spring 14, at the moment, the second filter plate 15 connected with the first filter plate 13 through the second spring 14 also starts shaking, the turpentine flowing on the second filter plate 15 flows down from a hole arranged on the second filter plate 15 and falls on the guide plate 17, oil outlet work is carried out from the bottom end of the filtering device body 1 to the oil outlet 3 slowly, the phenomenon that the turpentine floats during the filtering process is reduced, when impurities accumulated on the first filter plate 13 and the second filter plate 15 need to be cleaned, the cleaning door 16 can be opened, the impurities accumulated on the right sides of the first filter plate 13 and the second filter plate 15 fall to the outside of the filter device body 1 from the hole formed in the filter device body 1, and meanwhile, the user can open the access door 18 which is arranged on the front side of the filter device body 1 to carry out maintenance work, so that the practicability of the device is further enhanced.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a filter equipment of turpentine, includes filter equipment body (1), motor (4), first spring (11), second spring (14) and shift knob (19), its characterized in that: the oil inlet (2) is formed in the top end of the filtering device body (1), the oil outlet (3) is formed in the bottom end of the filtering device body (1), the motor (4) is installed at the top end of the filtering device body (1), the output end of the motor (4) is connected with the connecting rod (5), the stirring plate (6) is sleeved on the connecting rod (5), the conical gear (7) is fixedly connected to the bottom end of the connecting rod (5), the fixed block (10) is fixedly connected to the inner wall of the filtering device body (1), the fixed block (10) is connected with the sliding block (12) through the first spring (11), the first filtering plate (13) is inserted into the inner side of the sliding block (12), the first filtering plate (13) is connected with the second filtering plate (15) through the second spring (14), the cleaning door (16) is arranged on the right side of the filtering device body (, the air filter is characterized in that a guide plate (17) is fixedly connected to the inner wall of the filter device body (1) below the second filter plate (15), an access door (18) is arranged on the front side of the filter device body (1), and a switch button (19) is arranged on the front side of the filter device body (1).

2. The filter device for turpentine as claimed in claim 1, wherein: four groups of stirring plates (6) are arranged, and holes are uniformly formed in the stirring plates (6).

3. The filter device for turpentine as claimed in claim 1, wherein: the back of the conical gear (7) is meshed with a rotating gear (8), and the outer side of the rotating gear (8) is fixedly connected with a contact block (9).

4. The filter device for turpentine as claimed in claim 1, wherein: one end of the first spring (11) is connected with the top end of the fixed block (10), the other end of the first spring (11) is connected with the bottom end of the sliding block (12), and the sliding block (12) and the fixed block (10) form a sliding structure through the first spring (11).

5. The filter device for turpentine as claimed in claim 1, wherein: the sliding block (12) is provided with a sliding block, the inner wall of the filtering device body (1) is provided with a sliding groove, and the sliding block (12) and the sliding block and the filtering device body (1) form a sliding structure through the sliding groove.

6. The filter device for turpentine as claimed in claim 1, wherein: the guide plates (17) are arranged in two groups, and the guide plates (17) are arranged in an inclined shape.
