Abstract

The utility model discloses a household multifunctional shoe brushing machine, which comprises a control panel, a drying mechanism, a cleaning mechanism and a water storage tank, wherein the drying mechanism consists of a drying box, a motor, an electric fan and a rotary disc, the bottom end of the drying box is fixedly connected with two pairs of brackets, and one side of the drying box is hinged with a box door through a hinge, the drying box and the cleaning box are arranged, shoes are fixed on a shoe fixing plate, the space between a cleaning brush and a shoe upper is adjusted at the same time, under the water spraying of a spray head, the shoes rotate at high speed and are in continuous contact with the cleaning brush, so that the shoes can be better cleaned and then dried, the dried shoes are blown continuously through the rotary disc and the electric fan in the drying box, the contact area between the shoes and the air is increased, the shoes can be dried more comfortably, the whole operation is convenient and the drying machine is suitable for various types of shoes, for shoes with different fabrics, the damage to the vamp can be reduced and the cleaning efficiency can be improved by replacing the brush head.

Description

Domestic multifunctional shoe brushing machine

Technical Field

The utility model relates to a shoe polisher, in particular to a household multifunctional shoe polisher, which belongs to the technical field of shoe polisher equipment.

Background

The shoe brushing machine is a machine for cleaning shoes, but the existing household shoe brushing machine is rare, the whole operation is complex, the shoe brushing machine can not be suitable for various types of shoes, meanwhile, the replacement of a brush can not be cleaned according to the shoes made of different fabrics, the cleaned shoes can not be dried quickly, the cleaning efficiency is not high, and the cleanliness is not high.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a multi-functional shoe-brushing machine of domestic type to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a domestic type multifunctional shoe brushing machine, includes control panel, dries mechanism, wiper mechanism and water storage box, it comprises dry case, a motor, electric fan and carousel to dry the mechanism, it has two pairs of supports to dry bottom end fixedly connected with, it has the chamber door through hinge joint to dry case one side, it just is located a fixedly connected with motor between four supports to dry the bottom of the case face, a motor output passes through pivot No. one of shaft coupling fixedly connected with, a pivot runs through the horizontal fixedly connected with carousel of chamber one end that dries the case and be located the dry case, dry incasement side wall one end fixedly connected with electric fan, it is equipped with the air outlet to dry the incasement side wall other end, the inside fixedly connected with protection network of air outlet, it is equipped with wiper mechanism to dry the case top.

Preferably, the cleaning mechanism consists of a cleaning box, a shoe fixing plate and a cleaning brush, two pairs of connecting rods are fixedly connected to the top surface of the drying box, two pairs of cleaning boxes are fixedly connected to the top ends of the connecting rods, a second motor is fixedly connected to the bottom surface of the cleaning box and positioned between the two pairs of connecting rods, the output end of the second motor is fixedly connected with a second rotating shaft through a coupler, the second rotating shaft penetrates through the box cavity of the cleaning box, the surface of one end, positioned in the inner cavity of the cleaning box, of the shoe fixing plate is fixedly connected with the shoe fixing plate, a second sliding groove is formed in the upper half part of each of the four side surfaces of the shoe fixing plate, a rectangular sliding plate is slidably connected inside each of the four sliding grooves, positioning plates are fixedly connected to the four side surfaces of the shoe fixing plate and positioned at the ends, far away from the rectangular sliding plate, of the four positioning plates are, the cleaning box is characterized in that the cleaning box is provided with a fixing frame, a fixing frame and a cleaning brush, wherein the fixing frame is fixedly connected with the outer side surface of the cleaning box, the fixing frame is fixedly connected with a water storage box, the fixing frame is fixedly connected with the water storage box, the water storage box is fixedly connected with the top end of the water storage box, the top end of the water storage box is fixedly connected with a water inlet pipe, the fixing frame is fixedly connected with a sleeve, the sleeve is internally provided with a threaded rod, the threaded rod penetrates through the sleeve, the end, located in the cleaning box inner cavity, of the fixing frame is movably connected with the fixing frame through a bearing, the fixing.

Preferably, the carousel upper surface is unsmooth and the side slides with the lateral wall of airing case inner chamber is tangent.

Preferably, two the threaded rod is located the surperficial swing joint in the sleeve outside and has a spill slide, two the inside of sleeve upper surface is equipped with a spout, two the other end and the corresponding spout sliding connection of spill slide, and two sleeve upper surface is located a spout both sides and all is equipped with the scale mark.

Preferably, the bottom surface of the water storage tank penetrates through the tank cover and is fixedly connected with a plurality of spray heads, and the bottom surface of each spray head is flush with the bottom surface of the tank cover.

Preferably, two the mount is located the equal horizontal fixedly connected with guide bar of the upper and lower end on one side of the threaded rod, and every the guide bar all runs through the washing case and with wash case sliding connection.

Preferably, the control panel is electrically connected with the first motor, the fan, the second motor and the spray head.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model relates to a multi-functional shoe polisher of domestic type, its structural design is reasonable, dry case and washing case through setting up, fix shoes utensil on solid shoe board, adjust the interval between washing brush and vamp simultaneously, under the water spray of shower nozzle, shoes utensil is high-speed rotatory, constantly contact with washing brush, thereby can be better wash shoes utensil, spin-dry afterwards, the carousel that shoes utensil rethread dried the incasement after spin-drying and the continuous blowing of electric fan, the area of contact of increase shoes utensil and air, thereby what more do with shoes utensil weathers, the whole simple operation, and be applicable to polytype shoes utensil, can reduce the damage and the improvement cleaning efficiency to the vamp through changing the brush head to the shoes utensil of different surface fabrics.

Drawings

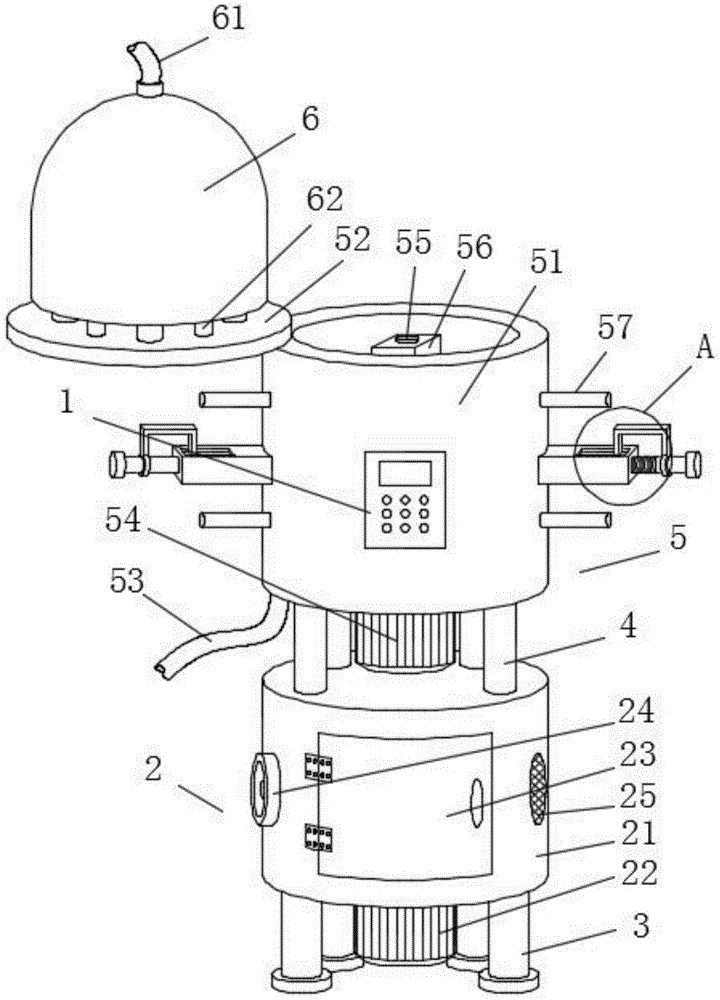

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a sectional view of the airing box of the present invention;

fig. 3 is an enlarged view of a of the present invention;

FIG. 4 is a top view of the cleaning tank of the present invention;

fig. 5 is an enlarged view of B of the present invention.

In the figure: 1. a control panel; 2. a airing mechanism; 21. drying in the air; 22. a first motor; 23. a box door; 24. an electric fan; 25. a protective net; 26. a first rotating shaft; 27. a turntable; 28. an air outlet; 3. a support; 4. a connecting rod; 5. a cleaning mechanism; 51. a cleaning tank; 52. a box cover; 53. a water outlet pipe; 54. a second motor; 55. a second rotating shaft; 56. fixing the shoe plate; 57. a guide bar; 58. a sleeve; 59. a threaded rod; 510. a concave slide plate; 511. a first chute; 512. scale lines; 513. a fixed mount; 514. cleaning the brush; 515. a second chute; 516. a rectangular slide plate; 517. positioning a plate; 518. adjusting the distance of the bolt; 6. a water storage tank; 61. a water inlet pipe; 62. and (4) a spray head.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a domestic type multifunctional shoe brushing machine, including control panel 1, dry mechanism 2, wiper mechanism 5 and water storage box 6, dry mechanism 2 by airing the case 21, a motor 22, electric fan 24 and carousel 27 are constituteed, it has two pairs of supports 3 to air the case 21 bottom fixedly connected with, it has chamber door 23 through hinge joint to air the case 21 one side, it has a motor 22 to air the case 21 bottom surface and lie in fixedly connected with between four supports 3, a motor 22 output passes through shaft coupling fixedly connected with pivot 26, pivot 26 runs through airing the case 21 and lie in the horizontal fixedly connected with carousel 27 of the case chamber one end of airing the case 21, it has electric fan 24 to air the case 21 inside wall one end fixedly connected with of airing the case 21, the case 21 inside wall other end that dries is equipped with air outlet 28, the inside fixedly connected with protection network 25 of air outlet 28, it is equipped with wiper mechanism 5 to air the.

Wherein, the cleaning mechanism 5 is composed of a cleaning box 51, a shoe fixing plate 56 and a cleaning brush 514, the top surface of the drying box 21 is fixedly connected with two pairs of connecting rods 4, the top ends of the two pairs of connecting rods 4 are fixedly connected with the cleaning box 51, the bottom surface of the cleaning box 51 is fixedly connected with a second motor 54 between the two pairs of connecting rods 4, the output end of the second motor 54 is fixedly connected with a second rotating shaft 55 through a coupler, the second rotating shaft 55 penetrates through the box cavity of the cleaning box 51, the surface of one end of the inner cavity of the cleaning box 51 is fixedly connected with the shoe fixing plate 56, the upper half parts of the four side surfaces of the shoe fixing plate 56 are respectively provided with a second sliding groove 515, the inner parts of the four second sliding grooves 515 are respectively and slidably connected with a rectangular sliding plate 516, the four side surfaces of the shoe fixing plate 56 are respectively and fixedly connected with a positioning plate 517 at one end of the second sliding groove 515 far away from the rectangular sliding, wash equal horizontal fixedly connected with sleeve 58 on two lateral surfaces of case 51, the inside equal threaded connection of two sleeve 58 has threaded rod 59, two threaded rod 59 run through sleeve 58 and are located the one end of wasing the case 51 inner chamber and all have mount 513 through bearing swing joint, the one end that threaded rod 59 was kept away from to two mount 513 all can be dismantled through fastening bolt and be connected with washing brush 514, wash 51 bottom fixed through connection of case and have outlet pipe 53, wash fixedly connected with control panel 1 on the 51 lateral surface of case, it has case lid 52 through round pin axle swing joint to wash 51 upper surface one end of case, fixed surface is connected with water storage box 6 on the case lid 52, 6 top fixedly connected with inlet tubes 61 of.

Wherein, the upper surface of the rotary disc 27 is uneven and the side surface slides tangentially with the side wall of the inner cavity of the drying box 21, which increases the resistance between the shoes and the rotary disc 27, thereby driving the shoes to rotate by the rotation of the rotary disc 27.

The surfaces of the two threaded rods 59, which are positioned on the outer sides of the sleeves 58, are movably connected with concave sliding plates 510, the inner parts of the upper surfaces of the two sleeves 58 are provided with a first sliding groove 511, the other ends of the two concave sliding plates 510 are slidably connected with the corresponding first sliding groove 511, and the two sides of the upper surfaces of the two sleeves 58, which are positioned on the first sliding groove 511, are provided with scale marks 512, so that the distance from the cleaning brush 514 to the shoe tool can be adjusted conveniently.

Wherein, the bottom surface of the water storage tank 6 and the cover 52 are fixedly connected with a plurality of spray heads 62, and the bottom surface of each spray head 62 is flush with the bottom surface of the cover 52, so as to avoid the cover 52 being unable to be opened.

Wherein, two mounts 513 are located the equal horizontal fixedly connected with guide bar 57 in upper and lower end on one side of threaded rod 59, and every guide bar 57 all run through wash case 51 and with wash case 51 sliding connection, play limiting displacement, avoid threaded rod 59 to rotate and drive and wash brush 514 and also follow the rotation, wash brush 514 and shoes utensil contact surface when leading to the fact later stage washing shoes utensil and reduce to reduce the cleanliness factor of shoes utensil.

The control panel 1 is electrically connected to the first motor 22, the fan 24, the second motor 54 and the nozzle 62, so as to facilitate semi-automatic operation.

Specifically, when the utility model is used, each electricity is firstly supplied by an external power supply, the box cover 52 is opened, each distance adjusting bolt 518 is rotated, and then the distance between the rectangular sliding plate 516 and the positioning plate 517 is adjusted, so that the shoe needed to be cleaned can be better clamped between the rectangular sliding plate 516 and the positioning plate 517, after the shoe is installed, the rotatable threaded rod 59 can be rotated according to the distance between the shoe and the cleaning brush 514, the threaded rod 59 moves towards the inside of the sleeve 58, the cleaning brush 514 is driven to approach towards the shoe through the limit of the guide rod 57, the adjusted distance can be determined according to the scale mark 512 on the sleeve 58, the distance adjustment is more convenient and clear, after the adjustment, the box cover 52 is closed, the cleaning water is filled into the water storage box 6, the second motor 54 and the spray head 62 are started through the control panel 1, the shoe rotates along with the rotation of the second rotating shaft 55, and further continuously contacts and rubs with the cleaning brush 514, the cleaning water sprayed from the spray head 62 continuously washes the shoes, so that the shoes can be quickly and conveniently washed, after a certain time of washing, the spray head 62 is closed, the second motor 54 continues to operate to preliminarily dry the water on the shoes, finally, the second motor 54 is closed, the box cover 52 is opened, each shoe is taken down, the box door 23 of the drying box 21 is opened, the washed shoes are placed on the turntable 27, the first motor 22 and the electric fan 24 are started, the shoes are driven to rotate through the rotation of the first rotating shaft 26, and the shoes are quickly dried by blowing of the electric fan 24.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. The utility model provides a multi-functional shoe polisher of domestic type, its characterized in that, includes control panel (1), dries mechanism (2), wiper mechanism (5) and water storage box (6), it constitutes by drying case (21), a motor (22), electric fan (24) and carousel (27) to dry mechanism (2), it is two pairs of supports (3) to dry case (21) bottom fixedly connected with, it has chamber door (23) through the hinge joint to dry case (21) one side, it is fixedly connected with a motor (22) just to be located between four supports (3) to dry case (21) bottom surface, motor (22) output is through shaft coupling fixedly connected with pivot (26) No. one, pivot (26) run through dry case (21) and lie in the horizontal fixedly connected with carousel (27) of the case chamber one end of drying case (21), it is fixedly connected with electric fan (24) to dry case (21) inside wall one end fixedly connected with, an air outlet (28) is formed in the other end of the inner side wall of the drying box (21), a protective net (25) is fixedly connected to the inside of the air outlet (28), and a cleaning mechanism (5) is arranged on the top surface of the drying box (21).

2. The household type multifunctional shoe polisher according to claim 1, characterized in that: cleaning mechanism (5) comprises washing case (51), solid shoe board (56) and washing brush (514), dry two pairs of connecting rod (4) of case (21) top surface fixedly connected with, two pairs connecting rod (4) top fixedly connected with wash case (51), wash case (51) bottom surface and be located two motor (54) of fixedly connected with between two pairs connecting rod (4), the output of No. two motor (54) passes through No. two pivot (55) of shaft coupling fixedly connected with, No. two pivot (55) run through the case chamber of wasing case (51) and be located the solid shoe board (56) of fixed surface fixedly connected with who washs case (51) inner chamber one end, first half all is equipped with No. two spout (515) in four sides of solid shoe board (56), four equal sliding connection in inside has rectangle slide (516) of No. two spout (515), four sides of solid shoe board (56) just are located No. two spout (515) and keep away from the equal fixed connection of rectangle slide (516) one end Positioning plates (517) are connected, distance adjusting bolts (518) are movably connected inside the four positioning plates (517), the thread ends of the four distance adjusting bolts (518) are in threaded connection with a rectangular sliding plate (516), sleeves (58) are horizontally and fixedly connected on two outer side surfaces of a cleaning box (51), threaded rods (59) are connected in threaded connection inside the two sleeves (58), the two threaded rods (59) penetrate through the sleeves (58) and are positioned at one ends of an inner cavity of the cleaning box (51) and are movably connected with fixing frames (513) through bearings, one ends of the two fixing frames (513) far away from the threaded rods (59) are detachably connected with cleaning brushes (514) through fastening bolts, a water outlet pipe (53) is fixedly penetrated and connected at the bottom end of the cleaning box (51), a control panel (1) is fixedly connected on the outer side surfaces of the cleaning box (51), and a box cover (52) is movably connected at one end of the upper surface, the water storage tank (6) is fixedly connected to the upper surface of the tank cover (52), and a water inlet pipe (61) is fixedly connected to the top end of the water storage tank (6).

3. The household type multifunctional shoe polisher according to claim 1, characterized in that: the upper surface of the rotary table (27) is uneven, and the side surface of the rotary table slides tangentially with the side wall of the inner cavity of the airing box (21).

4. The household type multifunctional shoe polisher according to claim 2, characterized in that: two threaded rod (59) are located the surperficial swing joint in sleeve (58) outside has concave slide (510), two the inside of sleeve (58) upper surface is equipped with a spout (511), two the other end and the corresponding spout (511) sliding connection of concave slide (510), and two sleeve (58) upper surface is located a spout (511) both sides and all is equipped with scale mark (512).

5. The household type multifunctional shoe polisher according to claim 2, characterized in that: the bottom surface of the water storage tank (6) penetrates through the tank cover (52) and is fixedly connected with a plurality of spray heads (62), and the bottom surface of each spray head (62) is flush with the bottom surface of the tank cover (52).

6. The household type multifunctional shoe polisher according to claim 2, characterized in that: the two upper and lower ends of the fixing frame (513) on one side of the threaded rod (59) are horizontally and fixedly connected with guide rods (57), and each guide rod (57) penetrates through the cleaning box (51) and is in sliding connection with the cleaning box (51).

7. The household type multifunctional shoe polisher according to claim 1, characterized in that: the control panel (1) is electrically connected with the first motor (22), the electric fan (24), the second motor (54) and the spray head (62).
