Abstract
The utility model relates to the field of electric clothes drying racks, and discloses a high-efficiency intelligent clothes drying rack, which comprises a wardrobe, wherein the wardrobe is a metal cuboid hollow cabinet, the front end of the wardrobe is provided with two groups of cabinet doors, the two groups of cabinet doors are respectively movably connected with the inner walls of the left side and the right side of the wardrobe through hinges, the front ends of the two groups of cabinet doors are respectively fixedly connected with a handle, the top of the wardrobe is fixedly connected with a sliding plate, the sliding plate is a rectangular plate which is inclined downwards, the sliding plates are two groups, a movable door is arranged in the middle of the two groups of sliding plates, four corners of the wardrobe are vertically upwards fixedly connected with a support frame, the support frame is a rectangular metal structure, a rectangular frame is fixedly arranged above the support frame, the rectangular frame is a rectangular hollow; the utility model discloses in, through the improvement to the clothes hanger that dries in the air for the shoulder department of drying in the air can be through the rotation downwards of intelligent control, thereby has reached the automatic effect of receiving the clothing at specific time.
Description
Technical Field
The utility model relates to an electronic clothes hanger field that dries in air especially relates to a high-efficient intelligent clothes hanger that dries in air.
Background
Clothes horses, as household articles used by people every day, have become necessities of life of many families today. The clothes hanger is a special product in China, the industry has been developed for more than ten years so far, and the technology is continuously improved and changed from the beginning to the present. When the existing traditional clothes drying rack in the market is used, clothes need to be manually put in a room before the sun falls off a mountain, and a user forgets to put in the clothes sometimes, so that the clothes aired outside are wetted by dew. Therefore, the efficient intelligent clothes hanger is provided.
SUMMERY OF THE UTILITY MODEL
The utility model mainly solves the technical problem existing in the prior art and provides a high-efficiency intelligent clothes hanger.
In order to achieve the purpose, the utility model adopts the following technical scheme that the high-efficiency intelligent clothes hanger comprises a wardrobe, wherein the wardrobe is a metal cuboid hollow cabinet, the front ends of the wardrobe are provided with cabinet doors, and the front ends of the two groups of cabinet doors are both fixedly provided with handles;
the wardrobe is characterized in that sliding plates are arranged at the top of the wardrobe, two groups of sliding plates are arranged in the sliding plates, wardrobe movable shafts are fixedly mounted at the bottoms of the two groups of sliding plates, a movable door is arranged on one side of each sliding plate, which is close to the center of the inside of the wardrobe, and each movable door is composed of two groups of electric sliding plates, a concave groove is formed in the lower surface of each sliding plate, an electric telescopic rod is arranged below each sliding plate, the top end of each electric telescopic rod is of a T-shaped structure, and the top end of each electric telescopic rod is movably nested in the concave groove;
four corners of the wardrobe are vertically and upwards fixedly connected with supporting frames, the supporting frames are of rectangular metal structures, rectangular frames are fixedly installed above the supporting frames, the rectangular frames are rectangular hollow metal frames, a cross rod is fixedly connected to the center of the interior of each rectangular frame, the cross rod is of a metal hollow cuboid structure, and an electromagnetic converter is fixedly installed on the surface of the cross rod;
a clothes hanger is arranged below the cross rod, a circular ring is fixedly arranged on the lower surface of the cross rod, the circular ring is a metal hollow circular ring, a hook is arranged at the hollow part of the circular ring, the hook is of a semicircular metal structure, a connecting rod is fixedly connected to the left lower part of the hook, a moving rod is movably sleeved in the connecting rod and is a cylindrical metal solid rod, a rotating shaft is arranged at the bottom of the moving rod, a round hole is formed in the bottom of the moving rod, the rotating shaft is movably sleeved in the round hole formed in the bottom of the moving rod, a bearing frame is fixedly connected with the connecting rod, clothes hanger shoulders are arranged on the sides, away from the center of the clothes hanger, of the bottoms of the two groups of bearing frames, holes are formed in the contact parts of the clothes hanger shoulders and the bearing frame, the rotating shaft is movably sleeved in the holes, and a bottom frame is arranged, the two groups of the bottom frames are horizontally arranged, the two groups of the bottom frames are movably connected with the moving rod, holes are formed in the contact positions of the two groups of the bottom frames and the bottom of the moving rod, and rotating shafts are movably sleeved in the holes.
Preferably, the two groups of cabinet doors are respectively and movably connected with the inner walls of the left side and the right side of the wardrobe through hinges.
Preferably, the wardrobe sliding shaft is a cylindrical solid metal tube, bearings are transversely and fixedly mounted at the left end and the right end of the inner wall of the front side and the rear side of the wardrobe, and the outer wall surfaces of the two ends of the wardrobe sliding shaft arranged at the bottom of the sliding plate are fixedly connected with the inner circle of the bearing.
Preferably, the electromagnetic converters are arranged on the surface of the cross bar at equal intervals.
Preferably, the upper surface of the cross rod is provided with a round hole, and the round hole penetrates through the inside of the cross rod.
Preferably, a telescopic rod is arranged below the electromagnetic converter, and a circular plate made of a magnet is fixedly installed at the bottom of the telescopic rod.
Preferably, the connecting rods are metal hollow round tubes, the number of the bearing frames is two, and the two bearing frames are inclined towards the lower part far away from the center of the inner part of the clothes hanger.
Preferably, the movable rod is arranged right below the telescopic rod, and the movable rod penetrates through the inside of the connecting rod and extends to the lower part of the connecting rod.
Advantageous effects
The utility model provides a high-efficient intelligent clothes hanger that dries in air. The method has the following beneficial effects:
(1) this electric clothes hanger, when using, the clothing that will wash from washing machine is hung on clothes hanger, hang the below of the horizontal pole that is provided with the ring with the clothing through the couple that the clothes hanger top set up, the carriage release lever is in the below of the round hole of seting up just in time this moment, the inside of round hole is provided with the disc that magnet made, the upper surface of carriage release lever just in time supports the lower surface at the disc, treat when reaching the time that the user set up, electromagnetic converter control telescopic link rebound, because magnet is to the attraction of carriage release lever, so the carriage release lever also can the rebound, when the carriage release lever rebound, the clothes hanger shoulder and the chassis that the carriage release lever bottom set up can the lapse under the effect of pivot, hang inside the clothes on clothes hanger, thereby avoided the clothing to be drenched by external dew, the effect of automatic receipts clothing has been reached.
(2) Before the clothes are aired, the electric telescopic rod extends upwards to a certain height under the action of the controller, then the two groups of movable doors extend from the hollow part inside the sliding plate to the direction of the inner center of the wardrobe in an inclined way, after the two groups of movable doors are contacted, the extension is stopped, before the automatic clothes collecting function is started, the movable door is started to automatically contract to the hollow part inside the sliding plate, then the electric telescopic rod moves downwards under the action of the controller to drive the sliding plate to rotate downwards by taking the movable shaft of the wardrobe as an axis, when the sliding plate moves to the position where an included angle between the sliding plate and the inner walls of the front side and the rear side of the wardrobe is forty-five degrees, stopping rotating, repeating the operation before clothes drying when the controller detects that no clothes are on the clothes hanger, the wardrobe is of a closed structure, and is not wetted by water drops dripping during clothes drying and polluted by external dew.
Drawings

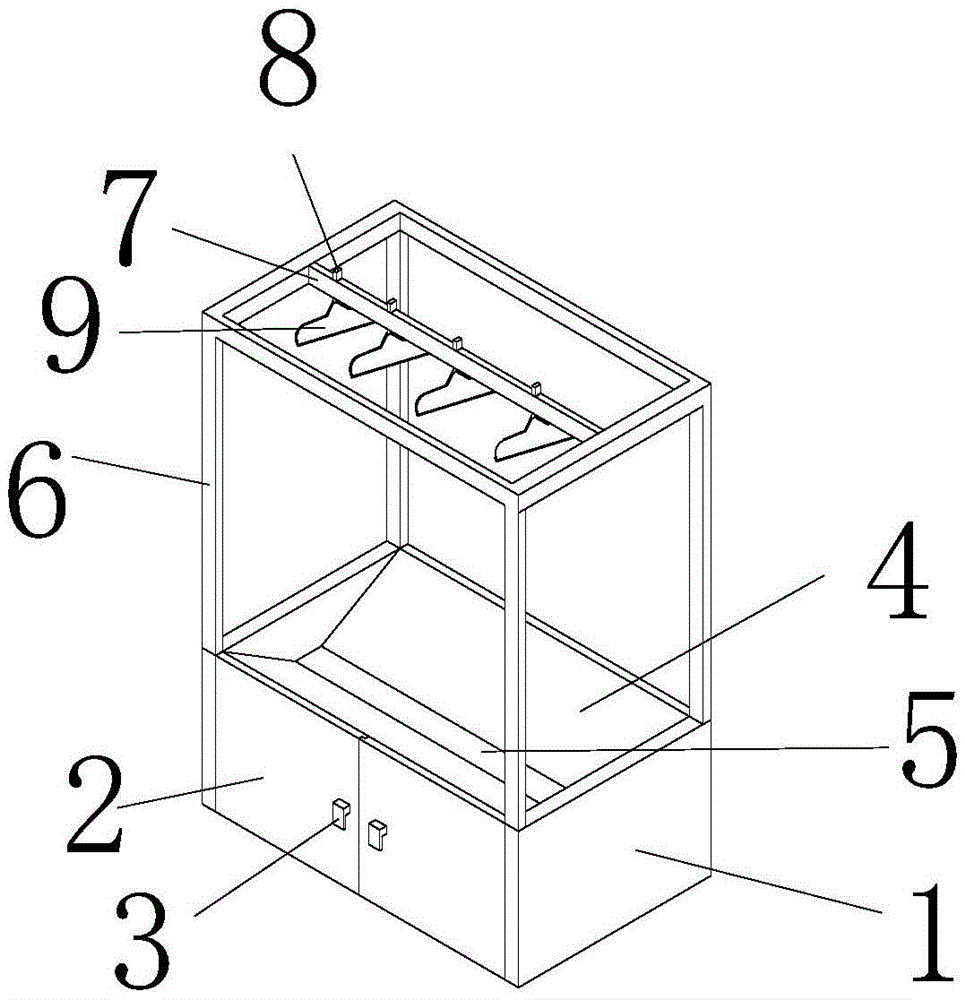

FIG. 1 is a schematic view of the space structure of the present invention;
FIG. 2 is a schematic plan view of the clothes rack of the present invention;
FIG. 3 is a schematic view of the three-dimensional structure of the slide plate of the present invention when it is lifted;
fig. 4 is a schematic view of the plane structure of the wardrobe of the present invention.
Illustration of the drawings:
1 wardrobe, 2 doors, 3 handles, 4 sliding plates, 5 movable doors, 51 electric telescopic rods, 52 movable shafts of the wardrobe, 6 support frames, 7 cross rods, 8 electromagnetic converters, 9 clothes hangers, 10 telescopic rods, 11 circular rings, 12 hooks, 13 connecting rods, 14 moving rods, 15 rotating shafts, 16 bearing frames, 17 clothes hanger shoulders and 18 underframe.
Detailed Description
The technical solution of the present invention is further specifically described below by way of examples and with reference to the accompanying drawings.
Example (b): a high-efficiency intelligent clothes hanger is shown in figures 1-4 and comprises a wardrobe 1, wherein the wardrobe 1 is a metal cuboid hollow cabinet, two groups of wardrobe doors 2 are arranged at the front end of the wardrobe 1, the two groups of wardrobe doors 2 are movably connected with the inner walls of the left side and the right side of the wardrobe 1 through hinges respectively, and handles 3 are fixedly arranged at the front ends of the two groups of wardrobe doors 2.
The wardrobe is characterized in that the top of the wardrobe 1 is provided with two groups of sliding plates 4, the sliding plates 4 are hollow rectangular plates, the two groups of sliding plates 4 are provided with wardrobe sliding shafts 52, the wardrobe sliding shafts 52 are cylindrical solid metal tubes, bearings are transversely and fixedly arranged at the left and right ends of the inner walls of the front and back sides of the wardrobe 1, the outer wall surfaces of the two ends of the wardrobe sliding shafts 52 arranged at the bottom of the sliding plates 4 are fixedly connected with the inner circles of the bearings, the side, close to the inner center of the wardrobe 1, of each sliding plate 4 is provided with a movable door 5, each movable door 5 is composed of two groups of electric sliding plates, each electric sliding plate can freely stretch to the hollowed-out part inside the sliding plate 4 under the action of a controller, each electric sliding plate is of an existing structure and is not described in detail herein, the lower surface of each sliding plate 4 is provided with a concave groove, and an electric telescopic rod 51 is, the top end of the electric telescopic rod 51 is of a T-shaped structure, and the top end of the electric telescopic rod 51 is movably nested in the concave groove.
The perpendicular upwards fixedly connected with stand 6 in four corners of wardrobe 1, stand 6 is rectangle metal construction, the top fixed mounting of stand 6 has rectangular frame, rectangular frame is the hollow metal frame of rectangle, rectangular frame's inside center department fixedly connected with horizontal pole 7, horizontal pole 7 is the hollow cuboid structure of metal, the fixed surface of horizontal pole 7 installs electromagnetic converter 8, electromagnetic converter 8 is total four groups, the equidistant setting of electromagnetic converter 8 is on the surface of horizontal pole 7.
The utility model discloses an electromagnetic converter, including horizontal pole 7, electromagnetic converter 8, fixed mounting has discoid electro-magnet, electromagnetic converter 8 during operation can make the electro-magnet have magnetism, the lower fixed mounting of horizontal pole 7 has ring 11, ring 11 is the hollow ring of metal, the below of horizontal pole 7 is provided with clothes hanger 9, the round hole has been seted up to the upper surface of horizontal pole 7, and this round hole runs through the inside of horizontal pole 7, the below of electromagnetic converter 8 is provided with telescopic link 10, the bottom fixed mounting of telescopic link 10 has discoid electro-magnet, the electro-. A hook 12 is arranged at the hollow part of the circular ring 11, the hook 12 is of a semicircular metal structure, a connecting rod 13 is fixedly connected to the lower left of the hook 12, the connecting rod 13 is a metal hollow circular tube, a moving rod 14 is movably sleeved in the connecting rod 13, the moving rod 14 is a cylindrical metal solid rod, the moving rod 14 is arranged under the telescopic rod 10, the moving rod 14 penetrates through the connecting rod 13 and extends to the lower part of the connecting rod 13, a rotating shaft 15 is arranged at the bottom of the moving rod 14, a circular hole is formed in the bottom of the moving rod 14, the rotating shaft 15 is movably sleeved in the circular hole formed in the bottom of the moving rod 14, two groups of bearing frames 16 are fixedly connected to the connecting rod 13, the two groups of bearing frames 16 are inclined towards the lower part far away from the center of the clothes hanger 9, a clothes hanger shoulder 17 is arranged on one side of the bottom of the two groups of bearing frames 16 far away from the center of the clothes hanger 9, the clothes rack is characterized in that the contact parts of the clothes rack shoulders 17 and the bearing frame 16 are provided with holes, a group of rotating shafts 15 are movably sleeved in the holes, the bottoms of the two groups of clothes rack shoulders 17 are provided with bottom frames 18, the two groups of bottom frames 18 are horizontally arranged, the two groups of bottom frames 18 are movably connected with the movable rod 14, the contact parts of the two groups of bottom frames 18 and the bottom of the movable rod 14 are provided with holes, the rotating shafts 15 located at the bottoms of the movable rods 14 penetrate through the holes formed at the contact parts of the two groups of bottom frames 18, before clothes are aired, the electric telescopic rods 51 are upwards extended to a certain height under the action of the controller, then the two groups of movable doors 5 extend from the hollow parts inside the sliding plate 4 to the direction of the center inside of the clothes storage cabinet 1, after the two groups of movable doors 5 are contacted, the extending is stopped, and before the automatic clothes collecting function is started.
The utility model discloses a theory of operation:
when the clothes hanger is used, clothes washed and dried in a washing machine are hung on the clothes hanger 9, the clothes are hung below the cross rod 7 provided with the circular ring 11 through the hook 12 arranged at the top of the clothes hanger 9, the moving rod 14 is just below the round hole formed, the round hole is internally provided with a disc made of an electromagnet, the upper surface of the moving rod 14 just abuts against the lower surface of the disc, when the time set by a user is up, the electromagnet is made to be magnetic by the work of the electromagnetic converter 8, the telescopic rod 10 is controlled to move upwards by the controller, due to the attraction effect of the electromagnet on the moving rod 14, the moving rod 14 also moves upwards, and when the moving rod 14 moves upwards, the clothes hanger shoulder 17 and the bottom frame 18 arranged at the bottom of the moving rod 14 rotate downwards under the action of the rotating shaft 15.
Before the clothes are aired, the electric telescopic rod 51 extends upwards to a certain height under the action of the controller, then the two groups of movable doors 5 extend from the hollow parts inside the sliding plate 4 to the direction of the center inside the wardrobe 1 in an inclined mode, after the two groups of movable doors 5 are contacted, the extending stops, before the automatic clothes collecting function is started, the movable doors 5 are started to automatically retract to the hollow parts inside the sliding plate 4, then the electric telescopic rod 51 moves downwards under the action of the controller to drive the sliding plate 4 to rotate downwards by taking the wardrobe movable shaft 52 as an axis, when the sliding plate moves to a position with an included angle of forty-five degrees with the inner walls of the front side and the rear side of the wardrobe 1, the rotation is stopped, and when the controller detects that no clothes are on the clothes hanger, the operation before clothes are dried.
Finally, it should be noted that the above embodiments are merely representative examples of the present invention. Obviously, the present invention is not limited to the above-described embodiments, and many modifications are possible. Any simple modification, equivalent change and modification made to the above embodiments according to the technical spirit of the present invention should be considered as belonging to the protection scope of the present invention.
Claims (8)
1. The utility model provides a high-efficient intelligent clothes hanger that dries in air, includes wardrobe (1), its characterized in that: the wardrobe (1) is a metal cuboid hollow cabinet, the front ends of the wardrobe (1) are provided with wardrobe doors (2), and the front ends of the two groups of wardrobe doors (2) are fixedly provided with handles (3);
the wardrobe is characterized in that sliding plates (4) are arranged at the top of the wardrobe (1), hollow rectangular plates are arranged in the sliding plates (4), two groups of sliding plates (4) are provided, wardrobe movable shafts (52) are fixedly mounted at the bottoms of the two groups of sliding plates (4), a movable door (5) is arranged on one side of each sliding plate (4) close to the center of the inside of the wardrobe (1), each movable door (5) is composed of two groups of electric sliding plates, a concave groove is formed in the lower surface of each sliding plate (4), an electric telescopic rod (51) is arranged below each sliding plate (4), the top end of each electric telescopic rod (51) is of a T-shaped structure, and the top end of each electric telescopic rod (51) is movably embedded in the concave groove;
four corners of the wardrobe (1) are vertically and upwards fixedly connected with supporting frames (6), the supporting frames (6) are of rectangular metal structures, rectangular frames are fixedly installed above the supporting frames (6), the rectangular frames are rectangular hollow metal frames, a cross rod (7) is fixedly connected to the center of the interior of each rectangular frame, the cross rod (7) is of a metal hollow cuboid structure, and an electromagnetic converter (8) is fixedly installed on the surface of each cross rod (7);
a clothes hanger (9) is arranged below the cross rod (7), a circular ring (11) is fixedly installed on the lower surface of the cross rod (7), the circular ring (11) is a metal hollow circular ring, a hook (12) is arranged at the hollow position of the circular ring (11), the hook (12) is of a semicircular metal structure, a connecting rod (13) is fixedly connected to the lower left of the hook (12), a moving rod (14) is movably sleeved inside the connecting rod (13), the moving rod (14) is a cylindrical metal solid rod, a rotating shaft (15) is arranged at the bottom of the moving rod (14), a circular hole is formed in the bottom of the moving rod (14), the rotating shaft (15) is movably sleeved inside the circular hole formed in the bottom of the moving rod (14), a bearing frame (16) is fixedly connected to the connecting rod (13), and a clothes hanger shoulder (17) is arranged on one side, far away from the center inside the clothes hanger (9), of the bottoms of the two groups of bearing frames (16, the clothes hanger shoulder (17) all set up porosely with bearing frame (16) contact department, downthehole pivot (15) of also having cup jointed in the activity, and are two sets of the bottom of clothes hanger shoulder (17) is provided with chassis (18), and is two sets of chassis (18) equal level sets up, and is two sets of chassis (18) all with carriage release lever (14) swing joint, two sets of chassis (18) are seted up porosely with the bottom contact department of carriage release lever (14), and downthehole activity has cup jointed pivot (15).
2. The efficient intelligent laundry rack according to claim 1, characterized in that: the wardrobe comprises two groups of wardrobe doors (2), wherein the two groups of wardrobe doors (2) are respectively movably connected with the inner walls of the left side and the right side of the wardrobe (1) through hinges.
3. The efficient intelligent laundry rack according to claim 1, characterized in that: the wardrobe sliding shaft (52) is a cylindrical solid metal pipe, bearings are transversely and fixedly mounted at the left end and the right end of the inner wall of the front side and the rear side of the wardrobe (1), and the outer wall surfaces of the two ends of the wardrobe sliding shaft (52) arranged at the bottom of the sliding plate (4) are fixedly connected with the inner circle of the bearings.
4. The efficient intelligent laundry rack according to claim 1, characterized in that: the electromagnetic converters (8) are four in number, and the electromagnetic converters (8) are equidistantly arranged on the surface of the cross rod (7).
5. The efficient intelligent laundry rack according to claim 1, characterized in that: the upper surface of the cross rod (7) is provided with a round hole which penetrates through the inside of the cross rod (7).
6. The efficient intelligent laundry rack according to claim 1, characterized in that: an expansion link (10) is arranged below the electromagnetic converter (8), and a circular plate made of magnets is fixedly mounted at the bottom of the expansion link (10).
7. The efficient intelligent laundry rack according to claim 1, characterized in that: the connecting rods (13) are metal hollow round tubes, the bearing frames (16) are divided into two groups, and the two groups of bearing frames (16) are inclined towards the lower part far away from the center of the inside of the clothes hanger (9).
8. The efficient intelligent laundry rack according to claim 6, characterized in that: the movable rod (14) is arranged right below the telescopic rod (10), and the movable rod (14) penetrates through the inside of the connecting rod (13) and extends to the lower side of the connecting rod (13).
