The utility model relates to an animal husbandry apparatus technical field, and disclose an automatic feeding device for animal husbandry, including the fixed slot, the stock chest has been cup jointed in the inner chamber activity of fixed slot, and the middle part fixed mounting of the back one side in stock chest top has vertical board, and the left side of vertical board is equipped with the storage case, and the top fixed mounting of storage case has the feed inlet, and the annular circle has been cup jointed in storage case outlying top is fixed, and the equal fixed mounting in left and right sides at annular circle top has the jib, and the bottom fixed mounting on storage case right side has spacing frame, and the baffle has been cup jointed in the inner chamber activity. This automatic feeding device for animal husbandry through setting up stock chest and spring, puts the fodder in the stock chest, and when the fodder in the stock chest had eaten, because the elastic action of spring, the stock chest upward movement drove baffle upward movement, then during the fodder of fixed slot inside passed through the guide frame and slided into the stock chest, this process need not the manual work and carries out the material loading, and the overall process realizes automatic feeding, saves a large amount of manpowers.
Description
Technical Field
The utility model relates to a stockbreeding apparatus technical field specifically is an automatic feeding device for stockbreeding.
Background
Animal husbandry refers to the production process of animal products such as meat, eggs, milk, wool, cashmere, hide, silk and medicinal materials by artificially feeding domesticated animals or wild animals, and converting pasture, feed and other plants into animal energy through artificial feeding and breeding.
In animal husbandry breeding, the trough of animal is fixed, and automatic feeding's process can not be realized to the trough, needs the breeder to put in food to the trough, needs a large amount of costs of labor, needs now to design a section can automatic feeding's device.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides an automatic feeding device for animal husbandry possesses automatic feeding's advantage, has solved the problem of mentioning in the above-mentioned background art.
The utility model provides a following technical scheme: the utility model provides an automatic feeding device for animal husbandry, includes the fixed slot, the stock chest has been cup jointed in the inner chamber activity of fixed slot, the middle part fixed mounting of the back one side in stock chest top has vertical board, the left side of vertical board is equipped with the storage case, the top fixed mounting of storage case has the feed inlet, the annular circle has been cup jointed at storage case outlying top is fixed, the equal fixed mounting in left and right sides at annular circle top has the jib, the bottom fixed mounting on storage case right side has spacing frame, the baffle has been cup jointed in the inner chamber activity of spacing frame.
Preferably, the recess with storage tank looks adaptation is seted up to the inner chamber of fixed slot, the storage tank cup joints with the recess activity that the fixed slot inner chamber was seted up, the equal fixed mounting in the left and right sides of storage tank bottom has the spring, the opposite side of spring and the bottom fixed connection of fixed slot inner chamber, the bottom fixed connection of telescopic cylinder and fixed slot inner chamber is passed through in the centre of storage tank bottom.
Preferably, the inner chamber activity of vertical board has cup jointed T type piece, the outside and the fixedly connected with rectangular block that the left side of T type piece runs through and extends to vertical board, T type groove has been seted up on the right side of baffle, and the left length value in T type groove and the length value adaptation of rectangular block, the width value that T type groove has and the width value adaptation of rectangular block, and the width value of rectangular block equals with the width value of T type piece.
Preferably, the right side of the storage box is provided with a rectangular opening, the rectangular opening is located below the limiting frame, and the bottom on the right side of the storage box is fixedly provided with a guide frame located on the periphery of the rectangular opening.
Preferably, the guide frame is designed in an inclined shape, and the right side and the top of the guide frame are both designed in an opening shape.
Preferably, the top of the left side and the right side of the storage tank are both provided with rectangular protrusions, a first movable groove is fixedly mounted in the middle of the bottom of the rectangular protrusion part on the left side and the right side of the storage tank, the other side of the first movable groove is connected with a second movable groove in a sliding mode, and the second movable groove is fixedly mounted at the top of the fixed groove.
Compared with the prior art, the utility model discloses possess following beneficial effect:
1. this automatic feeding device for animal husbandry through setting up stock chest and spring, puts the fodder in the stock chest, and when the fodder in the stock chest had eaten, because the elastic action of spring, the stock chest upward movement drove baffle upward movement, then during the fodder of fixed slot inside passed through the guide frame and slided into the stock chest, this process need not the manual work and carries out the material loading, and the overall process realizes automatic feeding, saves a large amount of manpowers.
2. This automatic feeding device for animal husbandry through setting up T type piece and rectangular block, when needs realize automatic feeding to the device, utilizes T type piece and rectangular block to fix baffle and vertical board firmly, realizes automatic feeding, when need not to realize automatic feeding, through rotate T type piece make rectangular block and baffle separately can, the operation is very convenient.
Drawings

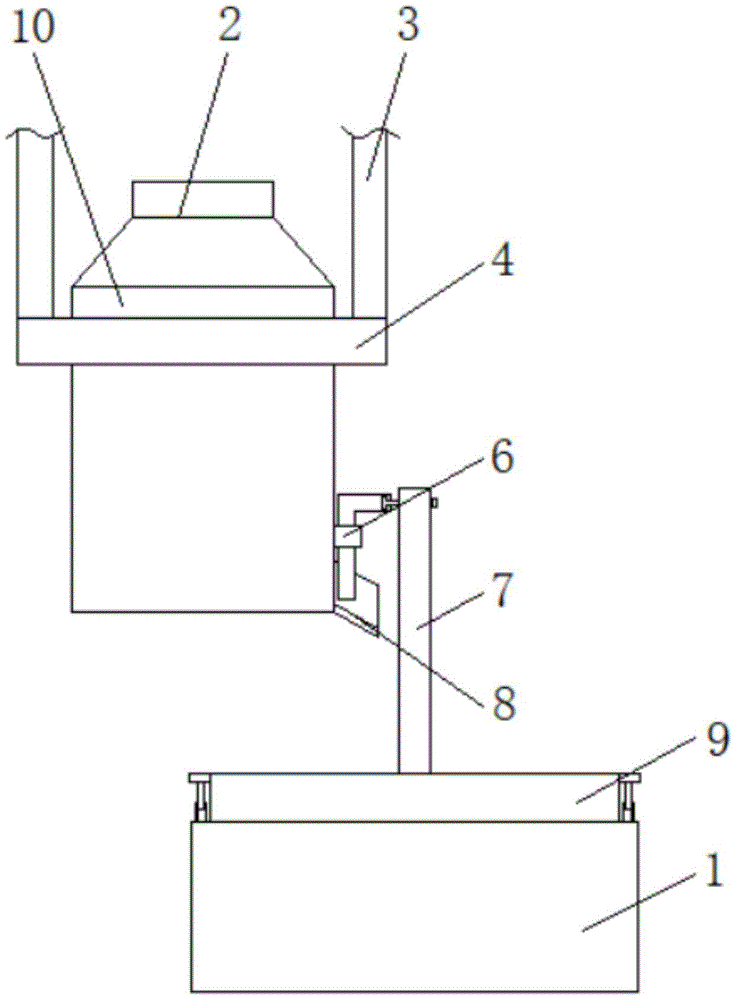

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a sectional view of the structure fixing groove of the present invention;
fig. 3 is a schematic view of the fixing device for the vertical plate and the baffle of the present invention.
In the figure: 1. fixing grooves; 2. a feed inlet; 3. a boom; 4. an annular ring; 5. a T-shaped block; 6. a limiting frame; 7. a vertical plate; 8. a guide frame; 9. a storage tank; 10. a material storage box; 11. a first movable slot; 12. a second movable slot; 13. a spring; 14. a telescopic cylinder; 15. a baffle plate; 16. a rectangular block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, an automatic feeding device for animal husbandry comprises a fixed groove 1, a storage tank 9 is movably sleeved in an inner cavity of the fixed groove 1, rectangular protrusions are arranged on the top of the left side and the right side of the storage tank 9, a first movable tank 11 is fixedly arranged in the middle of the bottom of the rectangular protrusion on the left side and the right side of the storage tank 9, a second movable tank 12 is slidably connected to the other side of the first movable tank 11, the second movable tank 12 is fixedly arranged on the top of the fixed groove 1, a vertical plate 7 is fixedly arranged in the middle of one side of the back of the top of the storage tank 9, a plane where the rectangular protrusions are arranged on the outer side of the left side and the right side of the fixed groove 1 is located outside the plane, when animals eat feed, the feed falls into the inner cavity of the storage tank 10, a T-shaped block 5 is movably sleeved in the inner cavity of the vertical plate 7, the left side of the T-shaped block 5 penetrates, the right side of the baffle 15 is provided with a T-shaped groove, the length value of the left side of the T-shaped groove is matched with the length value of the rectangular block 16, the width value of the T-shaped groove is matched with the width value of the rectangular block 16, the width value of the rectangular block 16 is equal to the width value of the T-shaped block 5, when people need to control loading and unloading, the T-shaped block 5 is rotated by ninety degrees, the T-shaped block 5 is drawn out from the inner cavity of the baffle 15, the baffle 15 is separated from the vertical plate 7, the operation is very convenient, the left side of the vertical plate 7 is provided with the storage box 10, the right side of the storage box 10 is provided with a rectangular opening, the rectangular opening is positioned below the limiting frame 6, the bottom of the right side of the storage box 10 is fixedly provided with a guide frame 8 positioned on the periphery of the rectangular opening, the guide frame 8 is designed in an inclined shape, the right side and the top of the guide frame 8 are both, the top of the storage tank 10 is fixedly provided with a feed inlet 2, the top of the periphery of the storage tank 10 is fixedly sleeved with an annular ring 4, the left side and the right side of the top of the annular ring 4 are both fixedly provided with a suspender 3, the bottom of the right side of the storage tank 10 is fixedly provided with a limiting frame 6, an inner cavity of the limiting frame 6 is movably sleeved with a baffle 15, an inner cavity of the fixing groove 1 is provided with a groove matched with the storage tank 9, the storage tank 9 is movably sleeved with the groove provided by the inner cavity of the fixing groove 1, the left side and the right side of the bottom of the storage tank 9 are both fixedly provided with springs 13, the other side of the springs 13 is fixedly connected with the bottom of the inner cavity of the fixing groove 1, the middle of the bottom of the storage tank 9 is fixedly connected with the bottom of the inner cavity of the fixing groove 1 through a telescopic cylinder 14, firstly, the feed is, vertical board 7 drives baffle 15 upward movement, then during the rectangle mouth that fodder was seted up from storage tank 10 right side inner chamber bottom got into storage tank 9, when the fodder in storage tank 9 reached certain volume, storage tank 9 downstream drove baffle 15 downstream, then the rectangle mouth that storage tank 10 right side inner chamber bottom was seted up is plugged up, the device autostop material loading, this process need not the manual work and carries out the material loading, the overall process realizes automatic feeding, saves a large amount of manpowers.
The working principle is that firstly, feed is poured into a storage tank 10 from a feed inlet 2, no feed is in the storage tank 9, due to the elastic action of a spring 13, the storage tank 9 drives a vertical plate 7 to move upwards, the vertical plate 7 drives a baffle plate 15 to move upwards, the feed enters the storage tank 9 from a rectangular opening formed in the bottom of an inner cavity on the right side of the storage tank 10, a guide frame 8 plays a role in guiding, the feed is prevented from leaking to the outside of the storage tank 9, when the feed in the storage tank 9 reaches a certain amount, the storage tank 9 moves downwards to drive the baffle plate 15 to move downwards, the rectangular opening formed in the bottom of the inner cavity on the right side of the storage tank 10 is blocked, the device automatically stops feeding, automatic feeding is realized in the process, the effect of a telescopic cylinder 14 ensures that the storage tank 9 keeps stable in the ascending and descending processes, when the device is not needed to automatically feed and discharge, and when manual control is needed, the T-shaped block 5 is rotated by ninety degrees, and then the T-shaped block 5 is pulled out from the inner cavity of the baffle 15, so that the baffle 15 is separated from the vertical plate 7.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an automatic feeding device for animal husbandry, includes fixed slot (1), its characterized in that: stock chest (9) have been cup jointed in the inner chamber activity of fixed slot (1), the middle part fixed mounting of the back one side in stock chest (9) top has vertical board (7), the left side of vertical board (7) is equipped with storage case (10), the top fixed mounting of storage case (10) has feed inlet (2), annular circle (4) have been cup jointed in storage case (10) outlying top is fixed, the equal fixed mounting in the left and right sides at annular circle (4) top has jib (3), the bottom fixed mounting on storage case (10) right side has spacing frame (6), baffle (15) have been cup jointed in the inner chamber activity of spacing frame (6).
2. The automatic feeding device for animal husbandry according to claim 1, wherein: the inner chamber of fixed slot (1) offer with the recess of stock chest (9) looks adaptation, the recess activity that stock chest (9) and fixed slot (1) inner chamber were seted up cup joints, the equal fixed mounting in the left and right sides of stock chest (9) bottom has spring (13), the opposite side of spring (13) and the bottom fixed connection of fixed slot (1) inner chamber, the centre of stock chest (9) bottom is through the bottom fixed connection of flexible section of thick bamboo (14) and fixed slot (1) inner chamber.
3. The automatic feeding device for animal husbandry according to claim 1, wherein: t type piece (5) have been cup jointed in the inner chamber activity of vertical board (7), the left side of T type piece (5) runs through and extends to outside and fixedly connected with rectangular block (16) of vertical board (7), T type groove has been seted up on the right side of baffle (15), and the left length value in T type groove and the length value adaptation of rectangular block (16), the width value that T type groove has and the width value adaptation of rectangular block (16), and the width value of rectangular block (16) equals with the width value of T type piece (5).
4. The automatic feeding device for animal husbandry according to claim 1, wherein: the right side of the storage box (10) is provided with a rectangular opening, the rectangular opening is located below the limiting frame (6), and the bottom on the right side of the storage box (10) is fixedly provided with a guide frame (8) located on the periphery of the rectangular opening.
5. The automatic feeding device for animal husbandry according to claim 4, wherein: the guide frame (8) is designed in an inclined shape, and the right side and the top of the guide frame (8) are both designed in an opening shape.
6. The automatic feeding device for animal husbandry according to claim 1, wherein: the top of the left side and the right side of the storage tank (9) are both provided with rectangular protrusions, a first movable tank (11) is fixedly mounted in the middle of the bottom of the rectangular protrusion parts on the left side and the right side of the storage tank (9), the other side of the first movable tank (11) is slidably connected with a second movable tank (12), and the second movable tank (12) is fixedly mounted at the top of the fixed tank (1).
