The utility model discloses a PLC power cabinet, which comprises a cabinet body; the utility model discloses a cabinet, including cabinet body, air outlet, damping component, installation board, bolt fixed mounting in the installation board bottom, the installation board is provided with the air intake in cabinet body bottom one side, cabinet body one side upper end is provided with the air outlet, the inside fan that is provided with of air outlet, the internal portion of cabinet is located the air outlet and the air intake position is provided with the filter screen, the internal portion of cabinet is provided with the mounting panel, the mounting panel sets up for the L type, be provided with damping component between mounting panel and the cabinet body, damping component comprises inserted bar and a section of thick bamboo, bolt fixed mounting is passed through in the inserted bar upper end in the mounting panel bottom, the inserted bar. The utility model discloses when the vibrations of cabinet door are great, damper will carry out the shock attenuation to the component of installing at the mounting panel upside, and the vibration of avoiding the component of the internal portion of cabinet to receive is great, leads to the installation not hard up, influences the normal use of component.
Description
Technical Field
The utility model relates to a power cabinet equipment technical field specifically is a PLC power cabinet.
Background
The power supply cabinet is also called as a switch cabinet and is an electrical device, the external line of the switch cabinet firstly enters a main control switch in the cabinet and then enters a branch control switch, and each branch circuit is arranged according to the requirement. Such as meters, automatic controls, magnetic switches for motors, various ac contactors, etc.
The existing power cabinet has poor damping performance when in use, so that the vibration inside the power supply is large when the power cabinet is moved or operated, and the stability of the installation of internal elements is caused.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a PLC power cabinet to it is relatively poor to solve current power cabinet damping performance when using, leads to the inside vibration of power great when removing or when the operation, leads to the problem of the stability of internal component installation.
In order to achieve the above object, the utility model provides a following technical scheme: a PLC power cabinet comprises a cabinet body; the improved cabinet is characterized in that a cabinet door is arranged on one side of the cabinet body and is rotatably connected with the cabinet body through a hinge, an air inlet is arranged on one side of the bottom end of the cabinet body, an air outlet is arranged at the upper end of one side of the cabinet body, a fan is arranged inside the air outlet, the fan is fixedly arranged on the upper side of the cabinet body through a bolt, a filter screen is arranged inside the cabinet body and is positioned at the air outlet and the air inlet, the filter screen is fixedly arranged inside the cabinet body through a bolt, a mounting plate is arranged inside the cabinet body, the mounting plate is in an L-shaped arrangement, a damping assembly is arranged between the mounting plate and the cabinet body, the damping assembly is composed of an insertion rod and an insertion cylinder, the upper end of the insertion rod is fixedly arranged at the bottom end of the mounting, the two ends of the spring are welded at the bottom end of the inserted rod and the bottom end inside the inserted cylinder.
Preferably, the inserted bar is inserted and inserted a section of thick bamboo inside bottom position and is provided with the limiting plate, and the welding of limiting plate upper end is in inserted bar bottom position.
Preferably, the bottom position is provided with the pillar in the middle of inserting a section of thick bamboo inside being located the spring, and the welding of pillar bottom is inserted a section of thick bamboo inside bottom position.
Preferably, a soft connecting piece is arranged between the mounting plate and the cabinet body, and two ends of the soft connecting piece are adhered to the outer side of the mounting plate and the inner side of the cabinet body through adhesive glue.
Preferably, the inner side of the cabinet door is provided with an elastic pad, and one side of the elastic pad is adhered to one side of the cabinet door through adhesive glue.
Preferably, the mounting panel outside is provided with the insulating layer, and the insulating layer sets up to insulating paint layer.
Compared with the prior art, the beneficial effects of the utility model are that:
1. when the cabinet door vibrates greatly, the damping assembly can damp the elements arranged on the upper side of the mounting plate, so that the situation that the elements in the cabinet body are loosened due to large vibration and the normal use of the elements is influenced is avoided;
2. the insulating coating layer used by the insulating layer is formed by spraying insulating coating on the outer side of the mounting plate and solidifying, so that the mounting plate has better insulating property, and the phenomenon of electric leakage is avoided;
3. the arrangement of the support column can limit the contraction range of the spring, so that the phenomenon that the elasticity of the spring is influenced due to large contraction amplitude of the spring when the spring is used is avoided, and the damping effect of the spring is reduced;
4. the limiting plate is arranged to limit the moving range of the inserted rod, so that the inserted rod is prevented from being separated from the inserting cylinder when the shock absorption assembly is used, and the shock absorption assembly cannot absorb shock of the mounting plate.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

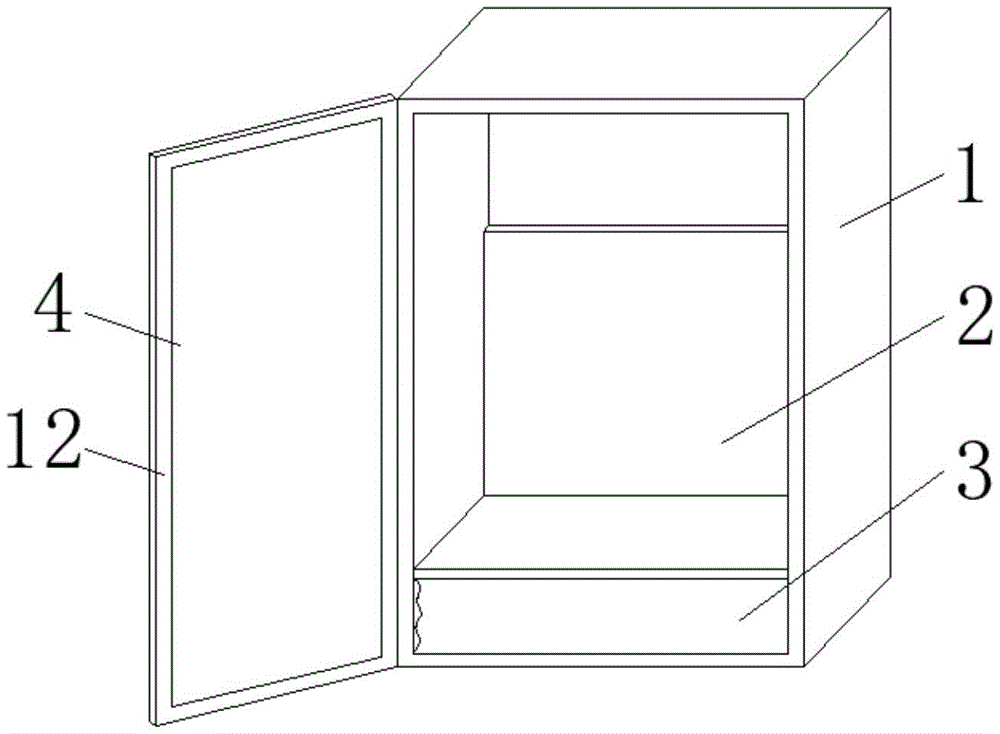

fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the cabinet body of the present invention;
fig. 3 is a schematic view of a side view structure of the inside of the cabinet body of the present invention;
fig. 4 is a schematic view of the internal structure of the shock-absorbing assembly of the present invention.
In the figure: 1. a cabinet body; 2. mounting a plate; 3. a flexible connector; 4. a cabinet door; 5. an insulating layer; 6. a shock absorbing assembly; 7. a pillar; 8. inserting a cylinder; 9. a spring; 10. a limiting plate; 11. inserting a rod; 12. a spring pad; 13. an air inlet; 14. a filter screen; 15. an air outlet; 16. a fan.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, fig. 2, fig. 3 and fig. 4, in an embodiment of the present invention, a PLC power cabinet includes a cabinet body 1; a cabinet door 4 is arranged on one side of a cabinet body 1, the cabinet door 4 is rotationally connected with the cabinet body 1 through a hinge, an air inlet 13 is arranged on one side of the bottom end of the cabinet body 1, an air outlet 15 is arranged at the upper end of one side of the cabinet body 1, a fan 16 is arranged inside the air outlet 15, the fan 16 is fixedly arranged on the upper side of the cabinet body 1 through a bolt, a filter screen 14 is arranged inside the cabinet body 1 and positioned at the air outlet 15 and the air inlet 13, the filter screen 14 is fixedly arranged inside the cabinet body 1 through a bolt, a mounting plate 2 is arranged inside the cabinet body 1, the mounting plate 2 is in an L-shaped arrangement, a damping component 6 is arranged between the mounting plate 2 and the cabinet body 1, the damping component 6 is composed of an insert rod 11 and an insert cylinder 8, the upper end of the insert rod 11 is fixedly arranged at the bottom end of, the two ends of the spring 9 are welded at the bottom end of the inserted rod 11 and the bottom end inside the inserted cylinder 8.
Further, inserted bar 11 inserts and inserts a 8 inside sections bottom positions of section of thick bamboo and be provided with limiting plate 10, and the welding of limiting plate 10 upper end is in inserted bar 11 bottom positions, and the setting of limiting plate 10 can restrict the home range of inserted bar 11, avoids inserted bar 11 to break away from when using and inserts a 8, leads to damper 6 can't carry out the shock attenuation to mounting panel 2.
Further, insert a section of thick bamboo 8 inside and be located spring 9 middle bottom position and be provided with pillar 7, and the welding of pillar 7 bottom is inserted a section of thick bamboo 8 inside bottom position, and the setting of pillar 7 can restrict spring 9's shrink scope, avoids when using, and spring 9 shrink range is great, influences spring 9's elasticity, reduces spring 9's shock attenuation effect.
Further, be provided with flexible connectors 3 between mounting panel 2 and the cabinet body 1, and flexible connectors 3 both ends are through the sticky position of pasting in the 2 outsides of mounting panel and the 1 inboard side of the cabinet body, and flexible connectors 3 are used for protecting damper assembly 6, avoid inside dust and moisture get into damper assembly 6, influence damper assembly 6's life.
Further, 4 inboards of cabinet door are provided with bullet pad 12, and bullet pad 12 one side is through the sticky subsides of bonding in 4 one sides of cabinet door, and the setting of bullet pad 12 can warp when closing cabinet door 4, seals the space between cabinet door 4 and the cabinet body 1, avoids air and dust to get into the internal portion of cabinet.
Further, the mounting panel 2 outside is provided with insulating layer 5, and insulating layer 5 sets up to insulating coating layer, and the insulating coating layer that insulating layer 5 used is solidified in the mounting panel 2 outside by insulating coating spraying and forms for mounting panel 2 has better insulating nature, avoids appearing the phenomenon of electric leakage.
The utility model discloses a theory of operation and use flow: during the installation, the component that will need to use passes through bolt fixed mounting at mounting panel 2 upside, during the use, carry out the shock attenuation to the component of installing at mounting panel 2 upside through damper 6, when the shock attenuation, the inside spring 9 of damper 6 will produce the shrink, cushion vibrations, play absorbing effect, fan 16 can extract the gas of the internal portion of cabinet 1 simultaneously, discharge through air outlet 15, outside air will get into the internal portion of cabinet 1 through air intake 13, cool down the component of the internal portion of cabinet 1 through the air current, make the component work under normal temperature.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. A PLC power cabinet comprises a cabinet body (1); the method is characterized in that: the improved cabinet is characterized in that a cabinet door (4) is arranged on one side of the cabinet body (1), the cabinet door (4) is rotatably connected with the cabinet body (1) through a hinge, an air inlet (13) is formed in one side of the bottom end of the cabinet body (1), an air outlet (15) is formed in the upper end of one side of the cabinet body (1), a fan (16) is arranged inside the air outlet (15), the fan (16) is fixedly installed on the upper side of the cabinet body (1) through bolts, a filter screen (14) is arranged inside the cabinet body (1) at the positions of the air outlet (15) and the air inlet (13), the filter screen (14) is fixedly installed inside the cabinet body (1) through bolts, a mounting plate (2) is arranged inside the cabinet body (1), the mounting plate (2) is arranged in an L shape, a damping assembly (6) is arranged between the mounting plate (2) and the cabinet body, bolt fixed mounting is passed through in inserted bar (11) upper end in mounting panel (2) bottom, insert a section of thick bamboo (8) and pass through bolt fixed mounting in the inside bottom of the cabinet body (1), inserted bar (11) bottom is inserted inside an inserted section of thick bamboo (8), it is provided with spring (9) to insert inside inserted bar (11) bottom position that is located of a section of thick bamboo (8), welding is in inserted bar (11) bottom and the inside bottom of an inserted section of thick bamboo (8) in spring (9) both ends.
2. The PLC power cabinet of claim 1, wherein: the bottom end of the section of thick bamboo (8) inside is inserted in inserted bar (11) and is provided with limiting plate (10), and the welding of limiting plate (10) upper end is in inserted bar (11) bottom position.
3. The PLC power cabinet of claim 1, wherein: insert a section of thick bamboo (8) inside and be located spring (9) middle bottom position and be provided with pillar (7), and pillar (7) bottom welding is inserted a section of thick bamboo (8) inside bottom position.
4. The PLC power cabinet of claim 1, wherein: be provided with flexible connectors (3) between mounting panel (2) and the cabinet body (1), and flexible connectors (3) both ends are through the sticky position of pasting in mounting panel (2) outside and cabinet body (1) inboard.
5. The PLC power cabinet of claim 1, wherein: an elastic pad (12) is arranged on the inner side of the cabinet door (4), and one side of the elastic pad (12) is adhered to one side of the cabinet door (4) through adhesive glue.
6. The PLC power cabinet of claim 1, wherein: the mounting panel (2) outside is provided with insulating layer (5), and insulating layer (5) set up to insulating paint layer.
