Abstract
The utility model relates to a urine medical treatment detects uses splashproof goes out urine collection system, including collecting the liquid chamber, collection liquid chamber lower part is provided with the collection cup, wears to be equipped with first pipe to the side of collecting the liquid chamber, and first pipe is u type pipe, inverts the inclined plane of passing a liquid chamber, and inboard one end opening extends to the collection cup middle part, and outside one end opening extends to the collection cup lower part. The utility model has the advantages that: in the use, hold the grab handle, aim at the urine mouth, when the urine overflows first pipe top, the urine had both been discharged from the ureter, when urination was accomplished, then because of the siphon effect, with the liquid level drop to under the pipe interior port, hold the handle and will gather the rotatory time taking off of cup, the urine can not splash in one's hand, the utility model discloses have the function that prevents the urine spill, clean health prevents to pollute, and men and women all can use.
Description
Technical Field
The utility model relates to a sample collection field, in particular to urine medical treatment detects with splashproof goes out urine collection system.
Background
With the progress of society and the development of scientific technology, the development of urine detection technology is faster and faster. Urine source that urine detected all is that the urine examination object gathers through urine collection system and comes, however, current urine collection system does not have the splashproof function, and the easy spill during urine is gathered causes the pollution. In addition, the current urine collecting device has a single structure, generally comprises a male special purpose device and a female special purpose device, and is very troublesome because the use is still to be distinguished.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that a splashproof goes out urine collection system is used in urine medical treatment detection is provided to overcome not enough among the above-mentioned prior art.
The utility model provides an above-mentioned technical problem's technical scheme as follows:
the utility model provides a urine medical treatment detects uses splashproof goes out urine collection system, is provided with the collection cup including collecting the liquid chamber, and first pipe is worn to be equipped with to collecting the liquid chamber side, and first pipe is the u type pipe, inverts the inclined plane that passes the liquid chamber, and inboard one end opening extends to and gathers the cup middle part, and outside one end opening extends to and gathers the cup lower part.
The utility model has the advantages that: in the use, aim at the urine mouth urination, when the urine overflows first pipe top, the urine is discharged from first pipe 13 immediately, when the urination is accomplished, then because of the siphon effect, falls the liquid level to the pipe in under the port, when gathering the cup and take off, the urine can not spatter in one's hand, the utility model discloses have the function that prevents the urine spill, clean health prevents to pollute, and man and woman are general.
Drawings

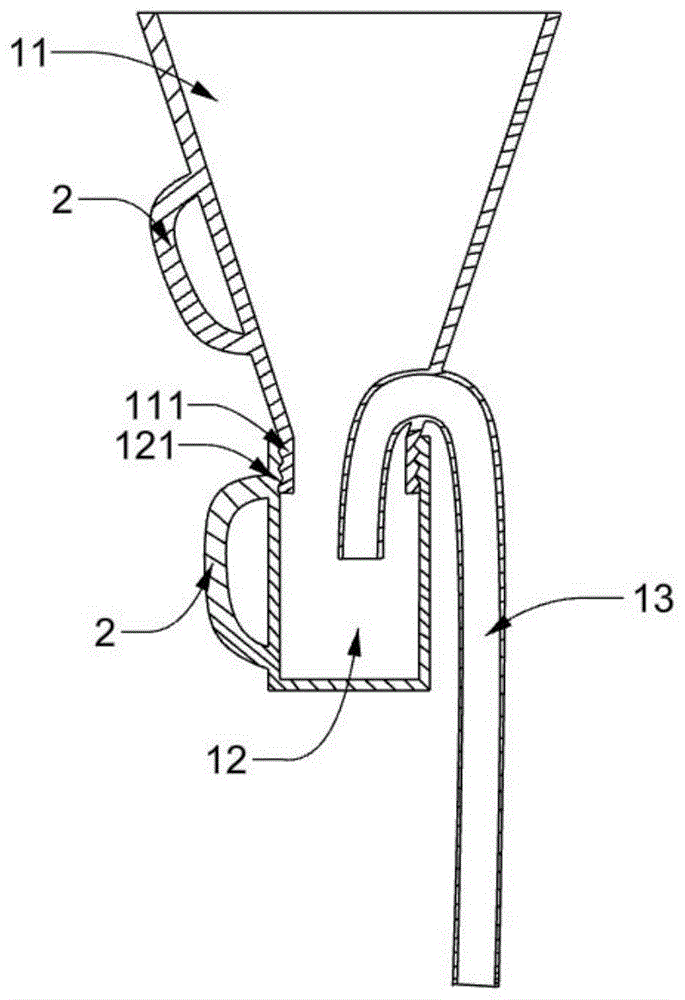

Fig. 1 is a sectional view of the present invention;
fig. 2 is an overall schematic view of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
As shown in fig. 1, the utility model provides an embodiment 1 a urine medical treatment detects uses splashproof goes out urine collection system, including album liquid chamber 11, collection liquid chamber 11 lower part is provided with collection cup 12, and first pipe 13 is worn to be equipped with to collection liquid chamber 11 side, and first pipe 13 is u type pipe, inverts the inclined plane of passing collection liquid chamber 11, and inboard one end opening extends to collection cup 12 middle part, and outside one end opening extends to collection cup 12 lower part.
The utility model relates to a pair of urine medical treatment detects uses splashproof goes out urine collection system, in the use, aims at the urine mouth urination, when the urine was passed through first pipe top, the urine had both been discharged from first pipe 13, when the urination was accomplished, then because of siphon effect, drops the liquid level to under the pipe interior port, holds the handle and will gather the rotatory time of taking off of cup, and the urine can not spatter on one's hand, the utility model discloses have the function that prevents the urine spill, clean health prevents to pollute, and men and women all can use.
The embodiment 2 of the utility model provides a urine medical treatment detects with splashproof goes out urine collection system, the 11 lower part interface outsides in collection liquid chamber are equipped with external screw thread 111, and external screw thread 111 meshes with the internal thread 121 that collection cup 12 inboard set up mutually. When in use, the collection cup 12 can be tightly attached to the liquid collection cavity 11 and is not easy to fall off.
The embodiment of the utility model provides 3 a medical detection of urine is with splashproof urine collection system, first pipe 13 downside is connected with second pipe 14, and second pipe 14 downside is connected with receiving flask 15, is carved with the measuring tape on the lateral wall of receiving flask 15. The second conduit 14 may be connected to a collection bottle 15 to facilitate recording and viewing of the patient's urine.
The embodiment 4 of the utility model provides a urine medical treatment detects with splashproof goes out urine collection system, collects the liquid chamber 11 and gathers the cup 12 outside and all be provided with grab handle 2. Facilitating grasping of liquid collection chamber 11 and collection cup 12.
The embodiment of the utility model provides 5 a urine medical treatment detects with splashproof goes out urine collection system, and collection liquid chamber 11 upside is provided with fixed band 16. The advantage of this design can fix on human body, is applicable to some inconvenient patient of action.
The above description is only for the preferred embodiment of the present invention, and should not be construed as limiting the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (5)
1. The utility model provides a urine medical treatment detects with splashproof goes out urine collection system which characterized in that: the device comprises a liquid collecting cavity (11), wherein a collecting cup (12) is arranged at the lower part of the liquid collecting cavity (11), the liquid collecting cavity (11) is funnel-shaped, and a first guide pipe (13) penetrates through the side surface of the liquid collecting cavity (11); the collecting cup is characterized in that the first guide pipe (13) is a U-shaped pipe and penetrates through the inclined surface of the liquid collecting cavity (11) in an inverted mode, one end, located inside the liquid collecting cavity (11), of the first guide pipe (13) extends to the middle of the collecting cup (12), and one end, located outside the liquid collecting cavity (11), of the first guide pipe (13) extends to the lower portion of the collecting cup (12).
2. The splash-proof urine collection device for medical urine detection of claim 1, wherein: and the outer side of the lower connector of the liquid collecting cavity (11) is provided with an external thread (111), and the external thread (111) is meshed with an internal thread (121) arranged on the inner side of the collecting cup (12).
3. The splash-proof urine collection device for medical urine detection of claim 1, wherein: the device is characterized in that a second guide pipe (14) is connected to the lower side of the first guide pipe (13), a collecting bottle (15) is connected to the lower side of the second guide pipe (14), and a measuring ruler is carved on the side wall of the collecting bottle (15).
4. The splash-proof urine collection device for medical urine detection of claim 1, wherein: the outer sides of the liquid collecting cavity (11) and the collecting cup (12) are both provided with a grab handle (2).
5. The splash-proof urine collection device for medical urine detection of claim 1, wherein: the upper side of the liquid collecting cavity (11) is provided with a fixing belt (16).
