Abstract

The utility model provides a hoist device of hanging basket prism piece, its characterized in that includes: the device comprises a bearing frame, a bearing suspension rod, a sliding system, a rear anchor device and a heavy object; the bearing suspension rod is arranged at the upper end of the bearing frame; the sliding system comprises pulleys, a steel wire rope and a winch, the pulleys are respectively arranged at two ends of the bearing suspension rod and at positions close to the lower part of the bearing frame, and two ends of the steel wire rope are respectively connected with the heavy object and the winch through the pulleys; the upper end and the lower end of the rear anchor device are respectively arranged on one end part of the bearing suspension rod and the hanging basket prismatic sheet. Compared with the prior art, the utility model discloses just can hang basket part hoist and mount under the condition of not arranging the tower crane, the height that lifts by crane moreover can satisfy the requirement, in addition, still has simple structure, makes easily, convenient to use, low cost, firmly advantage such as durable, long service life, stability are good and the security is high.

Description

Hanging basket prismatic sheet hoisting device
Technical Field
The utility model belongs to the technical field of highway engineering rigid frame bridge string basket construction, concretely relates to hoist device who hangs basket prism piece.
Background
At present, the span of highway bridges is increasingly large, in the construction process of large-span bridges, the design and application of cast-in-place box girders are wide, the construction of the cast-in-place box girders by a basket hanging method is adopted at present, the main bearing parts of a basket are thick and heavy due to the restriction of the load of box girder segments, and the weight of a single prismatic sheet reaches 5 tons.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the technical problem that will solve is: aiming at the defects of the prior art in the background art, the invention provides a method for preparing a novel high-efficiency
The hanging basket part can be hung without arranging a tower crane, the lifting height can meet the requirement, and the hanging basket prism sheet hoisting device is simple in structure, low in price and capable of avoiding waste.
For solving the above technical problem, the utility model discloses a following technical scheme realizes:
a hoisting device of hanging basket prismatic sheets is characterized by comprising: the device comprises a bearing frame, a bearing suspension rod, a sliding system, a rear anchor device and a heavy object; the bearing suspension rod is arranged at the upper end of the bearing frame; the sliding system comprises pulleys, a steel wire rope and a winch, the pulleys are respectively arranged at two ends of the bearing suspension rod and at positions close to the lower part of the bearing frame, and two ends of the steel wire rope are respectively connected with the heavy object and the winch through the pulleys; the upper end and the lower end of the rear anchor device are respectively arranged on one end part of the bearing suspension rod and the hanging basket prismatic sheet. Form main hoist device through placing the bearing jib on bearing frame, set up loose pulley assembly on the bearing jib to drive wire rope through placing the hoist engine on the roof beam section, can hoist basket prism piece as required, reasonable in design, the workman's operation of being convenient for, very big reduction construction cost.
As a preferred scheme, the bearing frame comprises bearing vertical rods, bearing transverse rods and bearing inclined rods, wherein the four bearing vertical rods in the vertical direction are connected through the horizontal bearing transverse rods and the inclined bearing inclined rods to form a cuboid frame. The bearing vertical rods are connected with the bearing transverse rods and the bearing inclined rods, so that the bearing frame is firm and durable in structure, is not easy to cause danger in the using process, and is high in safety.
As a preferred scheme, the bottom of the bearing frame is provided with a support, and four bearing vertical rods of the bearing frame are respectively provided with a cable rope. The support that the bearing frame bottom set up can ensure bearing frame's stationarity, respectively sets up a cable wind rope on four bearing montants and can further increase bearing frame's stability.
According to the preferable scheme, the bearing vertical rods, the bearing transverse rods and the bearing inclined rods are made of channel steel, the support is made of steel plates, the cable rope is a rope made of steel wires or nylon, and the rear anchor device is composed of finish-rolled deformed steel bars and channel steel. The materials such as channel steel, steel plates, steel wire ropes and deformed steel bars are cheap and easy to obtain, and the steel wire ropes are firm and durable, so that the universality and the service life of the equipment are greatly improved.
Preferably, the bearing frame and the bearing hanger rod are fixedly installed through an anchoring device, and the anchoring device is composed of finish-rolled deformed steel bars and channel steel.
The utility model discloses a theory of operation is: the power of the whole device is derived from a winch, in the using process, a steel wire rope is pulled by the winch to rotate on a pulley to drive the heavy object to move to an elevation to be installed from a low position, and after the prismatic sheets move to the elevation to be installed, the heavy object can be translated through a basket-hanging sliding beam, namely the pulley on the bearing hanging rod, so that the heavy object can be moved to a specified installation position finally. The utility model discloses a lever principle forms main hoist device through placing the bearing jib on bearing frame, sets up loose pulley assembly and drives wire rope through placing the hoist engine on the roof beam section and reach the purpose of hoist and mount prism piece on the bearing jib, reasonable in design, the workman's operation of being convenient for, very big reduction construction cost.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses just can hang basket part hoist and mount under the condition of not arranging the tower crane, the height that lifts by crane moreover can satisfy the requirement, in addition, the device's simple structure, make easy, convenient to use, the material is cheap easily obtained, firmly durable, life is longer, has fabulous stability, can effectively avoid the potential safety hazard that appears in hanging basket prism piece hoist and mount process.
Drawings
The present invention will be further explained with reference to the drawings and examples.

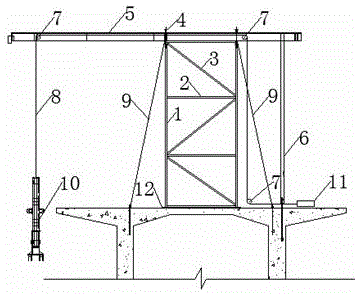

FIG. 1 is a schematic structural view of a front elevation of a hoisting device for a prismatic sheet of a hanging basket;
FIG. 2 is a schematic structural diagram of a side elevation of a hoisting device for a prismatic sheet of a hanging basket;
FIG. 3 is a schematic structural view of an anchoring device of a hoisting device for hanging basket prismatic sheets;
in the figure: 1-a load-bearing vertical rod; 2-a load-bearing cross-bar; 3-bearing diagonal rod; 4-anchoring means; 5-a load-bearing boom; 6-rear anchor device, 7-pulley, 8-wire rope; 9-a guy rope; 10-weight; 11-a winch; 12-support.
Detailed Description
The present invention will be further explained by way of examples with reference to the accompanying drawings.
As shown in fig. 1 to 3, a hoisting device for prismatic sheets of a hanging basket comprises a bearing frame, a bearing suspension rod 5, a sliding system, a rear anchor device 6 and a heavy object 10; the bearing suspension rod 5 is arranged at the upper end of the bearing frame; the sliding system comprises pulleys 7, a steel wire rope 8 and a winch 11, wherein the pulleys 7 are respectively arranged at two ends of the bearing suspender 5 and at positions close to the lower part of the bearing frame, and two ends of the steel wire rope 8 are respectively connected with a heavy object 10 and the winch 11 through the pulleys 7; the upper end and the lower end of the rear anchor device 6 are respectively arranged on one end part of the bearing suspension rod 5 and the prismatic sheets of the hanging basket and are used for balancing and hoisting heavy objects, the bearing suspension rod 5 is made of two sliding beams, and the length of each sliding beam is 12 m; the bearing frame and the bearing suspension rod 5 are fixedly arranged through an anchoring device 4. The bearing frame includes that bearing montant 1, bearing horizontal pole 2 and bearing down tube 3 adopt 14# channel-section steel, and the channel-section steel all adopts double pin in order to increase the security, between the bearing montant 1 of four vertical directions, connects through horizontally bearing horizontal pole 2 and obliquely bearing down tube 3, forms the frame of cuboid type, and the bearing frame length 3m of cuboid type, wide 1.5m, height 7 m. The bottom of the bearing frame is provided with a support 12 made of a steel plate, four bearing vertical rods 1 of the bearing frame are respectively provided with a cable rope 9, and the cable rope 9 adopts a 5T chain block. The guy rope 9 is a rope made of steel wires or nylon, the anchoring device 4 and the rear anchoring device 6 are composed of finish-rolled deformed steel bars and channel steel, the rear anchoring device 6 is composed of finish-rolled deformed steel bars, channel steel and a base plate which are pre-embedded in concrete, and the anchor device is formed by a chain block to tie the bearing hanger rod 5 and the channel steel. After the installation of the bearing suspension rod is finished, a pulley 7 is installed at a position where a steel wire rope 8 needs to turn, and finally a winch 11 is used for dragging the steel wire rope 8 to drive a heavy object 10 to be hoisted to a beam top needing to be installed.
The utility model discloses a theory of operation is: the power of the whole device is derived from a winch 11, in the using process, a steel wire rope 8 is pulled by the winch to rotate on a pulley 7 so as to drive a heavy object 10 to move to an elevation to be installed from a low position, when a prismatic sheet moves to the elevation to be installed, the heavy object can be translated through a basket-hanging sliding beam, namely the pulley on a bearing suspension rod 5, and finally the heavy object is moved to a specified installation position. The utility model discloses a lever principle forms main hoist device through placing bearing jib 5 on bearing frame, sets up pulley 7 subassembly and drives wire rope 8 through placing hoist engine 11 on the roof beam section and reach the purpose of hoist and mount prism piece on bearing jib 5, reasonable in design, the workman's operation of being convenient for, very big reduction construction cost.
It should be noted that the above embodiments are only used for illustrating the technical solution of the present invention and not for limiting, and although the present invention has been described in detail by the above preferred embodiments, it should be understood by those skilled in the art that various changes in form and detail made in the principle of the present invention are within the scope of the present invention.

Claims (5)

1. A hoisting device of hanging basket prismatic sheets is characterized by comprising: a bearing frame, a bearing suspension rod (5), a sliding system, a rear anchor device (6) and a heavy object (10); the bearing suspension rod (5) is arranged at the upper end of the bearing frame; the sliding system comprises pulleys (7), a steel wire rope (8) and a winch (11), wherein the pulleys (7) are respectively arranged at two ends of the bearing suspension rod (5) and at positions close to the lower part of the bearing frame, and two ends of the steel wire rope (8) are respectively connected with a heavy object (10) and the winch (11) through the pulleys (7); the upper end and the lower end of the rear anchor device (6) are respectively arranged on one end part of the bearing suspension rod (5) and the hanging basket prismatic sheet.
2. A lifting device of a hanging basket prismatic sheet as claimed in claim 1, characterized by comprising: the bearing frame comprises bearing vertical rods (1), bearing transverse rods (2) and bearing inclined rods (3), wherein the bearing vertical rods (1) in four vertical directions are connected through the horizontal bearing transverse rods (2) and the inclined bearing inclined rods (3) to form a cuboid frame.
3. The hoisting device of the hanging basket prismatic sheets as claimed in claim 2, wherein: the bottom of the bearing frame is provided with a support (12), and four bearing vertical rods of the bearing frame are respectively provided with a cable rope (9).
4. The hoisting device of the hanging basket prismatic sheets as claimed in claim 3, wherein: bearing montant (1), bearing horizontal pole (2) and bearing down tube (3) are made by the channel-section steel, the material of support (12) is the steel sheet, cable wind rope (9) are the rope that steel wire or nylon were made, back anchor device (6) comprise finish rolling screw-thread steel and channel-section steel.
5. The hoisting device of the hanging basket prismatic sheet as claimed in any one of claims 1 to 4, wherein: the bearing frame and the bearing suspension rod (5) are fixedly installed through an anchoring device (4), and the anchoring device (4) is composed of finish-rolled deformed steel bars and channel steel.
