CN211169216U - Single-face laminating mechanism for iron can production - Google Patents
Single-face laminating mechanism for iron can production Download PDFInfo
- Publication number
- CN211169216U CN211169216U CN201921972110.9U CN201921972110U CN211169216U CN 211169216 U CN211169216 U CN 211169216U CN 201921972110 U CN201921972110 U CN 201921972110U CN 211169216 U CN211169216 U CN 211169216U
- Authority
- CN
- China
- Prior art keywords
- rod
- guide
- fixedly connected
- iron
- workbench
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Lining Or Joining Of Plastics Or The Like (AREA)
Abstract
The utility model discloses a single face compound membrane mechanism is used in iron can production, comprises a workbench, the symmetrical fixedly connected with supporting leg of workstation bottom side, be equipped with the conveyer belt on the workstation, the workstation rotates through the mounting bracket and is connected with tectorial membrane hot pressing roller, first dead lever of difference fixedly connected with and second dead lever on the workstation, the one end fixedly connected with mounting panel of workstation is kept away from to first dead lever, second dead lever, the mounting panel bottom side rotates and is connected with and unreels the membrane winding up roller, fixedly connected with uide bushing on the second dead lever. The utility model discloses when the tensile force was adjusted too big, the notch board can drive the guide roll and carry out the adaptability to the right side and remove, and the installation pole slides to the dashpot outside to the dwang takes place to rotate, makes two sliders slide in opposite directions, thereby compression spring makes whole tensioning accommodation process have certain buffering surplus, avoids the tensile force too big to tear the damage with the membrane.
Description
Technical Field
The utility model relates to an iron can production technical field especially relates to a single face laminating mechanism is used in iron can production.
Background
The production process of the iron can adopts the coated plate to produce the metal can, generally adopts the steel plate → PP film → coated steel plate → UV printing → coated iron can process, the can body of the metal can usually adopts the welding method, the exposed part of the welded metal must be coated with the coating and coated, because the adhesive and the lubricant are not used in the can making process, the danger of the dissolution of the content resistance, the residual solvent, the plasticizer and the like caused by the additional material can be avoided.
And a metal sheet for producing the iron can is when the tectorial membrane, and its surface tension of protection film along with unreeling of unreeling the roller can be littleer and smaller, leads to producing the bubble easily at the tectorial membrane in-process, influences product quality.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving among the prior art "sheet metal is when the tectorial membrane, and its surface tension of protection film along with unreeling of unreeling the roller can be more and more littleer, leads to producing the bubble easily at the tectorial membrane in-process, influences product quality"'s defect to a single face laminating mechanism is used in the iron ladle production is proposed.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a single face tectorial membrane mechanism for iron can production, includes the workstation, workstation bottom side symmetry fixedly connected with supporting leg, be equipped with the conveyer belt on the workstation, the workstation rotates through the mounting bracket and is connected with tectorial membrane hot pressing roller, first dead lever of fixedly connected with and second dead lever respectively on the workstation, the one end fixedly connected with mounting panel of workstation is kept away from to first dead lever, second dead lever, mounting panel bottom side rotates and is connected with and puts the membrane winding up roller, fixedly connected with uide bushing on the second dead lever, sliding connection has the guide bar in the uide bushing, one side of guide bar is equipped with adjustment mechanism, the guide bar is connected with the concave plate through the installation bar, fixedly connected with slide bar in the concave plate, be equipped with elastic mechanism on the slide bar, the one end of installation bar is equipped with guiding mechanism
Preferably, the elastic mechanism includes two sliders, two slider symmetry sliding connection is on the slide bar, two fixedly connected with spring between the slider, the spring housing is established on the slide bar, two all rotate on the slider and be connected with the dwang, the one end that the slider was kept away from to the dwang is rotated and is connected on the guide bar.
Preferably, guiding mechanism includes the leading truck, leading truck fixed connection is at the right-hand member of installation pole, the last rotation of leading truck is connected with the guide roll.
Preferably, the adjusting mechanism comprises a threaded rod, the threaded rod is connected to the guide sleeve in a threaded manner, one end of the threaded rod extending into the guide sleeve is rotatably connected to the guide rod, and a rotating handle is fixedly connected to one end, far away from the guide rod, of the threaded rod.
Preferably, a buffer groove is formed in the guide rod, and the mounting rod is connected in the buffer groove in a sliding mode.
Compared with the prior art, the beneficial effects of the utility model are that:
1. at the in-process of tectorial membrane, when protection film surface tension reduces, can directly rotate the swing handle and drive the threaded rod and rotate to it slides to make the guide bar to guide sleeve, thereby drives the guide roll and removes, thereby pulls the protection film and carries out the tensioning, improves protection film surface tension.
2. When the tensile force was adjusted too big, the notch board can drive the guide roll and carry out the adaptability to the right side and remove, and the installation pole slides to the dashpot outside to the dwang takes place to rotate, makes two sliders slide in opposite directions, thereby compression spring makes whole tensioning accommodation process have certain buffering surplus, avoids the tensile force too big to tear the damage with the membrane.
Drawings

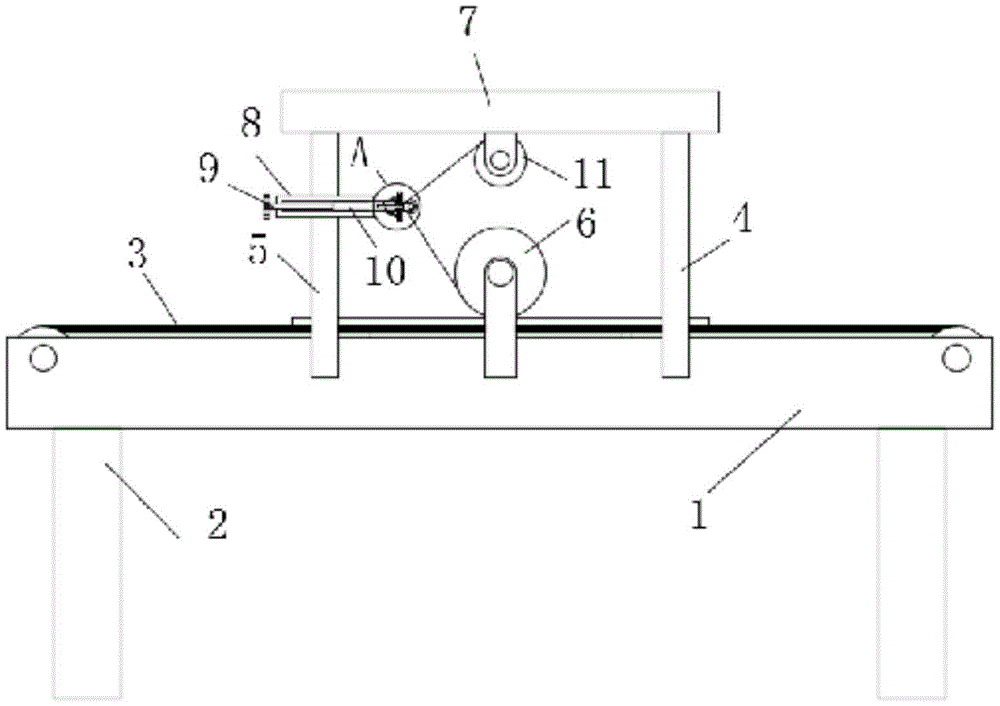

FIG. 1 is a schematic front structural view of a single-sided laminating mechanism for iron can production according to the present invention;
fig. 2 is an enlarged schematic view of a point a in fig. 1.
In the figure: 1-workbench, 2-supporting legs, 3-conveying belt, 4-first fixing rod and 5-second fixing rod. 6-laminating hot pressing roller, 7-mounting plate, 8-guide sleeve, 9-threaded rod, 10-guide rod, 11-film releasing winding roller, 12-mounting rod, 13-guide frame, 14-guide roller, 15-concave plate, 16-slide block, 17-rotating rod, 18-slide rod, 19-spring and 20-buffer groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-2, a single-side laminating mechanism for iron can production comprises a workbench 1, wherein the bottom side of the workbench 1 is symmetrically and fixedly connected with supporting legs 2, the workbench 1 is provided with a conveyor belt 3, the workbench 1 is rotatably connected with a laminating hot-pressing roller 6 through a mounting frame, the workbench 1 is respectively and fixedly connected with a first fixing rod 4 and a second fixing rod 5, one ends of the first fixing rod 4 and the second fixing rod 5 far away from the workbench 1 are fixedly connected with a mounting plate 7, the bottom side of the mounting plate 7 is rotatably connected with a film unwinding roller 11, the laminating hot-pressing roller 6 and the film unwinding roller 11 are both driven by a motor, a guide sleeve 8 is fixedly connected on the second fixing rod 5, a guide rod 10 is slidably connected in the guide sleeve 8, one side of the guide rod 10 is provided with an adjusting mechanism, the adjusting mechanism comprises a threaded rod 9, the threaded rod 9 is in threaded connection with the guide sleeve 8, one end of, one end fixedly connected with swing handle that guide bar 10 was kept away from to threaded rod 9 can directly rotate the swing handle and drive threaded rod 9 and rotate to make guide bar 10 slide in the telescopic of uide bushing 8, thereby adjust the guide roll 14 position and control protection film tensile force size.
The guide rod 10 is fixedly connected with a concave plate 15 through a mounting rod 12, a buffer groove 20 is arranged in the guide rod 10, the mounting rod 12 is connected in the buffer groove 20 in a sliding manner, the mounting rod 12 is used for limiting the concave plate 15 to prevent the concave plate 15 from rotating and deviating, a slide rod 18 is fixedly connected in the concave plate 15, an elastic mechanism is arranged on the slide rod 18 and comprises two slide blocks 16, the two slide blocks 16 are symmetrically connected on the slide rod 18 in a sliding manner, a spring 19 is fixedly connected between the two slide blocks 16, the spring 19 is sleeved on the slide rod 18, a rotating rod 17 is rotatably connected on each of the two slide blocks 16, one end, far away from the slide block 16, of the rotating rod 17 is rotatably connected on the guide rod 10, when the tension force is adjusted to be too large, the rotating rod 17 rotates to enable the two slide blocks 16 to slide oppositely, so as to compress the spring, the guiding mechanism comprises a guiding frame 13, the guiding frame 13 is fixedly connected to the right end of the mounting rod 12, a guiding roller 14 is rotatably connected to the guiding frame 13, and the guiding roller 14 plays a role in drawing the protective film.
The utility model discloses in, in the in-process of tectorial membrane, when protection film surface tension reduces, can directly rotate the rotation handle and drive threaded rod 9 and rotate, thereby make guide bar 10 slide to 8 of uide bushing, thereby it removes to drive guide roll 14, thereby pull the protection film and carry out the tensioning, improve protection film surface tension, when the tensile force is adjusted too big, concave plate 15 can drive guide roll 14 and carry out adaptability to the right side and remove, installation pole 12 slides to the buffer slot 20 outside, thereby dwang 17 takes place to rotate, make two 16 slides in opposite directions of slider, thereby compression spring 19, make whole tensioning accommodation process have certain buffering surplus, avoid the tensile force too big damage of tearing the membrane.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The single-side film coating mechanism for the production of the iron cans comprises a workbench (1) and is characterized in that supporting legs (2) are symmetrically and fixedly connected to the bottom side of the workbench (1), a conveying belt (3) is arranged on the workbench (1), the workbench (1) is rotatably connected with a film coating hot pressing roller (6) through a mounting frame, a first fixing rod (4) and a second fixing rod (5) are respectively and fixedly connected onto the workbench (1), a mounting plate (7) is fixedly connected to one ends, far away from the workbench (1), of the first fixing rod (4) and the second fixing rod (5), a film releasing winding roller (11) is rotatably connected to the bottom side of the mounting plate (7), a guide sleeve (8) is fixedly connected onto the second fixing rod (5), a guide rod (10) is slidably connected into the guide sleeve (8), and an adjusting mechanism is arranged on one side of the guide rod (10), the guide rod (10) is connected with a concave plate (15) through an installation rod (12), a sliding rod (18) is fixedly connected in the concave plate (15), an elastic mechanism is arranged on the sliding rod (18), and a guide mechanism is arranged at one end of the installation rod (12).
2. The single-sided laminating mechanism for the iron can production is characterized by comprising two sliding blocks (16), the two sliding blocks (16) are symmetrically and slidably connected to a sliding rod (18), a spring (19) is fixedly connected between the two sliding blocks (16), the spring (19) is sleeved on the sliding rod (18), rotating rods (17) are rotatably connected to the two sliding blocks (16), and one ends, far away from the sliding blocks (16), of the rotating rods (17) are rotatably connected to guide rods (10).
3. The single-sided laminating mechanism for the iron can production is characterized by comprising a guide frame (13), wherein the guide frame (13) is fixedly connected to the right end of the mounting rod (12), and a guide roller (14) is rotatably connected to the guide frame (13).
4. The single-sided laminating mechanism for the iron can production is characterized in that the adjusting mechanism comprises a threaded rod (9), the threaded rod (9) is in threaded connection with a guide sleeve (8), one end of the threaded rod (9) extending into the guide sleeve (8) is rotatably connected onto a guide rod (10), and one end, far away from the guide rod (10), of the threaded rod (9) is fixedly connected with a rotating handle.
5. The single-sided laminating mechanism for the iron can production is characterized in that a buffer groove (20) is formed in the guide rod (10), and the mounting rod (12) is connected in the buffer groove (20) in a sliding mode.
