Abstract
The utility model discloses a vegetation irrigation equipment for vegetation restoration, including the device body, the device body includes supporting mechanism and irrigation mechanism, there is the mount pad on the supporting mechanism, mount pad side end fixed mounting has a plurality of bracing pieces, bottom fixedly connected with bears the seat between the bracing piece, bear the fixed surface of seat top and be connected with the jacking cylinder, the utility model discloses a setting up the supporting mechanism, install the jacking cylinder at the loading board top on the supporting mechanism, the output piston rod of jacking cylinder is connected with the water tank top connecting rod on the irrigation mechanism, and the jacking cylinder drives the piston rod and stretches out and draws back and can drive the water tank and reciprocate, and then the nozzle watering distance on the water tank that changes; through at water tank top installation shower nozzle, three nozzle of shower nozzle side installation can be simultaneously to sprinkling water all around, and install perpendicular nozzle and oblique angle nozzle on the nozzle, further improved irrigation effect, rational in infrastructure, convenient to use.
Description
Technical Field
The utility model relates to a vegetation restoration technology field specifically is a vegetation is restoreed and is used plant irrigation equipment.
Background
Vegetation refers to the population of plants covered by a region of the earth's surface. The vegetation is divided according to the types of plant communities and can be divided into meadow vegetation, forest vegetation and the like. It is closely related to natural environment factors such as climate, soil, terrain, animal kingdom and water condition. There are two broad categories of marine vegetation and land vegetation that can be distinguished from the global scale. However, since the land environment is greatly different, a variety of vegetation types are formed, and the vegetation types can be divided into a multi-level classification series such as vegetation types, plant groups and clumps. And can be divided into natural vegetation and artificial vegetation. Artificial vegetation includes farmlands, orchards, grasslands, artificial forests, urban greenbelts, and the like. Natural vegetation includes primary vegetation, secondary vegetation, and the like.
Need irrigate when vegetation is restoreed, current irrigation equipment function singleness, the height of shower nozzle can't be adjusted among the irrigation process, and the irrigation scope is limited, consequently improves a vegetation irrigation equipment for the vegetation is restoreed.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a vegetation irrigation equipment for vegetation restoration, through setting up the supporting mechanism, the jacking cylinder is installed at the top of the loading board on the supporting mechanism, the output end piston rod of the jacking cylinder is connected with the connecting rod at the top of the water tank on the irrigation mechanism, the jacking cylinder drives the piston rod to stretch out and draw back so as to drive the water tank to move up and down, and then the nozzle watering distance on the water tank that changes has improved the irrigation scope; through at water tank top installation shower nozzle, three nozzle of shower nozzle side installation can be simultaneously to sprinkling water all around, and install perpendicular nozzle and oblique angle nozzle on the nozzle, further improved irrigation effect, rational in infrastructure, convenient to use.
In order to achieve the above object, the utility model provides a following technical scheme: a plant irrigation device for vegetation restoration comprises a device body, wherein the device body comprises a supporting mechanism and an irrigation mechanism, the supporting mechanism is provided with an installation seat, a plurality of supporting rods are fixedly installed at the side end of the installation seat, a bearing seat is fixedly connected at the bottom between the supporting rods, the surface of the top of the bearing seat is fixedly connected with a jacking cylinder, the top of the mounting seat is fixedly connected with a connecting cylinder, the irrigation mechanism is positioned at the top of the supporting mechanism, a water tank is arranged on the irrigation mechanism, the bottom of the water tank is fixedly connected with a connecting rod, the bottom end of the connecting rod is connected with an output end piston rod of the jacking cylinder through a connector, the top of the water tank is fixedly connected with a round seat, the round seat top can be dismantled and be connected with the shower nozzle, the shower nozzle side is dismantled and is connected with three nozzle, and is three nozzle top surface all installs two perpendicular nozzles and an oblique angle nozzle.
The water tank side end surface has the inlet tube, the control valve is installed at the inlet tube top.
The water tank is movably connected with the mounting seat through a connecting rod.
The three nozzles are uniformly distributed on the outer surface of the side end of the spray head.
The bracing piece is provided with three, and evenly distributed is at the side of mount pad surface.
Compared with the prior art, the beneficial effects of the utility model are as follows:
the utility model discloses a setting up the supporting mechanism, the jacking cylinder is installed at the loading board top on the supporting mechanism, and the output piston rod of jacking cylinder is connected with the water tank top connecting rod on the irrigation mechanism, and the jacking cylinder drives the piston rod flexible thereby can drive the water tank and reciprocate, and then the nozzle watering distance on the water tank that changes has improved the irrigation scope; through at water tank top installation shower nozzle, three nozzle of shower nozzle side installation can be simultaneously to sprinkling water all around, and install perpendicular nozzle and oblique angle nozzle on the nozzle, further improved irrigation effect, rational in infrastructure, convenient to use.
Drawings

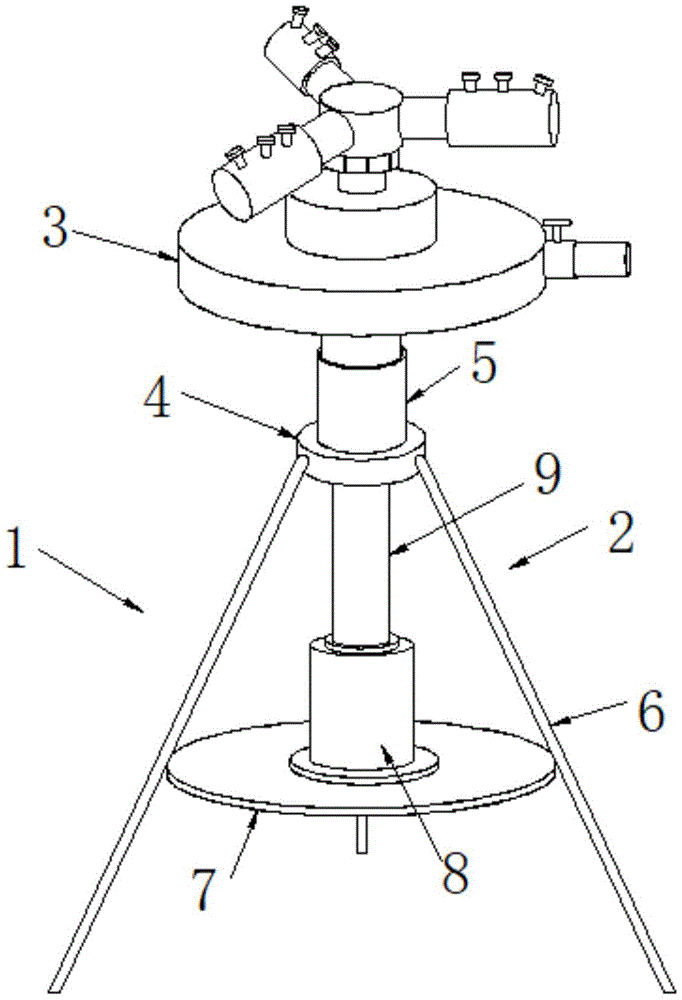

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is the structure schematic diagram of the irrigation mechanism of the utility model.
In the figure: 1. a device body; 2. a support mechanism; 3. an irrigation mechanism; 4. a mounting seat; 5. a connecting cylinder; 6. a support bar; 7. a bearing seat; 8. jacking a cylinder; 9. a piston rod; 10. a water tank; 11. a connecting rod; 12. a connector; 13. a water inlet pipe; 14. a control valve; 15. a round base; 16. a spray head; 17. a nozzle; 18. a vertical nozzle; 19. a bevel angle nozzle.
Detailed Description
Referring to fig. 1-2, the present invention provides a technical solution: a plant irrigation device for vegetation restoration comprises a device body 1, wherein the device body 1 comprises a supporting mechanism 2 and an irrigation mechanism 3, a mounting seat 4 is arranged on the supporting mechanism 2, a plurality of supporting rods 6 are fixedly arranged at the side end of the mounting seat 4, a bearing seat 7 is fixedly connected at the bottom between the supporting rods 6, a jacking cylinder 8 is fixedly connected with the top surface of the bearing seat 7, a connecting cylinder 5 is fixedly connected with the top of the mounting seat 4, the irrigation mechanism 3 is positioned at the top of the supporting mechanism 2, a water tank 10 is arranged on the irrigation mechanism 3, a connecting rod 11 is fixedly connected at the bottom of the water tank 10, the bottom end of the connecting rod 11 is connected with an output end piston rod 9 of the jacking cylinder 8 through a connecting head 12, a round seat 15 is fixedly connected with the top of the water tank 10, a spray head 16 is detachably connected at the top of the, three of the nozzles 17 are each provided with two vertical nozzles 18 and one angled nozzle 19 on the top surface thereof.
The water tank 10 side end surface has inlet tube 13, control valve 14 is installed at inlet tube 13 top, passes through control valve 14 control business turn over water.
The water tank 10 is movably connected with the mounting seat 4 through a connecting rod 11, and the water tank 10 can slide up and down along the mounting seat 4.
The three nozzles 17 are uniformly distributed on the outer surface of the side end of the spray head 16, so that the nozzles 17 can spray water all around.
The number of the support rods 6 is three, the support rods are evenly distributed on the outer surface of the side end of the mounting seat 4, and the support is placed stably.
The working principle is as follows: a plant irrigation device for vegetation restoration, during the use, at first place device body 1 on the vegetation of treating watering, then connect external water source with inlet tube 13 of the water tank 10 side on irrigation mechanism 3, and open control valve 14, then start up jacking cylinder 8, jacking cylinder 8 drives piston rod 9 to shrink and thus drive water tank 10 to slide from top to bottom along mount pad 4 of bottom, three nozzles 17 of the shower nozzle 16 of the top of water tank 10 sprinkle in the gliding process, rational in infrastructure, drive water tank 10 to reciprocate through jacking cylinder 8, the nozzle 17 sprinkling distance on the water tank 10 that can change, has improved the irrigation scope; through 16 side end installations three nozzles 17 at shower nozzle, can be simultaneously to watering all around, and install perpendicular nozzle 18 and oblique angle nozzle 19 on the nozzle 17, further improved irrigation effect, rational in infrastructure, convenient to use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a vegetation is plant irrigation equipment for restoration, includes device body (1), its characterized in that: the device body (1) comprises a supporting mechanism (2) and an irrigation mechanism (3), wherein a mounting seat (4) is arranged on the supporting mechanism (2), a plurality of supporting rods (6) are fixedly arranged at the side end of the mounting seat (4), a bearing seat (7) is fixedly connected to the bottom between the supporting rods (6), a jacking cylinder (8) is fixedly connected to the surface of the top of the bearing seat (7), a connecting cylinder (5) is fixedly connected to the top of the mounting seat (4), the irrigation mechanism (3) is positioned at the top of the supporting mechanism (2), a water tank (10) is arranged on the irrigation mechanism (3), a connecting rod (11) is fixedly connected to the bottom of the water tank (10), the bottom of the connecting rod (11) is connected with an output end piston rod (9) of the jacking cylinder (8) through a connecting head (12), and a round seat (15) is fixedly connected to, the round seat (15) top is detachably connected with a spray head (16), the side end of the spray head (16) is detachably connected with three nozzles (17), and the top surface of each nozzle (17) is provided with two vertical nozzles (18) and an oblique nozzle (19).
2. A plant watering apparatus for vegetation according to claim 1 wherein: the water tank (10) side end surface has inlet tube (13), control valve (14) are installed at inlet tube (13) top.
3. A plant watering apparatus for vegetation according to claim 1 wherein: the water tank (10) is movably connected with the mounting seat (4) through a connecting rod (11).
4. A plant watering apparatus for vegetation according to claim 1 wherein: the three nozzles (17) are uniformly distributed on the outer surface of the side end of the spray head (16).
5. A plant watering apparatus for vegetation according to claim 1 wherein: the number of the support rods (6) is three, and the support rods are uniformly distributed on the outer surface of the side end of the mounting seat (4).
