CN211110249U

CN211110249U - Carpet production is with intelligent coiling mechanism

Info

Publication number: CN211110249U
Application number: CN201922197464.7U
Authority: CN
Inventors: 周董
Original assignee: Wuxi Xunshi New Material Co ltd
Current assignee: Wuxi Xunshi New Material Co ltd
Priority date: 2019-12-10
Filing date: 2019-12-10
Publication date: 2020-07-28
Anticipated expiration: 2029-12-10

Abstract

The utility model relates to a carpet production technical field just discloses an intelligent coiling mechanism is used in carpet production, including the processing platform, processing bench top fixed mounting has quantity to send the blanket device for two, processing bench top fixed mounting has quantity to send the first backup pad between the blanket device for two and be located two, two first backup pad top all with roof fixed connection, roof top fixed mounting has the electronic lead screw slip table that runs through the roof and extend the roof bottom, roof right side fixed mounting has the extension plate. This intelligent coiling mechanism is used in carpet production has solved and has cut the rolling to off-the-shelf carpet in carpet production process, but current coiling mechanism can't effectively clear away adnexed dust on the carpet when the rolling, and the in-process of cutting the carpet also can produce the residue in addition and attach to on the carpet, leads to the quality reduction of carpet, is unfavorable for the problem of selling.

Description

Carpet production is with intelligent coiling mechanism

Technical Field

The utility model relates to a carpet manufacture technical field specifically is an intelligent coiling mechanism is used in carpet production.

Background

The carpet is a floor covering made up by using natural fibre or chemical synthetic fibre raw material of cotton, hemp, wool, silk and grass through the processes of manual or mechanical weaving and making weaving and tufting or weaving, and is one of the traditional handicraft articles with long history in the world, and can be covered on the floor of dwelling house, hotel, gymnasium, exhibition hall, vehicle, ship and airplane, etc. so as to obtain the functions of reducing noise, insulating heat and decorative effect.

Need cut the rolling to off-the-shelf carpet in carpet production process, but current coiling mechanism can't effectively clear away adnexed dust on the carpet when the rolling, and the in-process of cutting the carpet also can produce the residue in addition and attach to on the carpet, leads to the quality of carpet to reduce, is unfavorable for selling, so has proposed a carpet production and has solved the above-mentioned problem that proposes with intelligent coiling mechanism.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides an intelligent coiling mechanism is used in carpet production possesses and to clean carpet surface at the in-process of rolling, improves the advantage of carpet quality, has solved and has cut the rolling to off-the-shelf carpet in carpet production process, but current coiling mechanism can't effectively clear away adnexed dust on the carpet when the rolling, and the in-process of cutting the carpet also can produce the residue and adhere to on the carpet in addition, leads to the quality reduction of carpet, is unfavorable for the problem of selling.

(II) technical scheme

Can clean the carpet surface at the in-process of rolling for realizing the aforesaid, improve the purpose of carpet quality, the utility model provides a following technical scheme: an intelligent coiling mechanism is used in carpet production, includes the processing platform, processing bench top fixed mounting has the blanket device that send of quantity two, processing bench top fixed mounting has the quantity two and is located two and send the first backup pad between the blanket device, two first backup pad top all with roof fixed connection, roof top fixed mounting has the electric lead screw slip table that runs through the roof and extend the roof bottom, roof right side fixed mounting has the extension plate, extension plate bottom fixed mounting has the first electric telescopic handle of quantity two, two the output shaft of first electric telescopic handle all with clamp plate fixed connection, the fly leaf bottom fixed connection of electric lead screw slip table has the second electric telescopic handle of quantity two, two the output shaft of second electric telescopic handle all with cutting blade fixed connection, processing bench right side fixed mounting has the connecting plate, the utility model discloses a dust removal machine, including connecting plate, wind-up roll, connecting plate rear side fixedly connected with run through the connecting plate and extend to the connecting plate front side and be located the electric putter on wind-up roll right side, connecting plate top fixedly connected with second backup pad, second backup pad top fixedly connected with dust removal case, the dust removal chamber has been seted up to the dust removal incasement, dust removal intracavity fixed mounting has the dust absorption fan that runs through the dust removal case, the gas outlet threaded connection of dust absorption fan has a filter screen section of thick bamboo, dust removal bottom of the case portion fixed mounting has the brush cleaner that is located the dust absorption fan bottom.

Preferably, the processing platform front side is opened and is equipped with quantity and is two accomodate the groove, accomodate inslot fixed mounting and have the rotation motor, the first belt pulley of output shaft fixedly connected with of rotation motor, wind-up roll rear side fixedly connected with second belt pulley, swing joint has driving belt between first belt pulley and the second belt pulley.

Preferably, the blanket conveying device is composed of a support frame, two movable rods, two conveying rollers and a conveying motor, wherein the movable rods are third electric telescopic rods, and the conveying rollers are rotatably connected between the two movable rods.

Preferably, when the output shaft of the first electric telescopic rod is fully extended, the pressing plate is in contact with the top of the processing table, and the bottom of the pressing plate is provided with an anti-skid groove.

Preferably, the connecting plate rear side and processing platform rear side parallel and level, the dust removal case front side is opened and is equipped with the maintenance hole that is linked together with the dust removal chamber, maintain downthehole rotation and be connected with the maintenance door.

Preferably, the bottom of the dust removal box is provided with a dust collection opening positioned at the top of the cleaning brush, the distance between the cleaning brush and the winding roller is less than one centimeter, and the cleaning brush is a soft brush.

(III) advantageous effects

Compared with the prior art, the utility model provides an intelligent coiling mechanism is used in carpet production possesses following beneficial effect:

the intelligent winding device for carpet production is characterized in that a first electric telescopic rod output shaft is used for producing and driving a pressing plate to compress a carpet, then an electric lead screw sliding table is used for driving a cutting blade to cut the carpet, the processed carpet is conveyed by a carpet conveying device, the right side of the carpet is moved into a clamping groove, then the right end of the carpet is clamped by an arc-shaped clamping plate, a winding roller is driven to rotate by rotating a motor, then the carpet is wound along with the rotation of the winding roller, dust and residues on the surface of the carpet are separated from the carpet by a cleaning brush in the winding process, then the dust and the residues are sucked by a dust suction fan and discharged through a filter screen cylinder, the filter screen cylinder can intercept the dust and the residues in air, the dust and the residues are collected in the filter screen cylinder, a user only needs to clean the filter screen cylinder through maintenance holes regularly, and after the winding is completed, the user fixes the carpet through an, then promote carpet and wind-up roll separation through electric putter output shaft extension, reached and to clean the carpet surface at the in-process of rolling, improve the purpose of carpet quality, thereby effectual solved need cut the rolling to off-the-shelf carpet in carpet production process, but current coiling mechanism can't effectively clear away adnexed dust on the carpet when the rolling, cut the in-process of carpet also can produce the residue in addition and adhere to on the carpet, lead to the quality reduction of carpet, be unfavorable for the problem of selling.

Drawings

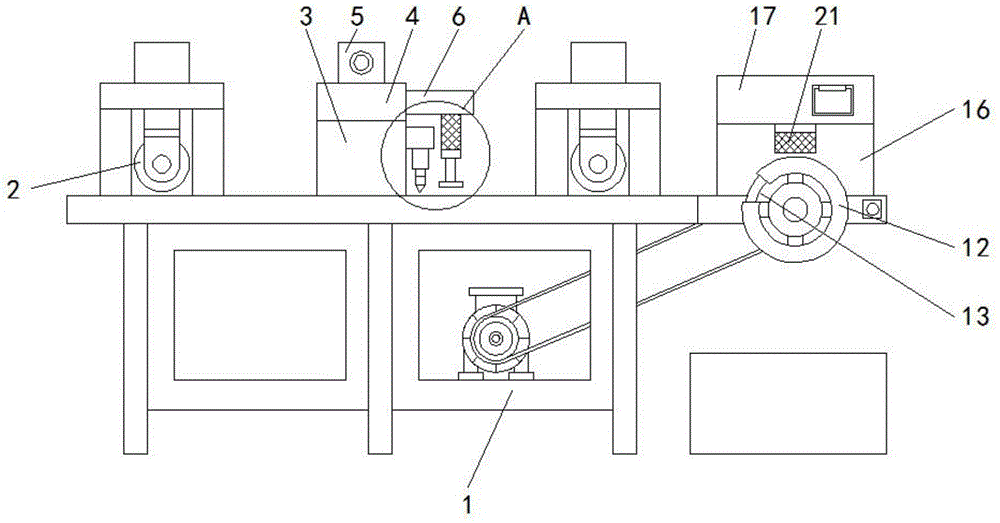

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a partial cross-sectional view of the present invention;

fig. 3 is a partially enlarged schematic view of a portion a shown in fig. 1 according to the present invention.

In the figure: 1 processing platform, 2 send blanket device, 3 first backup pads, 4 roofs, 5 electronic lead screw slip tables, 6 extension plates, 7 first electric telescopic handle, 8 clamp plates, 9 second electric telescopic handle, 10 cutting blade, 11 connecting plates, 12 wind-up rolls, 13 draw-in grooves, 14 arc cardboard, 15 electric putter, 16 second backup pads, 17 dust removal case, 18 dust removal chamber, 19 dust absorption fans, 20 filter screen section of thick bamboo, 21 brush cleaners.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, an intelligent winding device for carpet production comprises a processing table 1, two carpet feeding devices 2 are fixedly mounted on the top of the processing table 1, each carpet feeding device 2 comprises a support frame, two movable rods, a conveying roller and a conveying motor, each movable rod is a third electric telescopic rod, the number of the movable rods is two, the conveying roller is rotatably connected between the two movable rods, two first support plates 3 are fixedly mounted on the top of the processing table 1 and positioned between the two carpet feeding devices 2, the tops of the two first support plates 3 are fixedly connected with a top plate 4, an electric screw rod sliding table 5 penetrating through the top plate 4 and extending to the bottom of the top plate 4 is fixedly mounted on the top of the top plate 4, an extension plate 6 is fixedly mounted on the right side of the top plate 4, two first electric telescopic rods 7 are fixedly mounted on the bottom of the extension plate 6, output shafts of the two first electric telescopic rods 7 are fixedly connected with a pressing plate 8, when the output shaft of the first electric telescopic rod 7 is completely extended, the pressing plate 8 is contacted with the top of the processing table 1, the bottom of the pressing plate 8 is provided with an anti-skid groove, the bottom of the movable plate of the electric screw sliding table 5 is fixedly connected with two second electric telescopic rods 9, the output shafts of the two second electric telescopic rods 9 are fixedly connected with the cutting blade 10, the right side of the processing table 1 is fixedly provided with a connecting plate 11, the rear side of the connecting plate 11 is flush with the rear side of the processing table 1, the front side of the connecting plate 11 is rotatably connected with a winding roller 12, the front side of the processing table 1 is provided with two accommodating grooves, a rotating motor is fixedly arranged in the accommodating grooves, the output shaft of the rotating motor is fixedly connected with a first belt pulley, the rear side of the winding roller 12 is fixedly connected with a second belt pulley, a transmission belt is movably connected between the first belt pulley and the second belt pulley, the rear side of the connecting plate 11 is fixedly connected with an electric push rod 15 which penetrates through the connecting plate 11 and extends to the front side of the connecting plate 11 and is located on the right side of the winding roller 12, the top of the connecting plate 11 is fixedly connected with a second supporting plate 16, the top of the second supporting plate 16 is fixedly connected with a dust removal box 17, a dust removal cavity 18 is formed in the dust removal box 17, a maintenance hole communicated with the dust removal cavity 18 is formed in the front side of the dust removal box 17, a maintenance door is rotatably connected in the maintenance hole, a dust suction fan 19 penetrating through the dust removal box 17 is fixedly installed in the dust removal cavity 18, a filter screen cylinder 20 is connected to the air outlet of the dust suction fan 19 in a threaded mode, a cleaning brush 21 located at the bottom of the dust suction fan 19 is fixedly installed at the bottom of the dust removal box 17, a dust suction opening located at the top of the cleaning brush.

When the carpet winding machine is used, the pressing plate 8 is driven to compress a carpet through the production of the output shaft of the first electric telescopic rod 7, then the carpet is cut through the electric lead screw sliding table 5, the processed carpet is conveyed through the carpet conveying device 2, the right side of the carpet is moved into the clamping groove 13, then the right end of the carpet is clamped through the arc-shaped clamping plate 14, the winding roller 12 is driven to rotate through the rotating motor, then the carpet is wound along with the rotation of the winding roller 12, dust and residues on the surface of the carpet are separated from the carpet through the cleaning brush 21 in the winding process, then the dust and the residues are sucked by the dust suction fan 19 and discharged through the filter screen cylinder 20, the filter screen cylinder 20 intercepts the dust and the residues in the air, the dust and the residues are collected in the filter screen cylinder 20, a user only needs to clean the filter screen cylinder 20 through maintenance holes regularly, and after the winding is completed, the user fixes the carpet through the sticky tape, then promotes carpet and the separation of wind-up roll 12 through the extension of electric putter 15 output shaft, has reached and can clean the carpet surface at the in-process of rolling, improves the purpose of carpet quality.

To sum up, the carpet production intelligent winding device drives the pressing plate 8 to compress the carpet through the output shaft of the first electric telescopic rod 7, then drives the cutting blade 10 to cut the carpet through the electric screw rod sliding table 5, the processed carpet is conveyed through the carpet conveying device 2, the right side of the carpet is moved into the clamping groove 13, then the right end of the carpet is clamped through the arc-shaped clamping plate 14, the winding roller 12 is driven to rotate through rotating the motor, then the carpet is wound along with the rotation of the winding roller 12, dust and residues on the surface of the carpet are separated from the carpet through the cleaning brush 21 in the winding process, then the dust and the residues are sucked by the dust suction fan 19 and are discharged through the filter screen cylinder 20, the filter screen cylinder 20 can intercept the dust and the residues in the air, the dust and the residues are collected in the filter screen cylinder 20 regularly, and a user only needs to clean the filter screen cylinder 20 through the maintenance hole, after the rolling is accomplished, the user fixes the carpet through the sticky tape, then promote carpet and the separation of wind-up roll 12 through electric putter 15 output shaft extension, reached and to have cleaned the carpet surface at the in-process of rolling, the purpose of improvement carpet quality, thereby the rolling needs to be cut to off-the-shelf carpet in the carpet production process to effectual solution, but current coiling mechanism can't effectively clear away adnexed dust on the carpet when the rolling, and cut the in-process of carpet also can produce the residue and adhere to on the carpet, lead to the quality reduction of carpet, be unfavorable for the problem of selling.

It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a carpet production is with intelligent coiling mechanism, includes processing platform (1), its characterized in that: processing platform (1) top fixed mounting has quantity to send blanket device (2) two, processing platform (1) top fixed mounting has quantity to be two and is located two and send first backup pad (3) between blanket device (2), two first backup pad (3) top all with roof (4) fixed connection, roof (4) top fixed mounting has electric lead screw slip table (5) that runs through roof (4) and extend roof (4) bottom, roof (4) right side fixed mounting has extension plate (6), extension plate (6) bottom fixed mounting has first electric telescopic handle (7) that quantity is two, two the output shaft of first electric telescopic handle (7) all with clamp plate (8) fixed connection, the fly leaf bottom fixed connection of electric lead screw slip table (5) has second electric telescopic handle (9) that quantity is two, two the output shaft of second electric telescopic handle (9) all with cutting blade (10) fixed connection, processing platform (1) right side fixed mounting has connecting plate (11), connecting plate (11) front side rotation is connected with wind-up roll (12), draw-in groove (13) have been seted up in wind-up roll (12) left side, swing joint has arc cardboard (14) in draw-in groove (13), connecting plate (11) rear side fixedly connected with runs through connecting plate (11) and extends to connecting plate (11) front side and be located electric putter (15) on wind-up roll (12) right side, connecting plate (11) top fixedly connected with second backup pad (16), second backup pad (16) top fixedly connected with dust removal case (17), set up dust removal chamber (18) in dust removal case (17), the dust removal chamber (18) internal fixed mounting has dust absorption fan (19) that runs through dust removal case (17), the air outlet of the dust collection fan (19) is in threaded connection with a filter screen cylinder (20), and a cleaning brush (21) located at the bottom of the dust collection fan (19) is fixedly installed at the bottom of the dust removal box (17).

2. The intelligent rolling device for carpet production according to claim 1, wherein: processing platform (1) front side is opened and is equipped with quantity and accomodate the groove for two, accomodate inslot fixed mounting and have the rotation motor, the first belt pulley of output shaft fixedly connected with of rotation motor, wind-up roll (12) rear side fixedly connected with second belt pulley, swing joint has driving belt between first belt pulley and the second belt pulley.

3. The intelligent rolling device for carpet production according to claim 1, wherein: send blanket device (2) to comprise support frame, movable rod, conveying roller and conveying motor, the movable rod is third electric telescopic handle, the quantity of movable rod is two, two it is connected with the conveying roller to rotate between the movable rod.

4. The intelligent rolling device for carpet production according to claim 1, wherein: when the output shaft of the first electric telescopic rod (7) is fully extended, the pressing plate (8) is in contact with the top of the processing table (1), and the bottom of the pressing plate (8) is provided with an anti-skid groove.

5. The intelligent rolling device for carpet production according to claim 1, wherein: connecting plate (11) rear side and processing platform (1) rear side parallel and level, dust removal case (17) front side is opened and is equipped with the maintenance hole that is linked together with dust removal chamber (18), the downthehole rotation of maintenance is connected with the maintenance door.

6. The intelligent rolling device for carpet production according to claim 1, wherein: the dust collection box is characterized in that a dust collection opening located at the top of the cleaning brush (21) is formed in the bottom of the dust collection box (17), the distance between the cleaning brush (21) and the winding roller (12) is smaller than one centimeter, and the cleaning brush (21) is a soft brush.
