Abstract
The utility model discloses a flax is cloth coiling mechanism for textile processing relates to flax textile sector. The cloth winding roller carrying and fixing device for linen textile processing comprises a winding frame, a belt and a first winding roller, wherein a mounting seat is fixedly mounted on the outer surface of one side of the winding frame, a motor is fixedly mounted on the outer surface of the top of the mounting seat, a transmission rod is fixedly connected to an output shaft of the motor and extends into the winding frame, the transmission rod is communicated with the winding frame, a first transmission wheel is fixedly mounted at one end of the transmission rod, and the cloth winding device for linen textile processing is favorable for improving the working efficiency and facilitating the dismounting and assembling of the winding roller.
Description
Technical Field
The utility model relates to a flax textile sector specifically is a flax is cloth coiling mechanism for textile processing.
Background
Linen is woven by twisting linen into threads, the surface is not as smooth as chemical fibers and cotton cloth, the linen has vivid concave-convex texture, and painters often use the wonderful and interesting aesthetic feeling of linen. While linen is the strongest of the textiles, in addition to synthetic fibers. The linen has high fiber strength, is not easy to tear or puncture, and can be scraped and pressed by a toning knife.
Among the prior art, the linen generally has the coiling machine to carry out the coil stock at the last rolling process of production, and mostly all carry out the rolling to single among the current partial coiling mechanism, and the inefficiency of work, secondly, the not convenient to detach when changing the wind-up roll, for this reason, we propose a linen fabric coiling mechanism for textile processing.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a flax is cloth coiling mechanism for textile processing to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a cloth winding device for flax textile processing comprises a winding frame, a belt and a first winding roller, wherein a mounting seat is fixedly arranged on the outer surface of one side of the winding frame, a motor is fixedly arranged on the outer surface of the top of the mounting seat, a transmission rod is fixedly connected to an output shaft of the motor and extends into the winding frame, the transmission rod is communicated with the winding frame, a first transmission wheel is fixedly arranged at one end of the transmission rod, a first rotating rod and a third rotating rod are rotatably arranged on the inner wall of one side of the winding frame, a fourth rotating rod and a second rotating rod are rotatably arranged on the inner wall of the other side of the winding frame, threaded holes are respectively formed in the outer surfaces of the tops of the first rotating rod, the second rotating rod, the third rotating rod and the fourth rotating rod, a third transmission wheel and a second transmission wheel are fixedly arranged on the first rotating rod, fixedly connected with belt between first drive wheel, second drive wheel and the third drive wheel, threaded mounting has first screw on the first dwang, threaded mounting has second screw on the second dwang, the inside of rolling frame is provided with first baffle, and the one end fixed mounting of first rolling roller has the head rod, the one end fixed mounting that the third dwang was kept away from to first rolling roller has the second connecting rod.
Preferably, threaded holes are formed in the first connecting rod and the second connecting rod, and the first driving wheel and the third driving wheel are located on the same vertical line.
Preferably, the quantity of first screw nail and second screw nail is two sets of, the notch has all been seted up to the front end of second dwang and fourth dwang, the mounting hole has all been seted up to one side of first dwang and third dwang.
Preferably, the bottom of rolling frame rotates and installs the walking wheel, the quantity of walking wheel is four groups and is the rectangle and distributes.
Preferably, the inboard bottom fixed mounting of rolling frame has four groups of bracing pieces, the top fixed surface of bracing piece installs and stores up the roller board, the top fixed surface that stores up the roller board installs two sets of second baffles and every six is a set of.
Preferably, the first rolling roller and the second rolling roller have the same structure, and anti-slip pads are adhered and fixed to the outer walls of the first rolling roller and the second rolling roller.
Compared with the prior art, the beneficial effects of the utility model are that:
this cloth coiling mechanism is used in flax textile processing, through setting up first wind-up roll and second wind-up roll, carry out the rolling to flax fabrics simultaneously, accelerate the rolling speed, improve work efficiency, through the second connecting rod, the second screw thread nail, the second dwang, first screw thread nail, the head rod, the combination of first dwang, this combination is convenient for roll up the dismantlement and the equipment of roller, the cooperation of second baffle and storage roll board, be favorable to accomodating and using of wind-up roll, the phenomenon that first wind-up roll and second wind-up roll appear the intertwine when the rolling has been avoided to the first baffle of installation, through setting up the walking wheel, be favorable to the removal of whole rolling frame, strengthen its flexibility.
Drawings

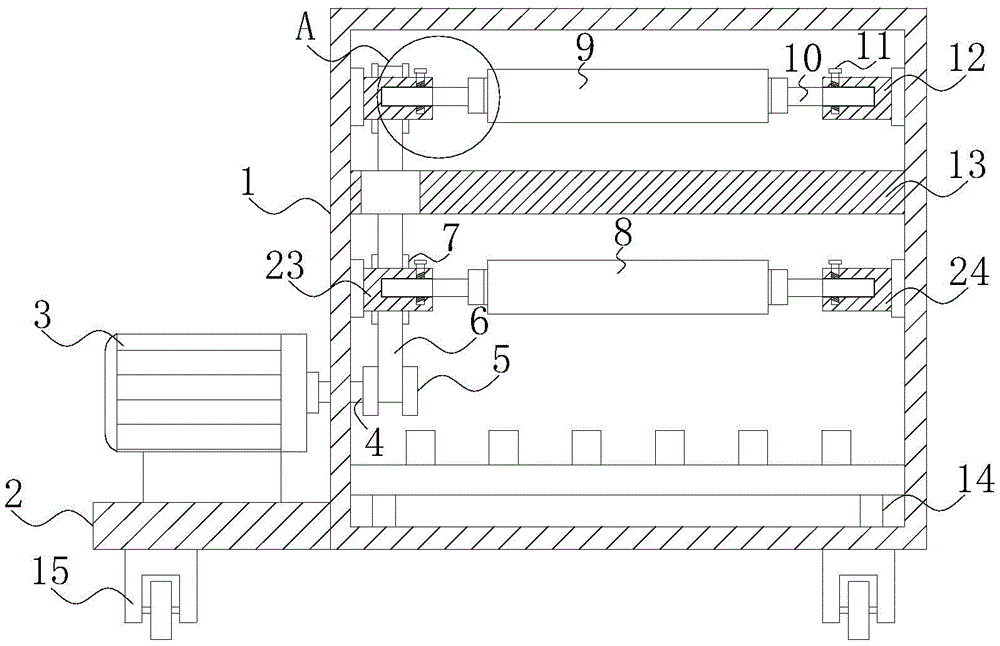

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic front view of the present invention;
fig. 3 is a schematic side view of the present invention;
fig. 4 is an enlarged view of a in fig. 1 according to the present invention.
In the figure: 1 winding frame, 2 mounting seats, 3 motors, 4 transmission rods, 5 first transmission wheels, 6 belts, 7 second transmission wheels, 8 second winding rollers, 9 first winding rollers, 10 second connecting rods, 11 second threaded nails, 12 second rotating rods, 13 first baffle plates, 14 supporting rods, 15 traveling wheels, 16 second baffle plates, 17 roller storage plates, 18 anti-skidding pads, 19 third transmission wheels, 20 first threaded nails, 21 first connecting rods, 22 first rotating rods, 23 third rotating rods and 24 fourth rotating rods.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a cloth winding device for flax textile processing comprises a winding frame 1, a belt 6 and a first winding roller 9, wherein an installation seat 2 is fixedly arranged on the outer surface of one side of the winding frame 1 and plays a role in supporting and protecting a motor 3, the motor 3 is fixedly arranged on the outer surface of the top of the installation seat, a transmission rod 4 is fixedly connected onto an output shaft of the motor 3, the transmission rod 4 extends into the winding frame 1, the transmission rod 4 is communicated with the winding frame 1, a first transmission wheel 5 is fixedly arranged at one end of the transmission rod 4, a first rotating rod 22 and a third rotating rod 23 are rotatably arranged on the inner wall of one side of the winding frame 1, a fourth rotating rod 24 and a second rotating rod 12 are rotatably arranged on the inner wall of the other side of the winding frame 1, threaded holes are formed in the outer surfaces of the tops of the first rotating rod 22, the second rotating rod 12, the third rotating rod 23 and the fourth rotating rod 24, and a first threaded, a third driving wheel 19 and a second driving wheel 7 are fixedly arranged on the first rotating rod 22 and the third rotating rod 23, a belt 6 is fixedly connected among the first driving wheel 5, the second driving wheel 7 and the third driving wheel 19, the motor 3 drives the first driving wheel 5 to operate through the driving rod 4, the first driving wheel 5 drives the second driving wheel 7 and the third driving wheel 19 to operate through the belt 6, so as to drive the first rolling roller 9 to rotate, carry out the rolling to flax weaving cloth, first screw 20 is installed to the screw thread on first dwang 22, second screw 11 is installed to the screw thread on second dwang 12, be convenient for fix first rolling roller 9 on rolling frame 1, the inside of rolling frame 1 is provided with first baffle 13, it twines to have avoided appearing when carrying out the rolling, the one end fixed mounting of first rolling roller 9 has head rod 21, the one end fixed mounting that third dwang 23 was kept away from to first rolling roller 9 has second connecting rod 10.
The first connecting rod 21 and the second connecting rod 10 are both provided with threaded holes for facilitating threaded connection of the first threaded nail 20 and the second threaded nail 11, the first driving wheel 5 and the third driving wheel 19 are positioned on the same vertical line, so that the phenomenon that the belt 6 slips when the first driving wheel 5, the second driving wheel 7 and the third driving wheel 19 are operated is avoided, the number of the first threaded nail 20 and the second threaded nail 11 is two, the front ends of the second rotating rod 12 and the fourth rotating rod 24 are both provided with notches for facilitating assembly of the second connecting rod 10, one side of the first rotating rod 22 and one side of the third rotating rod 23 are both provided with mounting holes for facilitating assembly of the first connecting rod 21, the bottom of the winding frame 1 is rotatably provided with traveling wheels 15, the number of the traveling wheels 15 is four and is distributed in a rectangular shape for facilitating movement of the whole winding frame 1, the bottom of the inner side of the winding frame 1 is fixedly provided with four groups of, the top fixed surface of bracing piece 14 installs and stores up roller board 17, and the top fixed surface of storing up roller board 17 installs two sets of second baffles 16 and per six be a set of, is convenient for deposit the winding up roller of not rolling up the cloth, and first winding up roller 9 is the same with the structure of second winding up roller 8, and first winding up roller 9 all pastes with the outer wall of second winding up roller 8 and is fixed with slipmat 18, and when avoiding the rolling up cloth, the cloth landing.
When in use, firstly, the rolling roller is taken out of the second baffle plate 16 on the roller storage plate 17, then the first rolling roller 9 and the second rolling roller 8 are assembled, the first connecting rod 21 is inserted into the mounting hole of the first rotating rod 22, the first screw nail 20 is screwed to fix the first connecting rod 21, the second connecting rod 10 is pressed into the second rotating rod 12 through the notch, the second screw nail 11 is screwed to fix, the second rolling roller 8 is fixed between the third rotating rod 23 and the fourth rotating rod 24 in the same fixing mode as the first rolling roller 9, after the assembly is finished, the motor 3 is started, the motor 3 works to drive the first driving wheel 5 to operate through the driving rod 4, the first driving wheel 5 drives the second driving wheel 7 and the third driving wheel 19 to operate through the belt 6, the first rolling roller 9 and the second rolling roller 8 roll up flax textile cloth, after the rolling up is finished, the motor 3 is closed, the first threaded nail 20 and the second threaded nail 11 are loosened, the second connecting rod 10 is taken out from the second rotating rod 12 through the notch, the first connecting rod 21 is pulled out from the first rotating rod 22, the first rolling roller 9 is taken down, the second rolling roller 8 is taken down in the same process as the first rolling roller 9, repeated rolling is carried out, and after the rolling is completed, the whole rolling frame 1 is placed to a proper position through the travelling wheel 15 at the bottom of the rolling frame 1 to be stored.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a flax is cloth coiling mechanism for textile processing, includes rolling frame (1), belt (6) and first winding roller (9), its characterized in that: the winding device is characterized in that a mounting seat (2) is fixedly arranged on the outer surface of one side of the winding frame (1), a motor (3) is fixedly arranged on the outer surface of the top of the mounting seat, a transmission rod (4) is fixedly connected to an output shaft of the motor (3) and the transmission rod (4) extends to the inside of the winding frame (1), the transmission rod (4) is communicated with the winding frame (1), a first transmission wheel (5) is fixedly arranged at one end of the transmission rod (4), a first rotating rod (22) and a third rotating rod (23) are rotatably arranged on the inner wall of one side of the winding frame (1), a fourth rotating rod (24) and a second rotating rod (12) are rotatably arranged on the inner wall of the other side of the winding frame (1), threaded holes are formed in the outer surface of the top of the first rotating rod (22), the second rotating rod (12), the third rotating rod, fixed mounting has third drive wheel (19) and second drive wheel (7) on first dwang (22) and third dwang (23), fixedly connected with belt (6) between first drive wheel (5), second drive wheel (7) and third drive wheel (19), first screw nail (20) are installed to the screw thread on first dwang (22), second screw nail (11) are installed to the screw thread on second dwang (12), the inside of rolling frame (1) is provided with first baffle (13), the one end fixed mounting of first rolling roller (9) has head rod (21), the one end fixed mounting that third dwang (23) was kept away from in first rolling roller (9) has second connecting rod (10).
2. The cloth winding device for flax textile processing according to claim 1, characterized in that: threaded holes are formed in the first connecting rod (21) and the second connecting rod (10), and the first driving wheel (5) and the third driving wheel (19) are located on the same vertical line.
3. The cloth winding device for flax textile processing according to claim 1, characterized in that: the quantity of first screw nail (20) and second screw nail (11) is two sets of, the notch has all been seted up to the front end of second dwang (12) and fourth dwang (24), the mounting hole has all been seted up to one side of first dwang (22) and third dwang (23).
4. The cloth winding device for flax textile processing according to claim 1, characterized in that: the bottom of rolling frame (1) is rotated and is installed walking wheel (15), the quantity of walking wheel (15) is four groups and is the rectangle and distributes.
5. The cloth winding device for flax textile processing according to claim 1, characterized in that: the inboard bottom fixed mounting of rolling frame (1) has four groups of bracing pieces (14), the top fixed surface of bracing piece (14) installs and stores up roller board (17), the top fixed surface of storing up roller board (17) installs two sets of second baffles (16) and every six is a set of.
6. The cloth winding device for flax textile processing according to claim 1, characterized in that: the structure of the first rolling roller (9) is the same as that of the second rolling roller (8), and anti-skid pads (18) are fixedly adhered to the outer walls of the first rolling roller (9) and the second rolling roller (8).
