Abstract
The utility model provides a high-speed horizontal round bottle labeling machine, which comprises an electric control cabinet, a conveying component, a feeding component, a labeling component, an industrial control computer and a rotary rod, the labeling component, the feeding component and the labeling component of the utility model are arranged, a bottle to be labeled is placed in a feeding box, a feeding roller rotates to convey the bottle to be labeled to a conveying roller through a feeding groove, thereby realizing the feeding operation of the bottle to be labeled, compared with the manual feeding, saving a large amount of labor force and time, having better consistency of feeding, further improving the production efficiency of the labeling machine, after labeling, the round bottle passes through the labeling component, the labeling cotton and the round bottle are laminated to compress a label, so that the label is tightly pasted on the round bottle, the phenomenon that the label drops is avoided, the labeling quality of the labeling machine is improved, the waste material generated by labeling is conveyed to a waste material roller through a first guide roller and a second guide roller, the waste materials are rolled on the waste material roller, so that the waste materials are collected, and the waste materials are conveniently centralized.
Description
Technical Field
The utility model belongs to the technical field of the round vase labeller, especially, relate to a high-speed horizontal round vase labeller.
Background
The label is a brief label used for marking information such as name, weight, volume, use, etc. of the article, and the labeller is the apparatus to paste the label on the specified packing container with the adhesive, the labeller is the indispensable component of modern packing, the kind of the labeller of China's production is increasing gradually at present, the technological level has also been improved greatly, the labeller is divided into the plane type labeller, round bottle type labeller and side type labeller, the round bottle type labeller realizes labeling or sticking the membrane on the periphery of the cylindrical, conical product, such as the glass bottle, plastic bottle, etc., can realize the function such as circumference, semicircle, circumference two-sided, circumference positioning labeling, etc., the existing round bottle type labeller is generally semi-automatic, need the manual material loading, have influenced the production efficiency greatly like this.
The existing round bottle labeling machine is generally of a semi-automatic type, manual feeding is adopted, a large amount of labor and time are wasted, production efficiency is low, a labeling mechanism is lacked, labels are likely to be not tightly adhered after labeling, the phenomenon that the labels fall off exists, labeling quality of the labeling machine is affected, collection and centralized processing of waste materials are not convenient for after labeling, and the problem of field messy phenomenon is caused.
Therefore, the invention discloses a high-speed horizontal round bottle labeling machine which is very necessary.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a high-speed horizontal round vase labeller to solve current round vase labeller and generally be semi-automatic formula, adopt artifical material loading, extravagant a large amount of labours and time, and production efficiency is lower, lack and press mark mechanism, probably there is the label after the subsides mark to paste not tight reality, there is the phenomenon that the label dropped, influence the subsides mark quality of labeller, the collection of the waste material of being not convenient for after pasting the mark and concentrated the processing, cause the problem of the dirty and disorderly phenomenon in scene. A high-speed horizontal round bottle labeling machine comprises an electric control cabinet, a conveying assembly, a feeding assembly, a labeling assembly, a label pressing assembly, an industrial personal computer and a rotary rod, wherein the conveying assembly is fixed on the front side above the electric control cabinet through a bolt; the feeding assembly is fixed above the electric control cabinet through a bolt and is positioned on the outer side above the conveying assembly; the rotary rod is fixed in the middle position above the electric control cabinet through a bolt, is positioned at the rear side of the conveying assembly, and is provided with threads on the outer side; the industrial personal computer is fixed above the electric control cabinet through a bolt, is positioned on the left side of the rotary rod and is connected with the electric control cabinet through a wire; the label pressing assembly is fixed on the left side above the electric control cabinet through a bolt and is positioned on the outer side above the conveying assembly; the labeling component is fixed on the rotary rod through threads; and the electric control cabinet is connected with the commercial power through a wire.
The conveying assembly comprises a workbench, a plurality of conveying rollers, a plurality of feed openings and a driving motor, wherein an installation groove is formed in the upper portion of the workbench and is fixed to the front side of the upper portion of an electric control cabinet through bolts, the conveying rollers are fixed to the upper portion of the inner side of the installation groove of the workbench through shaft sleeves, a chain wheel is arranged on the front side of the installation groove of the workbench, the feed openings are welded to the left side of the workbench, the driving motor is fixed to the left end of the front side of the workbench through bolts, an output shaft is provided with the chain wheel, the output shaft is connected with the chain wheel of the conveying rollers through a chain.
The feeding assembly comprises a feeding box, a first baffle, a second baffle, a discharging roller and a discharging groove, wherein the feeding box is fixed above the electric control cabinet through bolts and is positioned on the outer side above the workbench; the two blanking rollers are fixed below the inner part of the feeding box through shaft sleeves; the plurality of blanking grooves are uniformly formed in the outer edge of the blanking roller; the first baffle is fixed on the right side below the feeding box through a bolt and is positioned on the front side of the discharging roller; and the second baffle is fixed on the left side below the feeding box through a bolt and is positioned on the front side of the blanking roller.
The labeling assembly comprises a nut seat, a mounting plate, a waste roller, a label conveying roller, a labeling plate, a first material guide roller and a second material guide roller, and the nut seat is fixed on the outer side of the rotary rod through threads; the mounting plate is fixed on the right side of the nut seat through a bolt; the waste roller is fixed above the right side of the mounting plate through a bolt, and a waste motor is arranged on the rear side of the waste roller; the label conveying roller is fixed below the right side of the mounting plate through a shaft sleeve, and a label conveying motor is arranged on the rear side of the label conveying roller; the label pasting plate is fixed on the left side below the mounting plate through a bolt, and a rubber sleeve is arranged at the lower end of the label pasting plate; the first material guide roller is fixed on the right side of the label pasting plate through a bolt; the second material guide roller is fixed on the front side of the mounting plate through a shaft sleeve and is positioned above the label conveying roller.
The label pressing assembly comprises a pressing plate, pressing cotton and a fixed plate, and the fixed plate is fixed on the left side above the electric control cabinet through bolts and is positioned on two sides of the workbench; the material pressing plate is fixed above the fixing plate through bolts and is positioned on the outer side above the workbench; the material pressing cotton is fixed inside the material pressing plate through bolts, and the lower end of the material pressing cotton is attached to the upper portion of the conveying roller.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. the utility model discloses a setting of material loading subassembly treats that the mark bottle is placed in the material loading case, and the unloading roller rotates through lower silo will treat to paste the mark bottle and carry the transfer roller on, realizes treating the material loading operation of pasting the mark bottle, compares and adopts artifical material loading, saves a large amount of labours and time, and the material loading uniformity is better, and then improves the production efficiency of labeller.
2. The utility model discloses a set up of pressing the mark subassembly, after pasting the mark, the round vase compresses tightly the operation through pressing the mark subassembly through pressing the material cotton and the round vase laminating to the label, makes the label paste on the round vase and tightly real, avoids appearing the phenomenon that the label dropped, improves the subsides mark quality of labeller.
3. The utility model discloses a paste setting of mark subassembly, paste the waste material that the mark produced and carry the waste material roller through first guide roller and second guide roller on, with the waste material rolling to the waste material roller, realize the collection of waste material, be convenient for carry out the centralized processing of waste material, avoid the scene to appear dirty and disorderly phenomenon because of the waste material.
Drawings

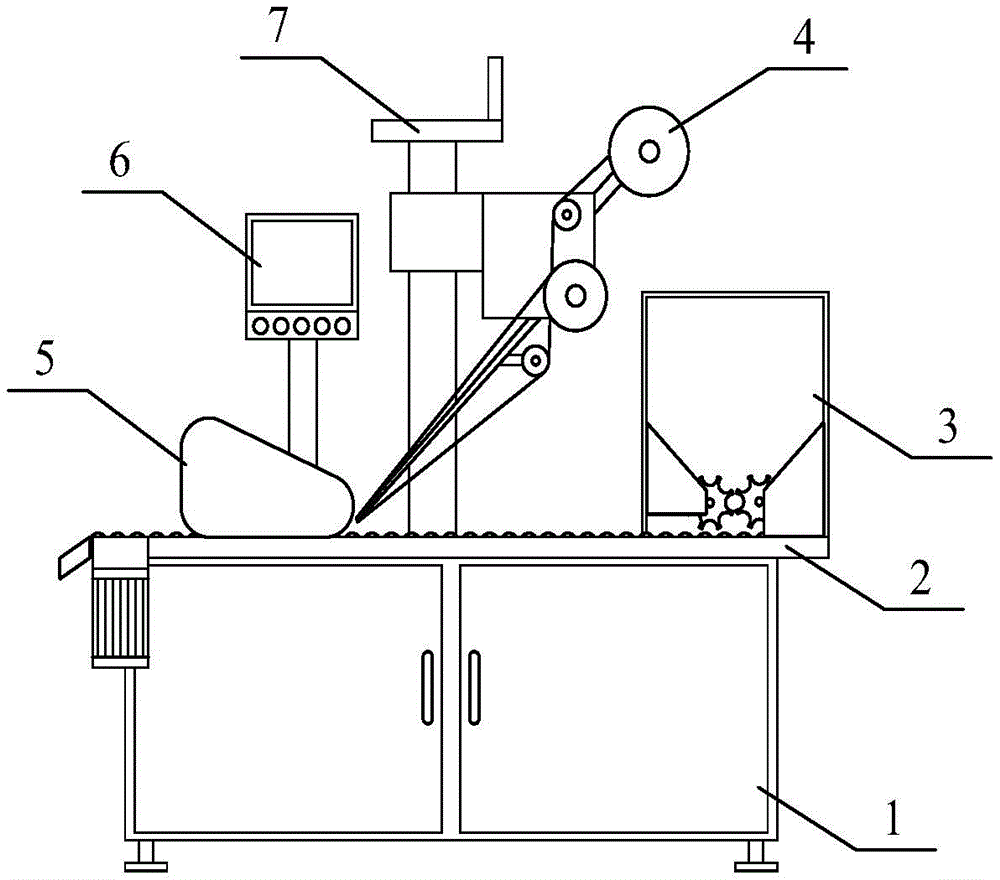

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the conveying assembly of the present invention.
Fig. 3 is a schematic structural diagram of the feeding assembly of the present invention.
Fig. 4 is a schematic structural view of the labeling assembly of the present invention.
Fig. 5 is a schematic structural diagram of the label pressing assembly of the present invention.
In the figure:
1-an electric control cabinet, 2-a conveying assembly, 21-a workbench, 22-a conveying roller, 23-a discharging opening, 24-a driving motor, 3-a feeding assembly, 31-a feeding box, 32-a first baffle, 33-a second baffle, 34-a discharging roller, 35-a discharging groove, 4-a labeling assembly, 41-a nut seat, 42-a mounting plate, 43-a waste roller, 44-a label conveying roller, 45-a labeling plate, 46-a first guide roller, 47-a second guide roller, 5-a labeling assembly, 51-a pressure plate, 52-a pressure cotton, 53-a fixing plate, 6-an industrial personal computer and 7-a rotary rod.
Detailed Description
The invention is further described below with reference to the accompanying drawings:
example (b):
as shown in figures 1 to 5
The utility model provides a high-speed horizontal round bottle labeling machine, which comprises an electric control cabinet 1, a conveying component 2, a feeding component 3, a labeling component 4, a label pressing component 5, an industrial personal computer 6 and a rotary rod 7, wherein the conveying component 2 is fixed at the front side above the electric control cabinet 1 through bolts; the feeding assembly 3 is fixed above the electric control cabinet 1 through bolts and is positioned on the outer side above the conveying assembly 2; the rotary rod 7 is fixed in the middle position above the electric control cabinet 1 through a bolt, is positioned at the rear side of the conveying assembly 2, and is provided with threads on the outer side; the industrial personal computer 6 is fixed above the electric control cabinet 1 through a bolt, is positioned on the left side of the rotary rod 7 and is connected with the electric control cabinet 1 through a wire; the label pressing component 5 is fixed on the left side above the electric control cabinet 1 through a bolt and is positioned on the outer side above the conveying component 2; the labeling component 4 is fixed on the rotary rod 7 through threads; the electric control cabinet 1 is connected with commercial power through a wire.
The conveying assembly 2 comprises a workbench 21, a plurality of conveying rollers 22, a feed opening 23 and a driving motor 24, wherein an installation groove is formed in the upper portion of the workbench 21 and fixed to the front side of the upper portion of the electric control cabinet 1 through bolts, the plurality of conveying rollers 22 are fixed to the upper portion of the inner side of the installation groove of the workbench 21 through shaft sleeves, a chain wheel is arranged on the front side of the installation groove, the feed opening 23 is welded to the left side of the workbench 21, the driving motor 24 is fixed to the left end of the front side of the workbench 21 through bolts, a chain wheel is arranged on an output shaft, the chain wheel is connected with the conveying rollers 22 through chains and connected with the electric control cabinet 1 through a lead, a ZP L X type is selected, and the driving motor 24 is electrified.
The feeding assembly 3 comprises a feeding box 31, a first baffle 32, a second baffle 33, a discharging roller 34 and a discharging groove 35, wherein the feeding box 31 is fixed above the electric control cabinet 1 through bolts and is positioned on the outer side above the workbench 21; the two blanking rollers 34 are fixed below the inner part of the feeding box 31 through shaft sleeves; a plurality of blanking grooves 35 are uniformly formed in the outer edge of the blanking roller 34; the first baffle 32 is fixed on the right side below the feeding box 31 through bolts and is positioned on the front side of the discharging roller 34; second baffle 33 passes through the left side of bolt fastening in last workbin 31 below, and is located the front side of unloading roller 34, treats to paste the mark bottle and places in last workbin 31, and unloading roller 34 rotates and will treat to paste the mark bottle through lower silo 35 and carry transfer roller 22 on, realizes treating the material loading operation who pastes the mark bottle, compares and adopts artifical material loading, saves a large amount of labours and time, and the material loading uniformity is better, and then improves the production efficiency of labeller.
The labeling assembly 4 comprises a nut seat 41, a mounting plate 42, a waste material roller 43, a label conveying roller 44, a labeling plate 45, a first material guide roller 46 and a second material guide roller 47, wherein the nut seat 41 is fixed on the outer side of the rotary rod 7 through threads; the mounting plate 42 is fixed on the right side of the nut seat 41 through bolts; the waste roller 43 is fixed above the right side of the mounting plate 42 through a bolt, and a waste motor is arranged on the rear side; the label conveying roller 44 is fixed below the right side of the mounting plate 42 through a shaft sleeve, and a label conveying motor is arranged on the rear side; the label pasting plate 45 is fixed on the left side below the mounting plate 42 through a bolt, and a rubber sleeve is arranged at the lower end of the label pasting plate; the first guide roller 46 is fixed on the right side of the label pasting plate 45 through bolts; second guide roll 47 passes through the axle sleeve to be fixed in mounting panel 42 front side, is located defeated mark roller 44's top, pastes the waste material that the mark produced and carries waste roll 43 through first guide roll 46 and second guide roll 47 on, with the waste material rolling to waste roll 43 on, realize the collection of waste material, be convenient for carry out the centralized processing of waste material, avoid on the spot because the waste material and the dirty and disorderly phenomenon appears.
The label pressing assembly 5 comprises a material pressing plate 51, material pressing cotton 52 and a fixing plate 53, wherein the fixing plate 53 is fixed on the left side above the electric control cabinet 1 through bolts and is positioned on two sides of the workbench 21; the pressure plate 51 is fixed above the fixed plate 53 through bolts and is positioned on the outer side above the workbench 21; the material pressing cotton 52 is fixed in the material pressing plate 51 through a bolt, the lower end of the material pressing cotton is attached to the upper portion of the conveying roller 22, after labeling is finished, the round vase is pressed through the label pressing assembly 5, the material pressing cotton 52 is attached to the round vase to compress the label, the label is tightly adhered to the round vase, the phenomenon that the label drops is avoided, and labeling quality of the labeling machine is improved.
Principle of operation
In the utility model, the electric control cabinet 1 is connected with commercial power to supply power, the industrial personal computer 6 is connected with the commercial power to carry out system control, a bottle to be labeled is placed in the feeding box 31, the blanking roller 34 rotates to convey the bottle to be labeled to the conveying roller 22 through the blanking groove 35, thereby realizing the feeding operation of the bottle to be labeled, compared with manual feeding, a large amount of labor force and time are saved, the feeding consistency is better, further the production efficiency of the labeling machine is improved, waste materials generated by labeling are conveyed to the waste roller 43 through the first guide roller 46 and the second guide roller 47, the waste materials are wound on the waste roller 43, the collection of the waste materials is realized, the centralized treatment of the waste materials is convenient, the phenomenon of dirty and mess caused by the waste materials on site is avoided, after the pressing, the round bottle passes through the labeling component 5, the pressure cotton 52 is tightly pressed with the round bottle to attach the label, the label is tightly attached to the round bottle, and the phenomenon of label, the labeling quality of the labeling machine is improved.
Utilize technical scheme, or technical personnel in the field are in the utility model discloses under technical scheme's the inspiration, design similar technical scheme, and reach above-mentioned technological effect, all fall into the utility model discloses a protection scope.
Claims (5)
1. The utility model provides a high-speed horizontal round vase labeller which characterized in that: the labeling machine comprises an electric control cabinet (1), a conveying assembly (2), a feeding assembly (3), a labeling assembly (4), a labeling assembly (5), an industrial personal computer (6) and a rotary rod (7), wherein the conveying assembly (2) is fixed on the front side above the electric control cabinet (1) through a bolt; the feeding assembly (3) is fixed above the electric control cabinet (1) through bolts and is positioned on the outer side above the conveying assembly (2); the rotary rod (7) is fixed in the middle position above the electric control cabinet (1) through a bolt, is positioned at the rear side of the conveying assembly (2), and is provided with threads on the outer side; the industrial personal computer (6) is fixed above the electric control cabinet (1) through a bolt, is positioned on the left side of the rotary rod (7), and is connected with the electric control cabinet (1) through a wire; the label pressing assembly (5) is fixed on the left side above the electric control cabinet (1) through a bolt and is positioned on the outer side above the conveying assembly (2); the labeling component (4) is fixed on the rotary rod (7) through threads; the electric control cabinet (1) is connected with a mains supply through a wire.
2. A high-speed horizontal round bottle labeling machine according to claim 1, wherein: the conveying assembly (2) comprises a workbench (21), a conveying roller (22), a feed opening (23) and a driving motor (24), wherein an installation groove is formed above the workbench (21) and is fixed on the front side above the electric control cabinet (1) through a bolt; a plurality of conveying rollers (22) are fixed above the inner side of the mounting groove of the workbench (21) through shaft sleeves, and a chain wheel is arranged on the front side; the feed opening (23) is welded on the left side of the workbench (21); the driving motor (24) is fixed at the left end of the front side of the workbench (21) through bolts, the output shaft is provided with a chain wheel, and is connected with the chain wheel of the conveying roller (22) through a chain and is connected with the electric control cabinet (1) through a wire.
3. A high-speed horizontal round bottle labeling machine according to claim 1, wherein: the feeding assembly (3) comprises a feeding box (31), a first baffle plate (32), a second baffle plate (33), a discharging roller (34) and a discharging groove (35), wherein the feeding box (31) is fixed above the electric control cabinet (1) through bolts and is positioned on the outer side above the workbench (21); the two blanking rollers (34) are fixed below the inner part of the feeding box (31) through shaft sleeves; a plurality of blanking grooves (35) are uniformly formed in the outer edge of the blanking roller (34); the first baffle plate (32) is fixed on the right side below the feeding box (31) through bolts and is positioned on the front side of the discharging roller (34); the second baffle (33) is fixed on the left side below the feeding box (31) through bolts and is positioned on the front side of the discharging roller (34).
4. A high-speed horizontal round bottle labeling machine according to claim 1, wherein: the labeling assembly (4) comprises a nut seat (41), a mounting plate (42), a waste material roller (43), a label conveying roller (44), a labeling plate (45), a first material guide roller (46) and a second material guide roller (47), and the nut seat (41) is fixed on the outer side of the rotary rod (7) through threads; the mounting plate (42) is fixed on the right side of the nut seat (41) through a bolt; the waste roller (43) is fixed above the right side of the mounting plate (42) through a bolt, and a waste motor is arranged on the rear side of the waste roller; the label conveying roller (44) is fixed below the right side of the mounting plate (42) through a shaft sleeve, and a label conveying motor is arranged on the rear side of the label conveying roller; the label pasting plate (45) is fixed on the left side below the mounting plate (42) through a bolt, and a rubber sleeve is arranged at the lower end of the label pasting plate; the first guide roller (46) is fixed on the right side of the label pasting plate (45) through a bolt; the second guide roller (47) is fixed on the front side of the mounting plate (42) through a shaft sleeve and is positioned above the label conveying roller (44).
5. A high-speed horizontal round bottle labeling machine according to claim 1, wherein: the label pressing assembly (5) comprises a material pressing plate (51), material pressing cotton (52) and a fixing plate (53), wherein the fixing plate (53) is fixed on the left side above the electric control cabinet (1) through bolts and located on two sides of the workbench (21); the material pressing plate (51) is fixed above the fixing plate (53) through bolts and is positioned on the outer side above the workbench (21); the material pressing cotton (52) is fixed inside the material pressing plate (51) through bolts, and the lower end of the material pressing cotton is attached to the upper portion of the conveying roller (22).
