Abstract
The utility model provides a water smoke oxygen-increasing machine that disinfects for planting, breed mainly relates to the agricultural equipment field. The utility model provides a plant, breed and use water smoke oxygen-increasing machine that disinfects, includes sterilizer and booster compressor, the sterilizer is the ozone sterilizer, the sterilizer both sides set up inlet tube and outlet pipe, set up pressure boost pump head and driving motor in the booster compressor, the overhead water inlet and the delivery port of setting up of booster pump, the outlet pipe is connected with the water inlet, connect the spray tube on the delivery port, connect a plurality of atomizer on the spray tube. The beneficial effects of the utility model reside in that: the utility model discloses a modular combination can make up the module that ozone sterilized water was prepared to the electrolysis with the pressure boost module, for the big-arch shelter is planted, is disinfected in space class agricultural facilities such as breed and kills ovum, the disinfection removes the flavor operation. And the ozone can also increase the oxygen content after being decomposed into oxygen, thereby promoting the growth of plants and the development of animals.
Description
Technical Field
The utility model relates to the field of agricultural equipment, in particular to a water mist sterilization aerator for planting and breeding.
Background
Ozone has strong killing capacity to various pathogenic bacteria, fungi, yeasts, filamentous bacteria and the like, the killing capacity is twice as high as that of fluorine and 3000 times as high as that of chlorine, and the ozone is a pollution-free broad-spectrum bactericide. But the ozone is limited to the problems of volume and occupied land of ozone equipment and the storage problem that the ozone is stored and decomposed easily, and the application of the ozone in agricultural production cannot be popularized yet.
SUMMERY OF THE UTILITY MODEL
For solving prior art's not enough, the utility model provides a water smoke oxygen-increasing machine that disinfects for planting, breed, it can prepare the module and the pressure boost module of ozone disinfection water with the electrolysis through the modular combination, for space class agricultural facilities such as big-arch shelter planting, breed in disinfect and kill ovum, disinfect and remove the flavor operation. And the ozone can also increase the oxygen content after being decomposed into oxygen, thereby promoting the growth of plants and the development of animals.
The utility model discloses a realize above-mentioned purpose, realize through following technical scheme:
the utility model provides a plant, breed and use water smoke oxygen-increasing machine that disinfects, includes sterilizer and booster compressor, the sterilizer is the ozone sterilizer, the sterilizer both sides set up inlet tube and outlet pipe, set up pressure boost pump head and driving motor in the booster compressor, the overhead water inlet and the delivery port of setting up of booster pump, the outlet pipe is connected with the water inlet, connect the spray tube on the delivery port, connect a plurality of atomizer on the spray tube.
The water tank is arranged in the sterilizer, the water inlet pipe and the water outlet pipe are communicated with the water tank, the anode plate and the cathode plate are arranged in the water tank, and 3-5V direct current is conducted to the anode plate and the cathode plate.
And a buffer tank is connected between the water outlet pipe and the water inlet in series.
The booster compressor is the box structure, the booster pump head all installs inside the box with driving motor, the outlet pipe all passes behind the box with the spray tube and is connected with the booster pump head.
Contrast prior art, the beneficial effects of the utility model are that:
the utility model discloses a make up sterilizer module and booster compressor module, can realize dissolving the disinfection water limit preparation limit of ozone and spray, plant crop, indoor culture to the big-arch shelter and disinfect and kill ovum, disinfect and remove the flavor operation to play the prevention plant diseases and insect pests, reduce the danger that the animal went ill. And the oxygen generated after the ozone decomposition can play a role in increasing the indoor oxygen content. The modularized connection makes the device easy to disassemble and convenient to move, modularizes and miniaturizes the equipment, and can better accord with the characteristics of indoor planting and breeding.
Drawings

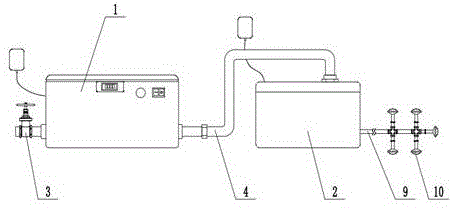

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic cross-sectional view of a supercharger module of the present invention;
figure 3 is a schematic sectional structure view of the module of the sterilizer of the present invention.
Reference numerals shown in the drawings: 1. a sterilizing machine; 2. a supercharger; 3. a water inlet pipe; 4. a water outlet pipe; 5. a booster pump head; 6. a drive motor; 7. a water inlet; 8. a water outlet; 9. a nozzle; 10. an atomizing spray head; 11. a water tank; 12. an anode plate; 13. a cathode plate; 14. a buffer tank.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and specific embodiments. It should be understood that these examples are for illustrative purposes only and are not intended to limit the scope of the present invention. Furthermore, it should be understood that various changes or modifications of the present invention may be made by those skilled in the art after reading the teachings of the present invention, and these equivalents also fall within the scope defined in the present application.
As shown in figures 1-3, a plant, breed and use water smoke oxygen-increasing machine that disinfects, including sterilizer 1 and booster compressor 2, sterilizer 1 is the ozone disinfection machine, the ozone disinfection machine is through the convection current water electrolysis production ozone, makes the machine that has dissolved ozone in the water that flows become the sterile water (the ozone disinfection machine is the core part of this device, and its concrete structure has been submitted as other patents and this patent on the same day). The two sides of the sterilizer 1 are provided with a water inlet pipe 3 and a water outlet pipe 4, the water flows into the sterilizer through the water inlet pipe, becomes the sterilized water dissolved with ozone after electrolysis, and flows out from the water outlet pipe. Set up pressure boost pump head 5 and driving motor 6 in the booster compressor 2, driving motor adopts 220V resident electricity consumption. The booster pump head 5 is provided with a water inlet 7 and a water outlet 8, the water outlet pipe 4 is in threaded connection with the water inlet 7, the water outlet 8 is in threaded connection with a spray pipe 9, and the spray pipe 9 is connected with a plurality of atomizing nozzles 10 through a multi-way connector. The sterilizing water enters the booster pump head through the water outlet pipe, the booster pump head is driven by the driving motor to generate high pressure, the sterilizing water is sent into the atomizing nozzle, and the atomizing nozzle is used for atomizing the sterilizing water, so that the sterilizing water is fully contacted with the air, bacteria, fungi, ova and the like on the air, wall bodies and the ground are killed, peculiar smell is removed, and the air is cleaned. This device is connected through the modularization of sterilizer with the booster compressor, makes disinfecting equipment miniaturized, and convenient to detach installation and removal more can adapt to the environment of indoor planting, breed.
The atomizer mentioned above can be installed on a vehicle, and the atomizer is driven to move by a cart to carry out movable disinfection and sterilization indoors, or the atomizer can be installed on an indoor wall, a roof or the ground in advance, and the atomizer is connected into the spray pipe through a pipeline to directly carry out comprehensive disinfectant water mist spraying.
Specifically, a water tank 11 is arranged in the sterilizing machine 1, the water inlet pipe 3 is communicated with the water outlet pipe 4 to form the water tank 11, an anode plate 12 and a cathode plate 13 are arranged in the water tank 11, and the sterilizing machine converts 220V alternating current into 3-5V direct current used by the anode plate 12 and the cathode plate 13 through series connection of a transformer and a rectifier. Direct current is supplied to the anode plate and the cathode plate to electrolyze the flowing water, so that ozone generated by electrolysis can be dissolved in the flowing water.
Specifically, a buffer tank 14 is connected between the water outlet pipe 4 and the water inlet 7 in series. Through the setting of baffle-box, can keep in the disinfectant after the electrolysis that has dissolved ozone, play the cushioning effect of rivers, make the booster pump head can carry out stable drawing to the disinfectant.
Specifically, booster compressor 2 is the box structure, booster pump head 5 all installs inside the box with driving motor 6, outlet pipe 4 all passes behind the box with spray tube 9 and is connected with booster pump head 5. The mechanism containing device is added through the box body, so that the adding device is stored by the box body in a modularized mode, and the device is more convenient to mount and dismount.
Because the sterilizing machine and the supercharger are both in modular configuration, the sterilizing machine and the supercharger can be completely and temporarily assembled on the mobile cart so as to facilitate the combined operation of the sterilizing machine and the supercharger.
Claims (4)
1. The utility model provides a planting, breed and use water smoke oxygen-increasing machine that disinfects, includes sterilizer (1) and booster compressor (2), its characterized in that: sterilizer (1) is the ozone sterilizer, sterilizer (1) both sides set up inlet tube (3) and outlet pipe (4), set up booster pump head (5) and driving motor (6) in booster compressor (2), set up water inlet (7) and delivery port (8) on booster pump head (5), outlet pipe (4) are connected with water inlet (7), connect spray tube (9) on delivery port (8), connect a plurality of atomizer (10) on spray tube (9).
2. The water mist sterilization aerator for planting and breeding according to claim 1, wherein the water mist sterilization aerator comprises: set up water tank (11) in sterilizer (1), inlet tube (3) and outlet pipe (4) intercommunication water tank (11), set up anode plate (12) and negative plate (13) in water tank (11), 3-5V direct current is led to anode plate (12) and negative plate (13).
3. The water mist sterilization aerator for planting and breeding according to claim 1, wherein the water mist sterilization aerator comprises: and a buffer tank (14) is connected between the water outlet pipe (4) and the water inlet (7) in series.
4. The water mist sterilization aerator for planting and breeding according to claim 1, wherein the water mist sterilization aerator comprises: supercharger (2) are the box structure, pressure boost pump head (5) are all installed inside the box with driving motor (6), outlet pipe (4) all pass behind the box with spray tube (9) and are connected with pressure boost pump head (5).
