Abstract
The utility model provides a mouth breathing correction bandeau is made by flexible cloth, including can holding the lower jaw and hang in the lifting belt of top of the head through both sides cheek to and follow the lifting belt both sides and extend backward and locate the anticreep area of back brain, the surface of lifting belt still has the strengthening band that extends from the bottom to both sides, the both ends of strengthening band with be equipped with the mounting of reciprocal anchorage between the top of lifting belt department, the lifting belt still is equipped with in both sides cheek department and prevents strengthening band lateral sliding's antiskid. The strengthening belt is arranged on the outer surface of the lifting belt, the lifting force is adjusted through the strengthening belt, and the strengthening belt is not directly attached to the head and cannot cause a tight feeling to the head in actual use, so that the head belt can adjust the lifting force and cannot reduce the comfort; and the tightened reinforcing belt easily sideslips to the front of the cheeks in the sleeping process, and the reinforcing belt can be effectively prevented from sideslipping after the anti-skidding piece is arranged.
Description
Technical Field
The utility model relates to a correct respiratory device in mouth specifically is a correct bandeau is breathed to mouth.
Background
Many people can unconsciously breathe by opening the mouth during sleeping, but the breathing by opening the mouth can cause some adverse effects, such as airflow directly enters the respiratory tract without being humidified and warmed by the nasal passage, bacterial dust directly enters the respiratory tract from the oral cavity without being filtered, and the discomfort is caused by long-term stimulation to the respiratory tract. Research also considers that long-term mouth breathing can influence the face development, which affects health and color value, except for medical correction devices, most of the conventional mouth breathing correction devices on the market are correction head bands or correction pastes; the existing correction head band comprises a lifting belt which can support the lower jaw and is hung on the top of the head through cheeks on two sides, and an anti-falling belt which extends backwards from two sides of the lifting belt and is wound on the back brain, wherein the lifting belt is divided into two structures of an adjustable structure and an unadjustable structure at the top of the head; the principle of the head band correction is that the lower jaw is supported by the lifting belt, so that the phenomenon that the user does not feel mouth-opening breathing during sleeping is prevented. However, the balance between comfort and lifting force is difficult to realize in the using process of the correcting headband, if the lifting belt is tightened, although the lifting force is enhanced, the tightness is generated, so that the comfort is reduced, the sleeping quality is affected, otherwise, the lifting force is insufficient, and the required correcting effect cannot be achieved.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a correction bandeau which can not only adjust the lifting force, but also has no tight feeling.
In order to achieve the above object, the utility model adopts the following technical scheme:
the mouth breathing correction headband is made of flexible cloth and comprises a lifting belt and an anti-falling belt, wherein the lifting belt can support the lower jaw and is hung on the top of the head through cheeks on two sides, the anti-falling belt extends backwards from two sides of the lifting belt and is wound on the back head, a reinforcing belt extends from the bottom to two sides is further arranged on the outer surface of the lifting belt, fixing parts which are mutually fixed are arranged between two ends of the reinforcing belt and the top of the head of the lifting belt, and anti-sliding parts which are used for preventing the reinforcing belt from sliding laterally are further arranged on the cheeks on two sides of the lifting belt.
Further, the anti-skid piece is a through buckle, and the through buckle is provided with a vertical through hole for penetrating the reinforcing belt.
Furthermore, correct bandeau still includes a compressing band of transversely laminating in lip department, the tip of compressing band with be equipped with the first magic subsides that can laminate each other between wearing the surface of detaining.
Further, the anti-skid piece is a second magic tape arranged between the lifting belt and the reinforcing belt.
Furthermore, the lifting belt is of a disconnection structure at the top of the head, and third magic tapes which can be mutually attached are arranged at the two ends of the lifting belt.
Further, the fixing part is a fourth magic tape, and the fourth magic tape corresponds to the position of the third magic tape.
Furthermore, the lifting belt is provided with a clearance hole corresponding to the chin.
The beneficial effect of above-mentioned scheme lies in: the strengthening belt is arranged on the outer surface of the lifting belt, the lifting force is adjusted through the strengthening belt, and the strengthening belt is not directly attached to the head and cannot cause a tight feeling to the head in actual use, so that the head belt can adjust the lifting force and cannot reduce the comfort; and the tightened reinforcing belt easily sideslips to the front of the cheeks in the sleeping process, and the reinforcing belt can be effectively prevented from sideslipping after the anti-skidding piece is arranged.
Drawings
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

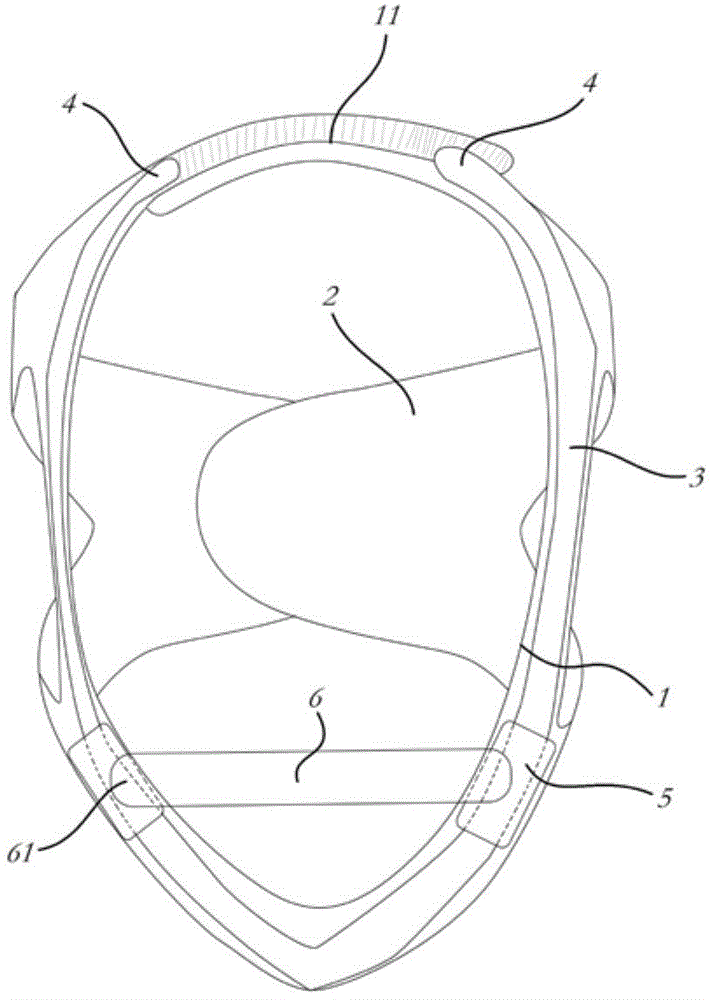

FIG. 1 is a schematic perspective view of an embodiment of an orthotic headband;
fig. 2 is a schematic plan view of an embodiment of an orthotic headband.
Wherein: 1. lifting the pull belt; 11. a third magic tape; 2. a release-preventing band; 3. a reinforcing band; 4. a fixing member; 5. an anti-slip member; 6. a compression band; 61. the first magic tape.
Detailed Description
The invention is further explained below with reference to the drawings:
referring to fig. 1 to 2, a mouth-breathing correction headband is made of a flexible fabric, which is selected from a knitted fabric having good air permeability and a certain stretching ability; the anti-dropping belt comprises a lifting belt 1 which can support the lower jaw and is hung on the top of the head through cheeks on two sides, and anti-dropping belts 2 which extend backwards from two sides of the lifting belt 1 and are wound on the back brain, wherein the anti-dropping belts 2 on two sides can be combined on the back brain through magic tapes, and the specific expression forms of the lifting belt 1 and the anti-dropping belts 2 can be different, but the lifting belt and the anti-dropping belts are the same as the structure of the scheme when having the functions; the outer surface of the lifting belt 1 is also provided with reinforcing belts 3 extending from the bottom to two sides, and the reinforcing belts 3 and the lifting belt 1 are fixed together in a sewing or gluing mode at the lower jaw, or the reinforcing belts 3 are movably arranged in buckle holes of the lifting belt 1 at the lower jaw, so that the structure is regarded as a concrete expression form of the structure; fixing pieces 4 which are mutually fixed are arranged between the two ends of the reinforcing band 3 and the top of the lifting band 1, wherein the fixing pieces 4 can be in the forms of magic tapes, hook structures or non-setting adhesives suitable for cloth and the like, and have the function of being repeatedly combined or separated; the lifting strap 1 is also provided with anti-skidding pieces 5 for preventing the reinforcing strap 3 from sliding laterally at cheeks on two sides. The strengthening band 3 is arranged on the outer surface of the lifting belt 1, the lifting force is adjusted through the strengthening band 3, the strengthening band 3 is not directly attached to the head, the fixed points of the strengthening band 3 and the lifting belt 1 are respectively positioned at the lower jaw and the top of the head, and the cheek position of the lifting belt 1 cannot be pulled, so that the sensitive face cannot be tensed, and the headband can adjust the lifting force and cannot reduce the comfort; the tightened reinforcing belt 3 is easy to sideslip to the front of the cheeks in the sleeping process, and the reinforcing belt 3 can be effectively prevented from sideslip after the anti-skidding piece 5 is arranged.
Further, the anti-skid piece 5 is a through buckle, and the through buckle is provided with a vertical through hole through which the reinforcing belt 3 passes. The form of wearing to detain can be that the both ends that transversely set up combine in the cloth on lifting belt 1 surface, also can directly follow lifting belt 1 and tailor out (tailor out two horizontal parallel incisions on lifting belt 1) the form such as, when antiskid 5 was for wearing to detain the form, the reinforcing band 3 was worn to locate reciprocating still freely when perforating, can not reduce the travelling comfort because of dragging lifting belt 1.
Further, the correction headband also comprises a pressing belt 6 transversely attached to the lips, and a first magic tape 61 which can be attached to each other is arranged between the end part of the pressing belt 6 and the outer surface of the wearing buckle. The compressing belt 6 is used for assisting in compressing the upper lip or the lower lip, so that the correcting effect can be further improved; and the both ends of compressing tightly the area 6 are fixed in through first magic subsides 61 and wear to detain the surface, do not need additionally to set up the mounting structure with compressing tightly area 6 on the lifting belt 1, and compressing tightly area 6 and lifting belt 1 are separating strengthening band 3 moreover, therefore can reduce the foreign matter friction sense that compressing tightly area 6 brought and pull tight sense to the at utmost.
Further, the anti-slip piece 5 is a second magic tape arranged between the lifting belt 1 and the reinforcing belt 3. This kind of antiskid 5 structure is comparatively simple, and the magic subsides of one side are longer usually, can make things convenient for to combine fixedly in optional position, but the second magic is pasted and is filled up and establish between lifting belt 1 and strengthening band 3, can reduce the travelling comfort to a certain extent.
Further, the lifting belt 1 is of a disconnection structure at the top of the head, and third magic tapes 11 which can be mutually attached are arranged at two ends of the lifting belt 1. The third magic tape 11 is arranged and can be used for adjusting the size of the lifting belt 1 so as to meet the requirements of different people.
Further, the fixing member 4 is a fourth hook and loop fastener, and the fourth hook and loop fastener corresponds to the third hook and loop fastener 11. When pasting the fourth magic and correspond 11 positions settings of third magic, not only can reduce the mounted position on the lifting belt 1 (the mounted position can lead to the fact certain foreign matter friction to skin and feel), can not produce obvious pulling and tighten the sense moreover (if the fourth magic is pasted and is set up in temple or cheek position, the strengthening band 3 that tightens can form decurrent pulling power to the face, influences the travelling comfort), experience more comfortablely.
Further, the lifting belt 1 is provided with a clearance hole corresponding to the chin. Lifting belt 1 can set up to wrap up the chin or not wrap up the chin in jaw position down, when wrapping up the chin, has certain lifting effect to the face of chin both sides, but the chin then is unsuitable when having the false body, sets up after avoiding the clearance hole, both can not lead to the fact the extrusion to the chin false body, has kept lifting effect again.
The above description is not intended to limit the technical scope of the present invention, and any modifications, equivalent changes and modifications made to the above embodiments according to the technical spirit of the present invention are all within the scope of the technical solution of the present invention.
Claims (7)
1. The utility model provides a mouth breathing correction bandeau is made by flexible cloth, including can holding the lower jaw and hang in the lifting belt of top of the head through both sides cheek to and extend backward from lifting belt both sides and locate the anticreep area of back brain, its characterized in that: the outer surface of the lifting belt is also provided with reinforcing belts extending from the bottom to two sides, fixing pieces fixed with each other are arranged between two ends of the reinforcing belts and the top of the lifting belt, and anti-skidding pieces for preventing the reinforcing belts from sliding laterally are arranged at cheeks on two sides of the lifting belt.
2. The orthodontic headband of claim 1, wherein: the anti-slip piece is a through buckle, and the through buckle is provided with a vertical through hole through which the reinforcing belt passes.
3. The orthodontic headband of claim 2, wherein: the correcting headband also comprises a pressing belt transversely attached to the lips, and a first magic tape capable of being attached to each other is arranged between the end part of the pressing belt and the outer surface of the wearing buckle.
4. The orthodontic headband of claim 1, wherein: the antiskid piece is a second magic tape arranged between the lifting belt and the reinforcing belt.
5. The orthodontic headband of claim 1, wherein: the lifting belt is of a disconnection structure at the top of the head, and third magic tapes which can be mutually attached are arranged at the two ends of the lifting belt.
6. The orthodontic headband of claim 5, wherein: the fixing piece is a fourth magic tape, and the fourth magic tape corresponds to the position of the third magic tape.
7. The orthodontic headband of claim 1, wherein: the lifting belt is provided with a clearance hole corresponding to the chin.
