CN211040261U - Support frame for tablet personal computer - Google Patents
Support frame for tablet personal computer Download PDFInfo
- Publication number
- CN211040261U CN211040261U CN201921369261.5U CN201921369261U CN211040261U CN 211040261 U CN211040261 U CN 211040261U CN 201921369261 U CN201921369261 U CN 201921369261U CN 211040261 U CN211040261 U CN 211040261U
- Authority
- CN
- China
- Prior art keywords
- connecting rod
- support frame
- support
- backup pad
- support bar
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 238000007790 scraping Methods 0.000 description 3
- 238000009412 basement excavation Methods 0.000 description 2
- 230000004075 alteration Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 230000006870 function Effects 0.000 description 1
- 230000003993 interaction Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 230000008569 process Effects 0.000 description 1
- 230000009467 reduction Effects 0.000 description 1
- 238000006467 substitution reaction Methods 0.000 description 1
Images
Landscapes
- Mirrors, Picture Frames, Photograph Stands, And Related Fastening Devices (AREA)
Abstract
The utility model discloses a support frame for panel computer, including the support bar, one side middle part of support bar is equipped with the regulation strip, the one end and the support bar fixed connection of regulation strip, the top middle part of regulation strip is dug and is equipped with the spout, the inside sliding connection of spout has the connecting rod, the connecting rod is L shape, the top of connecting rod is equipped with the backup pad, the one side middle part of backup pad is equipped with the connecting plate, connecting plate fixedly connected with pivot, the rotation end and the connecting rod fixed connection of pivot, compare with prior art, the beneficial effects of the utility model are that this panel computer support frame can fix the support frame on the desktop through the T shape base that sets up support bar and regulation strip constitution, and the connecting rod that the backup pad passes through the bottom slides in the spout, can freely adjust the angle of placing of panel computer, through the backup pad that can contact with the panel computer surface sets up the rubber pad with the surface of supporting groove, can.
Description
Technical Field
The utility model relates to a support frame specifically is a support frame for panel computer belongs to computer auxiliary assembly technical field.
Background
The computer is a modern electronic computing machine for high-speed computing, has the functions of storage and memory, is a modern intelligent electronic device which can operate according to a program and automatically process mass data at high speed, along with the high-speed development of the science and technology, the volume of the computer is continuously reduced, the computer is more convenient to carry from a desktop computer to an all-in-one machine and then to a tablet computer, along with the reduction of the volume, the tablet computer is deeply popular with the masses due to the smaller volume, people can generally use the tablet computer to watch the consultation of videos, news and the like during the rest time of eating and the like, and the hobbies are supplemented.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a support frame for panel computer to solve the problem that proposes among the above-mentioned background art, this panel computer support frame can be fixed the support frame on the desktop through the T shape base that sets up support bar and regulation strip constitution, the connecting rod that the backup pad passes through the bottom slides in the spout, can freely adjust the angle of placing of panel computer, set up the rubber pad through the surface in backup pad that can contact with the panel computer surface and support draw-in groove, can prevent that harder support frame from scraping the surface of panel computer colored.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a support frame for panel computer, includes the support bar, one side middle part of support bar is equipped with the regulation strip, the one end and the support bar fixed connection of regulation strip, the top middle part of regulation strip is dug and is equipped with the spout, the inside sliding connection of spout has the connecting rod, the connecting rod is L shape, the top of connecting rod is equipped with the backup pad, the one side middle part of backup pad is equipped with the connecting plate, connecting plate fixedly connected with pivot, the rotation end and the connecting rod fixed connection of pivot.
As an optimal technical solution of the utility model: the adjusting strip is arranged on two sides of the sliding groove and is provided with a plurality of limiting grooves at equal intervals.
As an optimal technical solution of the utility model: the both sides that the backup pad one end was kept away from to the connecting rod all are equipped with the stopper, stopper and connecting rod fixed connection, the connecting rod passes through stopper and spacing groove joint.
As an optimal technical solution of the utility model: the top of support bar is dug and is equipped with the support draw-in groove, No. one rubber pad of inside fixedly connected with of support draw-in groove.
As an optimal technical solution of the utility model: one side of the supporting plate, which is far away from the connecting plate, is provided with a second rubber pad, and the second rubber pad is fixedly connected with the supporting plate.
Compared with the prior art, the beneficial effects of the utility model are that: this panel computer support frame can be fixed the support frame on the desktop through the T shape base that sets up support bar and regulation strip constitution, and the connecting rod that the backup pad passes through the bottom slides in the spout, can freely adjust placing angle of panel computer, sets up the rubber pad through the backup pad that can contact with the panel computer surface and the surface of supporting the draw-in groove, can prevent harder support frame from scraping the surface of panel computer the flower.
Drawings

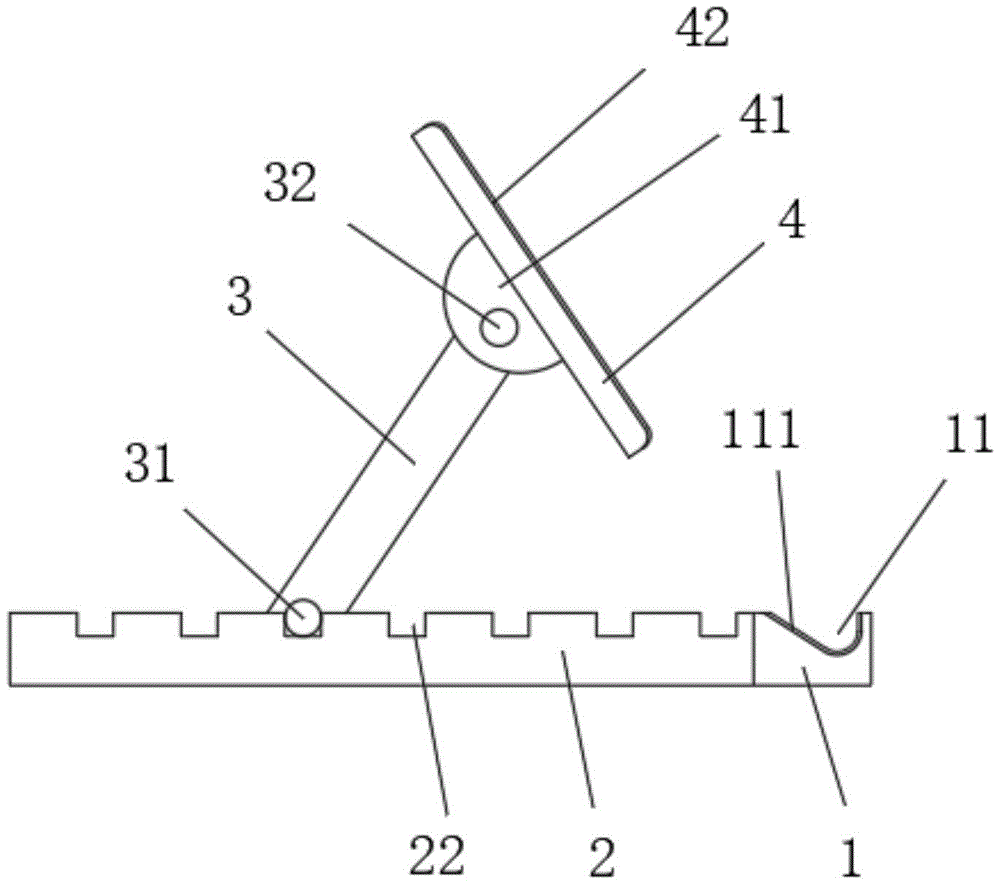

Fig. 1 is a schematic side view of the present invention;
fig. 2 is a schematic perspective view of the present invention.
In the figure: 1. a supporting strip; 11. a support slot; 111. a first rubber pad; 2. an adjustment bar; 21. a chute; 22. a limiting groove; 3. a connecting rod; 31. a limiting block; 32. a rotating shaft; 4. a support plate; 41. a connecting plate; 42. no. two rubber pads.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution:
the utility model relates to a support frame for panel computer, including support bar 1, one side middle part of support bar 1 is equipped with regulation strip 2, the one end and the 1 fixed connection of support bar of regulation strip 2, the top middle part of regulation strip 2 is dug and is equipped with spout 21, the inside sliding connection of spout 21 has connecting rod 3, connecting rod 3 is L shape, the top of connecting rod 3 is equipped with backup pad 4, the one side middle part of backup pad 4 is equipped with connecting plate 41, connecting plate 41 fixedly connected with pivot 32, the rotation end and the 3 fixed connection of connecting rod of pivot 32.
Adjusting strip 2 is located the impartial apart from the excavation in both sides of spout 21 and is equipped with a plurality of spacing grooves 22, can restrict the position of connecting rod 3, the both sides that 4 one ends of backup pad were kept away from to connecting rod 3 all are equipped with stopper 31, stopper 31 and connecting rod 3 fixed connection, connecting rod 3 passes through stopper 31 and spacing groove 22 joint, through setting up a plurality of spacing grooves 22, the position of adjustable connecting rod 3, the top excavation of support bar 1 is equipped with support slot 11, No. one rubber pad 111 of inside fixedly connected with of support slot 11, one side that connecting plate 41 was kept away from to backup pad 4 is equipped with No. two rubber pads 42, No. two rubber pads 42 and backup pad 4 fixed connection, through setting up the rubber pad in backup pad 4 that can contact with the panel computer surface and the surface of support slot 11, can prevent harder support frame from scraping.
Specifically, the utility model discloses during the use, place the base that support bar 1 and regulation strip 2 are constituteed on the desktop, place the panel computer on support slot 11, support slot 11 that the surface has a rubber pad 111 can prevent that the computer surface from being scraped the flower, manual support panel computer earlier, paste the surface of backup pad 4 at the back of panel computer, through rotating shaft 32, adjusting connecting rod 3's angle, stopper 31 card in spout 21 bottom through connecting rod 3, form triangle-shaped between support frame and the panel computer, stability has.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a support frame for panel computer, its characterized in that, includes support bar (1), one side middle part of support bar (1) is equipped with regulation strip (2), the one end and support bar (1) fixed connection of regulation strip (2), the top middle part of regulation strip (2) is dug and is equipped with spout (21), the inside sliding connection of spout (21) has connecting rod (3), connecting rod (3) are L shape, the top of connecting rod (3) is equipped with backup pad (4), the one side middle part of backup pad (4) is equipped with connecting plate (41), connecting plate (41) fixedly connected with pivot (32), the rotation end and connecting rod (3) fixed connection of pivot (32).
2. The support frame for the tablet personal computer according to claim 1, wherein: the adjusting strip (2) is provided with a plurality of limiting grooves (22) which are arranged on two sides of the sliding groove (21) at equal intervals.
3. The support frame for the tablet personal computer according to claim 1, wherein: both sides that backup pad (4) one end was kept away from in connecting rod (3) all are equipped with stopper (31), stopper (31) and connecting rod (3) fixed connection, connecting rod (3) are through stopper (31) and spacing groove (22) joint.
4. The support frame for the tablet personal computer according to claim 1, wherein: the top of support bar (1) is dug and is equipped with support draw-in groove (11), the inside fixedly connected with rubber pad (111) of support draw-in groove (11).
5. The support frame for the tablet personal computer according to claim 1, wherein: one side of the support plate (4) far away from the connecting plate (41) is provided with a second rubber pad (42), and the second rubber pad (42) is fixedly connected with the support plate (4).
