CN211032523U - Rotary jacking supporting leg - Google Patents
Rotary jacking supporting leg Download PDFInfo
- Publication number
- CN211032523U CN211032523U CN201921802481.2U CN201921802481U CN211032523U CN 211032523 U CN211032523 U CN 211032523U CN 201921802481 U CN201921802481 U CN 201921802481U CN 211032523 U CN211032523 U CN 211032523U
- Authority
- CN
- China
- Prior art keywords
- jacking
- landing leg
- leg
- gear
- rotating
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Vehicle Cleaning, Maintenance, Repair, Refitting, And Outriggers (AREA)
Abstract
The utility model discloses a rotatory jacking landing leg, including landing leg main part, the rotatory rotary mechanism of at least one drive landing leg main part, flexible jacking mechanism and at least one power supply of at least one drive landing leg main part, rotatory jacking action is accomplished to power supply drive rotary mechanism and jacking mechanism. The utility model discloses a single power source mode, drive landing leg main part rotate to vertical position from horizontal position, and the extension of drive landing leg main part is in order to adapt to the holding height, and this landing leg occupation space is less, and effective stroke is great, and folding fast, the good reliability, efficient.
Description
Technical Field
The utility model relates to an automobile auxiliary device technical field specifically is to relate to a rotatory jacking landing leg.
Background
A motor home is an automobile with a field living function and is generally applied to the field of travel and leisure. When the caravan is parked and played during the driving to visit, the support legs are needed to help the caravan to be fixed in place due to the fact that the caravan is large in potential energy. Present car as a house landing leg on the market is mostly traditional landing leg structure of bending, adopt link mechanism to realize the shrink and the support function of landing leg, but because partial car as a house or sojourn the vehicle chassis lower, the space of installation landing leg is limited, terrain clearance when the landing leg is required to support again is higher, so ordinary landing leg can not satisfy user's installation and operation requirement, traditional landing leg occupation space is great, moreover, the bending speed is slow, the reliability is poor, effective stroke is less, the urgent need for a neotype landing leg structure reaches user's demand.
SUMMERY OF THE UTILITY MODEL
To the above-mentioned problem that exists among the prior art, aim at providing a rotatory jacking landing leg, this landing leg occupation space is less, and effective stroke is great, and folding speed is fast, the good reliability, efficient.
The specific technical scheme is as follows:
the rotary jacking supporting leg comprises a supporting leg main body, at least one rotating mechanism for driving the supporting leg main body to rotate, at least one jacking mechanism for driving the supporting leg main body to stretch and retract and at least one power source, wherein the power source drives the rotating mechanism and the jacking mechanism to complete rotary jacking actions.
The utility model discloses compare in prior art, have following advantage:
the utility model discloses a single power source mode, drive landing leg main part rotate to vertical position from horizontal position, and the extension of drive landing leg main part is in order to adapt to the bearing height, has saved the stroke that the tradition landing leg mechanism of bending occupied of bending had solved the big problem of tradition landing leg occupation space, can satisfy less installation space's operational environment requirement, moreover the utility model discloses whole landing leg closure height reduces, and effective stroke increases, and is fast, efficient, and the good reliability more can satisfy the demand.
Preferably, rotary mechanism includes the master gear, with the pinion of master gear toothing, the master gear links to each other with the power supply, the pinion drives climbing mechanism work, adopts the gear drive mode, in order to realize the utility model discloses a single power source requires.
Preferably, the jacking mechanism comprises a screw rod, one end of the screw rod is connected with the pinion, the other end of the screw rod is connected with the supporting leg main body, and the power transmitted by the gear is converted into the spiral rotating power of the screw rod, so that the structure is compact.
Preferably, the landing leg main part includes outer tube and inner tube, and the rotation of lead screw drives the inner tube and stretches out the outer tube, adopts lead screw spiral jacking mode, and is convenient rapid.
Preferably, the power source comprises a driving motor and a gear set, an output shaft of the driving motor is connected with the gear set, and the gear set is connected with the main gear.
Preferably, the main gear and the pinion are bevel gears, so that the supporting legs can be rotated from a horizontal position to a vertical position by a single power source.
Furthermore, the rotating mechanism further comprises a transmission shaft, the transmission shaft is connected with the main gear, one end of the transmission shaft is a hand-operated end, and the supporting legs can be folded manually when the motor is powered off or the system fails, namely, the supporting legs can be folded electrically or retracted manually.
Drawings
Fig. 1 is a schematic view of the overall structure of the landing leg in the horizontal position according to the present invention;
FIG. 2 is a cross-sectional view of FIG. 1;
fig. 3 is a schematic view of the overall structure of the support leg in the vertical position according to the present invention;

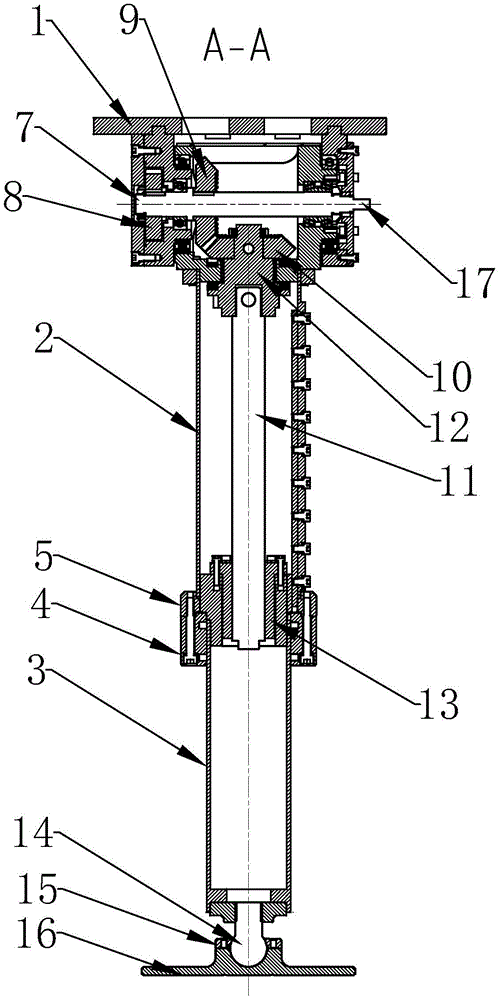

fig. 4 is a cross-sectional view of fig. 3.
In the attached drawings, 1, a mounting plate; 2. an outer tube; 3. an inner tube; 4. a flange; 5. a bushing; 6. a drive motor; 7. a drive shaft; 8. a gear set; 9. a main gear; 10. a pinion gear; 11. a screw rod; 12. a link shaft; 13. a nut; 14. a ball head; 15. a bottom foot fixing plate; 16. a footing plate; 17. and (4) hand-operated end.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Fig. 1 is a schematic view of the overall structure of the landing leg in the horizontal position according to the present invention; FIG. 2 is a cross-sectional view of FIG. 1; fig. 3 is a schematic view of the overall structure of the support leg in the vertical position according to the present invention; fig. 4 is a cross-sectional view of fig. 3.
Referring to fig. 1 to 4, a rotary jacking leg includes a leg main body, at least one rotating mechanism for driving the leg main body to rotate, at least one jacking mechanism for driving the leg main body to extend and retract, and at least one power source for driving the rotating mechanism and the jacking mechanism to complete a rotary jacking operation. This landing leg passes through mounting panel 1 to be installed on vehicle chassis, starts the power supply, and rotary mechanism drive landing leg main part rotates 90 degrees to vertical position from horizontal position, and climbing mechanism work this moment, the extension of landing leg main part, landing leg play the supporting role to the car, and when the landing leg was out of work, the landing leg main part shrink rotated to horizontal position from vertical position and fixed can.
The specific structure is as follows:
the power source comprises a driving motor 6 and a gear set 8, an output shaft of the driving motor 6 is connected with the gear set 8, and the gear set 8 is connected with the rotating mechanism.
The rotating mechanism comprises a main gear 9 and a pinion 10 meshed with the main gear 9, the main gear 9 is connected with a gear set 8 in a power source, the gear set 8 transmits power to the main gear 9 to drive the main gear 9 to rotate, and the main gear 9 drives the pinion 10 to rotate. The main gear 9 and the pinion 10 in the utility model are bevel gears. The pinion 10 drives the jacking mechanism to work.
The jacking mechanism comprises a screw rod 11, one end of the screw rod 11 is connected with the pinion 10, and the other end of the screw rod 11 is connected with the supporting leg main body. The rotation of the pinion 10 drives the screw rod 11 to rotate spirally.
The landing leg main part includes outer tube 2 and inner tube 3, and outer tube 2 cup joints each other through flange 4 and bush 5 with inner tube 3, and inner tube 3 is connected with lead screw 11, realizes sliding in outer tube 2 and stretches out and draws back with extension or shrink landing leg main part. Specifically, the lead screw 11 is arranged in the outer tube 2, one end of the lead screw 11 is connected with the pinion 10 through the link shaft 12, the other end of the lead screw 11 is connected with the inner tube 3 through the nut 13, and when the pinion 10 rotates, the lead screw 11 can be driven to rotate, so that the inner tube 3 is driven to realize telescopic motion in the outer tube 2.
When the supporting leg device works, power output by the driving motor 6 is transmitted through the gear set 8 to drive the main gear 9 to rotate, the main gear 9 is connected with the auxiliary gear 10, the auxiliary gear 10 can be driven to rotate, the supporting leg main body can be rotated to a vertical position from an original horizontal position through the rotation of the auxiliary gear 10, at the moment, the auxiliary gear 10 continues to rotate, the inner tube 3 is driven to extend out of the outer tube 2, and therefore the length of the supporting leg is prolonged to adapt to the supporting height of the supporting leg to a motor home. When the landing leg rotates to vertical position, the landing leg is blocked by the locating part, keeps in vertical state, prevents that the landing leg from continuing to rotate, and skew vertical position causes the holding power distortion of landing leg, and the holding power is not enough. When the supporting legs are folded, the supporting legs can be retracted and rotated to the horizontal position for fixing only by reversely rotating the driving motor 6.
Further, the rotating mechanism further comprises a transmission shaft 7, the transmission shaft 7 is connected with a main gear 9, one end of the transmission shaft 7 is a hand-operated end, and when the motor is powered off or a system fails, the supporting legs can be folded manually, namely, the supporting legs can be folded electrically or retracted manually.
For the adaptation at subaerial supporting recreational vehicle that has the slope, be equipped with bulb 14 in the bottom of inner tube 3, footing fixed plate 15 and footing board 16, bulb 14 passes through footing fixed plate 15 activity and sets up in footing board 16, and footing board 16 can be followed certain angle rotation under bulb 14's the regulation to adapt to the bottom surface of different slopes, make the landing leg be in vertical position all the time, in order to guarantee the support intensity of landing leg, and can have certain angle between footing board 16 and the landing leg main part.
The working principle is as follows: the initial condition is landing leg horizontal installation on vehicle chassis, and when on-vehicle fixed locking device was released, the landing leg was under gravity and motor drive, and the landing leg is rotatory to vertical state by the horizontality, rotates to mechanical spacing back, and on the drive power transmission of motor reached lead screw 11, the stroke jacking, and outer tube 2 is stretched out to inner tube 3, realizes supporting the car. During the shrink, the motor reversal, the landing leg is rotatory to the horizontality from vertical state, reaches the spacing back of stopper, and on-vehicle fixed locking device work, outer tube 2 is advanced in the shrink of inner tube 3, accomplishes the shrink.
The utility model discloses compare in current landing leg structure of bending, have following advantage: the utility model discloses an automatic folding, gear drive's of single power source structure has saved the stroke that the tradition landing leg mechanism of bending occupied of bending, has solved the big problem of traditional landing leg occupation space, can satisfy less installation space's operational environment requirement, moreover the utility model discloses whole landing leg closure height reduces, and effective stroke increase is fast, and is efficient, and the strong reliability more can satisfy the demand.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (7)
1. The utility model provides a rotatory jacking landing leg which characterized in that: the support leg comprises a support leg main body, at least one rotating mechanism for driving the support leg main body to rotate, at least one jacking mechanism for driving the support leg main body to stretch and retract, and at least one power source, wherein the power source drives the rotating mechanism and the jacking mechanism to complete rotating jacking action.
2. The rotating jacking leg of claim 1, wherein: the rotating mechanism comprises a main gear (9) and an auxiliary gear (10) in toothed connection with the main gear (9), the main gear (9) is connected with a power source, and the auxiliary gear (10) drives the jacking mechanism to work.
3. The rotating jacking leg of claim 2, wherein: the jacking mechanism comprises a screw rod (11), one end of the screw rod (11) is connected with the pinion (10), and the other end of the screw rod (11) is connected with the supporting leg main body.
4. The rotating jacking leg of claim 3, wherein: the landing leg main part includes outer tube (2) and inner tube (3), and the rotation of lead screw (11) drives inner tube (3) and stretches out outer tube (2).
5. The rotating jacking leg of claim 2, wherein: the power source comprises a driving motor (6) and a gear set (8), an output shaft of the driving motor (6) is connected with the gear set (8), and the gear set (8) is connected with a main gear (9).
6. The rotating jacking leg of claim 2, wherein: the main gear (9) and the auxiliary gear (10) are bevel gears.
7. The rotating jacking leg of claim 2, wherein: the rotating mechanism further comprises a transmission shaft (7), the transmission shaft (7) is connected with a main gear (9), and one end of the transmission shaft (7) is a hand-cranking end.
