The utility model discloses an intelligence view gardens lawn lamp, relate to lawn lamp technical field, including body and base, the mount pad is installed to the body bottom, internally mounted has the battery, the controller is installed at the top of body, the lamp pole is installed at the top center of bottom plate, lamp pole surface mounting has L ED small bulb, the roof is installed to the one end that the lamp pole fixing base was kept away from to the lamp pole, illumination sensor all installs all around to the roof, first glass cover is installed to the bottom of roof, solar energy electroplax mounting panel is installed at the roof top, solar energy electroplax is installed at the top of solar energy electroplax mounting panel, second glass cover is installed at the top of solar energy electroplax mounting panel, participate in the bottom of base this intelligence view gardens lawn lamp, possess the advantage of intelligent control and solar energy power supply, detect light intensity through illumination sensor, with data transmission to the controller, thereby control L ED small bulb's luminous circumstances, solar energy electroplax absorbs sunshine and turns into the electric energy that self used in addition.
Description
Technical Field
The utility model relates to a lawn lamp technical field specifically is an intelligence view gardens lawn lamp.
Background
The lawn lamp is designed to add safety and beauty to urban green landscape mainly by using appearance and soft lamplight, has the characteristics of convenient installation, strong decoration and the like, and can be used for decorative illumination of greenbelts in parks, garden villas, square greening and other places.
The existing lawn lamp is generally powered by a city power grid, the lawn lamp is generally in a normally open state, great burden is brought to the city power grid by the power consumption of the lawn lamp, the lawn lamp needs to be turned on in a staggered mode or cannot be turned on in a crisp mode when the city power supply is tight in power consumption peak season, and great inconvenience is brought to passing pedestrians. Therefore, an intelligent illuminating lamp for a lawn is put into use to solve the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an intelligence view gardens lawn lamp possesses the advantage of intelligent control and solar energy power supply, has solved the problem of using inconvenience and power consumption burden.
The utility model provides a solve above-mentioned technical problem, provide following technical scheme intelligent view garden lawn lamp, including body and base, body bottom fixed mounting has the mount pad, the inside fixed mounting of body has the battery, the top fixed mounting of body has the spliced pole, the positive fixed mounting of spliced pole has the controller, the one end fixed mounting who keeps away from the body of spliced pole has the bottom plate, the top center fixed mounting of bottom plate has the lamp pole fixing base, the inside fixed mounting of lamp pole fixing base has the lamp pole, lamp pole fixed surface installs the lamp stand, the inside movable mounting of lamp stand has L ED little bulb, the one end fixed mounting that the lamp pole fixing base was kept away from to the lamp pole has the roof, equal fixed mounting has light intensity sensor all around the roof, the bottom fixed mounting of roof has first glass cover, roof top fixed mounting has the solar energy electroplax mounting panel, the top fixed mounting of solar energy electroplax mounting panel has the solar energy electroplax, the top fixed mounting of solar energy electroplax mounting panel has the second glass cover, the bottom fixed mounting of base has participates in.
Furthermore, threaded holes are formed in the mounting seat and the top of the base, correspond to the threaded holes in position, and are fastened through fastening bolts.
Through adopting above-mentioned technical scheme, the advantage lies in inserting ground through participating in earlier the base, installs the body at the top of base through the mount pad, separately installs body and base, prevents that equipment when inserting ground, the collision acutely makes inner structure damage.
Furthermore, the storage battery is connected with the solar panel through a lead, and the storage battery is connected with the lamp holder through a lead.
Through adopting above-mentioned technical scheme, the advantage lies in that solar energy electroplax absorbs sunshine and turns into the electric energy, passes to the battery through the wire and stores, and then the battery passes through the lamp stand with electricity supply L ED little bulb.
Further, the controller is connected with a storage battery signal line, and the controller is connected with an illuminance sensor signal line.
Through adopting above-mentioned technical scheme, the advantage lies in surveying external light intensity through illuminance sensor, later with data transmission to the controller in, the light intensity of the external light intensity that will record and the light intensity of initial setting after the comparison, control the power supply operating condition of battery.
Furthermore, the first glass cover and the second glass cover are made of tempered glass with strong light transmission, the bottom of the first glass cover is fixedly mounted at the top of the bottom plate, the lamp post fixing seat is located inside the first glass cover, and the solar panel is located inside the second glass cover.
Through adopting above-mentioned technical scheme, the advantage lies in that the toughened glass that the light transmissivity is good can light jet into with jet out and not receive the hindrance, toughened glass hardness height moreover plays the guard action.
Furthermore, the lamp stand has a plurality ofly, and is a plurality of the lamp stand is equallyd divide into four groups, and the even symmetry of four groups lamp stands is installed on the surface of lamp pole, and is a plurality of the lamp stand is parallelly connected each other.
By adopting the technical scheme, the advantages that a plurality of L ED bulbs can be installed to a plurality of lamp holders, the illumination can be carried out in a plurality of directions, and the parallel connection has the advantage that when one L ED bulb is damaged, the operation of other L ED bulbs cannot be influenced.
Furthermore, there are four solar panels, and the four solar panels are connected in series, and the solar panels are rigid solar panels.
By adopting the technical scheme, the solar photovoltaic panel has the advantages of good power supply effect of the four solar photovoltaic panels and high conversion efficiency of the hard solar photovoltaic panel.
Compared with the prior art, this intelligence view garden lawn lamp possesses following beneficial effect:
1. the utility model discloses a set up controller and illuminance sensor and realize intelligent control, detect external light intensity through illuminance sensor, afterwards with data transmission to the controller in, the external light intensity that will record and initial set's light intensity are through comparing the back, the power supply operating condition of control battery, if the external light intensity that surveys is less than when the light intensity of settlement, the battery begins to supply power to the lamp stand, open L ED small bulb, if the external light intensity that surveys is higher than when the light intensity of settlement, then the battery stops to the lamp stand power supply, close L ED small bulb, at this in-process, the light that detects according to illuminance sensor changes, the luminance of L ED lamp is adjusted in real time to the voltage of L ED lamp to the controller, the convenience is to the real-time control of lamp body luminance.
2. The utility model discloses a set up the solar energy electroplax, the solar energy electroplax absorbs sunshine and turns into the electric energy, passes to the battery through the wire and stores, then is supplying with L ED little bulbs through the battery, and is self-sufficient, can not stop opening of lawn lamp because the city power supply is tight in peak season with the electricity.
Drawings

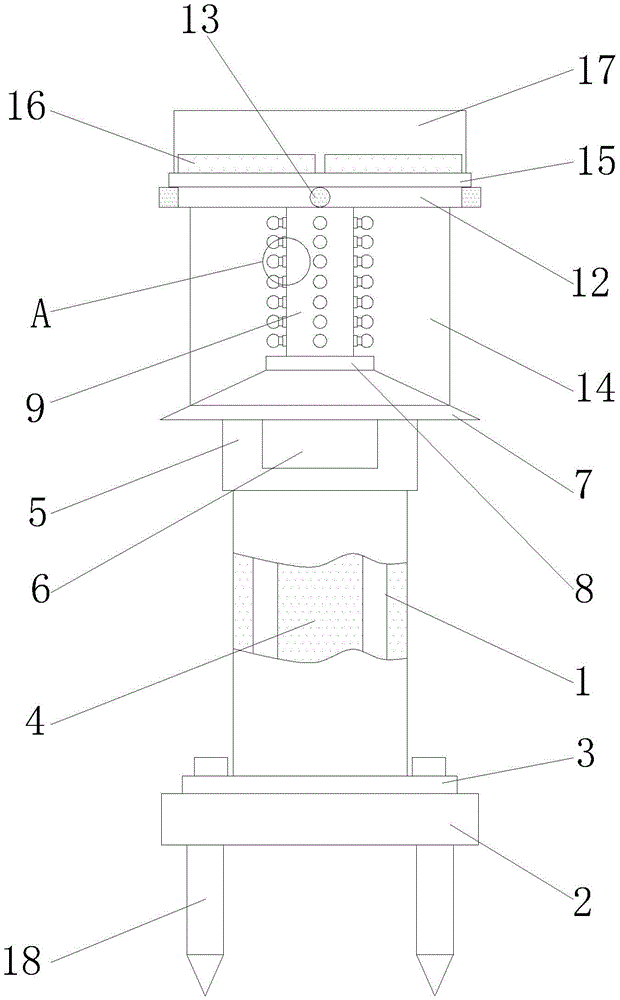

FIG. 1 is a front view of the present invention;
FIG. 2 is an enlarged view of the structure A of the present invention;
fig. 3 is a top view of the present invention.
In the figure, 1-a body, 2-a base, 3-a mounting base, 4-a storage battery, 5-a connecting column, 6-a controller, 7-a bottom plate, 8-a lamp post fixing base, 9-a lamp post, 10-a lamp holder, 11-L ED small bulbs, 12-a top plate, 13-an illumination sensor, 14-a first glass cover, 15-a solar panel mounting plate, 16-a solar panel, 17-a second glass cover and 18-a pin.
Detailed Description
Please refer to fig. 1-3, the utility model provides a technical scheme, an intelligence view garden lawn lamp, including body 1 and base 2, body 1 bottom fixed mounting has mount pad 3, body 1 inside fixed mounting has battery 4, battery 4 is connected with solar energy electroplax 16 through the wire, battery 4 passes through the wire and links to each other with lamp stand 10, solar energy electroplax 16 absorbs sunshine and turns into the electric energy, pass to battery 4 through the wire and store, then battery 4 passes through lamp stand 10 with the electricity supply L ED little lamp bulb 11, body 1's top fixed mounting has spliced pole 5, the front fixed mounting of spliced pole 5 has controller 6, controller 6 is connected with battery 4 signal line, controller 6 is connected with illuminance sensor 14 signal line, detect external light intensity through illuminance sensor 14, later with data transmission to controller 6 in, after comparing external light intensity that will be measured with the light intensity of the initial settlement, the power supply operating condition of battery 4, the one end fixed mounting of spliced pole 5 that keeps away from body 1 has bottom plate 7, bottom plate 7 is the bottom is the round platform form, bottom plate is the backstop, the bottom of the fixed mounting plate is equipped with the fixed mounting plate of the top of the fixed mounting plate 16, the top of the fixed mounting plate of the four groups of the fixed lamp stand 16, the fixed mounting plate 16, the fixed mounting plate can be equal light intensity of the four groups of the glass 16, the fixed mounting plate 16, the glass lamp stand 16, the fixed mounting plate, the top of the fixed mounting plate is equal light intensity of the fixed mounting plate of the four groups of the fixed mounting plate 16, the glass lamp stand 16, the fixed mounting plate of the fixed mounting plate, the four groups of the fixed mounting plate of the glass, the fixed mounting plate of the four groups of the fixed mounting plate, the fixed mounting plate of the four groups of the fixed mounting plate.
The utility model discloses well lawn lamp is the wide application that has disclosed and the known technique of daily life, and the lawn lamp is an intelligent view gardens lawn lamp.
During the use, when using this device, programme by the user earlier, light intensity numerical value input controller 6 that will set for, then insert base 2 bottom pin 18 in the lawn, with the inside of mount pad 3 and the screw hole at the top of base 2, and align, and fasten through fastening bolt, thereby guarantee the firm of body 1, under the normal use condition, solar energy electroplax 16 converts the radiant energy of sun into the electric energy and stores in battery 4, supply L ED small bulb 11 power consumption, detect external light intensity through illumination sensor 13, later with data transmission to controller 6 in, the operating condition of control L ED small bulb 11, if the external light intensity that detects is less than the light intensity of setting for, automatically, open L ED small bulb 11, if the external light intensity that detects is higher than when setting for light intensity, then automatically, close L ED small bulb 11, in this in-process, according to the light change that light sensor 13 detected, controller 10 adjusts the voltage of ED small bulb 11 in real time through adjusting L, make things convenient for the luminance control of the ED 11, the luminous intensity of the small bulb L to the real-time control.
Claims (7)
1. The utility model provides an intelligence view garden lawn lamp, includes body (1) and base (2), its characterized in that body (1) bottom fixed mounting has mount pad (3), the inside fixed mounting of body (1) has battery (4), the top fixed mounting of body (1) has spliced pole (5), the positive fixed mounting of spliced pole (5) has controller (6), the one end fixed mounting of keeping away from body (1) of spliced pole (5) has bottom plate (7), the top center department fixed mounting of bottom plate (7) has lamp pole fixing base (8), the inside fixed mounting of lamp pole fixing base (8) has lamp pole (9), lamp pole (9) fixed surface installs lamp stand (10), the inside movable mounting of lamp stand (10) has L ED little bulb (11), the one end fixed mounting of lamp pole fixing base (8) is kept away from in lamp pole (9) has roof (12), roof (12) all fixed mounting all around has illuminance sensor (13), the bottom fixed mounting of roof (12) has first glass cover (14), roof (12) top fixed mounting has solar panel (15), solar panel fixed mounting panel (15), solar panel (15) top fixed mounting panel (17) solar panel (15) the top fixed mounting panel (17) have solar panel.
2. The intelligent landscape architecture lawn lamp of claim 1, wherein: threaded holes are formed in the inner portion of the mounting seat (3) and the top of the base (2), correspond to the threaded holes in position, and are fastened through fastening bolts.
3. The intelligent landscape architecture lawn lamp of claim 1, wherein: the storage battery (4) is connected with the solar panel (16) through a lead, and the storage battery (4) is connected with the lamp holder (10) through a lead.
4. The intelligent landscape architecture lawn lamp of claim 1, wherein: the controller (6) is connected with a signal line of the storage battery (4), and the controller (6) is connected with a signal line of the illuminance sensor (13).
5. The intelligent landscape architecture lawn lamp of claim 1, wherein: the solar lamp is characterized in that the first glass cover (14) and the second glass cover (17) are made of tempered glass with strong light transmission, the bottom of the first glass cover (14) is fixedly mounted at the top of the bottom plate (7), the lamp post fixing seat (8) is located inside the first glass cover (14), and the solar panel (16) is located inside the second glass cover (17).
6. The intelligent landscape architecture lawn lamp of claim 1, wherein: the lamp holder (10) have a plurality ofly, it is a plurality of lamp holder (10) are equallyd divide into four groups, and four groups lamp holder (10) are even symmetry and are installed on the surface of lamp pole (9), and are a plurality of lamp holder (10) are parallelly connected each other.
7. The intelligent landscape architecture lawn lamp of claim 1, wherein: the solar panel comprises four solar panels (16), the four solar panels (16) are connected in series, and the solar panels (16) are hard solar panels.
