CN210997849U - Copper pipe inner wall cleaning and polishing device convenient to operate - Google Patents
Copper pipe inner wall cleaning and polishing device convenient to operate Download PDFInfo
- Publication number
- CN210997849U CN210997849U CN201921908535.3U CN201921908535U CN210997849U CN 210997849 U CN210997849 U CN 210997849U CN 201921908535 U CN201921908535 U CN 201921908535U CN 210997849 U CN210997849 U CN 210997849U
- Authority
- CN
- China
- Prior art keywords
- wall
- connecting rod
- shell
- copper pipe
- cleaning
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Finish Polishing, Edge Sharpening, And Grinding By Specific Grinding Devices (AREA)
Abstract
The utility model discloses a copper pipe inner wall cleaning and polishing device convenient to operate, which comprises a driving mechanism and a cleaning and polishing mechanism, wherein the cleaning and polishing mechanism is arranged on the driving mechanism; the drive mechanism comprises a shell, a handle, a drive motor and a drive rotating shaft, wherein the handle is arranged on the right side of the bottom of the shell, the drive rotating shaft is arranged on an output shaft on the left side of the drive motor, the drive motor is arranged on the left side of the inner wall of the shell, and the left end of the drive rotating shaft penetrates through the shell and extends to the outside of the shell. The utility model discloses a mutually supporting of actuating mechanism and clean grinding machanism has realized the clean grinding device of copper pipe inner wall convenient to operation, and this grinding device is convenient for operate to can adjust the internal diameter of polishing, can satisfy the polishing work of different thickness copper pipe inner walls well, the staff operates very labour saving and time saving, has alleviateed staff's work burden, and the practicality is high, is fit for using widely.
Description
Technical Field
The utility model relates to a copper pipe inner wall technical field that polishes specifically is a clean grinding device of copper pipe inner wall convenient to operation.
Background
Copper pipe is not bare to be polished to the surface at the in-process of processing, need clean polishing to the inner wall of copper pipe in order, and the clean grinding device complex operation of current copper pipe inner wall to the internal diameter of polishing is not convenient for adjust, can not be applicable to the copper pipe inner wall work of polishing of different thicknesses well, work efficiency is low, often needs the staff constantly to adjust clean grinding device and polishes the inner wall of copper pipe, has greatly increased staff's work burden, and the practicality is low.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a clean grinding device of copper pipe inner wall convenient to operation to solve the problem that proposes in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: a copper pipe inner wall cleaning and polishing device convenient to operate comprises a driving mechanism and a cleaning and polishing mechanism, wherein the cleaning and polishing mechanism is arranged on the driving mechanism;
the driving mechanism comprises a shell, a handle, a driving motor and a driving rotating shaft, wherein the handle is arranged on the right side of the bottom of the shell, the driving rotating shaft is arranged on an output shaft on the left side of the driving motor, the driving motor is arranged on the left side of the inner wall of the shell, and the left end of the driving rotating shaft penetrates through the shell and extends to the outside of the shell;
the cleaning and polishing mechanism comprises a connecting rod fixedly arranged on the left side of the surface of the driving rotating shaft, a sliding groove is formed in the connecting rod, a sliding block is connected to the inner wall of the sliding groove in a sliding manner, a bearing is fixedly arranged in a groove on the right side of the inner wall of the sliding groove corresponding to the connecting rod, a threaded rod is fixedly connected to the inner wall of the bearing, the left end of the threaded rod sequentially penetrates through the sliding groove and the connecting rod and extends to the outer portion of the connecting rod to be fixedly connected with a rotating rod, the threaded rod is in threaded connection with the sliding block, arc-shaped plates are arranged above and below the left side of the surface of the connecting rod respectively, the arc-shaped plates are connected with the connecting rod through a stabilizing assembly, the stabilizing assembly comprises a telescopic rod and two stabilizing blocks, the two, through adjusting pole swing joint between two corresponding connecting seats, the top of connecting rod and bottom and the position that corresponds the regulation pole have all been seted up through the groove, and one side that the connecting rod was kept away from to two arcs is installed respectively and is polished the piece and the brush of clearing up.
Preferably, the left side and the right side of the handle are both fixedly connected with soft pads.
Preferably, a heat dissipation port is formed in the right side of the inner wall of the shell, and a dust screen is arranged on the right side of the shell and corresponds to the position of the heat dissipation port.
Preferably, the driving rotating shaft is movably connected with the shell.
Preferably, the surface of the bearing outer ring is fixedly connected with the connecting rod, and the inner wall of the bearing inner ring is fixedly connected with the surface of the threaded rod.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a mutually supporting of actuating mechanism and clean grinding machanism has realized the clean grinding device of copper pipe inner wall convenient to operation, and this grinding device is convenient for operate to can adjust the internal diameter of polishing, can satisfy the polishing work of different thickness copper pipe inner walls well, the staff operates very labour saving and time saving, has alleviateed staff's work burden, and the practicality is high, is fit for using widely.
2. The utility model discloses a set up the cushion, played the effect of protection staff's palm, through setting up the thermovent, made things convenient for driving motor to dispel the heat, through setting up the dust screen, avoided the dust to get into the inside of casing from the thermovent.
Drawings

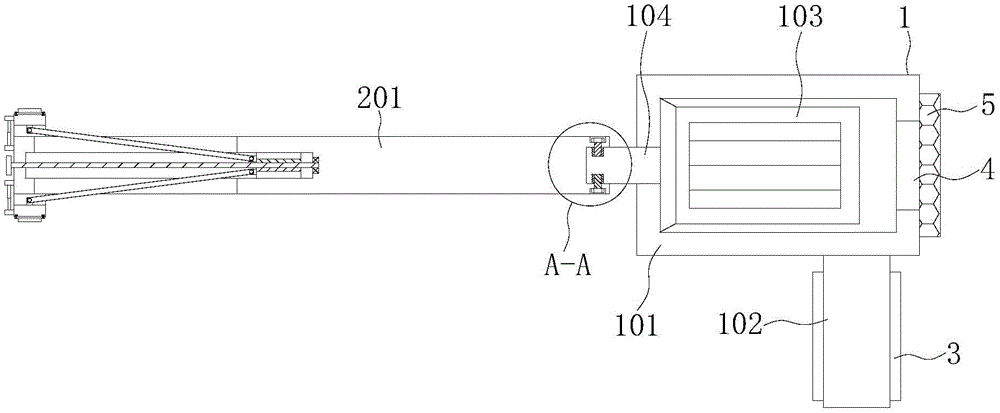

FIG. 1 is a structural section view in elevation of the present invention;
FIG. 2 is an enlarged view of a portion of A-A of FIG. 1 according to the present invention;
FIG. 3 is a cross-sectional view of the front view of the cleaning and polishing mechanism of the present invention;
FIG. 4 is an enlarged view of a portion of B-B of FIG. 3 according to the present invention;
FIG. 5 is an enlarged view of a portion of C-C of FIG. 3 according to the present invention;
FIG. 6 is a schematic structural view of a left side view of the cleaning and polishing mechanism of the present invention;
FIG. 7 is an enlarged view of a portion of D-D of FIG. 6 according to the present invention;
fig. 8 is a schematic structural view of a perspective view of the connecting seat of the present invention.
In the figure: 1 actuating mechanism, 101 casing, 102 handle, 103 driving motor, 104 drive pivot, 2 clean grinding machanism, 201 connecting rod, 202 spouts, 203 slider, 204 bearing, 205 threaded rod, 206 dwang, 207 arc, the firm subassembly of 208, 2081 telescopic link, 2082 steady piece, 209 connecting seat, 210 regulation pole, 211 pass through the groove, 212 sanding block, 213 clearance brush, 3 cushions, 4 thermovents, 5 dust screens.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-8, a copper pipe inner wall cleaning and polishing device convenient to operate includes a driving mechanism 1 and a cleaning and polishing mechanism 2, wherein the cleaning and polishing mechanism 2 is installed on the driving mechanism 1.
Actuating mechanism 1 includes casing 101, handle 102, driving motor 103 and drive pivot 104, the right side in casing 101 bottom is installed to handle 102, the equal fixedly connected with cushion 3 in the left and right sides of handle 102, through setting up cushion 3, the effect of protection staff's palm has been played, drive pivot 104 is installed on the left output shaft of driving motor 103, driving motor 103 installs the left side at casing 101 inner wall, thermovent 4 has been seted up on the right side of casing 101 inner wall, casing 101's right side and the position that corresponds thermovent 4 install dust screen 5, through setting up thermovent 4, make things convenient for driving motor 103 to dispel the heat, through setting up dust screen 5, avoid the inside that the dust got into casing 101 from thermovent 4, the left end of drive pivot 104 runs through casing 101 and extends to its outside, swing joint between drive pivot 104 and the casing 101.
The cleaning and polishing mechanism 2 comprises a connecting rod 201 fixedly arranged on the left side of the surface of a driving rotating shaft 104, a sliding groove 202 is arranged inside the connecting rod 201, a sliding block 203 is connected on the inner wall of the sliding groove 202 in a sliding manner, the sliding block 203 can only slide left and right on the inner wall of the sliding groove 202 and cannot rotate, a bearing 204 is fixedly arranged in a groove on the right side of the inner wall of the connecting rod 201 corresponding to the sliding groove 202, a threaded rod 205 is fixedly connected on the inner wall of the bearing 204, the surface of the outer ring of the bearing 204 is fixedly connected with the connecting rod 201, the inner wall of the inner ring of the bearing 204 is fixedly connected with the surface of the threaded rod 205, the inner ring and the outer ring of the bearing 204 can rotate relatively, so that the threaded rod 205 can rotate but cannot move left and right, the left end of the threaded rod 205 sequentially penetrates through, arc plates 207 are arranged above and below the left side of the surface of the connecting rod 201, the arc plates 207 are connected with the connecting rod 201 through a stabilizing assembly 208, the stabilizing assembly 208 comprises a telescopic rod 2081 and two stabilizing blocks 2082, the two stabilizing blocks 2082 are respectively fixedly connected with the connecting rod 201 and the arc plates 207, the two stabilizing blocks 2082 are respectively fixedly connected with two ends of the telescopic rod 2081, the telescopic stroke of the telescopic rod 2081 can meet the requirement of the movement of the arc plates 207, the telescopic rod 2081 and the stabilizing blocks 2082 are arranged to enable the arc plates 207 to move vertically but not to rotate due to external force, connecting seats 209 are respectively arranged on the left side of the sliding block 203 and one side of the arc plates 207 close to the connecting rod 201, the two corresponding connecting seats 209 are movably connected through adjusting rods 210, through grooves 211 are respectively formed in the top and the bottom of the connecting rod 201 and in the positions corresponding to the adjusting rods 210, the connecting rod 201 can rotate in a rotating, but can not break away from, this belongs to prior art, in addition, in this device, also seted up with adjusting pole 210 cooperation use through groove 211, also fully guarantee that adjust pole 210 can not drop from the pivot above the connecting seat 209, one side that connecting rod 201 was kept away from to two arcs 207 is installed respectively and is polished piece 212 and cleaning brush 213, through the mutually supporting of actuating mechanism 1 and clean grinding machanism 2, the clean grinding device of copper pipe inner wall convenient to operation has been realized, this grinding device is convenient for operate, and can adjust the internal diameter of polishing, can satisfy the polishing work of different thickness copper pipe inner walls well, the staff operates very labour saving and time saving, the work burden of staff has been alleviateed, high practicability, and is suitable for being generalized to use.
During the use, copper pipe internal diameter according to the clean grinding of needs is adjusted clean grinding device, through dwang 206 rotation threaded rod 205, threaded rod 205 is rotatory can lead to slider 203 to move left, slider 203 drives the arc 207 to the direction motion of keeping away from connecting rod 201 through connecting seat 209 and the cooperation of adjusting pole 210, two arcs 207 drive respectively and polish piece 212 and clearance brush 213 to the direction motion of keeping away from connecting rod 201, driving motor 103 drives connecting rod 201 rotatory through drive pivot 104, connecting rod 201 is rotatory finally to lead to polishing piece 212 and clearance brush 213 rotatory, polishing piece 212 polishes copper pipe inner wall, clearance brush 213 cleans copper pipe inner wall.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a clean grinding device of copper pipe inner wall convenient to operation, includes actuating mechanism (1) and clean grinding machanism (2), its characterized in that: the cleaning and polishing mechanism (2) is arranged on the driving mechanism (1);
the driving mechanism (1) comprises a shell (101), a handle (102), a driving motor (103) and a driving rotating shaft (104), wherein the handle (102) is installed on the right side of the bottom of the shell (101), the driving rotating shaft (104) is installed on an output shaft on the left side of the driving motor (103), the driving motor (103) is installed on the left side of the inner wall of the shell (101), and the left end of the driving rotating shaft (104) penetrates through the shell (101) and extends to the outside of the shell;
the cleaning and polishing mechanism (2) comprises a connecting rod (201) fixedly installed on the left side of the surface of a driving rotating shaft (104), a sliding groove (202) is formed in the connecting rod (201), a sliding block (203) is connected to the inner wall of the sliding groove (202), a bearing (204) is fixedly installed in a groove on the right side of the inner wall of the corresponding sliding groove (202) of the connecting rod (201), a threaded rod (205) is fixedly connected to the inner wall of the bearing (204), the left end of the threaded rod (205) sequentially penetrates through the sliding groove (202) and the connecting rod (201) and extends to an external fixedly connected rotating rod (206) of the connecting rod (201), the threaded rod (205) is in threaded connection with the sliding block (203), arc plates (207) are arranged above and below the left side of the surface of the connecting rod (201), and the arc plates (207) are connected with the connecting rod, firm subassembly (208) include telescopic link (2081) and two firm piece (2082), two firm piece (2082) respectively with connecting rod (201) and arc (207) fixed connection, connecting seat (209) are all installed to the left side of slider (203) and one side that arc (207) are close to connecting rod (201), through adjusting pole (210) swing joint between two corresponding connecting seats (209), the top of connecting rod (201) and the position that just corresponds regulation pole (210) have all been seted up through groove (211), and sanding block (212) and clearance brush (213) are installed respectively to one side that connecting rod (201) were kept away from in two arc (207).
2. A copper pipe inner wall cleaning and grinding device convenient to operate as claimed in claim 1, wherein: the left side and the right side of the handle (102) are both fixedly connected with cushions (3).
3. A copper pipe inner wall cleaning and grinding device convenient to operate as claimed in claim 1, wherein: heat dissipation opening (4) have been seted up on the right side of casing (101) inner wall, dust screen (5) are installed on the right side of casing (101) and the position that corresponds heat dissipation opening (4).
4. A copper pipe inner wall cleaning and grinding device convenient to operate as claimed in claim 1, wherein: the driving rotating shaft (104) is movably connected with the shell (101).
5. A copper pipe inner wall cleaning and grinding device convenient to operate as claimed in claim 1, wherein: the surface of the outer ring of the bearing (204) is fixedly connected with the connecting rod (201), and the inner wall of the inner ring of the bearing (204) is fixedly connected with the surface of the threaded rod (205).
