CN210994014U - Dispersion machine for paint production - Google Patents
Dispersion machine for paint production Download PDFInfo
- Publication number
- CN210994014U CN210994014U CN201921492015.9U CN201921492015U CN210994014U CN 210994014 U CN210994014 U CN 210994014U CN 201921492015 U CN201921492015 U CN 201921492015U CN 210994014 U CN210994014 U CN 210994014U
- Authority
- CN
- China
- Prior art keywords
- servo motor
- fixedly provided
- fixed mounting
- dispersion
- installation box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Mixers Of The Rotary Stirring Type (AREA)
Abstract
The utility model discloses a paint production is with dispenser, comprising a base plate, the top fixed mounting of bottom plate has outer support tube, the top of bottom plate and the inside fixed mounting that is located outer support tube have a servo motor, a servo motor's output fixed mounting has the lead screw, the inside sliding connection of outer support tube has interior stay tube, the bottom fixed mounting of interior support tube inner wall has the slider, the lead screw run through the slider and with slider threaded connection, the equal fixed mounting in both sides that interior support tube outside top is corresponding has the installation piece, the equal fixed mounting in bottom of two installation pieces has the guide bar, the equal fixed mounting in both sides that outer support tube outside top is corresponding has the guide block, the beneficial effects of the utility model are that: the utility model discloses used two dispersion impeller simultaneously to carry out dispersion processing to the raw materials, the region that makes the dispersion impeller can influence is more extensive, compares in ordinary dispenser, uses more convenience, and is shorter to the required time of dispersion processing simultaneously, and the dispersion effect is better.
Description
Technical Field
The utility model relates to a dispenser, in particular to dispenser is used in paint production belongs to dispenser technical field.
Background
In the existing life, a dispersion machine is a stirrer in a broad sense. Because a high-speed stirrer (such as a circular saw tooth type stirrer) can form strong turbulent flow locally, the high-speed stirrer usually has strong dispersion and emulsification effects on materials. The dispersion machine is required to be used in the preparation of the paint, and the dispersion machine is required to be used for realizing pre-dispersion, stirring, high-speed dispersion, paint mixing and color mixing, has good adaptability to medium-high viscosity and thixotropic materials, and is particularly high-speed and rapid for batch production. The paint is crushed, dispersed, emulsified and mixed by using a dispersion machine, and the materials are subjected to high-speed strong shearing, crushing and dispersion through novel high-efficiency stirring equipment running at high speed of upper and lower sharp teeth of a dispersion disc, so that the functions of rapid mixing, dissolution, dispersion and refinement are achieved. Is a high-efficiency device for stirring, dispersing and dissolving solids such as paint and the like.
But current dispenser is because the area of action of dispersion impeller is less, just leads to when processing dispersion effect relatively poor, and the required time of dispersion is longer, is unfavorable for the production to paint.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome prior art's defect, provide a dispenser for paint produce.
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a paint production is with dispenser, including the bottom plate, the top of bottom plate is fixed with outer support tube, the top of bottom plate and the inside that is located outer support tube is fixed with first servo motor, the output fixed mounting of first servo motor has the lead screw, outer support tube inside sliding connection has interior support tube, the bottom fixed mounting of interior support tube inner wall has the slider, the lead screw runs through the slider and with slider threaded connection, the corresponding both sides at the top of the interior support tube outside both sides are fixed with the installation piece, two the bottom of installation piece is fixed with the guide bar, the corresponding both sides at the top of the outer support tube outside both sides are fixed with the guide block, the guide bar runs through the guide block and with guide block sliding connection, the top fixed mounting of interior support tube has a top installation case, top installation case bottom one side fixed mounting has the second servo motor, the output end of the second servo motor penetrates into the top mounting box and is fixedly provided with a driving wheel, a driven wheel is rotatably connected to one side of the inside of the top mounting box, which is far away from the driving wheel, a transmission belt is sleeved outside the driving wheel, the driving wheel is in transmission connection with the driven wheel through a transmission belt, the driven wheel penetrates through the bottom of the top mounting box and is fixedly mounted with a bottom mounting box, two third servo motors are rotatably connected in the bottom mounting box, the output ends of the third servo motors penetrate through the bottom of the bottom mounting box and are fixedly provided with dispersion rods, the bottom of the dispersion rod is fixedly provided with a dispersion disc, the top of the bottom plate and the lower part of the bottom mounting box are fixedly provided with a placing disc, the placing plate is provided with a placing groove, electric telescopic rods are fixedly mounted on two corresponding sides of the placing groove, and arc-shaped fixing plates are fixedly mounted at the output ends of the electric telescopic rods.
As a preferred scheme of the utility model, top install bin one side fixed mounting has control panel, equal and the control panel electric connection of first servo motor, second servo motor, third servo motor and electric telescopic handle.
As an optimized proposal of the utility model, the outside of the bottom installation box is provided with a heat dissipation groove.
As an optimized scheme of the utility model, two distance between the dispersion impeller centre of a circle is greater than the diameter of dispersion impeller.
As an optimized scheme of the utility model, the centre of a circle of standing groove and the centre of a circle of two fixed plates are located on the same point.
As an optimized proposal of the utility model, the connection can be dismantled between dispersion pole and the dispersion impeller.
As an optimal solution of the present invention, the diameter of the bottom of the placing tray is larger than the diameter of the top of the placing tray.
The utility model discloses the beneficial effect who reaches is:
1. this use is novel has used two dispersion impeller simultaneously to carry out dispersion processing to the raw materials, makes the region that the dispersion impeller can influence more extensive, compares in ordinary dispenser, uses more convenience, and is shorter to the required time of dispersion processing simultaneously, and dispersion effect is better.
2. The utility model discloses used two sets of guide bars, guaranteed that the dispenser is more stable at the lift in-process, trouble and problem such as dispenser rotation can not appear.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

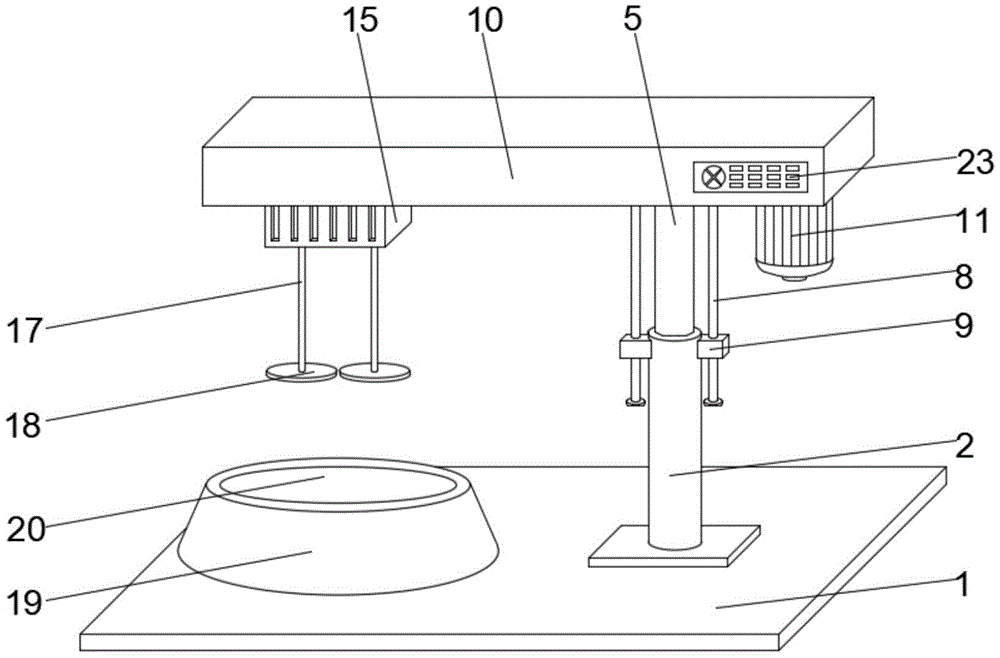

fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a cross-sectional view of the present invention;
fig. 3 is a top view of the placing tray of the present invention.
In the figure, 1, a bottom plate; 2. an outer support tube; 3. a first servo motor; 4. a screw rod; 5. an inner support tube; 6. a slider; 7. mounting blocks; 8. a guide bar; 9. a guide block; 10. a top mounting box; 11. a second servo motor; 12. a driving wheel; 13. a driven wheel; 14. a drive belt; 15. a bottom mounting box; 16. a third servo motor; 17. a dispersion rod; 18. a dispersion tray; 19. placing a tray; 20. a placement groove; 21. an electric telescopic rod; 22. a fixing plate; 23. a control panel.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Examples
As shown in fig. 1-3, the utility model provides a paint production is with dispenser, including bottom plate 1, the top fixed mounting of bottom plate 1 has outer support tube 2, the top of bottom plate 1 and the inside fixed mounting that is located outer support tube 2 have first servo motor 3, the output end fixed mounting of first servo motor 3 has lead screw 4, outer support tube 2 inside sliding connection has interior support tube 5, the bottom fixed mounting of inner support tube 5 inner wall has slider 6, lead screw 4 runs through slider 6 and with slider 6 threaded connection, can utilize first servo motor 3 and lead screw 4 to drive interior support tube 5 and rise or descend; the two corresponding sides of the top of the outer side of the inner supporting tube 5 are fixedly provided with mounting blocks 7, the bottoms of the two mounting blocks 7 are fixedly provided with guide rods 8, the two corresponding sides of the top of the outer side of the outer supporting tube 2 are fixedly provided with guide blocks 9, the guide rods 8 penetrate through the guide blocks 9 and are in sliding connection with the guide blocks 9, the top of the inner supporting tube 5 is fixedly provided with a top mounting box 10, one side of the bottom of the top mounting box 10 is fixedly provided with a second servo motor 11, the output end of the second servo motor 11 penetrates into the top mounting box 10 and is fixedly provided with a driving wheel 12, one side of the top mounting box 10, which is far away from the driving wheel 12, is rotatably connected with a driven wheel 13, the outer side of the driving wheel 12 is sleeved with a transmission belt 14, the driving wheel 12 is in transmission connection with the driven wheel 13 through the transmission belt 14, the driven wheel 13 penetrates through the bottom of, the output end of the third servo motor 16 penetrates through the bottom of the bottom mounting box 15 and is fixedly provided with a dispersion rod 17, the bottom of the dispersion rod 17 is fixedly provided with a dispersion disc 18, the top of the bottom plate 1 and the position below the bottom mounting box 15 are fixedly provided with a placing disc 19, and a placing groove 20 is formed in the placing disc 19, so that a charging bucket can be conveniently placed; the equal fixed mounting in inside corresponding both sides of standing groove 20 has electric telescopic handle 21, and electric telescopic handle 21's output fixed mounting has curved fixed plate 22, conveniently fixes the storage bucket.
A control panel 23 is fixedly mounted on one side of the top mounting box 10, and the first servo motor 3, the second servo motor 11, the third servo motor 16 and the electric telescopic rod 21 are electrically connected with the control panel 23, so that the control panel 23 can be directly used for controlling the dispersion machine, and the use is more convenient; a heat dissipation groove is drilled on the outer side of the bottom mounting box 15, so that the heat dissipation effect of the two third servo motors 16 is better; the distance between the circle centers of the two dispersion discs 18 is larger than the diameter of the dispersion discs 18, so that the dispersion discs 18 are prevented from interfering with each other when rotating; the circle center of the placing groove 20 and the circle centers of the two fixing plates 22 are positioned at the same point, so that the charging basket is more stable when being fixed; the dispersing rods 17 and the dispersing disks 18 are detachably connected, so that the dispersing disks 18 with different sizes can be replaced conveniently, but the distance between the circle centers of the two dispersing disks 18 cannot be smaller than the diameter of the dispersing disks 18; the diameter of the bottom of the placing disc 19 is larger than that of the top of the placing disc 19, so that the placing disc 19 is more stably installed and can bear larger vibration.
Specifically, when the utility model is used, firstly, the charging basket containing the paint to be dispersed is placed in the placing groove 20, then the control panel 23 is used for controlling the electric telescopic rod 21 to extend, the fixing plate 22 is convenient to fix the charging basket, after the charging basket is fixed, the control panel 23 is used for controlling the first servo motor 3 to start, the first servo motor 3 drives the screw rod 4 to rotate, thereby driving the slide block 6 and the inner supporting tube 5 to descend, two dispersion discs 18 enter the charging basket, then the second servo motor 11 is started, the second servo motor 11 drives the driving wheel 12 to rotate, the driving wheel 12 drives the driven wheel 13 to rotate by the transmission belt 14, the bottom mounting box 15 rotates slowly, meanwhile, the third servo motor 16 is started, the dispersion rod 17 and the dispersion discs 18 are driven to rotate, the paint in the charging basket is dispersed and stirred, after the dispersion is completed, utilize first servo motor 3 reversal to make interior stay tube 5 rise, conveniently take out the storage bucket.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a dispenser is used in paint produce, includes bottom plate (1), its characterized in that: the top of the bottom plate (1) is fixedly provided with an outer supporting pipe (2), the top of the bottom plate (1) is fixedly provided with a first servo motor (3) positioned inside the outer supporting pipe (2), the output end of the first servo motor (3) is fixedly provided with a lead screw (4), the outer supporting pipe (2) is internally and slidably connected with an inner supporting pipe (5), the bottom of the inner wall of the inner supporting pipe (5) is fixedly provided with a slider (6), the lead screw (4) penetrates through the slider (6) and is in threaded connection with the slider (6), the two corresponding sides of the top of the outer side of the inner supporting pipe (5) are fixedly provided with mounting blocks (7), the bottoms of the two mounting blocks (7) are fixedly provided with guide rods (8), the two corresponding sides of the top of the outer supporting pipe (2) are fixedly provided with guide blocks (9), and the guide rods (8) penetrate through the guide blocks (9) and are slidably connected with the guide blocks (9), the top of the inner supporting tube (5) is fixedly provided with a top installation box (10), one side of the bottom of the top installation box (10) is fixedly provided with a second servo motor (11), the output end of the second servo motor (11) penetrates into the inside of the top installation box (10) and is fixedly provided with a driving wheel (12), one side, far away from the driving wheel (12), of the inside of the top installation box (10) is rotatably connected with a driven wheel (13), a transmission belt (14) is sleeved on the outer side of the driving wheel (12), the driving wheel (12) is in transmission connection with the driven wheel (13) through the transmission belt (14), the driven wheel (13) penetrates through the bottom of the top installation box (10) and is fixedly provided with a bottom installation box (15), the inside of the bottom installation box (15) is rotatably connected with two third servo motors (16), the output end of each third servo motor (16) penetrates through the bottom of the bottom installation box (15) and is fixedly, the bottom fixed mounting of dispersion pole (17) has dispersion impeller (18), the below fixed mounting that the top of bottom plate (1) just is located end install bin (15) has place dish (19), place dish (19) inside digging have standing groove (20), the equal fixed mounting in both sides of standing groove (20) inside corresponding has electric telescopic handle (21), the output fixed mounting of electric telescopic handle (21) has curved fixed plate (22).
2. The paint production dispenser according to claim 1, wherein a control panel (23) is fixedly installed on one side of the top installation box (10), and the first servo motor (3), the second servo motor (11), the third servo motor (16) and the electric telescopic rod (21) are electrically connected with the control panel (23).
3. The paint production dispenser according to claim 1, wherein the bottom mounting box (15) is cut with heat dissipating grooves on its outer side.
4. A paint production disperser according to claim 1, characterised in that the distance between the centres of the two dispersing discs (18) is greater than the diameter of the dispersing discs (18).
5. A paint production dispenser according to claim 1, characterized in that the centre of the said placement trough (20) and the centre of the two fixing plates (22) are located at the same point.
6. A paint production disperser according to claim 1, characterised in that the dispersing rod (17) and the dispersing disc (18) are removably attached.
7. A paint production disperser according to claim 1, characterised in that the diameter of the bottom of the laying plate (19) is greater than the diameter of the top of the laying plate (19).
