CN210989118U - Public landscape combined facility - Google Patents
Public landscape combined facility Download PDFInfo
- Publication number
- CN210989118U CN210989118U CN201921445758.0U CN201921445758U CN210989118U CN 210989118 U CN210989118 U CN 210989118U CN 201921445758 U CN201921445758 U CN 201921445758U CN 210989118 U CN210989118 U CN 210989118U
- Authority
- CN
- China
- Prior art keywords
- unit
- seat
- track
- pulley
- frame
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Combinations Of Kitchen Furniture (AREA)
Abstract
The utility model discloses a public view combination facility belongs to environmental decoration engineering technical field. The device comprises an organization track, pulleys, unit seats, unit table platforms and unit flower boxes; the organization track is a foundation for integrating all components, and the pulleys are connectors for installing all unit equipment by matching with the organization track, wherein unit seats, unit tables and unit flower boxes are common public rest function supporting facilities. The tissue track has a fixation hole for use with a fixation member for fixing the position of the tissue track. The unit seat has a supporting seat frame, a pulley mounted at the bottom of the supporting seat frame, and a seat surface and a seat back mounted at the top of the supporting seat frame. The unit table is provided with a support table frame, a pulley is arranged at the bottom of the support table frame, and a table top is arranged at the top of the support table frame. The bottom of the unit flower box is provided with a pulley which is directly combined with the organization track. The utility model provides a but the utility subassembly of different units change in a flexible way and reduce cost simplifies the problem of installation use when unified style is put together.
Description
Technical Field
The utility model relates to a public view combination facility belongs to environmental engineering technical field.
Background
Under the system of public landscape design and public indoor environment design, the design and the application of public facilities are of great importance. The most common public functional facilities include a recreation function facility, a sign function facility, a lighting function facility, and the like, and moreover, the cooperation of a decorative facility is indispensable. How to combine the public facilities with different functions in a complete environment needing integral unified design is a problem, and a general solution is to spend a great deal of time to select and match products with similar styles or customize the products with higher economic cost, and both methods have certain disadvantages. In addition, the limitations of the inherent size and shape of the product after single selection are not ignored as the problem that the product is difficult to disassemble and reform after the site operation.
Therefore, the utility model seeks to provide a public view combination facility, can satisfy the unified basis of style according to the different levels's of the nimble combination collocation result of use that freely needs.
Disclosure of Invention
The to-be-solved technical problem of the utility model is to provide the public combined facilities product of the unified style that can arrange the combination in a flexible way.
In order to solve the technical problem, the utility model provides a public landscape combined facility, which comprises an organization track, a pulley, a unit seat, a unit table and a unit flower box; the organization track is a foundation for integrating all components, and the pulleys are connectors for installing all unit equipment by matching with the organization track, wherein unit seats, unit tables and unit flower boxes are common public rest function supporting facilities. The tissue track has a fixation hole for use with a fixation member for fixing the position of the tissue track. The unit seat is provided with a supporting seat frame, the bottom of the supporting seat frame is provided with a pulley, and the top of the supporting seat frame is provided with a seat surface and a seat back; the seat facility is combined with the organization track through the support chair frame and the pulleys, and the upper part of the seat facility is provided with a seat function structure. The unit table is provided with a support table frame, the bottom of the support table frame is provided with a pulley, and the top of the support table frame is provided with a table top; the unit table is combined with the organization track through a support table frame and a pulley, and the upper part of the unit table is provided with a table function structure. The bottom of the unit flower box is provided with a pulley which is directly combined with the organization track.
A large number of limiting holes are uniformly distributed on the tissue track and are matched with the limiting assembly for use, and the limiting holes and the limiting assembly can flexibly fix the relative positions of all parts on the tissue track according to needs. The pulley can set up locking function, can further stabilize each part self on the basis of spacing hole relatively fixed each part. The seat surface and the seat back in the unit seat can be of a folding structure, different decorations can be carried out on the front surface of the seat back and the back surface of the seat surface, and more possibilities in visual and space decorations are provided for the seat of the folding structure. The placing rack can be arranged on the supporting table frame below the table top in the unit table, can provide an object placing area for a user carrying objects with him, and can be used as a placing area for other commercial or service objects such as advertisement propaganda sheet albums and the like.
When the combined facility is used, the organization track with the required length is fixed at the position where the combined facility is required to be arranged by using the fixing piece, and the unit seats, the unit table platforms and the unit flower boxes with different numbers are fixed after being arranged on the stopping track according to different required sequences, so that the assembly is completed. When the adjustment is needed to be modified, the components are sequentially removed, and the components can be rearranged and combined.
The utility model provides a but the utility subassembly of different units change in a flexible way and reduce cost simplifies the problem of installation use when unified style is put together.
Drawings

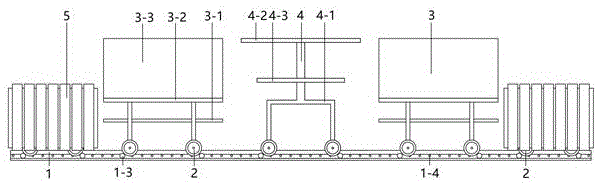

Fig. 1 is a schematic view of the structure of embodiment 1 of the present invention.
Fig. 2 is a schematic view of the structure of embodiment 2 of the present invention.
Fig. 3 is a schematic diagram of the structure of the middle tissue track of the present invention.
In the figure: 1-tissue track, 1-1-fixing hole, 1-2-fixing piece, 1-3-limiting hole, 1-4-limiting component, 2-pulley, 3-unit seat, 3-1-supporting chair frame, 3-2-chair seat, 3-3-chair back, 4-unit table, 4-1-supporting table frame, 4-2-table top, 4-3-placing frame and 5-unit flower box.
Detailed Description
The following detailed description of the embodiments of the present invention will be provided in conjunction with the accompanying drawings, and the technology or products not mentioned in the embodiments are all conventional technologies or conventional products available through purchase.
Example 1: as shown in fig. 1 and 3, the public landscape combined facility comprises an organization track 1, pulleys 2, unit seats 3, unit tables 4 and unit flower boxes 5; the organization track 1 is a foundation for integrating various components, and the pulley 2 is a connecting piece for matching the organization track 1 to install various unit devices, wherein the unit seat 3, the unit table 4 and the unit flower box 5 are common public rest function supporting facilities. The tissue track 1 is provided with a fixing hole 1-1 which is used in cooperation with a fixing piece 1-2 and used for fixing the position of the tissue track 1. The unit seat 3 is provided with a supporting seat frame 3-1, the bottom of the supporting seat frame is provided with a pulley 2, and the top of the supporting seat frame is provided with a seat surface 3-2 and a seat back 3-3; the chair facility is combined with the organization track 1 by a supporting chair frame 3-1 matched with a pulley 2, and the upper part of the chair facility is provided with a chair functional structure. The unit table 4 is provided with a support table frame 4-1, the bottom of the unit table is provided with a pulley 2, and the top of the unit table is provided with a table top 4-2; the unit table is combined with the organization track 1 through a support table frame 4-1 matched with a pulley 2, and the upper part of the unit table is provided with a table function structure. The bottom of the unit flower box 5 is provided with a pulley 2 which is directly combined with the organization track 1.
A large number of limiting holes 1-3 are uniformly distributed on the tissue track and are matched with limiting components 1-4 for use, and the limiting holes 1-3 and the limiting components 1-4 can flexibly fix the relative positions of all parts on the tissue track 1 according to requirements. The pulley 2 can be provided with a locking function, and can further stabilize each part on the basis of relatively fixing each part in the limiting holes 1-3. The seat surface 3-2 and the chair back 3-3 in the unit seat 3 are of a folding structure, different decorations are carried out on the front surface of the chair back 3-2 and the back surface of the seat surface, and the seat of the folding structure provides more possibilities in visual and space decorations.
Example 2: as shown in fig. 2 and 3, the public landscape combined facility comprises an organization track 1, pulleys 2, unit seats 3, unit tables 4 and unit flower boxes 5; the organization track 1 is a foundation for integrating various components, and the pulley 2 is a connecting piece for matching the organization track 1 to install various unit devices, wherein the unit seat 3, the unit table 4 and the unit flower box 5 are common public rest function supporting facilities. The tissue track 1 is provided with a fixing hole 1-1 which is used in cooperation with a fixing piece 1-2 and used for fixing the position of the tissue track 1. The unit seat 3 is provided with a supporting seat frame 3-1, the bottom of the supporting seat frame is provided with a pulley 2, and the top of the supporting seat frame is provided with a seat surface 3-2 and a seat back 3-3; the chair facility is combined with the organization track 1 by a supporting chair frame 3-1 matched with a pulley 2, and the upper part of the chair facility is provided with a chair functional structure. The unit table 4 is provided with a support table frame 4-1, the bottom of the unit table is provided with a pulley 2, and the top of the unit table is provided with a table top 4-2; the unit table is combined with the organization track 1 through a support table frame 4-1 matched with a pulley 2, and the upper part of the unit table is provided with a table function structure. The bottom of the unit flower box 5 is provided with a pulley 2 which is directly combined with the organization track 1.
A large number of limiting holes 1-3 are uniformly distributed on the tissue track and are matched with limiting components 1-4 for use, and the limiting holes 1-3 and the limiting components 1-4 can flexibly fix the relative positions of all parts on the tissue track 1 according to requirements. The pulley 2 can be provided with a locking function, and can further stabilize each part on the basis of relatively fixing each part in the limiting holes 1-3. The support table frame below the table top 4-2 in the unit table 4 is provided with a placing frame 4-3, the placing frame 4-3 can provide an object placing area for a user carrying articles, and can be used as a placing area for other commercial or service articles such as advertisement brochures and paintings.
The technical contents of the present invention have been described above with reference to the accompanying drawings, but the protection scope of the present invention is not limited to the contents, and within the knowledge scope possessed by the ordinary skilled in the art, various changes can be made to the technical contents of the present invention without departing from the spirit of the present invention, and any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (6)
1. A public landscape combined facility is characterized in that: comprises an organization track (1), a pulley (2), a unit seat (3), a unit table (4) and a unit flower box (5); the tissue track (1) is provided with a fixing hole (1-1) and is matched with the fixing piece (1-2) for use; the unit seat (3) is provided with a supporting seat frame (3-1), the bottom of the supporting seat frame (3-1) is provided with a pulley (2), and the top is provided with a seat surface (3-2) and a seat back (3-3); the unit table (4) is provided with a support table frame (4-1), the bottom of the support table frame is provided with a pulley (2), and the top of the support table frame is provided with a table top (4-2); the bottom of the unit flower box (5) is provided with a pulley (2).
2. The communal landscape assembly of claim 1, wherein: the tissue track (1) is provided with a large number of limiting holes (1-3) which are uniformly distributed and matched with limiting components (1-4) for use.
3. The communal landscape assembly of claim 1, wherein: the pulley (2) can be provided with a locking function.
4. The communal landscape assembly of claim 1, wherein: the seat surface (3-2) and the seat back (3-3) in the unit seat (3) can be of a folding structure.
5. The communal landscape assembly of claim 1, wherein: different decorations are carried out on the front surface of the chair back (3-3) and the back surface of the chair surface (3-2).
6. The communal landscape assembly of claim 1, wherein: a placing rack (4-3) is arranged on a supporting table frame (4-1) below a table top (4-2) in the unit table (4).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201921445758.0U CN210989118U (en) | 2019-09-02 | 2019-09-02 | Public landscape combined facility |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201921445758.0U CN210989118U (en) | 2019-09-02 | 2019-09-02 | Public landscape combined facility |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN210989118U true CN210989118U (en) | 2020-07-14 |
