Abstract

The utility model discloses an automatic watering device for gardens, comprising a base, a support and a shunt pipe. A support is provided on the left side of the upper end of the base, a water tank is provided on the right side of the support, and an inlet is provided on the right side of the upper end of the water tank. The water port, the lower end of the water tank is fixedly connected to the base, the upper end of the water tank is connected with a hose, the left end of the hose is connected with a water pump, the lower end of the water pump is fixed with a connecting bracket, the left end of the water pump is connected with a shunt pipe through the hose, and the left end of the shunt pipe and the front and rear ends are provided with The nozzle, the lower end of the shunt pipe is provided with a fixed plate, the lower side of the fixed plate is installed with a lifting plate, the upper and the front of the lifting plate are provided with limit blocks, and the upper end of the lifting plate is provided with a slot corresponding to the fixed plate, and The fixed plate is slidably connected to the lifting plate. When the utility model is used, the micro servo motor drives the rotating shaft to rotate, and the rotating shaft drives the fixed plate and the shunt pipe to swing back and forth, which facilitates fine-tuning of the angle of the nozzle and improves the applicability of the nozzle.

Description

An automatic watering device for gardens

technical field

The utility model relates to the technical field of garden tools, in particular to an automatic watering device for gardens.

Background technique

Garden refers to a specific cultivated natural environment and recreational environment. Using engineering technology and artistic means in a certain area, by transforming the terrain (or further building mountains, stacking rocks, and managing water), planting trees and flowers, building buildings and arranging garden roads, the beautiful natural environment and recreational environment are created. It's called a garden. It is unique in traditional Chinese architecture, and the most important achievement is the classical garden architecture. An art form in traditional Chinese culture, deeply influenced by the traditional "ritual and music" culture. Through terrain, landscape, buildings, flowers and trees, etc. as a carrier to set off the spiritual culture of human subjects. Garden has many extension concepts: garden community, garden street, garden city (ecological city), national garden county and so on. Modern lifestyle and living environment have urgent functional and artistic requirements for gardens. It plays an increasingly important role in our modern life and the development direction of the people in the future.

Existing garden watering often uses manual hand-held water pipes to water garden plants, which is not only time-consuming and labor-intensive, but also has low watering efficiency. Therefore, those skilled in the art provide an automatic watering device for gardens to solve the problems raised in the above background art.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an automatic watering device for gardens, so as to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

An automatic watering device for gardening, comprising a base, a bracket and a shunt pipe, a bracket is arranged on the left side of the upper end of the base, a water tank is arranged on the right side of the bracket, a water inlet is arranged on the right side of the upper end of the water tank, and the lower end of the water tank is fixed Connect the base, the upper end of the water tank is connected with a hose, the left end of the hose is connected with a water pump, the lower end of the water pump is fixed with a connecting bracket, the left end of the water pump is connected with a shunt pipe, and the left end of the shunt pipe and the front and rear ends are provided with nozzles, the water pump passes through the soft pipe. Pipes, shunts and sprinklers draw the water out of the tank to water the garden plants around the device.

As a further solution of the present utility model: the lower end of the shunt pipe is provided with a fixing plate, the lower side of the fixing plate is installed with a lifting plate, the upper and the rear of the lifting plate are provided with limit blocks, and the upper end of the lifting plate corresponds to the fixing plate There is a card slot, and the fixed plate is slidably connected to the lifting plate. The fixed plate is provided with a rotating shaft, and the rotating shaft is inserted into the lifting plate. A micro servo motor is installed on the right end of the rotating shaft. Rod 1, the lower end of the hydraulic rod is fixedly connected to the base, the hydraulic rod 1 drives the lifting plate, the fixed plate and the shunt pipe to move up and down, which is convenient for watering garden plants of different heights. The micro servo motor drives the rotating shaft to rotate, and the rotating shaft drives the fixed plate and the shunt. The tube swings back and forth, which is convenient for fine-tuning the angle of the nozzle and improves the applicability of the nozzle.

As a further solution of the present invention: the lower end of the support is provided with a second hydraulic rod, the lower end of the hydraulic rod is provided with a connecting plate, the middle of the lower end of the support is provided with a support plate, and the support and the support plate respectively correspond to the left and right of the connecting plate There are chutes at both ends, a drive motor is installed at the lower end of the connecting plate, a motor shaft is installed at the lower end of the drive motor, and a blade is installed at the lower end of the motor shaft. Connecting the base, the four corners of the lower end of the base are provided with rollers, the right end of the base is provided with a handle, and the left side of the lower end of the base is provided with a battery, the water pump, micro servo motor, hydraulic rod 1, hydraulic rod 2 and drive motor are all electrically connected The battery, the hydraulic rod 2 drives the connecting plate, the driving motor, the motor shaft and the blade to descend, so that the blade is in contact with the grass on the ground, and the driving motor drives the motor shaft and the blade to rotate, which is convenient for watering the garden grass and weeding work at the same time .

Compared with the prior art, the beneficial effects of the present utility model are:

1. When the utility model is in use, the staff moves the equipment to the garden work area through the handle and the roller, and the water pump draws out the water in the water tank through the hose, the shunt pipe and the nozzle, which can water the garden vegetation around the equipment, As soon as the hydraulic rod drives the lifting plate, the fixing plate and the shunt pipe to move up and down, it is convenient to water garden plants of different heights.

2. When the utility model is used, the micro servo motor drives the rotating shaft to rotate, and the rotating shaft drives the fixed plate and the shunt pipe to swing back and forth, which is convenient for fine-tuning the angle of the nozzle and improves the applicability of the nozzle.

3. When the utility model is used, when watering the garden plants, the second hydraulic rod drives the connecting plate, the driving motor, the motor shaft and the blade to descend, so that the blade contacts the grass on the ground, and the driving motor drives the motor shaft and the blade to rotate. , it is convenient to perform weeding work at the same time when watering the garden plants and trees, which improves the work efficiency. After the weeding is completed, the hydraulic rod two drives the blade to rise to the protection plate, which is convenient for protecting the blade.

4. When the utility model is used, the roller is convenient for the staff to use the mobile equipment when working, the whole equipment is highly automated, saves time, saves labor, and improves work efficiency.

Description of drawings

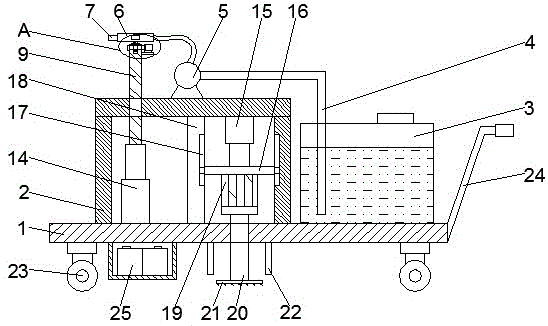

FIG. 1 is a schematic structural diagram of an automatic watering device for gardens.

FIG. 2 is a schematic structural diagram of part A in an automatic watering device for gardens.

FIG. 3 is a left-view structural schematic diagram of a shunt pipe in an automatic watering device for gardens.

FIG. 4 is a top-view structural schematic diagram of a shunt pipe in an automatic watering device for gardens.

In the picture: 1. Base; 2. Bracket; 3. Water tank; 4. Hose; 5. Water pump; 6. Diverter pipe; 7. Sprinkler; 8. Fixed plate; 9. Lifting plate; 10. Rotating shaft; 11. Limit Position block; 12, micro servo motor; 13, limit plate; 14, hydraulic rod one; 15, hydraulic rod two; 16, connecting plate; 17, chute; 18, support plate; 19, drive motor; 20, motor Axle; 21, blade; 22, protective plate; 23, roller; 24, handle; 25, battery.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to FIGS. 1 to 4 , in an embodiment of the present invention, an automatic watering device for gardens includes a base 1 , a support 2 and a shunt 6 , and a support 2 is provided on the left side of the upper end of the base 1 . The support 2 The right side is provided with a water tank 3, the upper end of the water tank 3 is provided with a water inlet on the right side, the lower end of the water tank 3 is fixedly connected to the base 1, the upper end of the water tank 3 is connected with a hose 4, the left end of the hose 4 is connected with a water pump 5, and the lower end of the water pump 5 is connected The connection bracket 2 is fixed, the left end of the water pump 5 is connected with a shunt pipe 6 through a hose 4, and the left end and the front and rear ends of the shunt pipe 6 are provided with spray heads 7;

The lower end of the shunt pipe 6 is provided with a fixing plate 8 , a lifting plate 9 is installed on the lower side of the fixing plate 8 , the upper end of the lifting plate 9 is provided with limit blocks 11 on both sides, and the upper end of the lifting plate 9 corresponds to the fixing plate 8 There is a slot, and the fixed plate 8 is slidably connected to the lifting plate 9. The fixed plate 8 is provided with a rotating shaft 10, and the rotating shaft 10 is inserted into the lifting plate 9. The right end of the rotating shaft 10 is installed with a micro servo motor 12. The position plate 13, the lower end of the lifting plate 9 is provided with a hydraulic rod 1 14, and the lower end of the hydraulic rod 1 14 is fixedly connected to the base 1;

A hydraulic rod 2 15 is provided on the right side of the lower end of the bracket 2, a connecting plate 16 is provided at the lower end of the hydraulic rod 2 15, a supporting plate 18 is provided in the middle of the lower end of the bracket 2, and the bracket 2 and the supporting plate 18 correspond to the left and right of the connecting plate 16 respectively. The two ends are provided with chute 17, the lower end of the connecting plate 16 is provided with a driving motor 19, the lower end of the driving motor 19 is provided with a motor shaft 20, the lower end of the motor shaft 20 is provided with a blade 21, and the lower end of the base 1 corresponds to the left and right sides of the blade 21. There is a protective plate 22, and the upper end of the protective plate 22 is fixedly connected to the base 1, the four corners of the lower end of the base 1 are provided with rollers 23, the right end of the base 1 is provided with a handle 24, the left side of the lower end of the base 1 is provided with a battery 25, the water pump 5 , Micro servo motor 12 , hydraulic rod 1 14 , hydraulic rod 2 15 and drive motor 19 are all electrically connected to battery 25 .

The working principle of the utility model is as follows: when the utility model is used, the staff moves the equipment to the garden work area through the handle 24 and the roller 23, and the water pump 5 transfers the water in the water tank 3 through the hose 4, the shunt pipe 6 and the spray head 7. It can be pulled out to water the garden plants around the equipment. The hydraulic rod 1 14 drives the lifting plate 9, the fixed plate 8 and the shunt pipe 6 to move up and down, which is convenient for watering garden plants of different heights. The micro servo motor 12 drives the rotating shaft 10. Rotation, the rotating shaft 10 drives the fixed plate 8 and the shunt pipe 6 to swing back and forth, which is convenient to realize the fine adjustment of the angle of the nozzle 7. When watering the garden plants, the hydraulic rod two 15 drives the connecting plate 16, the driving motor 19, the motor shaft 20 and the The blade 21 is lowered, so that the blade 21 is in contact with the grass on the ground, and the drive motor 19 drives the motor shaft 20 and the blade 21 to rotate, which facilitates the weeding work when watering the garden grass and trees, and improves the work efficiency. The second hydraulic rod 15 drives the blade 21 to rise into the protection plate 22, which is convenient for protecting the blade 21, and the roller 23 is convenient for the staff to use the mobile equipment when working, saving physical strength.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. An automatic watering device for gardens, comprising a base (1), a support (2) and a shunt (6), characterized in that a support (2) is provided on the left side of the upper end of the base (1), The right side of the bracket (2) is provided with a water tank (3), the upper end of the water tank (3) is provided with a water inlet on the right side, the lower end of the water tank (3) is fixedly connected to the base (1), and the upper end of the water tank (3) is connected with a hose (4), the left end of the hose (4) is connected with the water pump (5), the lower end of the water pump (5) is fixedly connected to the bracket (2), and the left end of the water pump (5) is connected with the shunt pipe (6) through the hose (4), the shunt pipe (6) The left end and the front and rear ends are provided with spray heads (7), the lower end of the shunt pipe (6) is provided with a fixing plate (8), and a lifting plate (9) is installed on the lower side of the fixing plate (8). (8) A rotating shaft (10) is provided on the rotating shaft (10), and the rotating shaft (10) is inserted on the lifting plate (9), a micro servo motor (12) is installed on the right end of the rotating shaft (10), and a limit plate ( 13), the lower end of the lifting plate (9) is provided with a hydraulic rod one (14), the lower end of the hydraulic rod one (14) is fixedly connected to the base (1), and the right side of the lower end of the bracket (2) is provided with a hydraulic rod two (15), The lower end of the second hydraulic rod (15) is provided with a connecting plate (16), the lower end of the connecting plate (16) is provided with a driving motor (19), the lower end of the driving motor (19) is provided with a motor shaft (20), and the lower end of the motor shaft (20) is provided with a motor shaft (20). A blade (21) is provided, rollers (23) are provided at the four corners of the lower end of the base (1), a handle (24) is provided at the right end of the base (1), and a battery (25) is provided on the left side of the lower end of the base (1). 2. An automatic watering device for gardening according to claim 1, wherein the upper end of the lifting plate (9) is provided with a slot corresponding to the fixing plate (8), and the fixing plate (8) slides Connect the lift plate (9). 3 . The automatic watering equipment for gardening according to claim 1 , characterized in that, limit blocks ( 11 ) are provided on both the front and rear sides of the upper end of the lift plate ( 9 ). 4 . 4. An automatic watering device for gardening according to claim 1, characterized in that a support plate (18) is provided in the middle of the lower end of the bracket (2), and the bracket (2) is connected to the support plate (18). ) are respectively provided with chute (17) corresponding to the left and right ends of the connecting plate (16). 5. An automatic watering device for gardening according to claim 1, characterized in that, protection plates (22) are provided on the left and right sides of the lower end of the base (1) corresponding to the blade (21), and protect the The upper end of the plate (22) is fixedly connected to the base (1). 6. The automatic watering equipment for gardening according to claim 1, characterized in that the water pump (5), the micro servo motor (12), the hydraulic rod one (14), the hydraulic rod two (15) ) and the drive motor (19) are electrically connected to the battery (25).
