Abstract
The utility model discloses a monitoring device of an unattended transformer substation, which relates to the technical field of the unattended transformer substation and comprises a support frame, wherein one side of the support frame is provided with a first linear motor, one side of the first linear motor is provided with a first linear motor block, one side of the first linear motor block is fixedly connected with a cross bar through a bolt, the front surface of the cross bar is provided with a second linear motor, one side of the second linear motor is provided with a second linear motor block, the front surface of the second linear motor block is fixedly connected with a connecting rod through a bolt, the utility model solves the problems that monitoring is carried out by adopting a fixed camera, a plurality of cameras are required to be installed and maintenance and management are not beneficial through the cross bar and the support frame, and solves the problems that maintenance and management are not beneficial through a lamp tube and lamps are installed in a large scale to supplement light, is not beneficial to saving point resources.
Description
Technical Field
The utility model belongs to the technical field of unmanned on duty transformer substation, concretely relates to monitoring device of unmanned on duty transformer substation.
Background
The unattended transformer substation is a transformer substation which is not attended by people on site, the transformer substation is a place for converting voltage and current in an electric power system and receiving electric energy and distributing the electric energy, the unattended transformer substation needs to be provided with a monitoring device to monitor the transformer substation in real time so as to ensure the safety and normal operation of the transformer substation, the monitoring device can transmit things happening to the transformer substation to a monitoring center in real time, people are helped to manage the transformer substation, the existing unattended transformer substation monitoring device mostly adopts a fixed camera to monitor, a plurality of cameras need to be installed, maintenance and management are not facilitated, the monitoring device needs to be provided with additional lamps to supplement light at night, the lamps are installed on a large scale, point resources are not saved, and based on the problems, the unattended transformer substation monitoring device is provided.
Disclosure of Invention
An object of the utility model is to provide an unmanned on duty transformer substation monitoring device to the fixed camera of adoption that proposes in solving above-mentioned background art monitors, need install a plurality of cameras, is unfavorable for the maintenance management, and installs lamps and lanterns on a large scale and supply light, is unfavorable for the problem of saving some resources.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an unmanned on duty transformer substation monitoring device, includes the support frame, first linear electric motor is installed to one side of support frame, and one side of first linear electric motor installs first linear electric motor subblock, bolt fixedly connected with horizontal pole is passed through to one side of first linear electric motor subblock, and the horizontal pole drives the top and installs the dash board, the front surface mounting of horizontal pole has second linear electric motor, and one side of second linear electric motor installs second linear electric motor subblock, bolt fixedly connected with connecting rod is passed through to the front surface of second linear electric motor subblock.
Preferably, the camera is installed to the bottom of connecting rod, and the bottom of connecting rod installs the mounting bracket, a bolt fixedly connected with lamp section of thick bamboo is passed through to the bottom of mounting bracket, and the internally mounted of a lamp section of thick bamboo has a lamp stand, the cable socket is installed at the top of lamp stand, and the lamps and lanterns are installed to the outer wall of lamp stand.
Preferably, the top of support frame is installed the roof, and one side of support frame installs the block terminal.
Preferably, the internally mounted wireless signal transceiver of block terminal, and the controller is installed to wireless signal transceiver's top, signal converter is installed to the top of controller, and signal converter's top installs data cable, camera, lamps and lanterns, wireless signal transceiver, signal converter, first linear electric motor and second linear electric motor all with controller electric connection.
Preferably, at least ten lamps are arranged, and the lamps are distributed on the lamp barrel in an annular array.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model discloses a horizontal pole and support frame, camera are installed on the horizontal pole, utilize linear electric motor to drive the camera and control from top to bottom, can change the position of camera, and convenient to use person controls the camera, has solved and has adopted fixed camera to monitor, need install a plurality of cameras, is unfavorable for the problem of maintenance management.
(2) The utility model discloses a lamp section of thick bamboo installs a plurality of lamps and lanterns in the lamp section of thick bamboo, and a lamp section of thick bamboo is fixed and is transferred at the camera, follows the camera and removes, and anytime and anywhere supplements light, has solved and has been unfavorable for maintenance management, and installs lamps and lanterns on a large scale and supply light, is unfavorable for the problem of saving point resource.
Drawings

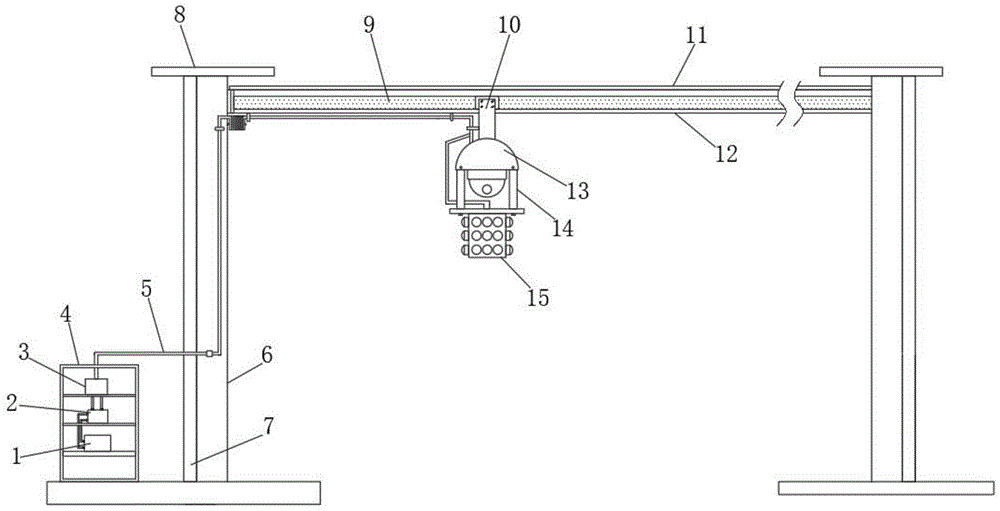

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a side view of the cross bar and flashing of the present invention;
fig. 3 is a top view of the support frame and the first linear motor of the present invention;
fig. 4 is a top view of the lamp cartridge of the present invention;
fig. 5 is a circuit block diagram of the present invention;
in the figure: 1-a wireless signal transceiver; 2-a controller; 3-a signal converter; 4-a distribution box; 5-a data cable; 6-a support frame; 7-a first linear motor; 8-a top plate; 9-a second linear motor; 10-a connecting rod; 11-a flashing; 12-a cross-bar; 13-a camera; 14-a mounting frame; 15-a lamp barrel; 16-a second linear motor block; 17-a first linear motor block; 18-a lamp holder; 19-a lamp; 20-cable socket.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides the following technical solutions: a monitoring device of an unattended transformer substation comprises a support frame 6, wherein a first linear motor 7 is installed on one side of the support frame 6, a first linear motor sub-block 17 is installed on one side of the first linear motor 7, a cross rod 12 is fixedly connected to one side of the first linear motor sub-block 17 through a bolt, a rain shielding plate 11 is installed at the top of the cross rod 12 in a driving mode, the rain shielding plate 11 is used for shielding rainwater, the rainwater is prevented from staying on the surface of the linear motor to cause rusting of the surface of the linear motor and influence the horizontal movement of a rotor slider, a second linear motor 9 is installed on the front surface of the cross rod 12, a second linear motor sub-block 16 is installed on one side of the second linear motor 9, the front surface of the second linear motor sub-block 16 is fixedly connected with a connecting rod 10 through a bolt, and the linear motor directly converts electric energy into linear motion, and a transmission device of any intermediate conversion mechanism is not needed, and after the linear motor is electrified, the rotor slider can perform linear motion on a stator guide rail on the linear motor.
Further, camera 13 is installed to the bottom of connecting rod 10, and mounting bracket 14 is installed to the bottom of connecting rod 10, bolt fixedly connected with lamp section of thick bamboo 15 is passed through to mounting bracket 14's bottom, and the internally mounted of lamp section of thick bamboo 15 has lamp stand 18, and the outer wall of lamp stand 18 is provided with the round hole of screw thread shape, and the one end of the screw thread type lamps and lanterns 19 of being convenient for is installed inside lamp stand 18 through the mode that the screw thread closes soon, cable socket 20 is installed at the top of lamp stand 18, and lamps and lanterns 19 are installed to the outer wall of lamp stand 18, and the base of lamps and lanterns.
Further, a top plate 8 is installed at the top of the support frame 6, and the distribution box 4 is installed on one side of the support frame 6.
Further, the internally mounted wireless signal transceiver 1 of block terminal 4, and controller 2 is installed to the top of wireless signal transceiver 1, signal converter 3 is installed to the top of controller 2, and data cable 5 is installed at signal converter 3's top, camera 13, lamps and lanterns 19, wireless signal transceiver 1, signal converter 3, first linear electric motor 7 and second linear electric motor 9 all with controller 2 electric connection, first linear electric motor 7 and second linear electric motor 9 all adopt M L A20, rated voltage 220V, controller 2 adopt accuse KY7.5/72F, and rated voltage is 24V.
Further, at least ten lamps 19 are arranged, and the lamps 19 are distributed on the lamp barrel 15 in an annular array.
The utility model discloses a theory of operation and use flow: when in use, the monitoring device is switched on, the two support frames 6 are arranged on the passageway of the transformer substation, the lamp 19 is then screwed onto the barrel 15, the power cord plug is plugged into the cable socket 20, then the lamp tube 15 is fixed at the bottom of the camera 13 through bolts, when the transformer substation is monitored at night, the power switch of the lamp 19 is turned on, the lamp 19 illuminates the periphery, the video information of the transformer substation is recorded into the camera 13, the video information is processed by the signal converter 3 and then is sent to the monitoring center through the wireless signal transceiver 1, the monitoring center watches the monitoring video content through the display and controls the camera 13 to move, the first linear motor electronic block 17 on the first linear motor 7 drives the cross rod 12 to move up and down, and the second linear motor electronic block 16 on the second linear motor 9 drives the connecting rod 10 and drives the camera 13 to move left and right.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides an unattended substation monitoring device which characterized in that: including support frame (6), first linear electric motor (7) are installed to one side of support frame (6), and one side of first linear electric motor (7) installs first linear electric motor subblock (17), bolt fixedly connected with horizontal pole (12) are passed through to one side of first linear electric motor subblock (17), and horizontal pole (12) drive the top and install dash board (11), the preceding surface mounting of horizontal pole (12) has second linear electric motor (9), and one side of second linear electric motor (9) installs second linear electric motor subblock (16), the preceding surface of second linear electric motor subblock (16) passes through bolt fixedly connected with connecting rod (10).
2. The unattended substation monitoring device according to claim 1, wherein: camera (13) are installed to the bottom of connecting rod (10), and mounting bracket (14) are installed to the bottom of connecting rod (10), bolt fixedly connected with lamp section of thick bamboo (15) are passed through to the bottom of mounting bracket (14), and the internally mounted of lamp section of thick bamboo (15) has lamp stand (18), cable socket (20) are installed at the top of lamp stand (18), and lamps and lanterns (19) are installed to the outer wall of lamp stand (18).
3. The unattended substation monitoring device according to claim 1, wherein: roof (8) are installed at the top of support frame (6), and block terminal (4) are installed to one side of support frame (6).
4. An unattended substation monitoring device according to claim 3, characterised in that: the internally mounted wireless signal transceiver (1) of block terminal (4), and controller (2) are installed to the top of wireless signal transceiver (1), signal converter (3) are installed to the top of controller (2), and data cable (5) are installed at the top of signal converter (3), camera (13), lamps and lanterns (19), wireless signal transceiver (1), signal converter (3), first linear electric motor (7) and second linear electric motor (9) all with controller (2) electric connection.
5. The unattended substation monitoring device according to claim 4, wherein: at least ten lamps (19) are arranged, and the lamps (19) are distributed on the lamp barrel (15) in an annular array.
