Abstract
The utility model discloses a network computer lab is with adjustable monitoring device, including monitor, monitoring box and fixed case, the both sides of fixed incasement portion are provided with the fixed slot, and the inside of fixed slot all is provided with the connecting block, install the installing support between the bottom of connecting block, and the bottom of installing support installs monitoring box, one side of the inside bottom of monitoring box is installed and is supported the bull stick, and supports the mounting of bull stick top and run through monitoring box lateral wall's monitor, the lower extreme of second dwang articulates there is the movable rod, clean groove is installed to the bottom of movable rod, and the both ends of clean inslot portion all are provided with the mounting panel, and install the clean strip of cylinder between the inboard lower extreme of mounting panel. The utility model discloses a set up first spring and first stopper in fixed incasement, utilize the elasticity of first spring for first stopper is to the spacing fixed of connecting block, makes when dismantling, installing this device, and is more convenient.
Description
Technical Field
The utility model relates to a computer lab control technical field specifically is an adjustable monitoring device is used to network computer lab.
Background
With the continuous development of information network technology, various scales are different in size, network equipment rooms with different equipment types and quantities are widely distributed in regions where branch mechanisms of users are located, in order to guarantee timely feedback of conditions in the rooms, monitoring devices need to be installed in the rooms, and the existing adjustable monitoring devices for the network equipment rooms have many problems or defects.
First, traditional network is adjustable monitoring device for computer lab does not have convenient to detach function, is difficult to dismantle after the installation, when needs are changed, is maintained, and is very inconvenient.
Secondly, the traditional adjustable monitoring device for the network machine room can only fix one angle for monitoring, and has a large monitoring dead angle.
Thirdly, the traditional adjustable monitoring device for the network machine room is not provided with a cleaning structure, and a monitoring lens has a large amount of dust to influence the use after being used for a long time.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a network computer lab is with adjustable monitoring device to what provide does not have the convenient to detach function in solving above-mentioned background art, be difficult to dismantle after the installation, when needs are changed, are maintained, very inconvenient, can only fix an angle control, have very big control dead angle and do not rinse the structure, long-time the use, and monitoring camera has a large amount of dusts, influences the problem of using.
In order to achieve the above object, the utility model provides a following technical scheme: an adjustable monitoring device for a network machine room comprises a monitoring probe, a monitoring box and a fixed box, wherein fixed grooves are arranged on two sides of the interior of the fixed box, connecting blocks are arranged in the fixed grooves, a mounting bracket is installed between the bottoms of the connecting blocks, the monitoring box is installed at the bottom end of the mounting bracket, a supporting rotating rod is installed on one side of the bottom end of the interior of the monitoring box, the monitoring probe penetrating through the side wall of the monitoring box is installed at the top end of the supporting rotating rod, a driving motor is installed on one side, away from the mounting bracket, of the top end of the monitoring box, a first rotating disc is installed at the output end of the driving motor, a first rotating rod is installed at the middle position of one side, away from the driving motor, of the first rotating disc, a second rotating rod is hinged to the lower end of the first rotating rod, a movable rod is hinged to, and the two ends of the inner part of the cleaning groove are provided with mounting plates, and a roller cleaning strip is arranged between the lower ends of the inner sides of the mounting plates.
Preferably, the upper end that the control box is close to movable rod one side is provided with the spout, and the inside of spout is provided with the slider, the connecting rod is transversely installed to one side that the control box was kept away from to the slider, and one side that the control box was kept away from to the connecting rod and movable rod one side upper end fixed connection.
Preferably, clean groove both ends intermediate position department all is provided with the rotatory threaded rod that runs through clean groove lateral wall, and the inside second spring that has all twined of the clean inslot portion on rotatory threaded rod surface to the second stopper is all installed to the one end of rotatory threaded rod, the mounting panel is close to rotatory threaded rod one side and all is provided with the second spacing groove with second stopper matched with.
Preferably, the middle position of one side of the central line is kept away from by the fixed box is transversely provided with a first limiting groove, the inner part of the first limiting groove is transversely provided with a pull rod penetrating through the side wall of the fixed box, the inner part of the first limiting groove in the outer side of the pull rod is wound with a first spring, and one end of the pull rod, which is close to the connecting block, is provided with a first limiting block.
Preferably, the intermediate position department that supports the bull stick installs the second carousel, and the inside of second carousel evenly is provided with the rotation groove, monitor keeps away from the lower extreme of cylinder cleaning strip one side and installs step motor, and step motor's output installs the third carousel to the rotary rod is installed to one side of third carousel.
Preferably, the install bin is installed to the upper end that monitor probe one side was kept away from to the control box, and the install bin keeps away from one side of control box and evenly is provided with the through-hole, the inside one side that is close to the control box of install bin installs the fan, and the vertical filter screen of installing bin inside fan one side.
Compared with the prior art, the beneficial effects of the utility model are that: this network machine room is with adjustable monitoring device is rational in infrastructure, has following advantage:
1. through setting up first spring, pull rod and first stopper in fixed incasement, when needs overhaul or change this device, can pull the pull rod, make its compression first spring for first stopper removes, removes the fixed to the connecting block, and then can be convenient pull down, during the installation, utilizes the elasticity of first spring, firmly fixes the connecting block, makes to overhaul or change more convenient.
2. Through set up second carousel and third carousel in the control box, through starting step motor, drive the rotation of third carousel, drive the rotary rod and rotate, utilize the rotary rod and rotate the cooperation in groove for the second carousel rotates, thereby drives monitor probe's rotation, realizes the control of multi-angle, reduces the control dead angle, improves the device practicality.
3. Through setting up driving motor on monitoring case top, and one side of monitoring case sets up the clean strip of cylinder, when monitor surface dust is more, can start driving motor, drive the rotation of first dwang, and then drive the rotation of first dwang, make the second dwang rotate, through the slip of slider in the spout, make the movable rod pass through the connecting rod and realize reciprocating, and then drive the clean strip of cylinder and clean the monitor surface, prevent that the dust from piling up, influence device's normal use, and after the clean strip live time of cylinder is longer, rotatable rotatory threaded rod, make the second stopper leave the second spacing groove, and then make and to take off the clean strip of cylinder and wash, guarantee the clean effect of the clean strip of cylinder.
Drawings

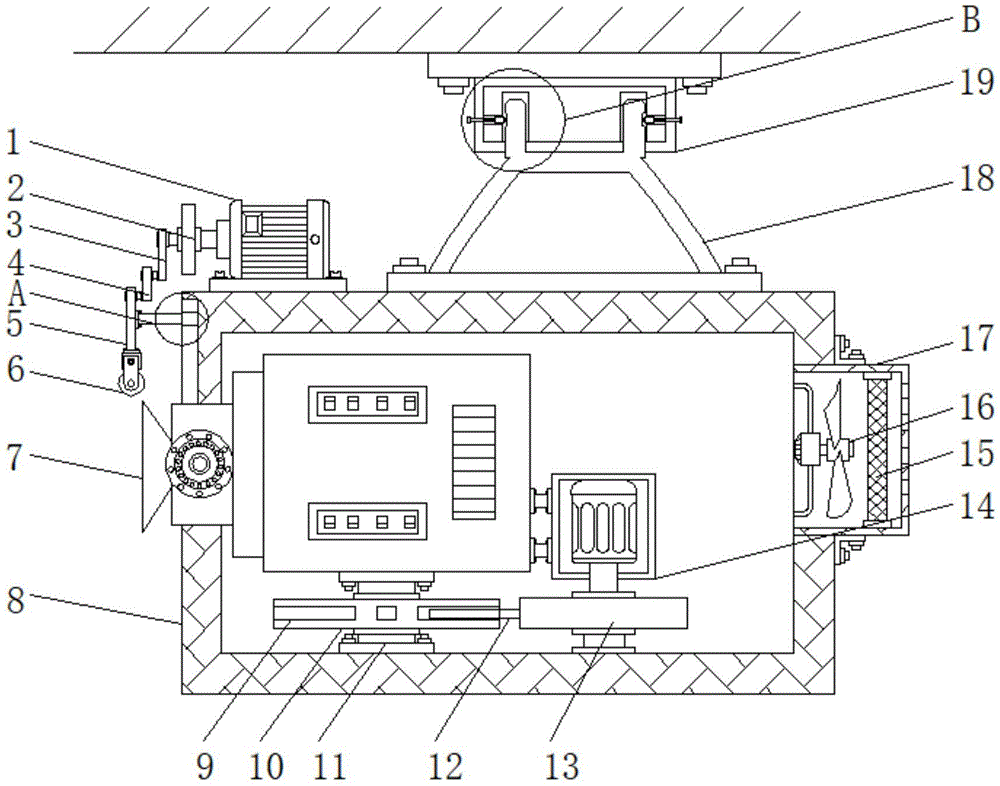

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 3 is an enlarged schematic view of the structure of FIG. 1 at B according to the present invention;
fig. 4 is a schematic side view of the present invention;
FIG. 5 is an enlarged schematic view of the structure of FIG. 4;
fig. 6 is a schematic top view of the third turntable according to the present invention.
In the figure: 1. a drive motor; 2. a first turntable; 3. a first rotating lever; 4. a second rotating lever; 5. a movable rod; 6. a roller cleaning bar; 7. monitoring the probe; 8. a monitoring box; 9. a rotating groove; 10. a second turntable; 11. supporting the rotating rod; 12. rotating the rod; 13. a third turntable; 14. a stepping motor; 15. filtering with a screen; 16. a fan; 17. installing a box; 18. mounting a bracket; 19. a fixed box; 20. a connecting rod; 21. a slider; 22. a chute; 23. a first spring; 24. a pull rod; 25. connecting blocks; 26. fixing grooves; 27. a first stopper; 28. a first limit groove; 29. cleaning the tank; 30. rotating the threaded rod; 31. a second spring; 32. mounting a plate; 33. a second limiting block; 34. a second limit groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides an embodiment: an adjustable monitoring device for a network machine room comprises a monitoring probe 7, a monitoring box 8 and a fixed box 19, wherein fixed grooves 26 are formed in two sides of the interior of the fixed box 19, and connecting blocks 25 are arranged in the interior of the fixed grooves 26;
a first limiting groove 28 is transversely formed in the middle of one side, away from the central line, of the fixed box 19, a pull rod 24 penetrating through the side wall of the fixed box 19 is transversely arranged in the first limiting groove 28, a first spring 23 is wound in the first limiting groove 28 on the outer side of the pull rod 24, and a first limiting block 27 is arranged at one end, close to the connecting block 25, of the pull rod 24;
the pull rod 24 is pulled to compress the first spring 23, so that the first limiting block 27 moves, the fixing of the connecting block 25 is released, the connecting block 25 can be conveniently detached, and the connecting block 25 is firmly fixed by using the elastic force of the first spring 23 during installation, so that the overhauling or replacement is more convenient;
a mounting bracket 18 is arranged between the bottom ends of the connecting blocks 25, and a monitoring box 8 is arranged at the bottom end of the mounting bracket 18;
the upper end of one side, away from the monitoring probe 7, of the monitoring box 8 is provided with an installation box 17, through holes are uniformly formed in one side, away from the monitoring box 8, of the installation box 17, a fan 16 is installed in one side, close to the monitoring box 8, of the interior of the installation box 17, the model of the fan 16 can be DD L-I, and a filter screen 15 is vertically installed on one side, close to the fan 16, of the interior of the installation box 17;
the fan 16 works to blow heat in the monitoring box 8 out of the monitoring box 8, and due to the existence of the filter screen 15, dust can be prevented from entering the monitoring box 8, so that a good working environment of electric appliances in the monitoring box 8 is ensured, and the service life of the device is prolonged;
one side of the bottom end in the monitoring box 8 is provided with a supporting rotating rod 11;
a second rotary table 10 is arranged in the middle of the supporting rotary rod 11, rotary grooves 9 are uniformly formed in the second rotary table 10, a stepping motor 14 is arranged at the lower end of one side, away from the roller cleaning strip 6, of the monitoring probe 7, the type of the stepping motor 14 can be 57HS22, a third rotary table 13 is arranged at the output end of the stepping motor 14, and a rotary rod 12 is arranged at one side of the third rotary table 13;
the stepping motor 14 is started to drive the third rotary table 13 to rotate and drive the rotary rod 12 to rotate, and the second rotary table 10 is rotated by utilizing the matching of the rotary rod 12 and the rotary groove 9, so that the monitoring probe 7 is driven to rotate, multi-angle monitoring is realized, monitoring dead angles are reduced, and the practicability of the device is improved;
a monitoring probe 7 penetrating through the side wall of the monitoring box 8 is installed at the top end of the supporting rotating rod 11, a driving motor 1 is installed at one side, far away from the installation support 18, of the top end of the monitoring box 8, the type of the driving motor 1 can be Y315S-4, a first rotating disc 2 is installed at the output end of the driving motor 1, a first rotating rod 3 is installed at the middle position, far away from the driving motor 1, of the first rotating disc 2, the lower end of the first rotating rod 3 is hinged to a second rotating rod 4, and a movable rod 5 is hinged to the lower end of the second rotating rod 4;
a sliding groove 22 is formed in the upper end of one side, close to the movable rod 5, of the monitoring box 8, a sliding block 21 is arranged inside the sliding groove 22, a connecting rod 20 is transversely installed on one side, far away from the monitoring box 8, of the sliding block 21, and one side, far away from the monitoring box 8, of the connecting rod 20 is fixedly connected with the upper end of one side of the movable rod 5;
through the sliding of the sliding block 21 in the sliding groove 22, the movable rod 5 can move up and down through the connecting rod 20, and the movement is more stable;
the bottom end of the movable rod 5 is provided with a cleaning groove 29;
the middle positions of the two ends of the cleaning groove 29 are respectively provided with a rotary threaded rod 30 penetrating through the side wall of the cleaning groove 29, the cleaning groove 29 on the surface of the rotary threaded rod 30 is wound with a second spring 31, one end of the rotary threaded rod 30 is provided with a second limiting block 33, and one side of the mounting plate 32, which is close to the rotary threaded rod 30, is provided with a second limiting groove 34 matched with the second limiting block 33;
the second limiting block 33 leaves the second limiting groove 34 by rotating the rotary threaded rod 30, so that the roller cleaning strip 6 can be taken down for cleaning, and the cleaning effect of the roller cleaning strip 6 is guaranteed;
and mounting plates 32 are provided at both ends of the inside of the cleaning tank 29, and a drum cleaning strip 6 is installed between the lower ends of the inner sides of the mounting plates 32.
The working principle is as follows: when the device is used, the device is installed at one corner of a machine room, a power supply is switched on, the stepping motor 14 is started to drive the third rotary disc 13 to rotate and drive the rotary rod 12 to rotate, and the second rotary disc 10 is driven to rotate by utilizing the matching of the rotary rod 12 and the rotary groove 9, so that the monitoring probe 7 is driven to rotate, the multi-angle monitoring is realized, the monitoring dead angle is reduced, and the practicability of the device is improved;
meanwhile, the fan 16 works to blow heat in the monitoring box 8 out of the monitoring box 8, and due to the existence of the filter screen 15, dust can be prevented from entering the monitoring box 8, so that a good working environment of electric appliances in the monitoring box 8 is ensured, and the service life of the device is prolonged;
when the surface of the monitoring probe 7 has more dust, the driving motor 1 can be started to drive the first rotary disc 2 to rotate, and further drive the first rotary rod 3 to rotate, so that the second rotary rod 4 rotates, the movable rod 5 can move up and down through the connecting rod 20 by the sliding of the sliding block 21 in the sliding groove 22, and further drive the roller cleaning strip 6 to wipe the surface of the monitoring probe 7, so that the dust accumulation is prevented, the normal use of the device is influenced, and after the roller cleaning strip 6 is used for a long time, the rotary threaded rod 30 can be rotated, so that the second limit block 33 leaves the second limit groove 34, and further the roller cleaning strip 6 can be taken down for cleaning, and the cleaning effect of the roller cleaning strip 6 is ensured;
when needs overhaul or change this device, can pull rod 24, make its first spring 23 of compression for first stopper 27 removes, removes the fixed to connecting block 25, and then can be convenient pull down, during the installation, utilizes the elasticity of first spring 23, firmly fixes connecting block 25, makes to overhaul or change more convenient.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a network is adjustable monitoring device for computer lab, includes monitor probe (7), control box (8) and fixed case (19), its characterized in that: the monitoring device is characterized in that fixing grooves (26) are arranged on two sides of the interior of the fixing box (19), connecting blocks (25) are arranged in the fixing grooves (26), mounting supports (18) are mounted between the bottoms of the connecting blocks (25), monitoring boxes (8) are mounted at the bottoms of the mounting supports (18), supporting rotating rods (11) are mounted on one sides of the interior bottoms of the monitoring boxes (8), monitoring probes (7) penetrating through the side walls of the monitoring boxes (8) are mounted at the top ends of the supporting rotating rods (11), driving motors (1) are mounted on one sides, far away from the mounting supports (18), of the top ends of the monitoring boxes (8), first rotating disks (2) are mounted at the output ends of the driving motors (1), first rotating rods (3) are mounted at the middle positions, far away from one sides of the driving motors (1), of the first rotating rods (2), and second rotating rods (4) are hinged to the lower ends of the, the lower extreme of second dwang (4) articulates there is movable rod (5), clean groove (29) are installed to the bottom of movable rod (5), and the both ends of clean groove (29) inside all are provided with mounting panel (32), and install the clean strip of cylinder (6) between the lower extreme of mounting panel (32) inboard.
2. The adjustable monitoring device for the network machine room according to claim 1, characterized in that: monitoring box (8) are close to upper end on movable rod (5) one side and are provided with spout (22), and the inside of spout (22) is provided with slider (21), connecting rod (20) are transversely installed to one side that monitoring box (8) were kept away from in slider (21), and one side and movable rod (5) one side upper end fixed connection that monitoring box (8) were kept away from in connecting rod (20).
3. The adjustable monitoring device for the network machine room according to claim 1, characterized in that: clean groove (29) both ends intermediate position department all is provided with rotatory threaded rod (30) that run through clean groove (29) lateral wall, and the inside second spring (31) that all twines in clean groove (29) on rotatory threaded rod (30) surface to second stopper (33) are all installed to the one end of rotatory threaded rod (30), mounting panel (32) are close to rotatory threaded rod (30) one side and all are provided with second stopper (33) matched with second spacing groove (34).
4. The adjustable monitoring device for the network machine room according to claim 1, characterized in that: the middle position department that central line one side was kept away from in fixed case (19) all transversely is provided with first spacing groove (28), and just first spacing groove (28) inside all transversely is provided with pull rod (24) that run through fixed case (19) lateral wall, first spring (23) have all been twined to first spacing groove (28) inside in the pull rod (24) outside, and pull rod (24) are close to the one end of connecting block (25) and all install first stopper (27).
5. The adjustable monitoring device for the network machine room according to claim 1, characterized in that: support the intermediate position department of bull stick (11) and install second carousel (10), and the inside of second carousel (10) evenly is provided with and rotates groove (9), monitor (7) are kept away from the lower extreme of cylinder cleaning strip (6) one side and are installed step motor (14), and the output of step motor (14) installs third carousel (13) to rotary rod (12) are installed to one side of third carousel (13).
6. The adjustable monitoring device for the network machine room according to claim 1, characterized in that: monitor box (8) keep away from the upper end of monitor (7) one side and install bin (17), and install bin (17) and keep away from one side of monitor box (8) and evenly be provided with the through-hole, fan (16) are installed to one side that monitor box (8) are close to install bin (17) inside, and vertical filter screen (15) of installing bin (17) fan (16) one side of inside.
