Abstract
The utility model provides a core mounting structure and joint sealing core, core mounting structure sets up the crossbeam that can go up and down, the joint sealing core be provided with hole or groove that the crossbeam matches pass through hole or groove and cover are in or block on the crossbeam, mounting structure still is provided with locking structure and fixes the joint sealing core on the crossbeam. The utility model discloses a core mounting structure is simple, reliable and simple to operate and can keep raising and lowering functions.
Description
Technical Field
The utility model relates to a core mounting structure especially relates to joint sealing equipment's core mounting structure.
Background
For case sealers, the carton is sealed with adhesive tape. And for the carton sealing at the top of the carton, the adhesive tape paper is wound on the machine core, and when the carton to be sealed passes below the carton to be sealed, the carton is sealed by the adhesive tape paper.
The core mounting structure is characterized in that the core is mounted on a core frame, the core frame is mounted on a fixing piece of a lifting mechanism, the fixing piece is divided into two sections, then the core is placed in a core connecting frame, the number of parts is large, the structure is complex, and the connection of the other two sections is not firm.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the technical problem that at first will solve provides a simple structure's core mounting structure. Therefore, the utility model adopts the following technical scheme:
the machine core mounting structure comprises a box sealing machine core and is characterized in that the machine core mounting structure is provided with a beam capable of lifting, the box sealing machine core is provided with a hole or a groove matched with the beam and is sleeved or clamped on the beam through the hole or the groove, and the mounting structure is further provided with a locking structure to fix the box sealing machine core on the beam.
Further, the hole or the groove is arranged on a side plate of the box sealing machine core.
Furthermore, a side plate on one side of the box sealing machine core is provided with the hole or the groove, and a side plate on the other side is provided with a yielding structure of the cross beam.
Furthermore, the locking structure adopts L-shaped connecting pieces and bolts, and one side of the L-shaped connecting pieces is connected with the cross beam through the bolts and the other side of the connecting pieces is connected with the movement through the bolts.
Further, the end of the beam is connected to a screw or a lead screw in the lifting mechanism, which is rotatable and liftable, to be lifted and lowered together.
Further, a movement connecting rod in the box sealing movement passes through the upper part of the cross beam.
The utility model discloses another technical problem that will solve provides a case sealer core, can install on the case sealer through simple structure. Therefore, the utility model adopts the following technical scheme:
a case sealer core is characterized in that the case sealer core is provided with a hole or a groove matched with a liftable cross beam of a case sealer and can be sleeved or clamped on the cross beam through the hole or the groove.
Further, the hole or the groove is arranged on a side plate of the box sealing machine core.
Furthermore, a side plate on one side of the box sealing machine core is provided with the hole or the groove, and a side plate on the other side is provided with a yielding structure of the cross beam.
Furthermore, a machine core connecting rod in the box sealing machine core is in an upwards arched bent shape.
Owing to adopt the technical scheme of the utility model, the utility model discloses a core mounting structure is simple, reliable and simple to operate and can keep raising and lowering functions.
Drawings

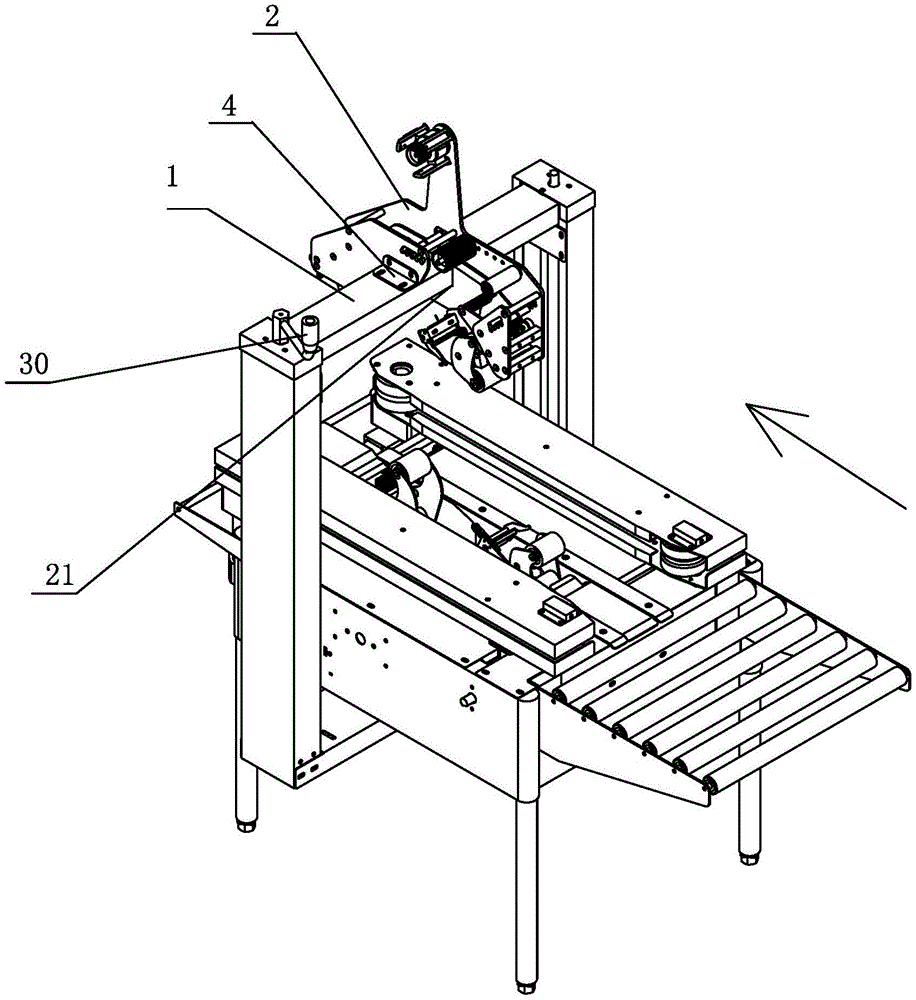

Fig. 1 is a schematic view of an embodiment of the box sealing machine of the present invention.
Fig. 2 is an exploded view of fig. 1.
Fig. 3 is an exploded view of the embodiment of the movement of the present invention.
Detailed Description
Reference is made to the accompanying drawings. The utility model provides a core mounting structure, including crossbeam 1 and joint sealing core 2 that can go up and down.
The beam 1 is arranged in the lifting mechanism, for example, the end part of the beam 1 is connected with a screw 31 which can rotate and lift in the lifting mechanism 3, and the connection mode can adopt a mode that the beam 1 is movably connected with the connection part of the screw or the screw 31. The screw or lead screw 31 is in turn threadedly connected to a fixed nut or nut 32. The screw or the lead screw 31 is rotated by operating the screw or the lead screw 31 with the handle 30, so that the screw or the lead screw 31 is lifted and lowered, and the beam 1 is also lifted and lowered together.
The box sealing machine core 2 is provided with a hole 21 matched with the cross beam 1, the cross beam 1 is sleeved with the box sealing machine core 2 through the hole 21, and the mounting structure is further provided with a locking structure to fix the box sealing machine core 2 on the cross beam 1.
The box sealing machine core 2 is provided with a side plate 22 and a side plate 23 which are respectively positioned at two sides of the machine core, the hole 21 is arranged on the side plate 22 of the box sealing machine core, and the side plate 23 is provided with a yielding structure 24 for the cross beam 1.
The movement connecting rod 25 in the box sealing movement is in an upward arched bent shape and passes through the upper part of the beam 1.
The locking structure adopts L-shaped connecting pieces 4 and bolts, one side of the L-shaped connecting pieces 4 is connected with the cross beam 1 through the bolts, and the other side of the connecting pieces is connected with the box sealing machine core 2 through the bolts.
During the installation, embolia crossbeam 1 with joint sealing core 2, aim at behind the bolt hole with L shape connecting piece for 4 bolted connections, accomplish the installation promptly, it is very convenient that joint sealing core 2 can go up and down along with lifting beam 1 the utility model discloses simple structure is convenient for operate screw rod and nut formula handle 30 for the elevating system, and it is more convenient to adjust the operation of crossbeam 1 height.
The above description is only for the specific embodiment of the present invention, but the structural features of the present invention are not limited thereto, and any person skilled in the art is in the field of the present invention, and all the changes or modifications are covered in the protection scope of the present invention.
Claims (10)
1. The machine core mounting structure comprises a box sealing machine core and is characterized in that the machine core mounting structure is provided with a beam capable of lifting, the box sealing machine core is provided with a hole or a groove matched with the beam and is sleeved or clamped on the beam through the hole or the groove, and the mounting structure is further provided with a locking structure to fix the box sealing machine core on the beam.
2. A movement mounting arrangement according to claim 1, wherein said apertures or slots are provided in side plates of the casing movement.
3. The machine core mounting structure according to claim 1, wherein the hole or the groove is provided on a side plate of the casing machine core, and the yielding structure of the cross beam is provided on the other side plate.
4. A movement mounting arrangement as claimed in claim 1 wherein the locking means comprises an L shaped connector and a bolt, the L shaped connector being bolted to the cross member on one side and to the movement on the other side.
5. A core mounting structure in accordance with claim 1, wherein the end of the beam is connected to a screw or a lead screw of a lifting mechanism which is rotatable and liftable and lowerable to be lifted and lowered together.
6. A movement mounting arrangement according to claim 1, in which the movement links in the casing movement pass over the cross-member.
7. A case sealer core is characterized in that the case sealer core is provided with a hole or a groove matched with a liftable cross beam of a case sealer and can be sleeved or clamped on the cross beam through the hole or the groove.
8. A case sealer movement according to claim 7, wherein said apertures or slots are provided in a side panel of the case sealer movement.
9. The case sealer core according to claim 7, wherein the hole or the groove is provided on a side plate of the case sealer core, and the abdicating structure of the beam is provided on the other side plate.
10. The case sealer core according to claim 7, wherein a core link in the case sealer core is upwardly arched in curvature.
