The utility model discloses a test-tube rack for blood test, including box, fixed plate and support column, the top fixedly connected with connecting plate of support column, the test tube hole has been seted up to the upper surface of connecting plate, the inside wall joint in test tube hole has the fixed bolster, the side of connecting plate is provided with the draw-in groove, the upper surface of fixed plate is provided with the joint groove. This test-tube rack for testing blood, during the use, the inside at the test tube hole can be placed to the blood test tube, the one end joint of blood test tube is in the inside in joint groove, prevent test tube round trip movement, the inside information of placing the patient that corresponds of draw-in groove, the stand can be used as the test tube that dries, gu fixed ring can protect the mouth of pipe of test tube, the test tube cabinet can be used for storing reserve test tube, the plugboard can be taken out from the inside in activity groove, the test tube of being convenient for take, the snap ring can fix reserve test tube and prevent round trip movement, fixed column and gasket can stabilising arrangement, the equipment is simple in structure, high.
Description
Technical Field
The utility model relates to a test-tube rack technical field specifically is a test-tube rack for testing blood.
Background
Clinical blood detects and to divide into general detection of blood, hemolytic anemia's laboratory detects, bone marrow cytology detects, blood grouping and cross matching test, can detect out the hematology of common blood disease and hold and demonstrate, need put into the test-tube rack with the blood test tube after blood collection is accomplished on, test the blood with the test-tube rack be one kind place the equipment of blood test tube, patient's information need be filled in to current test-tube rack when using, paste on the test-tube wall through the form with the small card, it is inconvenient that like this can cause the later stage to wash, and general test-tube rack does not possess the function of storing reserve test tube, consequently, propose a new optimization scheme to above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a to prior art not enough, the utility model provides a test-tube rack for testing blood has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a test-tube rack for blood test, includes box and fixed plate, the top fixedly connected with fixed plate of box, the top fixedly connected with support column of fixed plate, the top fixedly connected with connecting plate of support column, the test tube hole has been seted up to the upper surface of connecting plate, the inside wall joint in test tube hole has the fixed bolster, the side of connecting plate is provided with the draw-in groove, the upper surface of fixed plate is provided with the joint groove, the last fixed surface of box is connected with the stand, solid fixed ring has been cup jointed to the side of stand, the side of box is provided with the test tube cabinet, the inside wall of test tube cabinet is provided with the movable tank, the inside in movable tank is pegged graft and is had the plugboard, the upper surface of plugboard is provided with the snap ring, the bottom fixedly connected with.
Optionally, the number of the fixed columns is four, and the four fixed columns are arranged at the bottom of the box body in a rectangular array.
Optionally, the fixing pad is made of rubber, and the clamping groove is made of transparent material.
Optionally, the quantity of test tube cabinet is two, and two the test tube cabinet all sets up the side at the box.
Optionally, the number of the support columns is four, and the four support columns are arranged on the upper surface of the fixing plate in a rectangular array.
Optionally, the snap ring is made of rubber, and the fixing ring is made of rubber.
(III) advantageous effects
The utility model provides a test-tube rack for blood test possesses following beneficial effect:
this test-tube rack for testing blood, by the fixed plate, the support column, the connecting plate, the test tube hole, the draw-in groove, the fixed bolster, the test tube cabinet, a stand, gu fixed ring, the joint groove, the activity groove, the plugboard, the snap ring, the setting of fixed column and gasket, in use, the inside in test tube hole can be placed to the blood test tube, the one end joint of blood test tube is in the inside in joint groove, prevent test tube round trip movement, the inside information of placing the corresponding patient of draw-in groove, the stand can be used as drying the test tube, gu fixed ring can protect the mouth of pipe of test tube, the test tube cabinet can be used for storing reserve test tube, the inside in activity groove can be taken out to the plugboard, the test tube of being convenient for taking, the snap ring can fix reserve test tube and.
Drawings

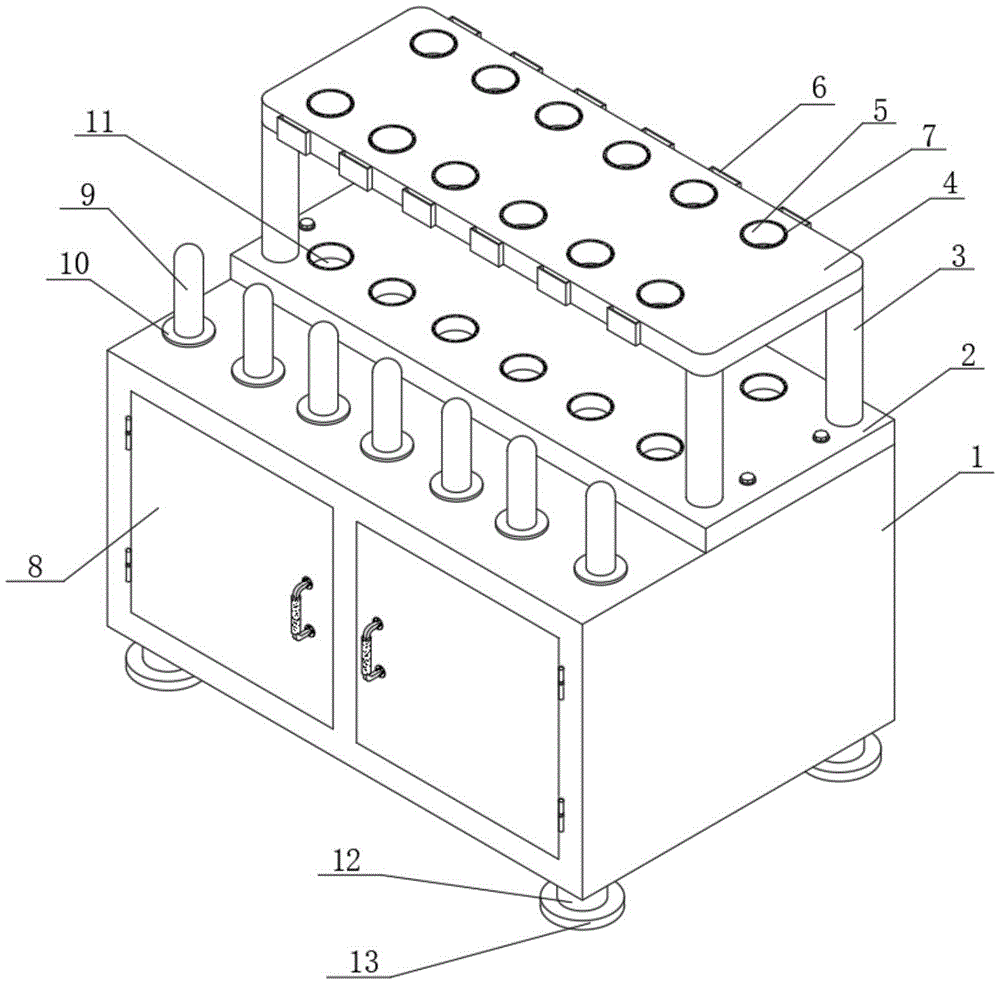

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic side view of the present invention;
fig. 3 is the internal structure diagram of the box of the present invention.
In the figure: 1. a box body; 2. a fixing plate; 3. a support pillar; 4. a connecting plate; 5. a test tube hole; 6. a card slot; 7. a fixing pad; 8. a test tube cabinet; 9. a column; 10. a fixing ring; 11. a clamping groove; 12. fixing a column; 13. a gasket; 14. a movable groove; 15. a plugboard; 16. a snap ring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: a test tube rack for blood test comprises a box body 1 and a fixed plate 2, the top of the box body 1 is fixedly connected with the fixed plate 2, the top of the fixed plate 2 is fixedly connected with a support column 3, the top of the support column 3 is fixedly connected with a connecting plate 4, the upper surface of the connecting plate 4 is provided with a test tube hole 5, the inner side wall of the test tube hole 5 is clamped with a fixed pad 7, the fixed pad 7 is made of rubber, the material of the clamping groove 6 is transparent, the side surface of the connecting plate 4 is provided with a clamping groove 6, the upper surface of the fixed plate 2 is provided with a clamping groove 11, the upper surface of the box body 1 is fixedly connected with a stand column 9, the side surface of the stand column 9 is sleeved with a fixed ring 10, the side surface of the box body 1 is provided with two test tube cabinets 8, the number of the test tube cabinets 8 is two, the two test tube cabinets 8, the upper surface of the plug board 15 is provided with a snap ring 16, the snap ring 16 is made of rubber, the fixing ring 10 is made of rubber, the bottom of the box body 1 is fixedly connected with four fixing columns 12, the four fixing columns 12 are arranged at the bottom of the box body 1 in a rectangular array mode, and the bottoms of the fixing columns 12 are fixedly connected with gaskets 13;
through fixed plate 2, support column 3, connecting plate 4, test tube hole 5, draw-in groove 6, fixed bolster 7, test tube cabinet 8, stand 9, gu fixed ring 10, joint groove 11, activity groove 14, plugboard 15, snap ring 16, the setting of fixed column 12 and gasket 13, in use, the inside at test tube hole 5 can be placed to the blood test tube, the one end joint of blood test tube is in the inside of joint groove 11, prevent test tube round trip movement, the inside information of placing the corresponding patient of draw-in groove 6, stand 9 can be used as the test tube that dries, gu fixed ring 10 can protect the mouth of pipe of test tube, test tube cabinet 8 can be used for storing reserve test tube, plugboard 15 can be taken out from activity groove 14's inside, be convenient for take, snap ring 16 can fix reserve test tube and prevent round trip movement, fixed column 12 and gasket 13 can the stabilising arrangement, this equipment simple structure, high.
As an optimal technical solution of the utility model: the insertion plate 15 can be extracted from the inside of the movable slot 14 to facilitate the taking of the test tube.
This test-tube rack application method for testing blood, during the use, the inside at test tube hole 5 can be placed to the blood test tube, the one end joint of blood test tube is in the inside of joint groove 11, prevent test tube round trip movement, the test tube can be protected to fixed bolster 7, the inside information of placing corresponding patient of draw-in groove 6, stand 9 can be used as the test tube that dries, the mouth of pipe of test tube can be protected to solid fixed ring 10, test tube cabinet 8 can be used for storing reserve test tube, peg board 15 can be taken out from the inside of activity groove 14, the test tube of being convenient for to take, snap ring 16 can fix reserve test tube and prevent round trip movement, fixed column 12 and gasket 13 can the stabilising arrangement, the equipment is simple in structure.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a test-tube rack for blood test, includes box (1) and fixed plate (2), its characterized in that: the test tube box is characterized in that a fixed plate (2) is fixedly connected to the top of the box body (1), a support column (3) is fixedly connected to the top of the fixed plate (2), a connecting plate (4) is fixedly connected to the top of the support column (3), a test tube hole (5) is formed in the upper surface of the connecting plate (4), a fixing pad (7) is clamped on the inner side wall of the test tube hole (5), a clamping groove (6) is formed in the side surface of the connecting plate (4), a clamping groove (11) is formed in the upper surface of the fixed plate (2), a stand column (9) is fixedly connected to the upper surface of the box body (1), a fixing ring (10) is sleeved on the side surface of the stand column (9), a test tube cabinet (8) is arranged on the side surface of the box body (1), a movable groove (14) is formed in the inner, the upper surface of plugboard (15) is provided with snap ring (16), the bottom fixedly connected with fixed column (12) of box (1), the bottom fixedly connected with gasket (13) of fixed column (12).
2. The test tube rack for blood test according to claim 1, characterized in that: the number of the fixed columns (12) is four, and the four fixed columns (12) are arranged at the bottom of the box body (1) in a rectangular array mode.
3. The test tube rack for blood test according to claim 1, characterized in that: the fixing pad (7) is made of rubber, and the clamping groove (6) is made of transparent material.
4. The test tube rack for blood test according to claim 1, characterized in that: the number of the test tube cabinets (8) is two, and the test tube cabinets (8) are arranged on the side face of the box body (1).
5. The test tube rack for blood test according to claim 1, characterized in that: the number of the supporting columns (3) is four, and the four supporting columns (3) are arranged on the upper surface of the fixing plate (2) in a rectangular array mode.
6. The test tube rack for blood test according to claim 1, characterized in that: the material of snap ring (16) is the rubber material, the material of solid fixed ring (10) is the rubber material.
