Abstract
The utility model relates to a sewage treatment technical field discloses a be applied to sewage treatment plant that water environment was administered, including a cask that is provided with water inlet and delivery port, one side that is close to the water inlet in the cask is provided with a filter screen, and the cask is located the bottom intercommunication that the filter screen is close to one side of water inlet has the collecting vessel, one side that is close to the delivery port in the cask is provided with the water purification subassembly, and it has certain purification capacity to sewage, has with low costs, effectual and the advantage of convenience.
Description
Technical Field
The utility model relates to a sewage treatment technical field, in particular to be applied to sewage treatment plant that water environment was administered.
Background
Sewage treatment refers to a process of purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
The sewage treatment method is characterized in that a plurality of sewage treatment methods are provided, the existing sewage treatment work is generally carried out by a sewage treatment plant, the sewage discharge is visible at any place, the sewage treatment plant generally mainly treats the sewage discharged by a large-scale factory, the pollution of a general small-scale factory is not serious, the production drainage can meet the national discharge standard, but the discharge of the sewage is not polluted, the sewage is generally directly discharged due to the cost, and for the slightly polluted discharge source of the small-scale factory, a sewage treatment device with low cost, good effect and convenience is provided for treating the sewage discharged by the sewage treatment plant, so a new technical scheme is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a be applied to sewage treatment plant that water environment was administered, it has certain purification capacity to sewage, has with low costs, effectual and the advantage of convenience.
The above technical purpose of the present invention can be achieved by the following technical solutions:
the utility model provides a be applied to sewage treatment plant that water environment was administered, includes a cask that is provided with water inlet and delivery port, the one side that is close to the water inlet in the cask is provided with a filter screen, and handles the bottom intercommunication that the cask is located the one side that the filter screen is close to the water inlet and have the collecting vessel, the one side that is close to the delivery port in the cask is provided with the water purification subassembly.
Adopt above-mentioned structure, sewage gets into the treatment tank from the water inlet, because the setting of filter screen, great filth in the sewage can be filtered by the filter screen, and because the setting of bottom collecting vessel, the filth can fall to in the collecting vessel after piling up, thereby accomplish the filtration of impurity in the sewage, when the water purification subassembly is flowed through to sewage, the sewage of getting rid of the filth is further purified, and discharge from the delivery port of treatment tank, thereby make sewage obtain purifying, can satisfy the demand of minifactory's blowdown, and has advantages with low costs, effectual and convenience.
More preferably: the water purification subassembly is including setting up box in handling the bucket, setting up medical stone layer, fine sand layer and activated carbon layer in the box.
Adopt above-mentioned structure, the medical stone layer has better filtration adsorption efficiency to large-scale impurity, and the fine sand layer is then the water purification process of imitation nature, further refines filtration treatment to sewage, and the activated carbon layer can adsorb the tiny material in the sewage to make sewage obtain purification treatment, set up the filter layer in the box, and place in the processing bucket, can carry out purification treatment to the sewage in the box of flowing through.
More preferably: the horizontal axis that sets up in the processing bucket just is columniform cavity with processing bucket axis is perpendicular, the cavity is located the top of collecting vessel, and the filter screen is the arc setting along global of cavity, a rotating shaft of cavity internal rotation connection, be provided with the scraper blade around the perisporium interval in the rotating shaft, when the scraper blade rotates, seted up a plurality of filtration pores on filter screen butt and the scraper blade, the processing bucket still is provided with the driving piece of ordering about axis of rotation pivoted outward.
Adopt above-mentioned structure, the driving piece orders about the axis of rotation and rotates, thereby it rotates to drive the scraper blade, because the setting of cavity, the scraper blade is when the cavity internal rotation, can carry out the switching to the import of cavity, and drive the impurity entering cavity of aquatic, and because scraper blade and filter screen butt, can be along with the rotation of scraper blade and the displacement by the filterable impurity of filter screen, when the filter rotates when collecting the top that leads to, impurity is because the effect of gravity, fall to the collecting vessel in, the completion is collected, and because the setting of filtration pore on the scraper blade, and do not influence the passing through of rivers.
More preferably: the driving piece is a motor fixed through a bolt, and an output shaft of the motor is coaxially connected with the rotating shaft.
By adopting the structure, the motor is fixed through the bolt, the structure is simple and stable, the motor is externally connected with a power supply through a circuit, the motor is started, and the motor can drive the rotating shaft to rotate so as to drive the scraper to rotate.
More preferably: the output shaft of the motor is provided with a polygonal inserting block, and the rotating shaft is provided with an inserting groove for inserting the inserting block.
By adopting the structure, through the matching of the insertion block and the insertion groove, the output shaft of the motor is more convenient and faster to be connected with the rotating shaft, so that the motor is more convenient and faster to install and disassemble.
More preferably: the bottom of the collecting barrel is provided with an opening and is provided with a sealing cover for closing the opening.
Adopt above-mentioned structure, the bottom open-ended of collecting vessel sets up, collects the filth when more when the collecting vessel, stops the emission of sewage, opens sealed lid, can clear up the filth in the collecting vessel, closes sealed lid again after the clearance is accomplished, can continue to carry out purification treatment to sewage.
More preferably: the top that the treatment barrel lies in between filter screen and the water purification subassembly sets up a medicine storage barrel, and the bottom of medicine storage barrel is through a pipeline and treatment barrel intercommunication, and is provided with a valve body on the pipeline.
Adopt above-mentioned structure, the setting of medicine storage barrel can be in medicine storage barrel mingle the liquid medicine that the water purification was used, and when sewage flowed through, the control valve body made liquid medicine flow in the processing bucket from the pipeline according to the degree that the velocity of water regulating valve body opened to carry out chemical purification to sewage.
More preferably: the treatment barrel is internally coaxially and rotatably connected with a propeller, and the propeller is positioned below the medicine storage barrel.
Adopt above-mentioned structure, because the flow of sewage can order about the screw and rotate, and the rotation of screw can drive rivers and form the indiscriminate stream of circumference to make sewage mix, make the liquid medicine get into behind the treatment tank, can carry out abundant reaction with sewage.
To sum up, the utility model discloses following beneficial effect has:
1. the sewage enters the treatment barrel from the water inlet, larger dirt in the sewage can be filtered by the filter screen due to the arrangement of the filter screen, and the accumulated dirt can fall into the collection barrel due to the arrangement of the collection barrel at the bottom, so that the filtering of impurities in the sewage is completed;
2. the setting of storage medicine bucket can be in storing up medicine bucket and mingle the liquid medicine that the water purification was used, and when sewage flowed through, control valve body according to the degree that the velocity of water regulating valve body opened, makes liquid medicine flow in from the pipeline and handles the bucket to carry out chemical purification to sewage.
Drawings

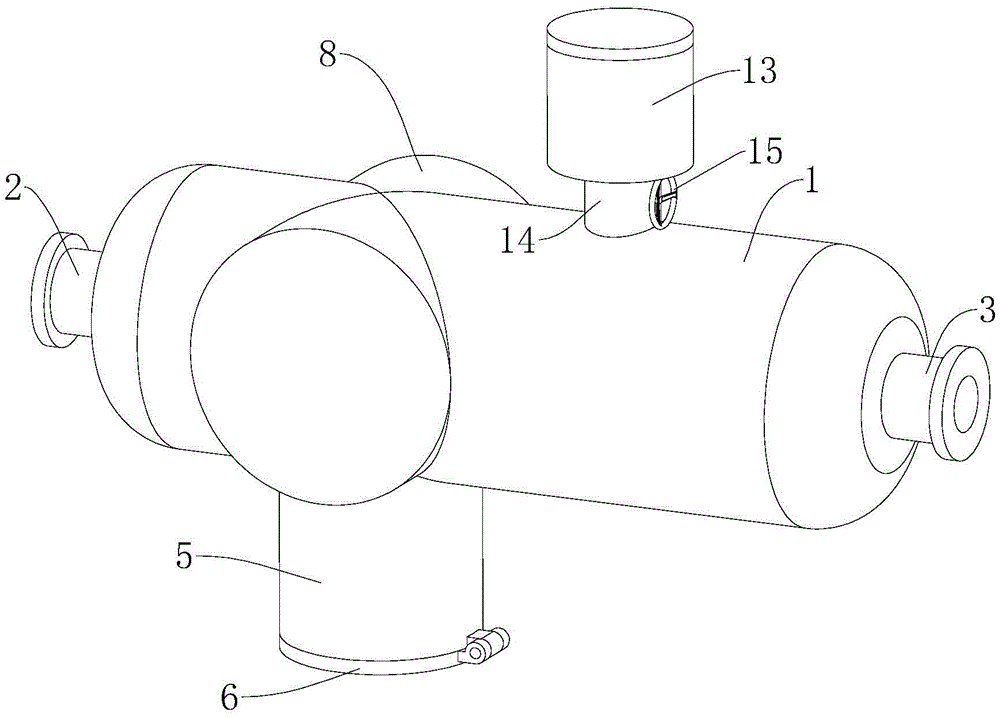

FIG. 1 is a schematic view of the overall structure of the present embodiment;
FIG. 2 is a half sectional view of the present embodiment;
fig. 3 is a schematic view of the structure of the driving member of fig. 1.
In the figure, 1, a treatment tank; 2. a water inlet; 3. a water outlet; 4. a filter screen; 5. a collection barrel; 6. a sealing cover; 7. a water purification assembly; 71. a box body; 72. water permeable holes; 73. a Maifanitum layer; 74. a fine sand layer; 75. an activated carbon layer; 8. a cavity; 9. a rotating shaft; 10. a squeegee; 11. a filtration pore; 12. a drive member; 121. a motor; 122. an insertion block; 123. connecting blocks; 124. inserting grooves; 13. a medicine storage barrel; 14. a pipeline; 15. a valve body; 16. mounting a rod; 17. a propeller.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
A sewage treatment device applied to water environment treatment is mainly applied to light pollution sewage treatment of small-sized plants and mainly comprises a transversely arranged treatment barrel 1, wherein a water inlet 2 is formed in the left side of the treatment barrel 1, the water inlet 2 is connected with a pipeline 14 for discharging sewage, a water outlet 3 is formed in the right side of the treatment barrel 1, and the water outlet 3 is connected with a drainage pipeline 14.
Wherein, the one side that is close to water inlet 2 in the processing barrel 1 is provided with a filter screen 4, and the bottom intercommunication that processing barrel 1 is located one side that filter screen 4 is close to water inlet 2 has a collecting vessel 5, and the opening has been seted up to the bottom of collecting vessel 5 to be furnished with and close open-ended sealed lid 6, water purification subassembly 7 is installed to one side that is close to delivery port 3 in the processing barrel 1.
The water purification component 7 mainly comprises a box body 71 fixedly arranged in the processing barrel 1, a plurality of water permeable holes 72 are arranged on the box body 71, and a medical stone layer 73, a fine sand layer 74 and an activated carbon layer 75 are sequentially arranged in the box body 71 from left to right.
Horizontal setting a columniform cavity 8 in the treatment barrel 1, the axis of cavity 8 is perpendicular with treatment barrel 1 axis, and cavity 8 is located the top of collecting vessel 5, it is fixed that filter screen 4 is the arc along cavity 8 global, a rotation axis 9 is connected in the cavity 8 to coaxial rotation, be provided with five scraper blades 10 around the perisporium interval in the rotation axis 9, a plurality of filtration pores 11 have been seted up on the scraper blade 10, scraper blade 10 when rotating with filter screen 4 butt, treatment barrel 1 still is provided with outward and orders about rotation axis 9 pivoted driving piece 12 (refer to figure 3).
As shown in fig. 3, the driving member 12 is a motor 121, the motor 121 is fixed outside the processing barrel 1 by bolts and is externally connected to a power supply through a circuit, a square insertion block 122 is fixed on an output shaft of the motor 121, an end portion of the rotating shaft 9 extends out of the processing barrel 1 and an extending end of the rotating shaft 9 is fixed with a connecting block 123, an insertion groove 124 for insertion of the insertion block 122 is formed in the connecting block 123, and the output shaft of the motor 121 is coaxially connected with the rotating shaft 9 through the matching of the insertion block 122 and the insertion groove 124.
As shown in fig. 2, in addition, in order to increase the water purifying capacity of the sewage treatment apparatus, a drug storage barrel 13 is vertically installed above the treatment barrel 1 between the filter screen 4 and the box body 71, the bottom of the drug storage barrel 13 is communicated with the treatment barrel 1 through a pipeline 14, and a valve body 15 for controlling the flow rate is installed on the pipeline 14. A mounting rod 16 is fixed on the inner wall of the treatment barrel 1, a rotating shaft is rotatably connected on the mounting rod 16, a propeller 17 is fixed at the end part of the rotating shaft, and the propeller 17 is positioned below the medicine storage barrel 13. When the medicine storage barrel 13 discharges medicine, the propeller 17 is pushed by water flow to rotate, and the medicine liquid and the water are mixed.
The implementation principle of the embodiment is as follows: sewage enters the treatment barrel 1 from the water inlet 2, the motor 121 is started, the motor 121 drives the scraper 10 to rotate, the scraper 10 rotates to drive dirt in the sewage to enter the cavity 8, larger dirt in the sewage can be filtered by the filter screen 4 due to the arrangement of the filter screen 4, at the moment, the scraper 10 continues to rotate to drive the dirt to rotate to enable the dirt to fall into the collecting barrel 5 at the bottom, and therefore filtering of impurities in the sewage is completed; after the sewage passes through the filter screen 4, the liquid medicine is dripped into the medicine storage barrel 13 and is mixed with the sewage through the rotation of the propeller 17 to carry out chemical water purification; when the sewage flows through the medical stone layer 73, the fine sand layer 74 and the activated carbon layer 75, the sewage is further purified and discharged from the water outlet 3 of the treatment barrel 1, and the treatment of the sewage is completed.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all the embodiments are protected by patent laws within the scope of the present invention.
Claims (8)
1. The utility model provides a be applied to sewage treatment plant that water environment was administered, includes a pail (1) that is provided with water inlet (2) and delivery port (3), characterized by: one side that is close to water inlet (2) in processing barrel (1) is provided with a filter screen (4), and processing barrel (1) is located the bottom intercommunication that filter screen (4) are close to one side of water inlet (2) has collecting vessel (5), one side that is close to delivery port (3) in processing barrel (1) is provided with water purification subassembly (7).
2. The sewage treatment device applied to water environmental treatment according to claim 1, wherein: the water purification component (7) comprises a box body (71) arranged in the treatment barrel (1), a medical stone layer (73) arranged in the box body (71), a fine sand layer (74) and an activated carbon layer (75).
3. The sewage treatment device applied to water environmental treatment according to claim 1, wherein: handle bucket (1) interior level and set up an axis and handle bucket (1) axis and perpendicular and be columniform cavity (8), cavity (8) are located the top of collecting vessel (5), and filter screen (4) are the arc setting along global of cavity (8), a rotation axis (9) of cavity (8) internal rotation connection, be provided with scraper blade (10) around the perisporium interval on rotation axis (9), when scraper blade (10) rotate with filter screen (4) butt and scraper blade (10) on seted up a plurality of filtration holes (11), handle bucket (1) still be provided with outward and order about rotation axis (9) pivoted driving piece (12).
4. The sewage treatment device applied to water environmental treatment according to claim 3, wherein: the driving piece (12) is provided with a motor (121) fixed through a bolt, and an output shaft of the motor (121) is coaxially connected with the rotating shaft (9).
5. The sewage treatment device applied to water environmental management according to claim 4, wherein: the output shaft of the motor (121) is provided with a polygonal inserting block (122), and the rotating shaft (9) is provided with an inserting groove (124) for inserting the inserting block (122).
6. The sewage treatment device applied to water environmental treatment according to claim 1, wherein: the bottom of the collecting barrel (5) is provided with an opening and is provided with a sealing cover (6) for closing the opening.
7. The sewage treatment device applied to water environmental treatment according to claim 1, wherein: the upper part of the treatment barrel (1) between the filter screen (4) and the water purification component (7) is provided with a medicine storage barrel (13), the bottom of the medicine storage barrel (13) is communicated with the treatment barrel (1) through a pipeline (14), and the pipeline (14) is provided with a valve body (15).
8. The sewage treatment device applied to water environmental management according to claim 6, wherein: a propeller (17) is coaxially and rotatably connected in the treatment barrel (1), and the propeller (17) is positioned below the medicine storage barrel (13).
