CN210898240U

CN210898240U - Portable multifunctional support

Info

Publication number: CN210898240U
Application number: CN201922142647.9U
Authority: CN
Inventors: 杨栋梁; 王立新; 刑军; 陈磊; 杨震强; 于波; 游强; 王实; 王舒荷; 刘占坡; 张柯; 张一博; 杨宝杰; 贺军甫; 薛创; 方衍; 蒙喆; 冯杰; 杨占忠; 冯欣
Original assignee: Xi'an Xinshuo Electric Power Technology Co ltd
Current assignee: Xi'an Xinshuo Electric Power Technology Co ltd
Priority date: 2019-12-04
Filing date: 2019-12-04
Publication date: 2020-06-30
Anticipated expiration: 2029-12-04

Abstract

The utility model discloses a portable multifunctional support, which comprises a telescopic device, wherein an adjusting button is arranged at the inner side of the telescopic device, a first support rod is arranged at the outer side of the upper end of the telescopic device, a safety protection fixed mark is arranged on the surface of one end of the first support rod, one end of the first support rod is connected with a second support rod through a quick-insertion self-locking device, and a limiting mark is arranged at the outer side of the first support rod; through being provided with the second bracing piece, first bracing piece, spacing sign, adjusting screw, the spacing ring piece of second, self-tightening rope belt and the spacing fastener of second, be convenient for avoid when using telescoping device, the width of telescoping device upper end is not convenient for adjust, lead to can not be fine paste with outside cylinder and lean on to place, through self-tightening rope belt, it is fixed to be convenient for to twine with outside cylinder, through being provided with the couple, be convenient for avoid the telescoping device function singleness, be not convenient for to the drinking cup of hand-carrying, the maintenance tool is hung and is put and deposit.

Description

Portable multifunctional support

Technical Field

The utility model belongs to the technical field of the support, concretely relates to portable multifunctional support.

Background

Most of the existing distribution boxes are hung below transformers in a hanging mode, a common insulating ladder is difficult to overhaul, the on-site overhaul requirement cannot be met, the existing overhaul platform is large in size, inconvenient to carry and complex to operate, 2-3 people are generally needed to operate, labor is wasted, and therefore a portable multifunctional support is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a portable multifunctional support to propose current extension ladder when maintaining the maintenance to the block terminal among the solution above-mentioned background art, it is more difficult to overhaul with ordinary insulating ladder, can not satisfy the on-the-spot maintenance demand by way, and current maintenance platform, bulky, inconvenient carrying, the operation is complicated, generally needs 2-3 people to operate, extravagant labour's problem.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a portable multifunctional support, includes the telescoping device, the telescoping device inboard is provided with adjustment button, first bracing piece is installed in the telescoping device upper end outside, there is the fixed sign of safety protection on first bracing piece one end surface, the one end of first bracing piece is connected with the second bracing piece through inserting self-lock device soon, the outside of first bracing piece is equipped with spacing sign, second bracing piece one end outside cover is equipped with the spacing ring piece of second, second bracing piece one end outside is provided with from the tightrope area, the spacing fastener of second spacing ring piece one side surface is fixed with the spacing fastener of second, the inboard threaded connection of the spacing ring piece of second has adjusting screw, adjusting screw is inconsistent with second bracing piece outside spacing groove, the telescoping device top is located first bracing piece front end and is provided with the couple and deposits the mechanism.

Preferably, the top end of the telescopic device is provided with an installation block, and a hook is arranged below the front side of the installation block.

Preferably, the number of the hooks is three.

Preferably, the number of the second limiting ring blocks and the number of the second limiting clamping pieces are two, and anti-slip pads are arranged on the inner side walls of the second limiting clamping pieces.

Preferably, insert self-lock device soon includes fixture block and draw-in groove, the spread groove has been seted up to first bracing piece one end, the spread groove inside wall is fixed with the fixture block, second bracing piece one end is provided with the connector, the draw-in groove has been seted up to the connector upper surface, first bracing piece cooperates through fixture block and draw-in groove with the second bracing piece and is connected.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) through being provided with the second bracing piece, first bracing piece, spacing sign, adjusting screw, spacing ring piece of second and the spacing fastener of second, be convenient for avoid when using telescoping device, the width of telescoping device upper end is not convenient for adjust, lead to can not be fine paste with outside cylinder and lean on and place, the second bracing piece outside is provided with from the tightrope area, improve the stability of placing the telescoping device, save the labour, the device passes through the telescoping device, be convenient for receive and release, save space, the convenience that the device carried has been improved

(2) Through being provided with fast inserting self-lock device, make first bracing piece and second bracing piece high-speed joint, convenient and fast to be equipped with spacing sign warning, increase operation safety.

(3) Through being provided with the couple, be convenient for avoid the telescoping device function singleness, be not convenient for hang to the drinking cup of hand-carrying, maintenance tool and put and deposit, be convenient for improve the practicality of device.

Drawings

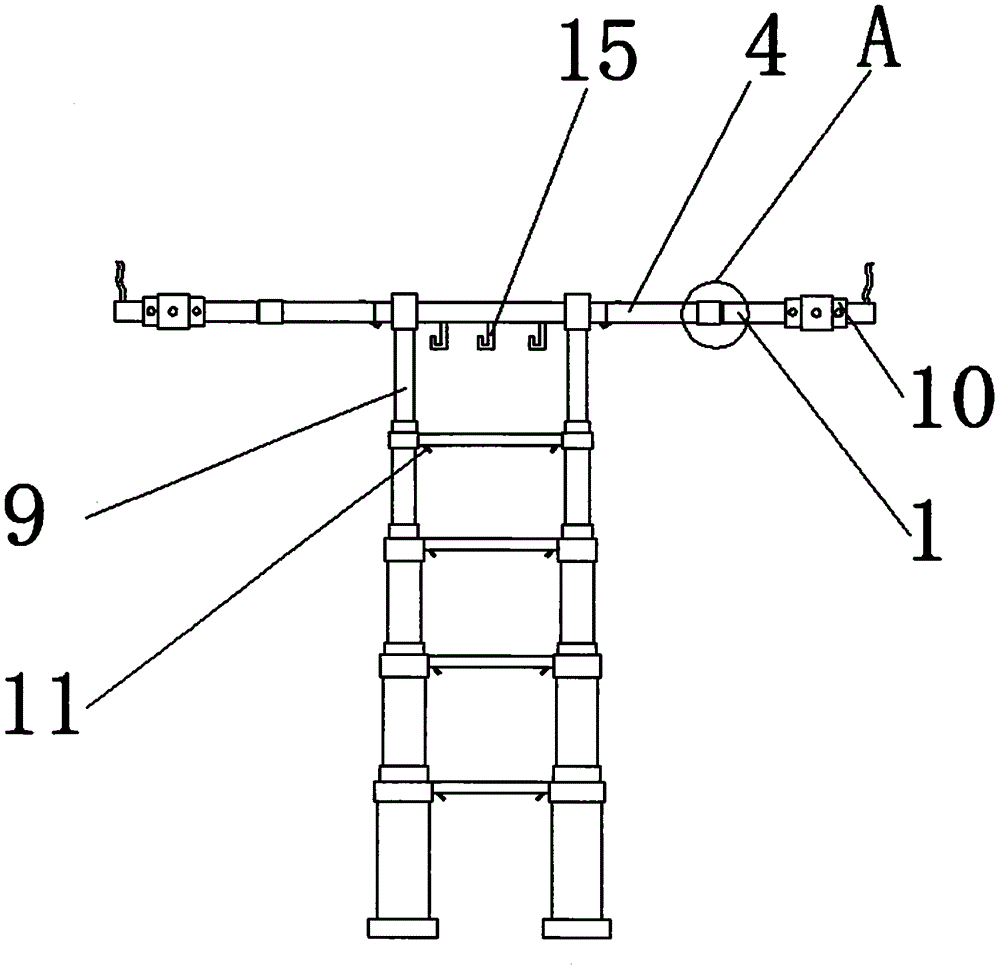

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of a second limit fastener of the present invention;

fig. 3 is a schematic diagram of the explosion structure at a in fig. 1 according to the present invention;

FIG. 4 is a schematic view of the second limiting clip ring of the present invention;

in the figure: 1. a second support bar; 3. a limit identifier; 4. a first support bar; 9. a telescoping device; 10. a second limit ring block; 11. an adjustment button; 13. adjusting the screw rod; 14. a second limit fastener; 15. and (4) hanging hooks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a portable multifunctional support comprises a telescopic device 9, an adjusting button 11 is arranged on the inner side of the telescopic device 9, a first supporting rod 4 is arranged on the outer side of the upper end of the telescopic device 9, a safety protection fixing mark is arranged on the surface of one end of the first supporting rod 4, one end of the first supporting rod 4 is connected with a second supporting rod 1 through a quick-insertion self-locking device, a limiting mark 3 is arranged on the outer side of the first supporting rod 4 to facilitate the connection of the first supporting rod 4 and the second supporting rod 1, a second limiting ring block 10 is sleeved on the outer side of one end of the second supporting rod 1, a self-tightening rope belt is arranged on the outer side of the second supporting rod 1 to facilitate the winding and fixing of an external telegraph pole, a second limiting clamping piece 14 is fixed on the surface of one side of the second limiting ring block 10 to facilitate the leaning and placing of the device and the telegraph pole, an adjusting screw 13 is connected with the inner side, the position of the second limiting clamping piece 14 is convenient to adjust, and a hook storage mechanism is arranged at the top end of the telescopic device 9 and located at the front end of the first support rod 4.

In this embodiment, preferably, the top end of the telescopic device 9 is provided with an installation block, and a hook 15 is arranged below the front side of the installation block, so that the cup and the maintenance tool can be conveniently hung and stored.

In this embodiment, preferably, three hooks 15 are provided, so as to facilitate a better hanging effect.

In this embodiment, preferably, the number of the second limiting ring blocks 10 and the number of the second limiting clamping pieces 14 are two, and the inner side wall of each second limiting clamping piece 14 is provided with a non-slip mat, so that a better anti-slip effect is facilitated.

In this embodiment, preferably, insert self-lock device soon and include fixture block and draw-in groove, and the spread groove has been seted up to 4 one ends of first bracing piece, and the spread groove inside wall is fixed with the fixture block, and 1 one end of second bracing piece is provided with the connector, and the draw-in groove has been seted up to the connector upper surface, and first bracing piece 4 cooperates through fixture block and draw-in groove with second bracing piece 1 to be connected, the high-speed joint of being convenient for, and convenient accomodating is carried out after not.

The utility model discloses a theory of operation and use flow: when the utility model is used, the distance between the two second limit ring blocks 10 at one end of the second support rod 1 can be adjusted by rotating the adjusting screw 13 according to the position of the external telegraph pole, then the expansion device 9 is extended by pushing the adjusting button 11, so that the expansion device 9 is obliquely placed, and the second limit clamping pieces 14 at the two ends of the second support rod 1 are clamped and fixed at the outer side of the external telegraph pole, so that the expansion device 9 can be conveniently supported by the second support rod 1 and the first support rod 4 when being placed, and the second limit clamping pieces 14 can limit the left-right sliding between the second support rod 1 and the external telegraph pole when being placed, so that the expansion device 9 can be conveniently placed, and the second support rod 1 can be fixed on the telegraph pole by the self-tightening rope belt outside the second support rod 1, so as to increase the stability of the expansion device 9, save labor force, and fold the device when not in use, further, a user can store objects such as a cup and the like which are carried about through the hook 15, and the use is convenient.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a portable multifunctional support, includes telescoping device (9), telescoping device (9) inboard is provided with adjustment button (11), its characterized in that: a first supporting rod (4) is arranged on the outer side of the upper end of the telescopic device (9), a safety protection fixed mark is arranged on the surface of one end of the first supporting rod (4), one end of the first supporting rod (4) is connected with a second supporting rod (1) through a quick-insertion self-locking device, a limiting mark (3) is arranged on the outer side of the first supporting rod (4), a second limiting ring block (10) is sleeved on the outer side of one end of the second supporting rod (1), a self-tightening rope belt is arranged on the outer side of one end of the second supporting rod (1), a second limiting clamping piece (14) is fixed on the surface of one side of the second limiting ring block (10), the inner side of the second limit ring block (10) is in threaded connection with an adjusting screw rod (13), the adjusting screw (13) is abutted against the outer side limiting groove of the second supporting rod (1), the top end of the telescopic device (9) is provided with a hook storage mechanism at the front end of the first support rod (4).

2. A portable multi-function stand according to claim 1, wherein: the top end of the telescopic device (9) is provided with an installation block, and a hook (15) is arranged below the front side of the installation block.

3. A portable multi-function stand according to claim 2, wherein: the number of the hooks (15) is three.

4. A portable multi-function stand according to claim 1, wherein: the number of the second limiting ring blocks (10) and the number of the second limiting clamping pieces (14) are two, and anti-skid pads are arranged on the inner side walls of the second limiting clamping pieces (14).

5. A portable multi-function stand according to claim 1, wherein: insert self-lock device soon includes fixture block and draw-in groove, the spread groove has been seted up to first bracing piece (4) one end, the spread groove inside wall is fixed with the fixture block, second bracing piece (1) one end is provided with the connector, the draw-in groove has been seted up to the connector upper surface, first bracing piece (4) cooperate with second bracing piece (1) to be connected through fixture block and draw-in groove.
